Biological Safety Level (BSL) is a biocontainment designation system with requirements intended to protect personnel from potentially harmful pathogenic exposure in a research or manufacturing environment.
What are the differences among the BSL designations?
The Centers for Disease Control (CDC) specifies four broad Biological Safety Levels, each of which corresponds to a level of exposure danger and a set of design features and operational protocol. Each increasing level builds on the previous level(s):
BSL-1: Required in the presence of microbes that do not consistently cause disease, such as E. coli. Work can be done on an open bench, and minimal Personnel Protective Equipment (PPE) is required. Doors separate the BSL-1 lab from the rest of the facility.
BSL-2: Required in the presence of moderately hazardous microbes, such as Staphylococcus aureus. The lab is restricted behind self-closing doors. Personnel wear minimal PPE plus face shields; many operations are performed within biological safety cabinets (BSCs – see explanation below). Negative-pressure containment is generally advised, and exhausted air may require filtration.
BSL-3: Required in the presence of potentially lethal, often “exotic” airborne microbes, such as tuberculosis. The lab is restricted behind two sets of doors. Workers may require immunizations, and PPE plus respirators are advised. All work is performed within a BSC. Filtered room air must be exhausted.
BSL-4: Required in the presence of high risk of airborne transmission; infections are frequently fatal, as from Ebola. Decontaminate all material before exiting lab; shower after exiting. Full body, positive-pressure cleanroom suit. All work performed in Class III BSC. Lab is in a separate building.
All BSL facilities require that personnel follow “standard microbial practices”: no food or drink; no cosmetics; hands and gloves are frequently washed and surfaces routinely decontaminated. Sterilization and entry/exit protocol vary by BSL level.
How do BSL designations correlate to cleanroom levels (e.g, ISO 5 or ISO 6)?
There is no necessary correlation between a BSL and an ISO cleanliness level since they correspond to two different sets of concerns: protection of personnel and the environment from biological exposure vs. protection of a sensitive sample from contaminant exposure.
Any BSL environment can require any ISO cleanliness standard, depending on the sensitivity of the process to airborne particulates (including aerosols and germs). BSL applications that involve storage or handling of packaged pathogens may tolerate a relatively “dirty” environment, such as ISO 8, whereas processing unpackaged pathogens susceptible to contamination by airborne particles might require an ISO 5 environment.
As a practical concern, the most challenging applications involve hazardous microbes (BSL-2 or higher) that are also highly sensitive to particulate contamination (requiring ISO 5 or cleaner). These situations require a high volume of micro-filtered air passing through the enclosure to guarantee cleanliness, and therefore also a high volume of exhausted air to ensure negative-pressure containment. Such systems typically incorporate high-capacity exhaust fans and ductwork, often with system redundancy, and sophisticated airflow monitoring systems.
Can Terra Provide a BSL Cleanroom?
Yes, but it depends on your specific application. Modular cleanrooms are rarely appropriate for BSL-3 and BSL-4 applications, which typically require sophisticated facility integration involving air handling systems and environmental monitoring equipment.
Terra provides BSL-2 modular cleanrooms, but how a given BSL specification affects cleanroom design and construction is not always clear. Some operations that fall under BSL-2 may require single-pass air that is filtered before being exhausted to the outside; others may allow recirculation of air and release of unfiltered exhaust air.
For this reason, Terra requests that any BSL application receive careful review by the appropriate process validation expert, who can translate the process and BSL requirement into specific environmental design specifications involving ISO cleanliness level, pressure levels, air change rates, air circulation, and exhaust air treatment, among other factors.
Once these issues are clear, Terra can propose the most economical way to address your BSL application.
Terra's modular designs allow versatile configurations using standard components, whether you need a small equipment enclosure or a multi-suite processing facility
Versatile plug-and-play Power Distribution Modules allow addition of ceiling fan/filter units and lights to meet any cleanliness requirement or to upgrade ISO levels or lighting levels after installation
Modular frame and panel designs, in several application-specific materials, adapt to any floor plan requirement
Automated fan controls simplify pressure balancing, Building Management System (BMS) integration, and certification of large, multi-suite facilities
Stand-alone A/C modules or integration with existing air handling system
Consultation services available to meet industry-specific regulations, such as USP 797/800 compounding requirements
Terra’s full engineering services adapt designs to accommodate unique equipment or facility integration challenges
Call or submit a QuickQuote Form for assistance with a modular cleanroom tailor-made to your application!
High-Throughput Cleanroom Manufacturing
Over the past 5 years, Terra has manufactured nearly 1,500 UL-approved cleanrooms at industry-leading build times. Terra’s versatile modular cleanroom frame and panel designs adapt to any floor plan requirement. The UL-rated and scalable plug-and-play power distribution system further simplifies installment of FFU's and lights to cleanrooms of any size.
BioSafe Cleanrooms: No Pre-Assembly
How can Terra offer industry-leading lead times and pricing? Our advanced cleanroom design doesn’t require factory pre-assembly; each components fits together perfectly, ensuring seamless on-site installation
BioSafe Windows
Double-pane, frameless windows mount flush with no external hardware, for smooth easy to clean surface.
Explosion-Proof HEPA Fan and Filter Unit

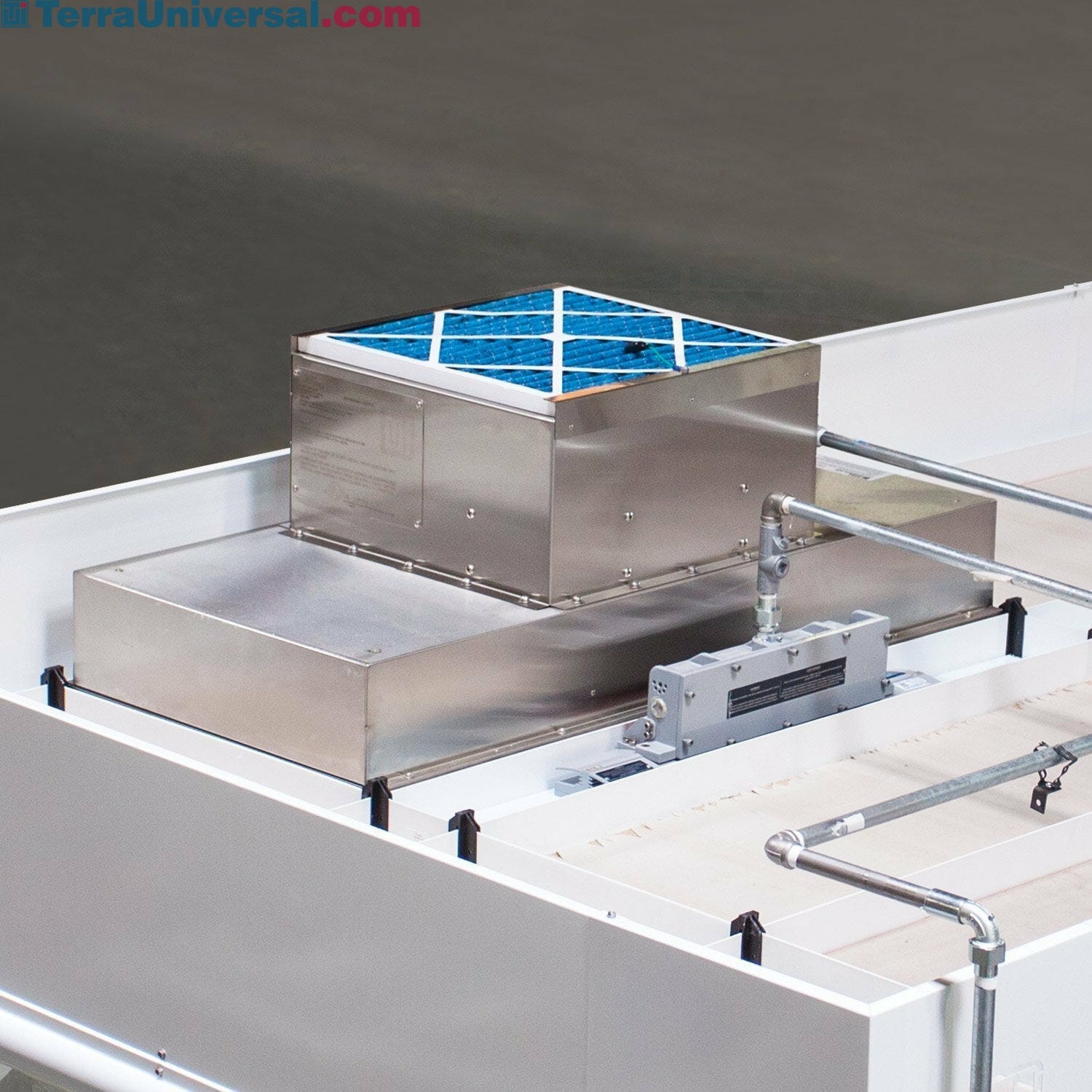

Explosion-proof ULPA fan/filter unit features sealed or non-sparking components, including motor, all-potted conduit and grounded filter screens that meet NEC requirements for Class I, Division 1 hazardous locations.
Smooth Interior Walls
Smooth steel BioSafe cleanroom panels with radius corners simplify cleaning and stand up to biocides and disinfectants. Cleanrooms constructed with medical-grade and USP-compliant material.
Negative-pressure containment cleanrooms include exhaust plenums that route air to floor- or ceiling-mount fans, protecting the external environment from hazardous materials inside the cleanroom.
Available Environmental Control System
Standard cleanroom comes with analog pressure gauge and on/off controls; optional touchscreen FFU controller monitors, controls and logs internal pressure, as well as displaying temperature and RH.
Biosafe Cleanroom Hands-Free Sink
Hands-free sink and hand dryer, seen in cleanroom anteroom, boost compliance with hand-washing protocol.
BioSafe Cleanroom Sterilization
Ceiling panel covers allow wash-down and sterilization of cleanroom walls and ceilings without damage to filter medium; requires BioSafe glass or stainless steel wall panels, which stand up to biocides.
Compatible with Terra’s Pass-throughs
BioSafe cleanrooms can be specified with pre-cut openings for Terra pass-through chambers. The tempered glass version of the BioSafe cleanroom uses a special mounting kit to achieve a “floating” effect on smaller pass-throughs (shown).
BioSafe Cleanroom eliminates internal cracks
FRP or C-PVC cleanroom panels with seam seals eliminate cracks for easy disinfection. Construciton material won't produce contaminants that affect cleanliness rating.
BioSafe Cleanroom Configured for Powder Containment
Terra's Powder Containment Room features smooth interior steel BioSafe panels with radius corners for easy cleaning; optional CleanZone filtration system removes particles from work area.
Germicidal UV Lamp Sanitizes Labs, Cleanrooms
UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure.
Custom Work is Standard!
Modular designs allow versatile configurations tailored to your requirements. Terra's design and fabrication capabilities accommodate unique facility challenges.
COVID-19 Isolation Room
Terra’s modular negative pressure isolation rooms, built to your specs, support patient infection control, home isolation and package quarantine
Long Running FFU Motors
Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.
Seismic Safe Cleanroom Design
Terra’s modular cleanrooms are designed with seismic safety in mind. Rigid steel frames and ceiling grids are designed with sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers. Both hardwall and softwall designs can be installed to adhere to local seismic codes. Optional seismic and structural calculations can be drafted and stamped by a licensed PE to help meet municipal permitting requirements.
4,000 Worldwide Cleanrooms
Since 1976, Terra has designed and manufactured over 4,000 cleanrooms for companies at the leading edge of high technology
