• •  Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • Includes hood, built-in recessed illuminator, duplex power outlet, and EC FFUs
  • Includes powder coated steel stand with adjustable leveling feet that can raise surface to 31"
  • Features return ducts along the front and side edges of the work area to reduce backflow turbulence
  • Power Integration Module features switching and breaker protection for all electrical components
  • Operation Status Indicator that flashes if fan is not operational
  • Powder-coated steel housing and frame with stainless steel interior hood surfaces


Airflow Design: Horizontal

Depth: 44"

Hood Design: Floor

Electronic Air Speed Control: No

Filter Type: HEPA

Frame Material: Powder-Coated Steel

Height: 63.75"

Inside Depth: 30"

Inside Height: 28"

Inside Width: 72"

Light Fixture: Fluorescent

Manufactured by: Terra Universal

Max Opening: 28" H

Model: Horizontal Laminar Flow Station

Width: 76"

Work Area Dimensions: 72.38" W x 30" D x 28.13" H

Unit of Measure: EA


Dimensions, Product: 76" W x 44" D x 63.75" H

Dimensions, Shipping: 82" W x 50" D x 72" H

Electrical Specifications: 120 V, 7.5 A, 1,800 W, 50/60 Hz

Marks & Listings: UL, ULC

Package Type: Crate

Weight, Product: 590 lb

Weight, Shipping: 943 lb

Horizontal Laminar Flow Hoods

  • Horizontal Laminar Flow Hood Smoke Test
  • 304SS Smart Whisperflow HLF, 12'W
  • Horizontal Laminar Flow Clean Bench Hood Stainless Steel Smart WhisperFlow Horizontal Laminar Flow Hood
  • Horizontal Laminar Flow Hood In Use Horizontal Laminar Flow Station
  • Custom horizontal laminar flow hood in 316 stainless steel with open interior Custom Horizontal Laminar Flow Hood, 316 Stainless Steel, Open Interior, 120V

Features and Benefits

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

Horizontal Laminar Flow Station Airflow Diagram

Multi-speed filter/blower modules provide a continuous wash of HEPA-filtered air for process protection. Internal baffling plates and diffuser panel ensures uniform air speed across work area; make-up air return slots minimize edge turbulence and extend filter life.

Air Return Ducts

For enhanced air-stream control, the flow station features return ducts along the edges of the hood opening. These ducts reduce backwash caused by placing objects near the work surface edge, a common source of turbulence inside a clean bench.

Simple User Interface

Operator controls include the ON/OFF switches, blower speed controls, and a Minihelic™ backpressure gauge for monitoring the load on the HEPA filter. When the backpressure roughly doubles from the initial readings, the filter needs replacing.

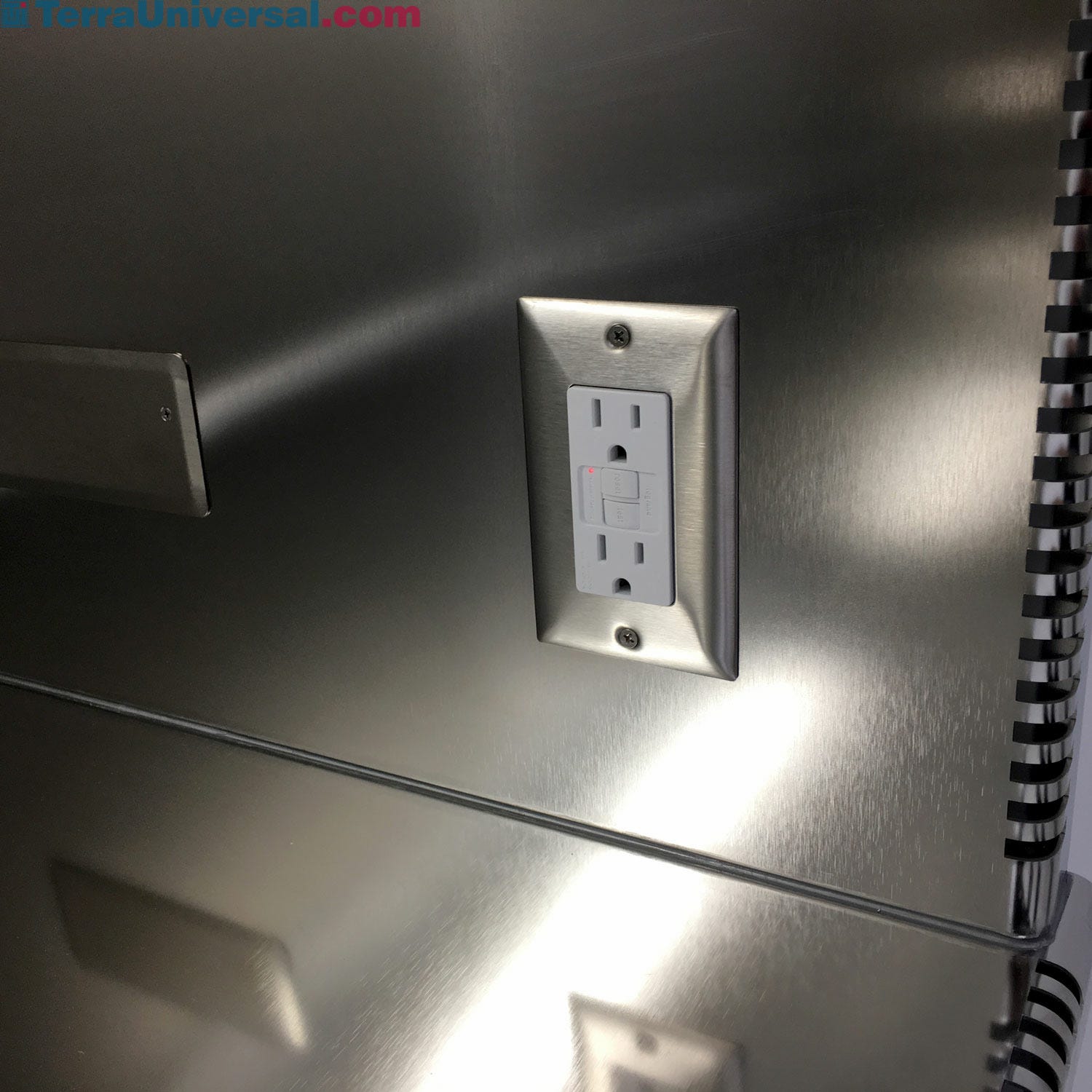

GFCI Duplex Outlet for Operational Convenience

A GFCI power receptacle is installed on the right-hand side of the hood interior for operational convenience. GFCI outlets help prevent electric shock and damage to your electrical devices. Alternate mounting locations can be specified at time of order.

HEPA Filter Access Panels

For horizontal laminar flow hoods, the rear vent panel can be easily removed to access the HEPA filters.

Status Indicator Light

The Terra Universal logo incorporates an LED light that functions as a status indicator. The TUI logo will flash when the unit is connected to power, but the blower is switched off. A solid glow indicates the station is fully operational.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

WhisperFlow Quiet Operation Reduces Distracting Background Noise

Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Complete Project Transparency

Terra is dedicated to complete transparency on project status, shipment tracking, and installation scheduling

ISO 5 Vertical Laminar Flow Clean Bench with Automatic Height Adjusting Table

Automatic height adjusting tables fit perfectly inside free-standing laminar flow clean benches. The separate workstation helps isolate vibration from the fans mounted above the hood. Dual motor electric height adjusting columns beneath the table allow users to quickly raise or lower the work surface without moving equipment off the table.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • UV Germicidal Lamp

    The V-Ray germicidal UV lamp is installed within a Terra hood to inhibit microbial growth on the work surface
  • Utility Valves

    Ball valves (petcocks) are available for utilities such as nitrogen, compressed air, vacuum, DI water, or other process gases. Valves are composed of chrome-plated steel or ABS plastic.
  • Static-Neutralizing Ionizing Bar

    Airflow from the blower distributes positive and negative ions onto the surfaces below, neutralizing static charges that can lead to electro-static discharge and attract particles.
  • Lighthouse Handheld Airborne Particle Counters

    Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environments
  • Work Station Drawers

    Available in ABS plastic or stainless steel, these cleanroom-compatible drawers come in a number of sizes and drawer configurations (6” top drawer and 6” bottom drawer shown).
  • Replacement HEPA and ULPA Filters

    HEPA and ULPA filters compatible with industry standard FFU brands; any size, any brand, any quantity available immediately from stock!

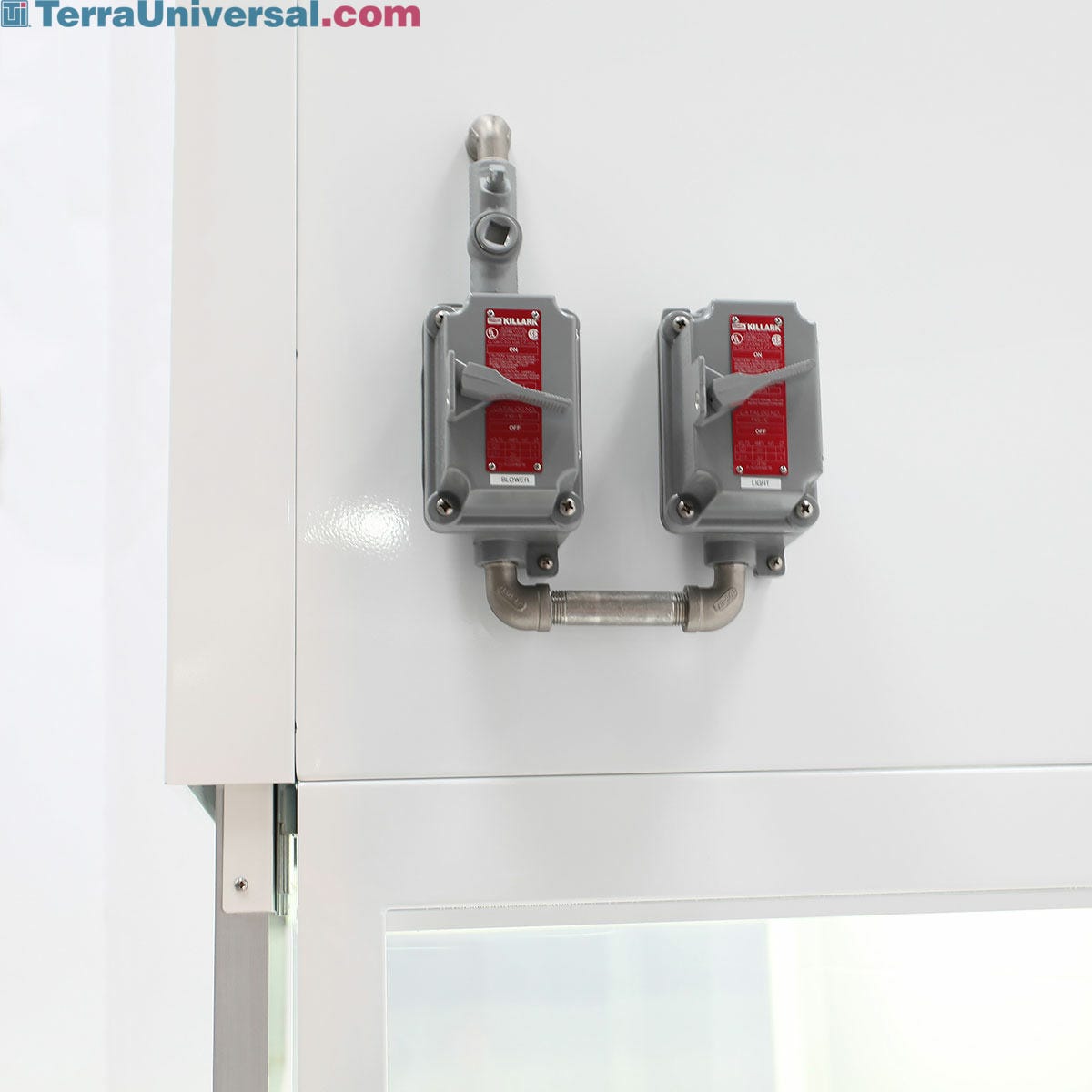

  • Explosion-Proof Power Switches

    UL-rated explosion-proof switches are connected to the lights and blowers using specialized conduit with potted fittings. All electrical components are sealed to eliminate potential ignition points.
Other products you may find relevant
  1. Modular Three Drawer Unit; Stainless Steel 6"H, 6"H & 6"H | 1741-24 displayed
    As low as $266
    Some ship in %s days
    Modular Work Station Drawers
  2. Lightweight 6-channel airborne particle counter with a sensitivity range from 0.2- 2.0 μm; ideal for spot-checking critical environments and cleanrooms
    As low as $4,139
    Some ship in %s days
    Lighthouse Handheld Airborne Particle Counters by LWS
  3. Provides safe, convenient high-pressure dispensing of Nitrogen | 2002-21 displayed
    Usually Ships in 1 - 3 days
    Nitrogen Spray Gun, 1/4"NPT, natural
  4. ISO-Rated mirror provides a visual self-check to enhance compliance with gowning protocol | 5252-74 displayed
    As low as $1,192
    Some ship in %s days
    BioSafe® Cleanroom Mirrors with Integrated LED
  5. Bellows eyepiece for microscopes | 1681-53 displayed
    Usually Ships in 1 - 3 days
    Bellows-Type Microscope Eyepiece Interface
  6. Detects and measures hazardous gases and vapors | 9002-00 displayed
    Usually Ships in 1 - 3 days
    Toxic Gas Detector System
  7. Universal Tool Kit allows accurate dressing, tuning and other manipulation of wire bonds, gold ribbon and other microelectronic components | 9300-35 displayed
    Usually Ships in 1 - 3 days
    Tool Kit, Universal
  8. HEPA-filtered FFU coverage provides ISO rated mini-cleanroom environment | 1870-03B displayed
    As low as $3,162
    Some ship in %s days
    Softwall CleanBooth™ Vertical Laminar Flow Stations
  9. Stackable portable plastic desiccator dry box chambers maintain clean, dry environment during parts transit | 9302-20B displayed
    As low as $451
    Some ship in %s days
    Portable Desiccator Dry Boxes
  10. Squeegee blades are precision-molded from polyurethane, suitable for use in a wide range of screen printers. | 8101-01 displayed
    As low as $24
    Some ship in %s days
    Squeegee Blades
  11. Toxic Gas, Organic Compund, Detector Tubes
    As low as $100
    Some ship in %s days
    Toxic Gas, Organic Compund, Detector Tubes
  12. Yellow Slimline safety cabinets by Justrite are fire resistant double wall, air insulated and welded steel construction | 1619-90 displayed
    As low as $1,005
    Some ship in %s days
    Yellow Slimline Safety Cabinets by Justrite
  13. Sure-Grip EX deep SlimLine safety cabinets provides OSHA-, NFPA-compliant protection and containment of flammable materials | 1618-21 displayed
    As low as $1,642
    Some ship in %s days
    Sure-Grip® EX Deep Slimline Safety Cabinets by Justrite
  14. Corrosive Storage by Justrite features two manual stainless steel doors with 3-point stainless steel bullet latching system | 2820-09A displayed
    As low as $1,128
    Some ship in %s days
    Corrosive Storage Cabinets by Justrite
  15. The MET ONE HHPC 6+ is a full-featured, six-channel handheld particle counter | 1505-50 displayed
    As low as $2,399
    Some ship in %s days
    MET ONE Handheld Air Particle Counters by Beckman Coulter
  16. PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area | 1529-68 displayed
    As low as $16,270
    Some ship in %s days
    PureFlow™ Laminar Flow Transport Carts
  17. Granite vibration isolators are ideal for precision electronic weighing scales, and microscopes | 1580-20 displayed
    As low as $863
    Some ship in %s days
    Granite Isolators
  18. This Ionizing Blow-off Gun neutralizes static surface charges and removes particles with a burst of clean air or nitrogen | 2005-55 displayed
    As low as $963
    Some ship in %s days
    Cleanroom Ionizing Blow-Off Gun
  19. Polypropylene chemical transport cart with 12 compartments to transfer 1-gallon jugs and bottles filled with acids and other corrosives | 3401-00 displayed
    As low as $1,574
    Some ship in %s days
    Chemical Transport Carts
  20. Soft, durable wipes gently clean and polish scratch-sensitive optics or magnetic disk media surfaces | 5605-07 displayed
    As low as $74
    Some ship in %s days
    Cleanroom and Laboratory Wipes from Valutek
  21. The AirGard® Air Velocity Monitor displays air velocity to ensure laminar airflow or ventilation | 6704-65 displayed
    Request Quote
    Usually Ships in 0 - 10 days
    Air Gard® Air Velocity Monitors
Horizontal Laminar Flow Station
Standard Features
  • A Fluorescent light
    Fluorescent light standard, UV sterilization bulbs available
  • B Fan Filter Units
    HEPA fan/filter units provide laminar flow of micro-filtered air
  • C Minihelic gauge
    Minihelic gauge measures filter backpressure
  • D Stainless steel work surface
    Stainless steel work surface (available with electropolishing)
  • E Variable-speed blower
    Variable-speed blower adjusts air speed to meet containment requirements
  • F Range of Options
    Options include vacuum, DI water and gas utilities
  • H Status Indicator
    Status Indicator

Not Shown: Nylon levelers - Steel-reinforced nylon levelers resist most chemicals
