Select Product Options

Voltage Opening Height Opening Width Door Material Speed Air ShowerPriceUsually Ships inStocked
120 V69"52"Aluminum Slats4" per secNo $35,59520-30 Days
220 V84"63"Aluminum Slats4" per secNo $46,74720-30 Days

Summary

  • Segmented aluminum roll-up door design requires no door clearance
  • Optimizes valuable cleanroom floor space
  • Touch-activated control panel offers a smooth, cleanable surface as well as emergency stop and lock-out capabilities
  • Bi-directional motor and disc brake ensure smooth, accurate door motion and full braking power in the event of a power failure
  • Electronic key-switch door interlock prevents cross contamination
  • Pressure-sensitive safety circuits on each door automatically stop door motion and return door to full open position if an object hits the door bottom
  • For equipment transfer only (not for personnel entry/exit)

Roll-Up Door Pass-Through Chambers

Standard Features

  • A Touch panel
    Touch panel controls feature an emergency stop and pass-through lock-out functionality
  • B Viewing window
    Side viewing window (static dissipative PVC)
  • C Safety circuit
    Safety circuit halts door motion if path is obstructed

Not Shown: Iris reader - Iris reader or security card system available for operational security

Not Shown: ULPA-filtered - ULPA-filtered air shower dislodges particles

Roll-Up Door Pass Through Chambers

  • Video Overview of Cleanroom Roll-Up Door Pass-Through Chambers Roll-Up Door Pass-Through Chamber
  • Pass-Through, Roll-Up, SS, 63.75''W x 50.125''D x 104.875''H, Floor Mount w/Brackets Roll-Up Door Pass-Through, 64''W x 50''D x 105''H
  • Roll-Up Door Pass-Throughs Roll-Up Door Pass-Through Chamber
  • Roll-Up Door Pass-Through Touch Panel Roll-Up Passthrough Touch Panel

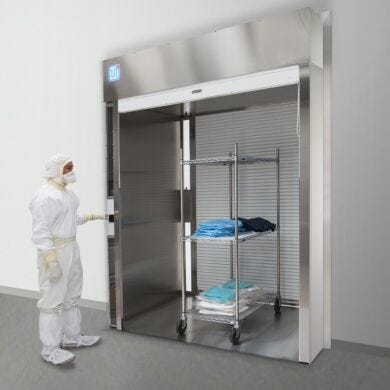

  • Cleanroom Roll-Up Door Pass-Through Chamber with Cart Roll-Up Door Pass-Through Chambers
Video Overview of Cleanroom Roll-Up Door Pass-Through Chambers

Features and Benefits

Safety Pressure Sensor

The pressure-sensitive safety mechanism along the bottom edge of each roll-up door sends a signal to immediately reverse door direction when it detects an obstruction.

Automatic Electronic Interlock

The electronic interlock allows only one door at at time to open, preventing cleanroom cross-contamination. Side windows allow personnel to view opposing door status and chamber contents.

Touch Panel

The flat touch interface is easy to clean and operated by gloved personnel and impervious to moisture; includes emergency stop.

Door Position Sensors

Laser sensors mounted on the ceiling of the chamber monitor the position of the doors for proper interlock sequencing.

Interlock Override Switch

Key switches allow the door interlock to be disabled for chamber cleaning and maintenance.

Eliminates Swing Clearance

Roll-up door design requires no swing clearance, conserving valuable cleanroom floorspace. Many sizes accommodate all types of equipment.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers
