Specialty Desiccator Cabinets
Product Group:
4001-PP-01
4001-PP-01 71567

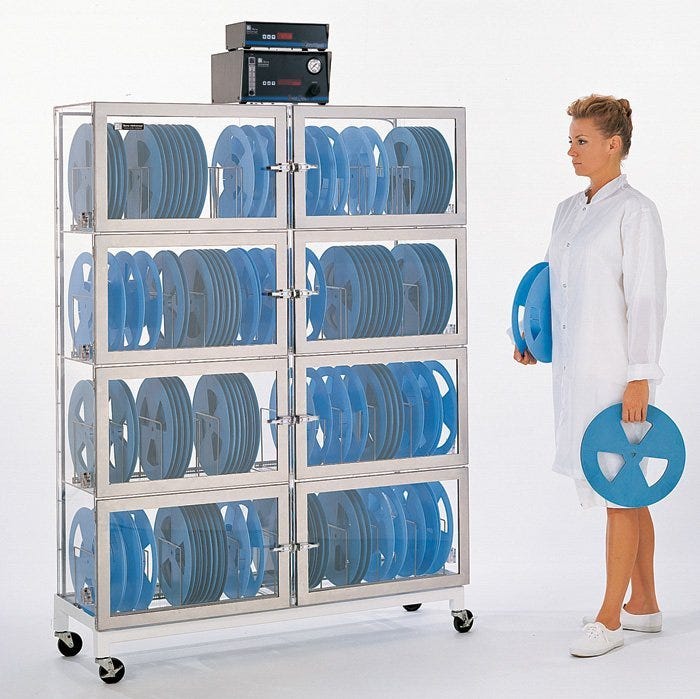

Vertical Storage Desiccator Cabinets for Non-Stackable Materials

  • Available ISO Ratings: ISO 7, ISO 8
  • Prevents moisture-related degradation of sensitive non-stackable components or materials
  • Designed to store components in the upright position, side-by-side
  • Ideal for storage of PC boards, optical lenses, glass plates, reels, and more
  • ESD-safe enclosure protects static-sensitive products that are not suitable for vertical stacking
  • Stainless steel racks are adjustable vertically and horizontally to accomodate different size parts
Read more
CE Mark Logo ULus Listed ISO 7 Icon
Manufactured By: Terra Universal
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request

Select Product Options

Design Rack Type Material Number of Chambers ISO Class Price Usually Ships in Stocked
Free Standing Fixed Acrylic 8 ISO 8 $4,405 15-19 Days
Free Standing Fixed Static-Dissipative PVC 4 ISO 7 $3,893 15-19 Days
Free Standing Fixed Static-Dissipative PVC 14 ISO 7 $8,731 15-19 Days

Summary

  • Available ISO Ratings: ISO 7, ISO 8
  • Prevents moisture-related degradation of sensitive non-stackable components or materials
  • Designed to store components in the upright position, side-by-side
  • Ideal for storage of PC boards, optical lenses, glass plates, reels, and more
  • ESD-safe enclosure protects static-sensitive products that are not suitable for vertical stacking
  • Stainless steel racks are adjustable vertically and horizontally to accomodate different size parts
  • Nitrogen-purged cabinets maximize shelf life
  • Includes non-contaminating seals
  • Static-dissipative PVC models prevent electrostatic discharge

Specifications

Helena

• Marks & Listings: CE, UL, ULC

Specialty Desiccator Cabinets

  • universal adjustable base stands Universal Base Stands Offer Excellent Versatility
  • Adjusting universal stand Universal Stand Adjusts to Fit a Wide Range of Equipment
  • Desiccators: Features and Design overview
  • Smart® Humidity Module upgrade tutorial Installing Terra's ValuLine™ Desiccator Smart® Controller
  • Leveling your Desiccator
universal adjustable base stands
Universal adjustable base stands support and stabilize various equipment sizes Universal Base Stands Offer Excellent Versatility Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
Adjusting universal stand
Terra's Universal stands easily adjust to fit a wide range of equipment Universal Stand Adjusts to Fit a Wide Range of Equipment Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
Desiccators: Features and Design overview Terra's nitrogen-purged desiccator cabinets meet dry storage requirements as low as 1% relative humidity. Standardization simplifies component upgrade, retrofit and replacement. Terra's Smart controllers allow setpoint control and even multiplexed purging for the most critical humidity requirements.
Smart® Humidity Module upgrade tutorial
How-To: Install Terra's ValuLine™ Smart® Controller Installing Terra's ValuLine™ Desiccator Smart® Controller How to upgrade your standard ValuLine ES Desiccator with an upgraded Smart® Humidity Module in only a few minutes. This Smart® add-on transforms your manual gas control desiccator into an automatic purge control system.
Leveling your Desiccator Learn how to properly level your plastic or stainless steel desiccator cabinet, as well as instructions to align the doors.

Features and Benefits

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Versatile Configurations

Vertical Storage desiccator cabinets include air-tight, non-contaminating seals, a complete line of standardized accessories, and the most advanced humidity control system available anywhere, as well as self-balancing nozzles that safely neutralize static charges on non-conductive surfaces.

Slide-Out Drawers

Stainless steel trays mounted on non-contaminating slides allow full access to drawer contents. Each drawer accommodates two rows of non-stacking materials, such as PC boards, glass plates, reels or slides.

Adjustable Stainless Steel Racks

304 stainless steel adjustable rack securely holds non-stacking materials such as PC board, glass plates, slides and reels. Stainless steel racks won't produce contaminants like chrome-plated steel designs.

Automatic Relief/Bleed Valve

Terra's Automatic Relief/Bleed (RB) Valve opens up at 0.01 PSI, relieving overpressure that could damage desiccators; also works as a check valve to prevent influx of room air.

Highest Standards For Desiccators and Electronic Components

Terra’s desiccator cabinets and RH control systems are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Complete Order Transparency

Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

Rapid Drying of Hygroscopic Material

Terra's gas-purged desiccators utilize a rapid flow of inert nitrogen to quickly dry hygroscopic samples and components
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • 3-inch Diameter Caster Set

    3-inch Diameter Caster Set

    Casters are easily retrofitted for mobility. Products can be rolled out of the way when cleaning or relocated as workflow changes.
  • Small, medium, and large laboratory nitrogen generator systems
    Learn More

    Laboratory Nitrogen Generator

    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Universal Adjustable Base Stands for Desiccator Cabinets and Cleanroom Equipment
    Learn More

    Universal Adjustable Base Stands for Desiccator Cabinets and Cleanroom Equipment

    Stainless steel or powder-coated steel base stands easily adjust to fit cabinets, desiccators and cleanroom equipment of any size or shape. Stands raises equipment to ergonomic height to ease disinfection and sample monitoring. BioSafe design suitable for any cleanroom or lab environment.
  • Ionizing Module Installed on Desiccator Cabinet
    Learn More

    Desiccator Cabinet Ionizing Module

    Ionizing modules are available for desiccator cabinets, glove boxes and other enclosures to ensure static-safe storage and processing (shown: ionizing unit on 2-chamber desiccator)
  • Dual Purge and NitroWatch nitrogen control systems maintain low-rh set-point inside a desiccator or glove box
    Learn More

    Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Automatic RH control system with built-in data logging

    Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • csv download icon for data logging humidity control system

    Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
Related Products
Check items to add to the cart or
Other products you may find relevant
  1. Stainless Steel and powder-coated steel stands adjust to fit cabinets, desiccators and cleanroom equipment of any size. | 1609-20 displayed
    From
    As low as $572
    Some ship in %s days
    Universal Adjustable Base Stands
  2. Closed-cell PVC foam gasketing withstands dry environment inside desiccators | 1100-26 displayed
    $48
    Usually Ships in 1 - 3 days
    Gasketing, Desiccator Door; 25 ft. long
  3. Closed-cell PVC foam gasketing withstands dry environment inside desiccators | 1100-26 displayed
    $85
    Usually Ships in 1 - 3 days
    Gasketing, PVC Foam, Desiccator Door; 1/8" Thick, 3/8"W, White Norex, 50 ft. long
  4. Shown with optional SS wire supports. | 3607-03 displayed
    $157
    Usually Ships in 1 - 3 days
    Stainless Steel Rack; for Tape and Reel Desiccator, 23.5''W x 7.75"D x 0.75''H
  5. Accuracy: 5% @ 25C from 10% to 90%RH | 5401-17 displayed
    $126
    Usually Ships in 1 - 3 days
    Psychrometer; Digital, Handheld, AAA Batteries
  6. Sealed outer shell is fabricated of static-dissipative PVC for additional ESD protection | 2650-99 displayed
    $7,201
    Usually Ships in 1 - 3 days
    Mobile Desiccator Cabinet; 1 Chamber, Static Dissipative PVC, 23.75" W x 28.875" D x 60.25" H ID
  7. Stores 16,382 temperature readings and 16,382 relative humidity measurements. | 9500-10 displayed
    $290
    Usually Ships in 0 - 2 days
    Data Logger; Relative Humidity/Temperature
  8. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Qualification Documentation (IQ/OQ) for Terra Universal System
  9. Digital thermo-hyrometer console with humidity indicator for cleanroom application, connects to up to 8 wireless remote sensors | 5401-34 displayed
    $241
    Usually Ships in 1 - 3 days
    Thermo-Hygrometer; Wireless, LCD, 8-Channel, with Remote Sensor
  10. HEPA-filtered FFU coverage provides ISO rated mini-cleanroom environment | 1870-03B displayed
    From
    As low as $3,162
    Some ship in %s days
    Softwall CleanBooth™ Vertical Laminar Flow Stations
  11. DesiCart, Low Humidity Transport Carts features high-density polyethylene frame, steel rails, and a four chamber acrylic desiccator | 4002-50B displayed
    From
    As low as $3,314
    Some ship in %s days
    DesiCart™ Low-Humidity Desiccator Transport Carts
  12. Stackable portable plastic desiccator dry box chambers maintain clean, dry environment during parts transit | 9302-20B displayed
    From
    As low as $451
    Some ship in %s days
    Portable Desiccator Dry Boxes
  13. Sure-Grip EX safety can storage cabinets protect workers, reduce fire risks, and improve productivity by storing hazardous liquids in high performance | 2820-00A displayed
    From
    As low as $1,043
    Some ship in %s days
    Sure-Grip® Flammable Liquid EX Safety Can Storage Cabinets from Justrite
  14. Undercounter Flammable safety cabinets by Justrite includes dual vents with flame arresters located in the back | 1619-95 displayed
    From
    As low as $1,033
    Some ship in %s days
    Sure-Grip® EX Undercounter Flammable Safety Cabinets by Justrite
  15. Yellow Slimline safety cabinets by Justrite are fire resistant double wall, air insulated and welded steel construction | 1619-90 displayed
    From
    As low as $1,138
    Some ship in %s days
    Yellow Slimline Safety Cabinets by Justrite
  16. Sure-Grip EX deep SlimLine safety cabinets provides OSHA-, NFPA-compliant protection and containment of flammable materials | 1618-21 displayed
    From
    As low as $1,858
    Some ship in %s days
    Sure-Grip® EX Deep Slimline Safety Cabinets by Justrite
  17. Corrosive Storage by Justrite features two manual stainless steel doors with 3-point stainless steel bullet latching system | 2820-09A displayed
    From
    As low as $1,318
    Some ship in %s days
    Corrosive Storage Cabinets by Justrite
  18. Stainless steel BioSafe Cleanroom Clipboards provide non-shedding, durable, conductive surfaces, ideal for aseptic environments | 1350-00A-2 displayed
    From
    As low as $81
    Some ship in %s days
    BioSafe® Cleanroom Clipboards
  19. Palm-Sized Temperature/Humidity Meters available with built-in or probe sensors | 1401-17 displayed
    From
    As low as $551
    Some ship in %s days
    Palm-Sized Temperature/Humidity Meters
  20. PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area | 1529-68 displayed
    From
    As low as $16,270
    Some ship in %s days
    PureFlow™ Laminar Flow Transport Carts
  21. Steel cabinet with fingerprint scanner for secure storage of controlled medications | 1989-10 displayed
    From
    As low as $3,517
    Some ship in %s days
    Locking Pharmaceutical Security Cabinets
  22. Ion bar kit safely neutralizes charges to protect against electro-static charges. Attaches to inside ceiling of glovebox. Ion bar sold separately. | 2005-92 displayed
    From
    As low as $548
    Some ship in %s days
    Ionizing Bars
  23. This Ionizing Blow-off Gun neutralizes static surface charges and removes particles with a burst of clean air or nitrogen | 2005-55 displayed
    From
    As low as $964
    Some ship in %s days
    Cleanroom Ionizing Blow-Off Gun
  24. Designed with a compact and rugged enclosure, this chart recorder provides accurate record for temperature, humidity, and dew point | 4801-66 displayed
    From
    As low as $810
    Some ship in %s days
    Chart Recorders – Temperature, Humidity, and Dew Point
  25. Terra’s hygro-thermometer offers simultaneous display of temperature and humidity in a large LCD readout | 5401-21 displayed
    From
    As low as $54
    Some ship in %s days
    Hygro-Thermometers (Large Display)
  26. Curing/Drying Cabinets provide dual HEPA/carbon filtration | 6082-43A displayed
    From
    As low as $4,434
    Some ship in %s days
    HEPA/ULPA Filtered Curing/Drying Cabinets
  27. Choose among 3 different sizes of portable nitrogen generator designs to meet your N2 requirements. Suitable for both industrial and commercial applications.
    From
    As low as $6,685
    Some ship in %s days
    Nitrogen Gas Generators
  28. Designed to provide reliable gas drying without the hassle and expense | 9082-01 displayed
    From
    As low as $4,231
    Some ship in %s days
    Dryex Gas Dryer
  29. ULPA filtered fan unit with heater up to 100F, for cleanroom applications | 6601-24-UT displayed
    From
    As low as $2,375
    Some ship in %s days
    Heated Fan Filter Units
  30. Desiccator Trays, Stainless Steel
    From
    As low as $284
    Some ship in %s days
    Desiccator Trays, Stainless Steel
Manuals & Resources
Blog Post
Desiccator Cabinet Features Comparison
Vertical Storage System for Non-Stacking Materials
Standard Features
  • A Stainless Steel-Framed Doors with One-Piece Gasket
    "e"-profile gasket mechanically attached to stainless steel reinforcement frame to prevent outgassing adhesives; one-piece design won’t slough or separate
  • B Grounding Terminals
    Standard on static-dissipative PVC chambers to prevent electro-static discharge (ESD)
  • C Plenum Chamber
    Located in rear of cabinet, plenum ensures uniform flow of nitrogen gas to all chambers; minimizes moisture migration
  • D Automatic RB® Valve
    Prevents overpressure; acts as a check valve (one included per chamber)
  • E Stainless Steel Wire Racks
    Supports carrier reels of specified quantity and diameter
  • F Grounded Door Latch
    Prevents ESD damage to stored parts (standard on static-dissipative PVC cabinets)
  • G Stainless Steel Hinges
    Non-contaminating hinges contribute to a long service life under heavy use
Optional Features
  • 1 Dual Purge™ System
    Provides a variable flow of nitrogen purge gas: high to recover set point, low to conserve nitrogen
  • 2 NitroWatch® RH Controller
    Monitors internal humidity; activates a high-flow purge when RH climbs above set point
  • 3 Door Sensor Switches
    Activate high-flow purge when a door opens to recover RH set point
  • 4 Stand with Casters
    Powder-coated or 304 stainless steel; 4” or 12” high; casters available

Not Shown: Flowmeter included for manual regulation of flow rate (choose Dual Purge/NitroWatch systems for automated control); Nitrogen generator provides an uninterrupted supply of nitrogen up to 99% pure to eliminate reliance on bulky canisters.

Copyright 1999 - 2024 Terra Universal. Inc. All rights reserved.
