Acrylic vacuum chambers provide a safe, convenient way to transport moisture-and particle sensitive materials | 5235-00B displayed
Vacuum Chambers,Vacuum Desiccators
Product Group:
5235-PP-02
5235-PP-02 71595

Acrylic Vacuum Chambers with Removable Top Lids

  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Supports full vacuum to 29.9" Hg
  • Fabricated of transparent 1" thick acrylic
  • O-ring inlaid in precision-routed channel, helps ensure uniform and ultra-low leak rate
  • Stainless steel draw latches and inlaid O-ring provide clean, leak-tight operation
Read more
Stocked ISO 6 Icon
Manufactured By: Terra Universal
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request

Select Product Options

Type Chamber Width Chamber Depth Chamber Height ISO Class Price Usually Ships in Stocked
Benchtop 7" 7" 7.5" ISO 6 $1,224 1-3 Days Stocked
Benchtop 10" 10" 10" ISO 6 $1,285 1-3 Days Stocked
Benchtop 12" 12" 12" ISO 6 $1,381 1-3 Days Stocked
Benchtop 14" 14" 14" ISO 6 $1,552 1-3 Days Stocked
Benchtop 30" 30" 4" ISO 6 $1,735 1-3 Days Stocked
Benchtop 23" 8.25" 10.5" ISO 6 $1,421 1-3 Days Stocked
Benchtop 16" 16" 16" ISO 6 $1,856 1-3 Days Stocked
Benchtop 18" 18" 18" ISO 6 $2,371 1-3 Days Stocked
Benchtop 20" 20" 20" ISO 6 $3,210 1-3 Days Stocked

Summary

  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Supports full vacuum to 29.9" Hg
  • Fabricated of transparent 1" thick acrylic
  • O-ring inlaid in precision-routed channel, helps ensure uniform and ultra-low leak rate
  • Stainless steel draw latches and inlaid O-ring provide clean, leak-tight operation
  • Includes a vacuum gauge and two mini ball valves to permit flushing of the chamber with purge gas before application of vacuum
  • Optional vacuum/nitrogen pumps and vacuum safety relief valves available separately
  • Ideal for degassing small parts and mixed liquids, vacuum encapsulation, and general purpose vacuum experiments
  • Provide a safe, convenient way to transport moisture- and particle-sensitive materials
  • Clear acrylic construction provides full visibility of parts
  • CAUTION: Acrylic is damaged by alcohol and many other cleaning agents. Use only water and mild detergent
  • Solvent welding, 304 stainless steel and chrome-plated hardware are compatible with cleanroom environments
  • Contact to discuss custom sizes and applications, including installation of cable feed-throughs

Vacuum Chambers

  • Vacuum chambers animation Watch Terra's Vacuum Chamber Video
  • Terra Universal Vacuum Chamber Overview
  • Custom acrylic vacuum chamber for material physics granular matter characterization Custom Acrylic Vacuum Chamber for Material Physics: Granular Matter Characterization
  • Flat Acrylic Vacuum Chamber Acrylic Vacuum Chamber
  • Acrylic vacuum chamber on top of electric height adjusting table Vacuum Chamber on Electric Height Adjusting Table
  • Vacuum Chamber Acrylic Acrylic Vacuum Chamber
  • Acrylic Vacuum Chamber Acrylic Vacuum Chamber
  • Chamber; Vacuum, Acrylic, 12"W x 12"D x 10.5"H
Vacuum chambers animation
Terra offers a wide selection of high-quality vacuum chambers for every application. Watch Terra's Vacuum Chamber Video Terra offers a wide selection of high-quality vacuum chambers for every application. Economical, high-visibility acrylic vacuum chambers are ideal for most manufacturing, testing, and research applications. Terra's 1” thick welded acrylic (plexiglass) vacuum chambers hold a full vacuum (29.9"Hg) for 72 hours with no detectable leaks. Powder-coated aluminum vacuum chambers offer better chemical resistance than acrylic chambers, particularly when using disinfectants, such as isopropyl alcohol, or sporicidal agents. Stainless steel vacuum chambers are more suitable for chemical, biopharmaceutical, and microelectronics applications with higher temperatures and/or corrosive chemicals.
Terra Universal Vacuum Chamber Overview This video shows how to operate a vacuum chamber and explores available vacuum chambers and accessories Terra Universal offers
Custom acrylic vacuum chamber for material physics granular matter characterization
Custom acrylic vacuum chamber for material physics, granular matter characterization; features gate valves, copper plates, and electrical feedthroughs | 5235-61 displayed Custom Acrylic Vacuum Chamber for Material Physics: Granular Matter Characterization This custom acrylic vacuum chamber is used to more uniformly test granular for material physics.
The assembly stands upright, with the top (left side) including a hopper for grains, a mechanical feedthrough, and gate valve. The middle section includes copper plates and an electrical feedthrough. The bottom (right side) includes a gate valve and side lid.
Flat Acrylic Vacuum Chamber
Vacuum chambers with low height provide a safe, reliable means for contamination and moisture sensitive parts in flatter objects | 3305-80 displayed Acrylic Vacuum Chamber Acrylic Vacuum Chamber provides degassing of small parts; select optional burst valve to limit vacuum pressure.
Acrylic vacuum chamber on top of electric height adjusting table
Electric height adjusting tables help position extremely heavy vacuum chambers to the right height to transfer materials, or observe tests within the chamber | 3504-02A displayed Vacuum Chamber on Electric Height Adjusting Table Electric height adjusting tables help easily position extremely heavy vacuum chambers to the right height to allow transfer of materials, or observe tests within the chamber.
Vacuum Chamber Acrylic
Acrylic vacuum chambers provide a safe, convenient way to transport moisture-and particle sensitive materials | 5235-00B displayed Acrylic Vacuum Chamber Acrylic Vacuum Chamber, ideal for vacuum leak testing or degassing small samples.
Acrylic Vacuum Chamber
Acrylic vacuum chambers are ideal for degassing small parts and mixed liquids, vacuum encapsulation, and general-purpose vacuum experiments | 5235-01B displayed Acrylic Vacuum Chamber Acrylic Vacuum Chamber; includes vacuum gauge and valves.
Provide a safe, convenient way to transport moisture-and particle-sensitive materials. | 5235-03B displayed Chamber; Vacuum, Acrylic, 12"W x 12"D x 10.5"H

Features and Benefits

Vacuum Chamber Pre-Cycle

For optimal vacuum chamber performance, a pre-cycle must be performed to remove trace moisture clinging to the internal acrylic surfaces. Run the pre-cycle until vacuum pressures stabilize at 29.9" Hg, then begin standard operation.

Multi-pin Feedthrough

Optional 25-pin connector can be used to monitor conditions within the vacuum chamber.

Coaxial SMA Feedthrough

Double-ended, 50-ohm connectors allow small electronics to operate within the chamber.

Optional Vacuum Relief Valve

Adjustable pressure relief valve limits vacuum levels within the chamber, allowing pressure to be maintained at user-configured point. (NOTE: Vacuum pump must remain in operation to maintain desired vacuum level).

Precision Vacuum Gauge and Needle Valves

Vacuum chambers can be customized to include precision needle valves for exact application, monitoring, backfill, and bleeding of vacuum pressure in increments of ~1" Hg (~3% vacuum). The hardware is mounted over an extra layer of acrylic to prevent damage to the lid while the chamber is under maximum vacuum.

Tested to Hold Full Vacuum for 72 hours

Terra's acrylic vacuum chambers are tested to hold 29.9"Hg (99.9% vacuum) with no detectable change over a 72 hour duration. Heavy-duty one-inch-thick walls ensure chamber integrity and protect against cracking.

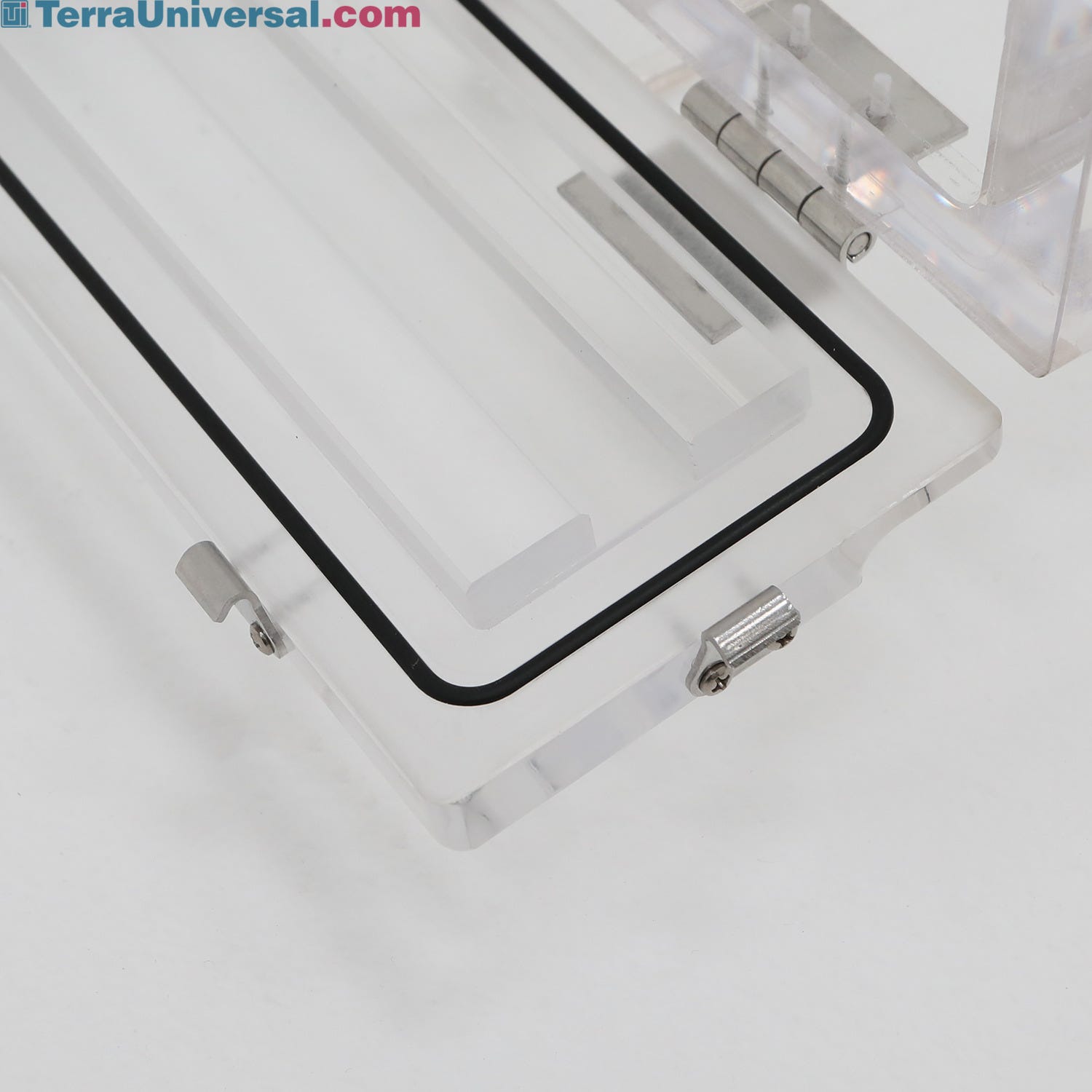

Inlaid Rubber O-Ring for Uniform Seal

Precision-routed channel and inlaid rubber O-ring ensures a uniform seal around the lid of your vacuum chamber. The O-ring is also removable in case it needs to be replaced.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Learn More

Vacuum Chamber on Electric Height Adjusting Table

Electric height adjusting tables help easily position extremely heavy vacuum chambers to the right height to allow transfer of materials, or observe tests within the chamber.

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

Glass Top Lid for Vacuum Chamber

Glass Top Lid for vacuum chamber enhances precision and visibility for component testing within the vacuum chamber.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Small, medium, and large laboratory nitrogen generator systems
    Learn More

    Laboratory Nitrogen Generator

    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Coaxial Subminature-D Multipin Feed-Through

    Multipin Feed-Through

    Subminiature D-Type Multipin Feedthrough. 2x25 Pins, 500 Volts, 5 Amps per Pin, 4.50" Conflat Flange.
  • Coaxial Subminature Double Enderd 2 Pin Feed-Through

    2 Pin Feed-Through

    SMA Coaxial Feedthrough, 50 Ohm matched impedance, 2 pins, grounded shield, double-ended, 2.75" conflat flange, without air-side connector
  • Welch Rotary Vane Vacuum Pump
    Learn More

    Welch Rotary Vane Vacuum Pump

    This Rotary Vane vacuum pump offers high water vapor tolerance, light weight and high vacuum performance, making it ideal for many laboratory uses.
  • PC-Based Vacuum Control
    Learn More

    PC-Based Vacuum Control with Data Logging

    The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.
