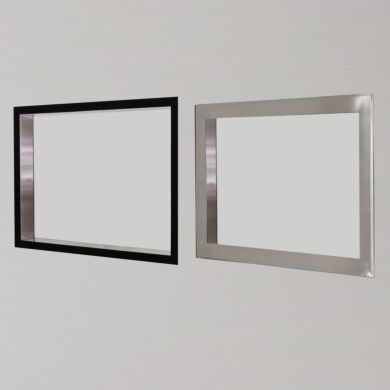

Shown is a side-by-side comparison of framed and frameless BioSafe windows. The frameless design is mounted flush with the existing wall. | 6603-19-1602 displayed
Windows,Windows,Windows,Doors & Windows for Cleanrooms,Windows for Architects,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Cleanroom Conversions,Architects & Builders
Product Group:
6603-PP-WB
6603-PP-WB 77831

Cleanroom Windows

  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • Enter desired width, height and wall-thickness to instantly calculate pricing and custom specifications
  • BioSafe design (stainless steel/powder-coated steel) eliminates cracks where microbes colonize for easy cleaning and sterilization
  • ValuLine design (polypropylene frame) offers an economical alternative without compromising cleanroom conditions
  • Double-pane models ideal for installation between two cleanrooms
  • Single-pane models must be installed with the "clean-side" facing the cleanroom
Read more
Stocked BioSafe classic logo ISO 5 Icon
Manufactured By: Terra Universal
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request

Select Product Options

Window Frame

Sort Order:

 Window Type

Sort Order:

 Pane Material

Sort Order:

 ISO Rated Design

Sort Order:

 Price Usually Ships in Stocked
Framed Double Pane Polycarbonate ISO 5 Request Quote 4-6 Days
Framed Double Pane Polycarbonate ISO 7 Request Quote 4-6 Days
Framed Double Pane Tempered Glass ISO 5 Request Quote 4-6 Days
Framed Double Pane Tempered Glass ISO 7 Request Quote 4-6 Days
Framed Single Pane Polycarbonate ISO 5 Request Quote 4-6 Days
Framed Single Pane Polycarbonate ISO 7 Request Quote 8-10 Days Stocked
Framed Single Pane Tempered Glass ISO 5 Request Quote 4-6 Days
Framed Single Pane Tempered Glass ISO 7 Request Quote 4-6 Days
Frameless Double Pane Tempered Glass ISO 5 Request Quote 4-6 Days
Frameless Single Pane Tempered Glass ISO 5 Request Quote 4-6 Days
Framed Single Pane Tempered Glass ISO 7 Request Quote 4-6 Days
Framed Double Pane Tempered Glass ISO 7 Request Quote 4-6 Days

Summary

  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • Enter desired width, height and wall-thickness to instantly calculate pricing and custom specifications
  • BioSafe design (stainless steel/powder-coated steel) eliminates cracks where microbes colonize for easy cleaning and sterilization
  • ValuLine design (polypropylene frame) offers an economical alternative without compromising cleanroom conditions
  • Double-pane models ideal for installation between two cleanrooms
  • Single-pane models must be installed with the "clean-side" facing the cleanroom
  • Frameless BioSafe windows feature glass that sits perfectly flush with the wall surface for the most critical applications
  • Framed BioSafe models feature a smooth, stainless steel or powder-coated lip that fits tightly against the wall to minimize crevices
  • Stainless steel will not produce contaminants during sterilization and resists harsh biocides
  • Powder Coated Steel offers excellent corrosion and chemical resistance while extending the life of the steel
  • Polypropylene offers excellent chemical resistance and does not shed particles
  • Suitable for cleanrooms, medical facilities, labs and other clean, aseptic environments
  • Optional white frameless border available. Contact sales for a per-project quote.

Specifications

Windows

  • BioSafe cleanroom window Terra Universal's Biosafe® Windows
  • Easy installation of framed window Framed Single Windows
  • Double pane windows in tempered glass and stainless steel frame for pharmacy compounding Double Pane Flush-Mount Cleanroom Windows for Pharmacy Compounding
  • Double pane cleanroom windows installed in a hospital pharmacy Double pane Flush-Mount Cleanroom Windows Hospital Pharmacy
  • Stainless Steel Double Sided Clean Room Window Single-Side, Flush-Mount Window; Stainless Steel Frame, 1/4" Tempered Glass Pane
  • Cleanroom Barrier Wall with Tempered Glass Windows
  • Tempered Glass Window For Clean Room Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom
  • BioSafe flush-mount frameless double window installed in laboratory BioSafe Flush-Mount Frameless Double Window
  • Double-Sided Flush-Mount Frameless Window Double-Sided Flush-Mount Frameless Window
  • BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
  • BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
BioSafe cleanroom window
Terra's BioSafe windows are configurable to any wall thickness, easy to install and disinfect Terra Universal's Biosafe® Windows Terra Universal's BioSafe® windows are quick to install, easy to disinfect and configurable to any wall material or thickness.
Easy installation of framed window
Easy installation of framed window Framed Single Windows Step by step process on how to install a single framed window
Double pane windows in tempered glass and stainless steel frame for pharmacy compounding
Double pane windows for pharmacy compoudning with tempered glass, BioSafe® flush-mount design, 304 stainless steel frame | 6611-00-0904 displayed Double Pane Flush-Mount Cleanroom Windows for Pharmacy Compounding Flush-mount designed double pane windows minimize crevices where contaminants can collect, necessary for USP 797/800 pharmacy compounding. Terra’s BioSafe® windows mount easily, reducing the number of fasteners for an attractive, showcase finish.
Double pane cleanroom windows installed in a hospital pharmacy
Double pane flush-mount cleanroom windows in a hospital pharmacy with tempered glass panes, BioSafe® reduced crevice design, 304 stainless steel frame, flush-mo | 6603-19-1604 displayed Double pane Flush-Mount Cleanroom Windows Hospital Pharmacy Flush-mount double pane cleanroom windows installed in a sterile hospital pharmacy. Hygienic design minimizes crevices where contaminants can collect, necessary for cGMP compliance. Terra's BioSafe® windows mount easily and hide fasteners for a clean showcase finish.
Stainless Steel Double Sided Clean Room Window
Single-Pane, Stainless Steel Frame Window, fits flush on cleanroom wall surface, installs against supports without special tools. Single-Side, Flush-Mount Window; Stainless Steel Frame, 1/4" Tempered Glass Pane Stainless Steel frame fits flush on cleanroom wall surface, installs against supports without special tools. 1/4" tempered glass window pane.
Create a barrier between an access corridor and adjacent containment room (optional tempered glass windows) | 6602-59 displayed Cleanroom Barrier Wall with Tempered Glass Windows Create a barrier between an access corridor and adjacent containment room (optional tempered glass windows)
Tempered Glass Window For Clean Room
Attractive frameless windows clean easily and add visibility to BioSafe® cleanrooms. | 6603-15 displayed Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom BioSafe® modular steel cleanrooms are available with dual-sided, flush-mount tempered glass viewing windows.
BioSafe flush-mount frameless double window installed in laboratory
Flush-mount BioSafe® frameless design 84” x 40” double tempered glass window BioSafe Flush-Mount Frameless Double Window Unique BioSafe® frameless design seals flush against walls, eliminating surfaces that collect dust.
Double-Sided Flush-Mount Frameless Window
BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices where contaminants can collect Double-Sided Flush-Mount Frameless Window BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices where contaminants can collect; 48” x 44” double glass shown.
BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices that collect dust. Installed in retail pharmacy.
BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
Tempered-glass BioSafe® stainless steel frame and two 0.5"-thick single-pane windows BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass Tempered-glass BioSafe® window with stainless steel frame and two 0.5"-thick flush-mount windows for use in conventional walls (specify wall thickness)

Features and Benefits

Framed BioSafe Window

Framed design encases window panes with 304 Stainless Steel frame on the exterior. Flush-mount design minimizes crevices where contaminants can collect.

White Border BioSafe Frameless Window

The BioSafe white frameless border window provides panes that are embedded into the wall. This creates a seamless view for the connection between the wall and window. Upgrade to white borders separately.

BioSafe Window Designs

Framed and frameless BioSafe windows are designed without exposed hardware or crevices where microbes can colonize.

Single-Window Frame Installation

The window frame is first placed in the wall cut-out from the "clean" side of the room

Double-Window Frame Installation

Fasteners attach the frame to the wall cut-out wood frame through the pre-drilled holes on the bottom, sides and top

Frameless BioSafe Window

Frameless design includes window panes embedded in wall with no visible hardware on exterior. Attractive black faux border is positioned on inside surface of glass to prevent scratching.

Built-in CleanSeam™ Ledge

Single pane BioSafe® cleanroom windows feature a seamless stainless steel ledge on the opposite side of the glass pane for easy sterilization.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.
