Terra Part # 6600-09
Request Quote
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Terra Part # 6600-09
65348
Request Quote
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Custom-configured product: Terra will quote.

• Stainless steel used for wall and ceiling panels

• Modifications to lights, FFUs, or other components must be specified by the customer

• Optional FM 4910-listed lens cover available for ceiling light fixtures

• Optional stainless steel replacements available for HEPA filter screens and door hardware

• Steel components maintain structural integrity far longer than aluminum under fire conditions

• Specified height is from the floor to the filter face

• FFUs add 13” (330mm) to specified height

• Allow an additional 11” (279mm) between the top of the FFUs and the ceiling for sufficient air intake

• Ceiling Grid: Stainless steel

• Control Panel: Mirror-finish 304 stainless steel

• Order fan/filter units, lights and other ceiling modules separately

• UL-Listing Declaration available for cleanroom electrical system (ordered separately)

• Seismic analysis available (Cat. #6600-98)

• Refer to sales order and/or drawings for dimensions and other details

• Material choices will replace all wall panels, blank ceiling panels, and door panels

• Powder-coated steel frame and steel ceiling grid are inherently noncombustible and completely self-supported; no drop-ceiling required!

• Modular construction features interchangeable components that can be easily configured to better control hazards and environmental concerns

• Standardized 2’ x 4’ ceiling bays make it simple to add HEPA-filtered fan units as needed to meet ISO 5 – ISO 8 cleanroom classifications

• Heavy duty, explosion-proof LED lighting, fan/filter units, fume hoods and power switches are also available

• Check with your local planning department to see what regulations apply to your installation

• Since regulations vary considerably in different locations, Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes

Application: Fire-Retardant

Frame Material: Powder-Coated Steel

Overall Dimensions: Custom

Panel Material: 304 Stainless Steel

Dimensions: [xxx]

ISO Class: [xxx]

Panel Material: [xxx]

FFU Quantity: [xxx]

Light Quantity: [xxx]

Unit of Measure: EA

Marks & Listings: UL, ULC

Weight, Shipping: 10 lb

Manuals & Resources

Hardwall Cleanrooms

  • Video of Hardwall Modular Cleanroom Design, Manufacture and Installation On-Site Hardwall Cleanroom Installation
  • Hardwall Cleanroom with Acrylic Wall Panels Hardwall Cleanroom with Acrylic Wall Panels
  • Control Panel for Hardwall Modular Cleanrooms Control Panel for Hardwall Modular Cleanrooms
  • Hardwall Modular Cleanroom – Multi-Room Configuration Hardwall Modular Cleanroom – Multi-Room Configuration
  • Hardwall Modular Cleanroom – Polycarbonate Wall Panels Hardwall Modular Cleanroom – Polycarbonate Wall Panels
  • Modular hardwall cleanroom shown with fan/filter units and air conditioning modules Modular Hardwall Cleanroom
  • Class 100,000 Hardwall Clean Room Equipment Enclosure for Conveyor Line
  • Fire-Resistant Hardwall Modular Cleanroom Fire-Resistant Hardwall Cleanroom
  • Insulated Hardwall Modular Cleanroom Insulated Hardwall Modular Cleanroom
  • Horizontal Hardwall Cleanroom Polypropylene Panels Horizontal Hardwall Cleanroom Polypropylene Panels
  • Hardwall Modular Cleanroom Hardwall Modular Cleanroom
  • Modular Cleanroom Showing Air Conditioning and RH Control Ducting Modular Cleanroom with A/C and RH Control
  • The benefits of using static dissipative sheets in a short video Static Dissipative Sheet Benefits
  • Modular Office Production Control Room Modular Production Control Room
  • Modular Office Warehouse Operations Modular Warehouse Office
  • Thermal Vacuum Chamber Enclosure Thermal Vacuum Chamber Enclosure
  • Insulated Hardwall Cleanroom Insulated Hardwall Cleanroom
  • Mezzanine Cleanroom Mezzanine Cleanroom
  • Terra Universal IQ-OQ Process
Video of Hardwall Modular Cleanroom Design, Manufacture and Installation
The benefits of using static dissipative sheets in a short video

Features and Benefits

Affordable Customization

Affordable customization to unique requirements!

  • Terra's modular designs allow versatile configurations using standard components, whether you need a small equipment enclosure or a multi-suite processing facility
  • Versatile plug-and-play Power Distribution Modules allow addition of ceiling fan/filter units and lights to meet any cleanliness requirement or to upgrade ISO levels or lighting levels after installation
  • Modular frame and panel designs, in several application-specific materials, adapt to any floor plan requirement
  • Automated fan controls simplify pressure balancing, Building Management System (BMS) integration, and certification of large, multi-suite facilities
  • Stand-alone A/C modules or integration with existing air handling system
  • Consultation services available to meet industry-specific regulations, such as USP 797/800 compounding requirements
  • Terra’s full engineering services adapt designs to accommodate unique equipment or facility integration challenges

Call or submit a QuickQuote Form for assistance with a modular cleanroom tailor-made to your application!

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Explosion Proof 40W LED Light
    UL-listed for Class I, Division 1 and 2, Groups C and D areas, this low profile LED light produces 3,600 lumens and operates from 120 to 277VAC, 50/60Hz. The heat-dissipating housing increases the efficiency and lifespan of the LEDs.
  • Explosion-Proof HEPA Fan and Filter Unit
    Explosion-proof ULPA fan/filter unit features sealed or non-sparking components, including motor, all-potted conduit and grounded filter screens that meet NEC requirements for Class I, Division 1 hazardous locations.

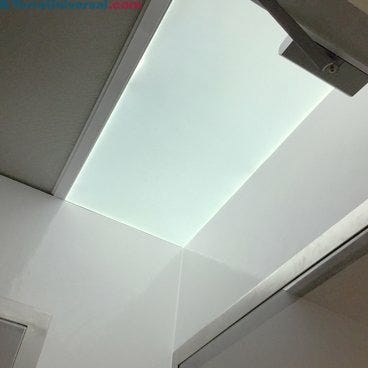

  • LED Light Panels
    Energy-efficient LED lights provide bright lighting without generating excessive heat inside the cleanroom.
  • Available Environmental Control System
    Standard cleanroom comes with analog pressure gauge and on/off controls; optional touchscreen FFU controller monitors, controls and logs internal pressure, as well as displaying temperature and RH.
  • Application-Specific Doors
    Select aluminum, stainless steel frame or frameless cleanroom-rated doors with tempered glass, polycarbonate, acylic or dissipative PVC panels (shown: SS frame with polycarbonate panel).
