Part # 9082-57
-105°C Cold Trap with Stainless Steel Lid for CentriVap Pro Concentrators, 115V, Labconco, 8621100
-105°C Cold Trap with stainless steel lid for very low freezing point solvents
Compatible with 115V Labconco CentriVap Pro Vacuum Concentrators
Two 1/3 hp compressors lowers cold trap to -105° C (-157° F) in less than 40 minutes
Temperature graph that illuminates green when the collector coil reaches operating temperature of -65° C (-85° F)
Protects lab environment and vacuum pump from harmful vapors, fumes and corrosives by condensing and trapping volatile solvents for easy collection in analysis or disposal
Manufacturer SKU: 8621100
Manufactured By: Labconco
Warranty: One-Year Manufacturer Warranty from Date of Installation
-105°C Cold Trap with stainless steel lid for very low freezing point solvents
• Compatible with 115V Labconco CentriVap Pro Vacuum Concentrators
Two 1/3 hp compressors lowers cold trap to -105° C (-157° F) in less than 40 minutes
Temperature graph that illuminates green when the collector coil reaches operating temperature of -65° C (-85° F)
Protects lab environment and vacuum pump from harmful vapors, fumes and corrosives by condensing and trapping volatile solvents for easy collection in analysis or disposal
Features of required Cold Trap for CentriVap Pro models: 4-liter stainless steel collector, ON/OFF power switch, HCFC/CFC-free refrigeration system, lid with two Quick-Disconnect fittings for 1/2" ID hose (connects to CentriVap Pro model), Eco-Cool refrigerant, temperature graph displays relative collector coil temperature
Illuminated Temperature Graph with Endpoint Indication (Operating temperature of -40 °C)
Collector temperature: -105°C
Material: stainless steel lid,stainless steel drain port with polypropylene valve, rubber gasket and insulating cover, brushed stainless steel and charcoal grounding clip
Exterior Material: brushed-stainless steel and powder-coated exterior
Stainless steel collector holds up to four liters of liquid; optional Glass Insert 7397605 (for use with corrosives
Collector drain: corrosion-resistant polypropylene valve, stainless steel plumbing for quick and easy clean up; eliminates use of glass insert with non-corrosive samples
UL Standard 61010-1 (115V, 60 Hz models)
Optional:
Clear Canisters and Chemical Trap Inserts
Glass Trap
Manifold
CentriVap Cart
Specs
• Type: Cold Trap
• Model: CentriVap Pro
• Manufactured by: Labconco
• Manufacturer SKU: 8621100
• Collector Temperature: -105°C
• Unit of Measure: EA
• Marks & Listings: CE, UKCA
• Electrical Specifications: 115 V, 60 Hz
• Weight, Product: 150 lb
• Dimensions, Product: 24.1" W x 23.9" D x 17.6" H
• Weight, Shipping: 170 lb

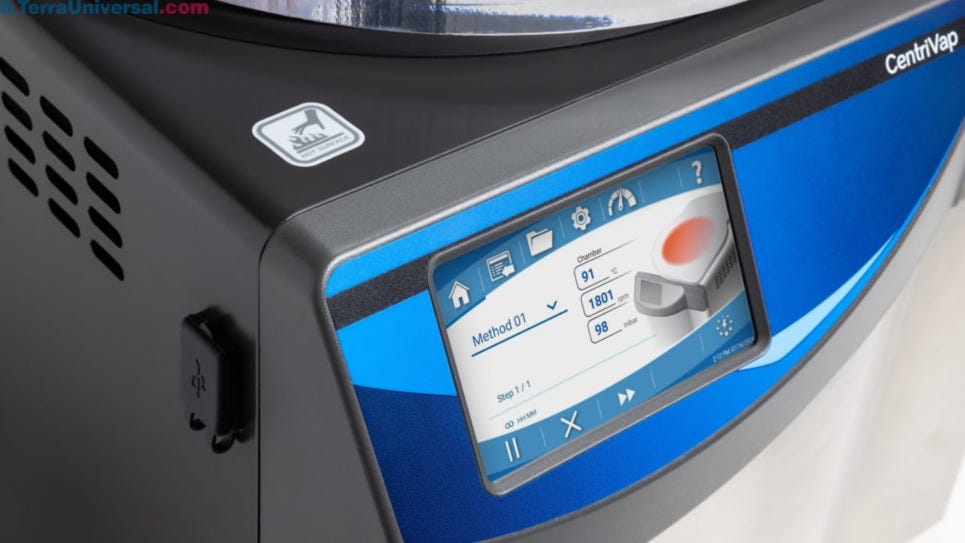

Centrivap Pro Centrifugal Vacuum Concentrator by Labconco
Video of Centrivap Pro Vacuum Concentrator by LabconcoCentrivap Pro Centrifugal Vacuum Concentrator by LabconcoVideo features operation and available accessories for Labconco Centrivap Pro Vacuum Concentrators used in lab prep work
