Part # 1017-63

GroundLock™ Extreme Interlocking ESD Tiles by StaticWorx

  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Installs over any subfloor with no glue/adhesives, special prep, or professional experience required
  • Fully compliant with ANSI/ESD S20.20-2014 with electrically bonded interlocking tiles for reliable, high-performance static control
  • Slip-resistant surface supports safe cart and pallet rolling; withstands heavy loads up to 30,000 lbs with high dimensional stability
  • Available in interlocking and seam-welded square formats with optional aluminum ramping edges and corner kits for flexible installation
  • Can be retrofitted to cleanrooms that are already installed; installs over most substrates including low pile carpet
ISO 6 Icon
Warranty: Lifetime Warranty
$17
Part #: 1017-63
Usually ships in 10-10 business days

Want it faster ? Read about FasTrak

Product Details

  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Installs over any subfloor with no glue/adhesives, special prep, or professional experience required
  • Fully compliant with ANSI/ESD S20.20-2014 with electrically bonded interlocking tiles for reliable, high-performance static control
  • Slip-resistant surface supports safe cart and pallet rolling; withstands heavy loads up to 30,000 lbs with high dimensional stability
  • Available in interlocking and seam-welded square formats with optional aluminum ramping edges and corner kits for flexible installation
  • Can be retrofitted to cleanrooms that are already installed; installs over most substrates including low pile carpet
  • Available in Light Gray (standard) and Medium Gray; Blue available as special order.
  • 25" x 25" interlocking or 24" x 24" square format for installation with releasable adhesive.
  • 6mm total thickness with 2mm wearlayer; weighs 1.89 lbs/ft².
  • FloorScore certified by SCS Global Services; TVOC after 28 days below 10 μg/m³ for cleanroom air quality compliance.
  • Individual tiles are replaceable without removing the entire floor; cut the dovetail, disengage, and swap.
  • 100% recyclable carbon-loaded recycled vinyl construction backed by a lifetime warranty.
  • Resistive properties warranty: Lifetime (contact StaticWorx for information regarding exclusions based on improper maintenance, usage, etc.).

Specs

• Manufactured by: StaticWorx

• Type: Flooring

• Material: Vinyl

• Width: Custom

• Depth: Custom

• Color: Light Gray

• Certified ISO Grade Design: ISO 6

• Unit of Measure: SQFT

• Weight, Product: 1.89 lb

Cleanroom Accessories & Components

  • GroundLock installation video guide GroundLock Installation Video
  • StaticWorx GroundLock Extreme custom ESD floor tiles installed in a hardwall cleanroom StaticWorx GroundLock™ ESD Flooring in a Controlled Environment

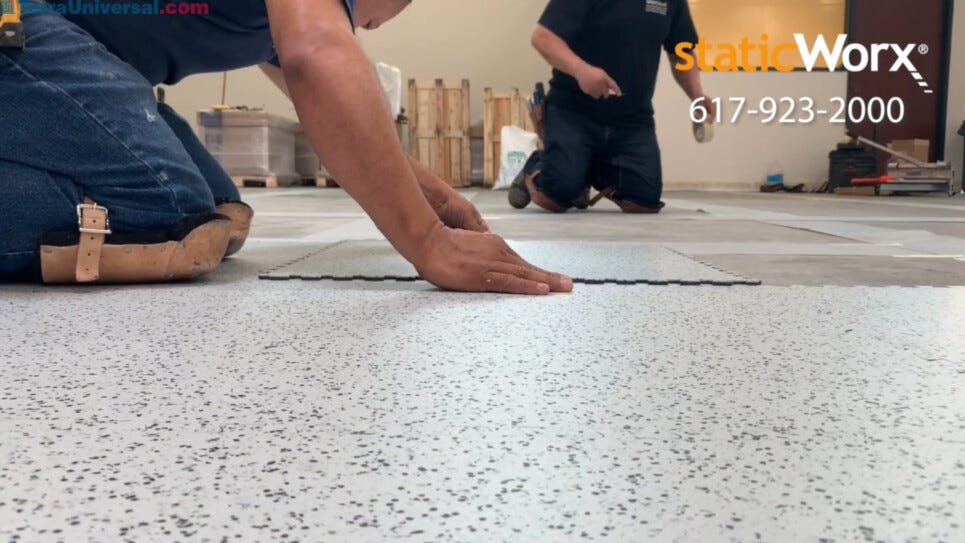

GroundLock installation video guide
GroundLock installation video guide | 1017-63 displayed GroundLock Installation Video GroundLock installation video guide

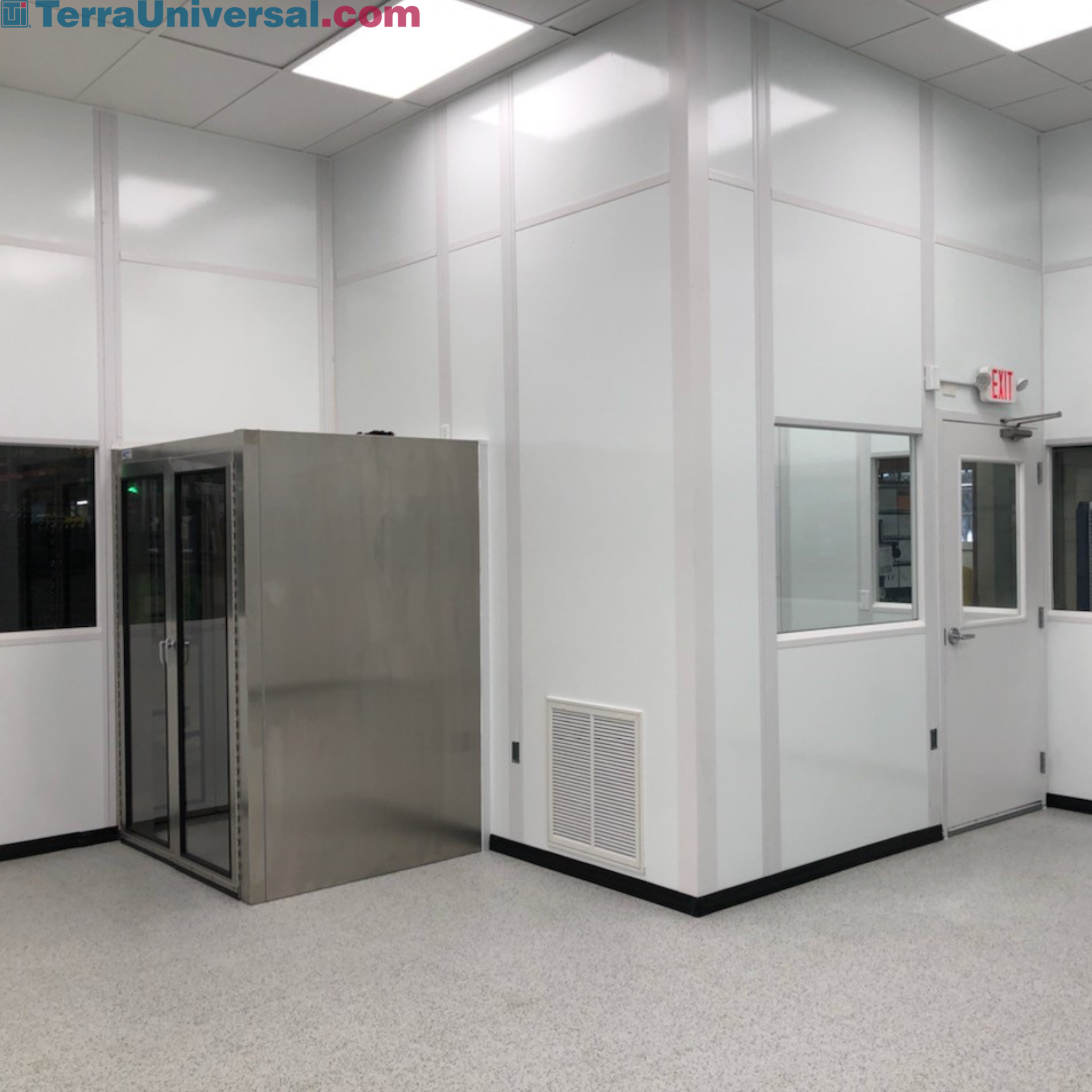

StaticWorx GroundLock Extreme custom ESD floor tiles installed in a hardwall cleanroom
SKU: 1017-63

StaticWorx GroundLock™ ESD Flooring in a Controlled Environment

Custom-configured tiles drop into place over any subfloor with no adhesives, subfloor prep, or installation expertise required. This makes them a practical choice for new cleanroom builds and retrofits alike.

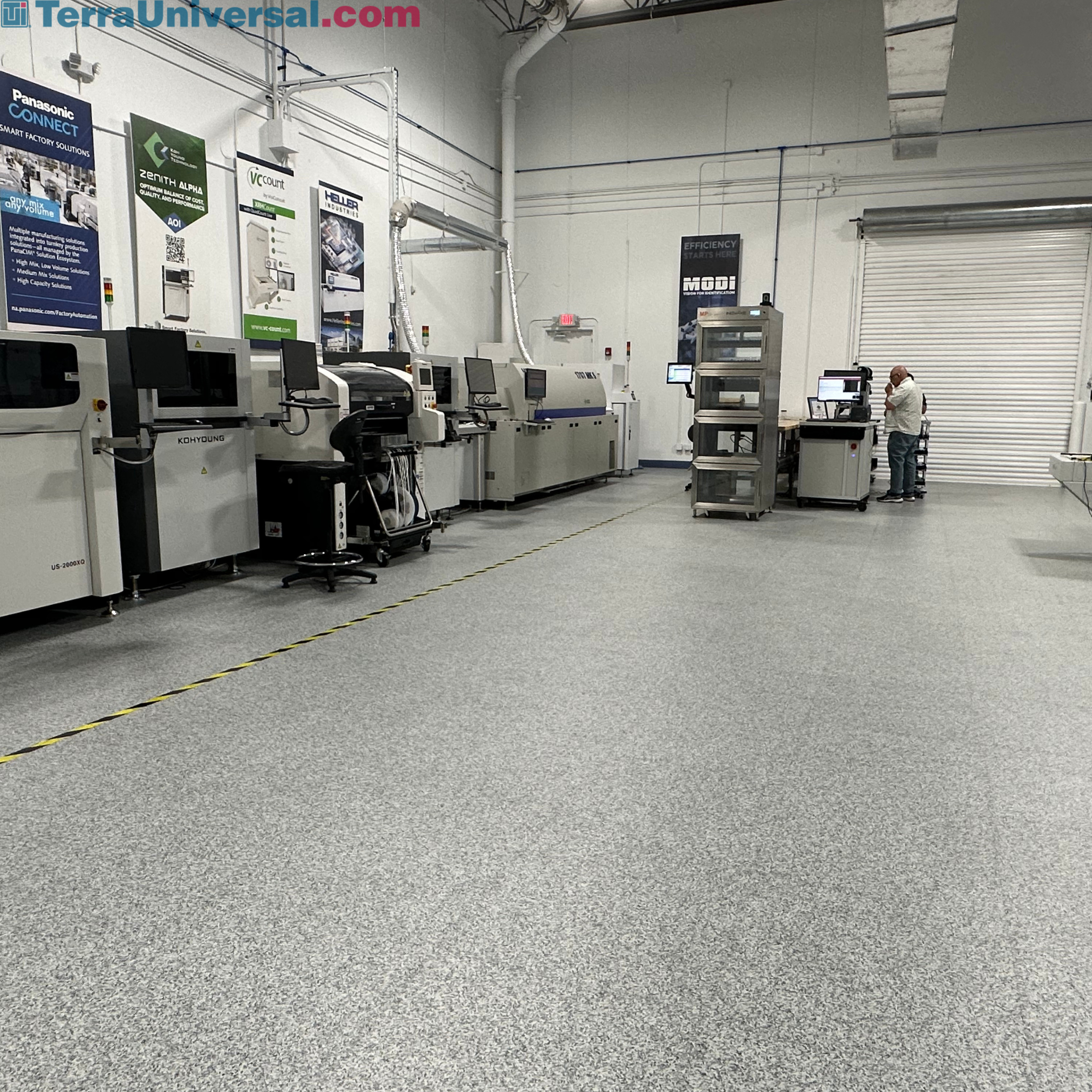

StaticWorx GroundLock Extreme ESD interlocking floor tiles installed across an SMT PCB assembly line production floor
SKU: 1017-63

Assembly Workspace Installation of StaticWorx GroundLock™ ESD Flooring

Interlocking floor tiles across a full SMT PCB assembly line environment with pick-and-place, reflow, and inspection equipment. The static-dissipative surface delivers continuous ESD protection throughout the production floor.

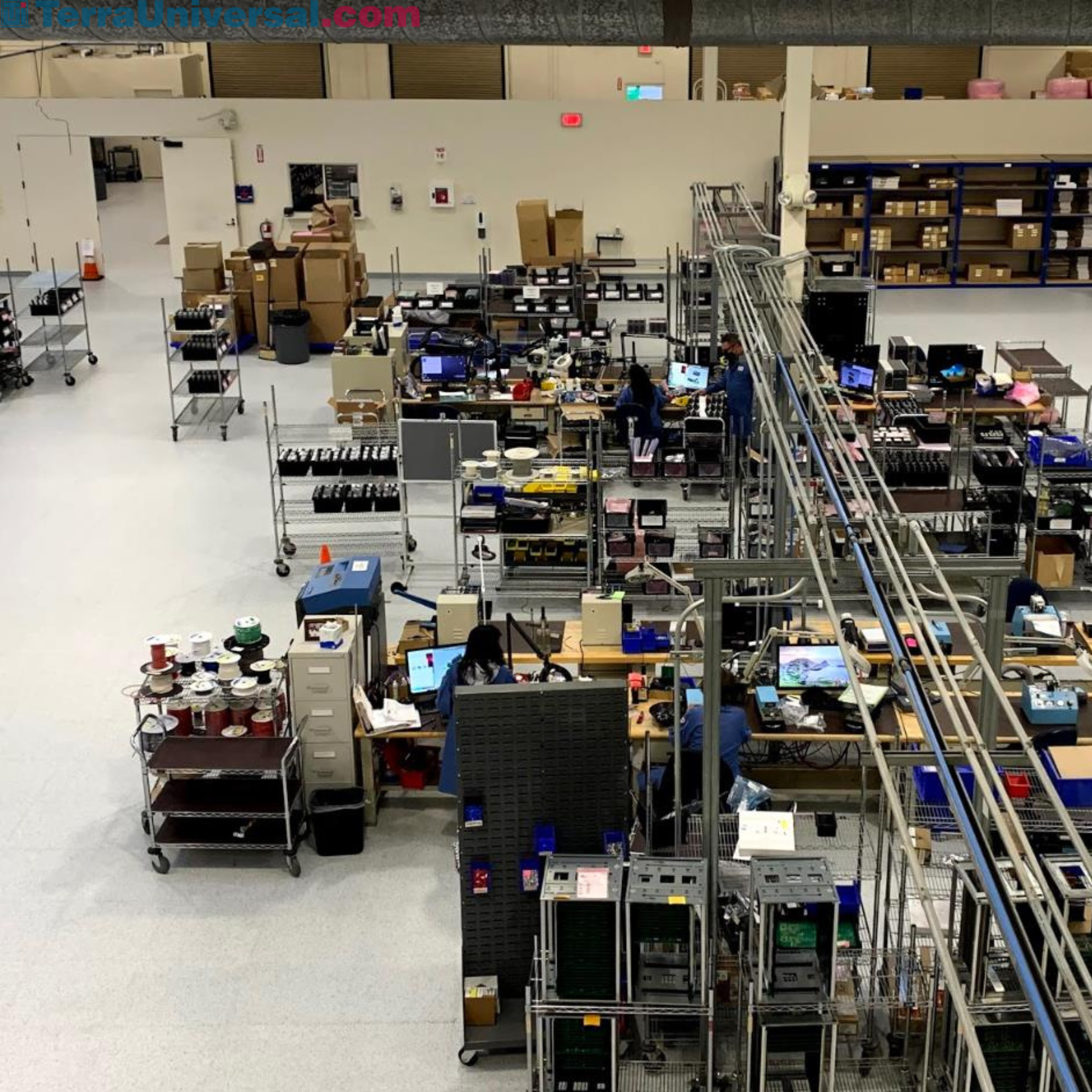

StaticWorx GroundLock Extreme ESD floor tiles delivering facility-wide static protection across an electronics manufacturing floor
SKU: 1017-63

Manufacturing Facility Installation of StaticWorx GroundLock™ ESD Flooring

Configurable tiles delivers reliable and continuous, facility-wide static protection across large-scale electronics manufacturing environments.

StaticWorx GroundLock Extreme ESD floor tiles protecting sensitive SMT components from electrostatic discharge in a high-density storage environment
SKU: 1017-63

Storage Environment Installation of StaticWorx GroundLock™ ESD Flooring

Delivers reliable static dissipation across the entire floor surface, protecting sensitive components from electrostatic discharge while supporting heavy equipment loads without deformation.
