Vacuum Chambers

4 products meet your criteria.

per page
  1. Aluminum Vacuum Chambers
    Stocked
    Aluminum Vacuum Chambers
    From
    $3,125
    Some ship in 1 - 3 days
    StockedStocked
    11 Chamber Width11 Chamber Depth11 Chamber Height

    • Provide an optimal environment for vacuum testing and processing to one atmosphere 29.9" Hg
    • All chambers include two preinstalled metering valves and a 0 - 30" Hg vacuum gauge
    • Benchtop units as small as 9" x 9" x 9.5"
    • Floor-standing units as large as 37" x 37" x 37.5"
    Chamber Width: 29.375", 30", 35", 11", 12", 8", 15", 16", 14", 7", 10"
    Chamber Depth: 23.375", 30", 35", 10", 12", 8", 9", 16", 11", 7", 15"
    Chamber Height: 16.75", 40", 35.5", 8.5", 6.5", 10.5", 12.5", 11.5", 9.5", 5.5", 7.7"

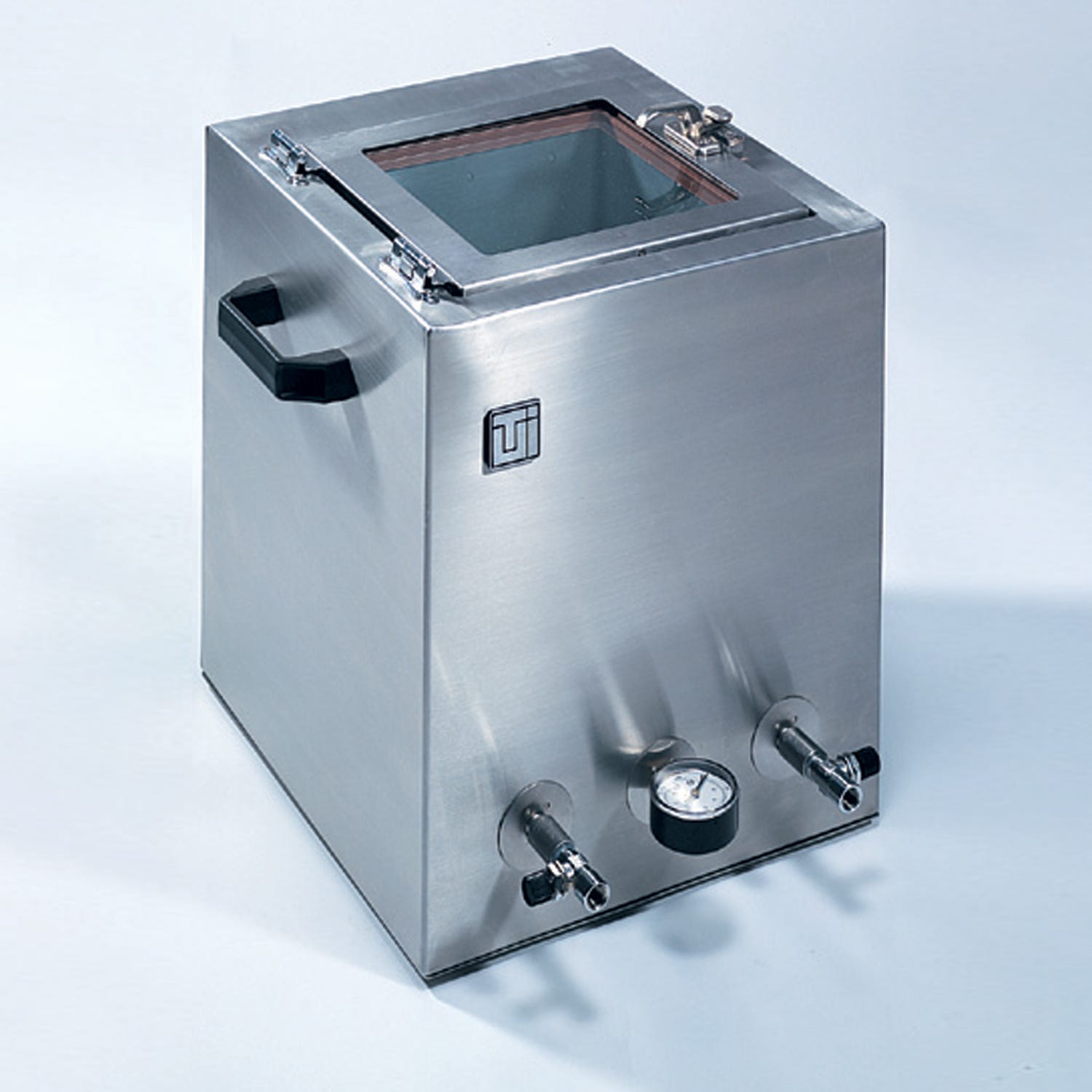

  2. Stainless Steel Vacuum Chambers
    Stocked
    Stainless Steel Vacuum Chambers
    From
    $5,218
    Some ship in 1 - 3 days
    StockedStocked
    2 Chamber Width2 Chamber Depth2 Chamber Height

    • Durable double-wall stainless steel vacuum chamber supports full vacuum to 29.9" Hg
    • Ideal for contamination-sensitive applications: won't permeate or outgas like acrylic designs
    • Versatile stainless steel construction is chemical resistant, heat resistant, and ESD-safe
    • Light-weight sheet metal design simplifies transporting parts under vacuum between workstations
    Chamber Width: 27", 8"
    Chamber Depth: 48", 8"
    Chamber Height: 24", 12"
Page 1 of 1

4 products meet your criteria.

per page

Vacuum Chambers by Terra Universal

Multi-pin Feedthrough

Optional 25-pin connector can be used to monitor conditions within the vacuum chamber.

Coaxial SMA Feedthrough

Double-ended, 50-ohm connectors allow small electronics to operate within the chamber.

Tested to Hold Full Vacuum for 72 hours

Terra's acrylic vacuum chambers are tested to hold 29.9"Hg (99.9% vacuum) with no detectable change over a 72 hour duration. Heavy-duty one-inch-thick walls ensure chamber integrity and protect against cracking.

Precision Vacuum Gauge and Needle Valves

A vacuum gauge and two precision needle valves included with vacuum chambers allow for exact application, monitoring, backfill, and bleeding of vacuum pressure in increments of ~1" Hg (~3% vacuum). The hardware is mounted over an extra layer of acrylic to prevent damage to the lid while the chamber is under maximum vacuum.

Optional Glass Top for Sensitive Optics

0.75"-thick tempered-glass top allows optical testing and monitoring that requires high clarity.

PC-Based Vacuum Control with Data Logging

The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.

Vacuum Desiccator Cabinet with Front Swing Door and Adjustable Shelves

Terra’s acrylic vacuum desiccator cabinet with front-swinging door allows for quick access and easy transfer of parts. Optional removable shelf systems increase storage capacity for faster batch processing.

Extra Wide Acrylic Vacuum Chamber with Hinged Front Door

Acrylic vacuum chamber with extra wide mouth and hinged door lets you easily feed long parts through for speedy and hassle-free transfer.

Inlaid Rubber O-Ring for Uniform Seal

Precision-routed channel and inlaid rubber O-ring ensures a uniform seal around the lid of your vacuum chamber. The O-ring is also removable in case it needs to be replaced.

Vacuum Chamber on Electric Height Adjusting Table

Electric height adjusting tables help easily position extremely heavy vacuum chambers to the right height to allow transfer of materials, or observe tests within the chamber.

Vacuum Chambers

  • Terra Universal Vacuum Chamber Overview
