• Frame Material: Powder-Coated Steel
• Width: 6'
• Depth: 6'
• Height: 8'
• Available Certified ISO Grade Designs: ISO 8
• Certified ISO Grade Design: ISO 8
• Unit of Measure: EA
Compared to acrylic, static-dissipative PVC offers three benefits that reduce operating expenses and drive down overall ownership cost of a clean room, glove box, hood, desiccator, or other enclosure.
An aseptic environment requires frequent sterilization with disinfectants such as alcohol. Unfortunately, most common biocides, including industry-standard IPA solutions, degrade acrylic, causing cracks and discoloration.
Acrylic’s most serious hidden cost becomes apparent when static-sensitive materials are destroyed or degraded by unpredictable electro-static discharge (ESD).
Watch Terra's Portable HEPA Filtration System Video

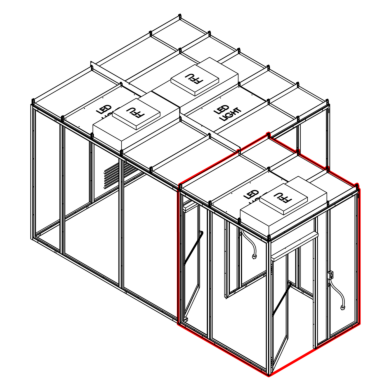

ValuLine Hardwall Cleanroom Installation
Both cleanroom lines meet the same quality standards for design and materials while also providing essentially the same airflow, which is based on the configuration of fan/filter units.
However, Terra’s standard cleanrooms utilize Power Distribution Modules, which can accommodate more FFUs and light fixtures than the basic power supply included on ValuLine cleanrooms. PDMs also feature quick-connect fittings and a better control panel. ValuLine cleanrooms do not include the decorative top trim and status indicator lights included on standard line cleanrooms.
Each standard line cleanroom is built-to-order, can be made in virtually any reasonable size and can use alternative materials such as stainless steel frames. ValuLine cleanrooms are preconfigured from standard components to produce ten standard sizes from 6’ x 6’ up to 12’ x 12’ in each of two heights (7’ and 8’), allowing shorter lead times.
| Model | Nominal Dimensions* Inches (mm) | Avg. CFM @ MS (m3/h) | High speed Airflow FT/min(m/s) | Medium speed Airflow FT/min(m/s) | Low speed Airflow FT/min(m/s) | High speed Run Amps (watts) @ 60Hz | Medium speed Run Amps (watts) @ 60Hz | Low speed Run Amps (watts) @ 60Hz |
|---|---|---|---|---|---|---|---|---|
| 2 x 4 | 23.63 x 47.63 x 13 (600 x 1210 x 332) | 717 (1218) | 115 (.58) | 102 (.51) | 93 (.47) | 4.3A (512W) | 3.5A (416W) | 3.3A (393W) |
| 2 x 3 | 23.63 x 35.63 x 13 (600 x 905 x 332) | 602 (1023) | 121 (.61) | 116 (.59) | 106 (.54) | 4.1A (500W) | 3.1A (378W) | 2.7A (329W) |
| 2 x 2 | 23.63 x 23.63 x 13 (600 x 600 x 332) | 558 (948) | 172 (.87) | 166 (.84) | 162 (.82) | 3.9A (472W) | 2.8A (339W) | 2.4A (290W) |
On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*
Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.
* Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
