Compact drying chamber ideal for lab use; includes stopcock for connection to vacuum tubing | 1539-51 displayed
Vacuum Desiccators,Portable and Benchtop Desiccators

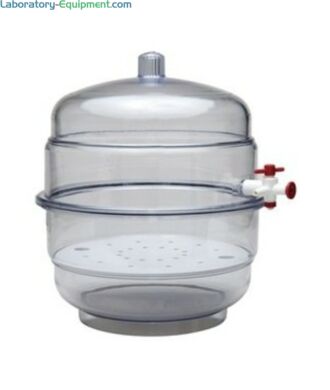

Desiccator; Vacuum, Benchtop, 7" W x 7" D x 8.5" H, Polycarbonate, Space Saver, Bel-Art
Available Certified ISO Grade Designs: ISO 8
Clear polycarbonate top and base, polypropylene stopcock
Small footprint with 13% more volume compared to standard desiccator domes
Shatter resistant units with thick walls
Large ribbed knob lifts top section
Stores full vacuum 29.9" Hg (759mm) at room temperature for 24 hours without need for vacuum grease
• Chamber Dimensions: 6" W x 6" D x 4" H
• Material: Polycarbonate
• Number of Chambers: 1
• Model: Space Saver
• Design: Benchtop
• Chamber Width: 7"
• Chamber Depth: 7"
• Chamber Height: 8"
• Humidity Control: Vacuum
• Control Type: Vacuum
• Desiccator Type: Vacuum
• Chamber Volume: 0.09 ft³
• Door Design: ValuLine
• Certified ISO Grade Design: ISO 8
• Unit of Measure: EA
Read more
Manufacturer SKU: 42012-0000
Manufactured By: Bel-Art
Warranty: 1 year
PASSWORD REQUIRED
for
Summary
Available Certified ISO Grade Designs: ISO 8
Clear polycarbonate top and base, polypropylene stopcock
Small footprint with 13% more volume compared to standard desiccator domes
Shatter resistant units with thick walls
Large ribbed knob lifts top section
Stores full vacuum 29.9" Hg (759mm) at room temperature for 24 hours without need for vacuum grease
Plate Capacity: 140 mm, No. 3
Base: Clear
Flange O.D.in. (mm): 6.75 (171)
Inside Diameter in. (mm): 5 7/8 (149)
Overall Height in. (mm): 8 1/8 (206)
Clearance Above Plate in. (mm): 4.75 (121)
Material: Clear polycarbonate top and base, polypropylene stopcock, TEFLON plug and washer and neoprene O-ring
Stores full vacuum 29.9" Hg (759mm) at room temperature for 24 hours without need for vacuum grease
Includes polypropylene stopcock and a port that accepts 1/4" (6.4mm) I.D. Vacuum tubing
Stopcock with a Teflon(R) PTFE plug controls airflow to gently release vacuum
Neoprene O-ring for secure seal with or without grease
Small footprint with 13% more volume compared to standard desiccator domes
Shatter resistant units with thick walls
Large ribbed knob lifts top section
Rigid, perforated polypropylene plate, 3.2 mm (1/8") thick supports contents and leaves space underneath for desiccant backup if desired
Removable plate can be replaced with Scienceware(R) High Heat Desiccator Plates (F42038-0140, F42038-0190, F42038-0230 depending on size) to support hot crucibles
Specifications
• Chamber Dimensions: 6" W x 6" D x 4" H
• Material: Polycarbonate
• Number of Chambers: 1
• Model: Space Saver
• Design: Benchtop
• Chamber Width: 7"
• Chamber Depth: 7"
• Chamber Height: 8"
• Humidity Control: Vacuum
• Control Type: Vacuum
• Desiccator Type: Vacuum
• Chamber Volume: 0.09 ft³
• Door Design: ValuLine
• Certified ISO Grade Design: ISO 8
• Unit of Measure: EA
• Weight, Product: 5 lb
• Dimensions, Product: 7" W x 7" D x 8.5" H
• Weight, Shipping: 10 lb
• Dimensions, Shipping: 15" W x 15" D x 15" H
• Package Type: Box
Features and Benefits
Products Tailored to Your Cleanroom Environment
Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Space-Saver Desiccator Perforated Plate
Circular, 4.8 mm-thick plates rest inside Bel-Art's Space-Saver Desiccators to hold samples and create space for desiccant. Plates are perforated for efficiency. The chemical-resistant plates endure temperatures up to 150°C (300°F).
Bel-Art Disposable Desiccant Cartridges
Bel-Art silica 100 mm desiccant cartridges protect materials from moisture and can be regenerated by applying dry heat. When silica is saturated with moisture, it turns pink. Cartridges are non-toxic, non-corrosive and inert.
Bel-Art Desi-Can Reusable Desiccant Canister
Bel-Art Desi-Can™ aluminum desiccant canister conveniently fits into spaces such as toolboxes or instrument cases to guard against rust. Monitor desiccant through the viewing window to check moisture saturation.
