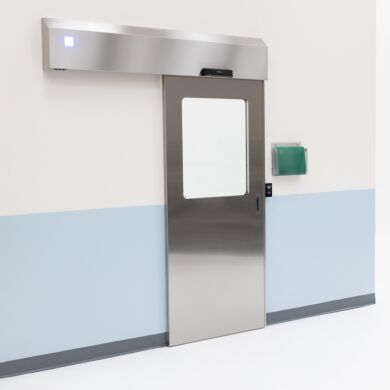

Door; Automatic Left Sliding, External Mount, 40" W x 80" H, 304 Stainless Steel Frame, Tempered Glass Window, Partial View
Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
• Type: Door
• Opening Action: Left Sliding
• Opening Width: 40"
• Opening Height: 80"
• Door Panel: Tempered Glass
• Window Size: Partial View
• Door Frame: 304 Stainless Steel
• Operation: Automatic
• Unit of Measure: EA
Read more
Terra Part #: 5556-11-LS
Manufactured By: Terra Universal
PASSWORD REQUIRED
for
Summary
Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
Door track is mounted externally to wall surface
Well suited for retrofit construction and easy installation where a large opening is not possible for recessed door frames.
System requires enough empty wall space next to the opening to allow door(s) to slide completely open.
Minimizes obstructive sight lines and provide hand-free entrance into cleanrooms
Microprocessor controller continually monitors door position with adjustable: opening & closing speed, distance & speed of braking, reduced opening and time delay
Auto reverse on obstruction
Toothed drive belt reinforced with fiberglass to prevent slippage and ensures even closing
Quick installation with pre-assembled header and panel sub-assemblies
304 stainless steel stands up to common disinfectants
Specifications
• Type: Door
• Opening Action: Left Sliding
• Opening Width: 40"
• Opening Height: 80"
• Door Panel: Tempered Glass
• Window Size: Partial View
• Door Frame: 304 Stainless Steel
• Operation: Automatic
• Unit of Measure: EA
• Dimensions, Product: 84" W x 90" H
Features and Benefits
Door Sliding Direction
Door sliding direction is easily determined while standing on the SECURE SIDE (key side) or OUTSIDE of the door.
Easy to Clean Flush-Mount Window
BioSafe windows forego shoddy spot-welding in favor of dual-pane glass installed flush on steel for a continuously smooth surface.
Keep your cleanroom contamination-free with the right accessories and protocols. Touchless systems and automatic doors can boost your cleanliness, safety standards, and ISO ratings.
Products Tailored to Your Cleanroom Environment
Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
