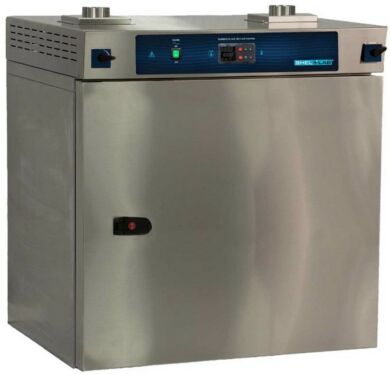

Oven; 3.9 cu. ft., Forced Air, SMO5CR-2, Stainless Steel, 240 V

Maximum Temperature: 270°C
Material: Stainless steel interior, exterior and shelves; high-temperature silicone door gasket
Interior Dimensions: 17"W x 20"D x 20.1"H (43.2 x 50.8 x 51.0 mm)
Shelves: Includes 2(adjustable and perforated); Holds maximum of 8
Heat-up (min.): 10 to 110°C (35 to 180°C)

• Type: Cleanroom Compliant

• Maximum Temperature: 270°C

• Material: Stainless Steel

• Capacity: 3.9 cu. ft.

• Convection Type: Forced Air

• Model: SMO5CR-2

• Manufacturer SKU: SMO5CR-2

• Capacity Range: <4 cubic feet

• Unit of Measure: EA

Manufacturer SKU: SMO5CR-2

Manufactured By: Shel Labs

Warranty: 45 Days from day of receipt

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Summary

Maximum Temperature: 270°C
Material: Stainless steel interior, exterior and shelves; high-temperature silicone door gasket
Interior Dimensions: 17"W x 20"D x 20.1"H (43.2 x 50.8 x 51.0 mm)
Shelves: Includes 2(adjustable and perforated); Holds maximum of 8
Heat-up (min.): 10 to 110°C (35 to 180°C)

Temperature Recovery Time: 4 minutes to reach 110°C

Temperature Uniformity: +/-1.0°C at 110°C

Temperature Range: Ambient +20°C to 270°C

Fully welded stainless steel interior

Watlow Controller with 40-step soak profile and ramp (4 files with 10 steps per file)

Easy to clean three adjustable air intake and exhaust ducts that uses either room or recirculated air

3.5” of high-temperature, wrap-around insulation

HEPA Filter (Class E11 - > 95% Retention)

Horizontal Air Flow

Encapsulated Insulation

Nitrogen Purging

Built-in Overtemperature Protection

Two separate LED displays shows time and temperature (shows setpoint or process information by the second)

Nitrogen inlet port

Includes: 2 perforated shelves, 4 shelf slides and 4 leveling feet

Specifications

• Type: Cleanroom Compliant

• Maximum Temperature: 270°C

• Material: Stainless Steel

• Capacity: 3.9 cu. ft.

• Convection Type: Forced Air

• Model: SMO5CR-2

• Manufacturer SKU: SMO5CR-2

• Capacity Range: <4 cubic feet

• Unit of Measure: EA

Helena

• Electrical Specifications: 240 V, 12 A, 2,200 W, 50/60 Hz

• Weight, Product: 340 Lbs

• Dimensions, Product: 35"W x 29"D x 38"H

• Weight, Shipping: 528 Lbs

• Dimensions, Shipping: 41"W x 35"D x 44"H

• Package Type: Crate
