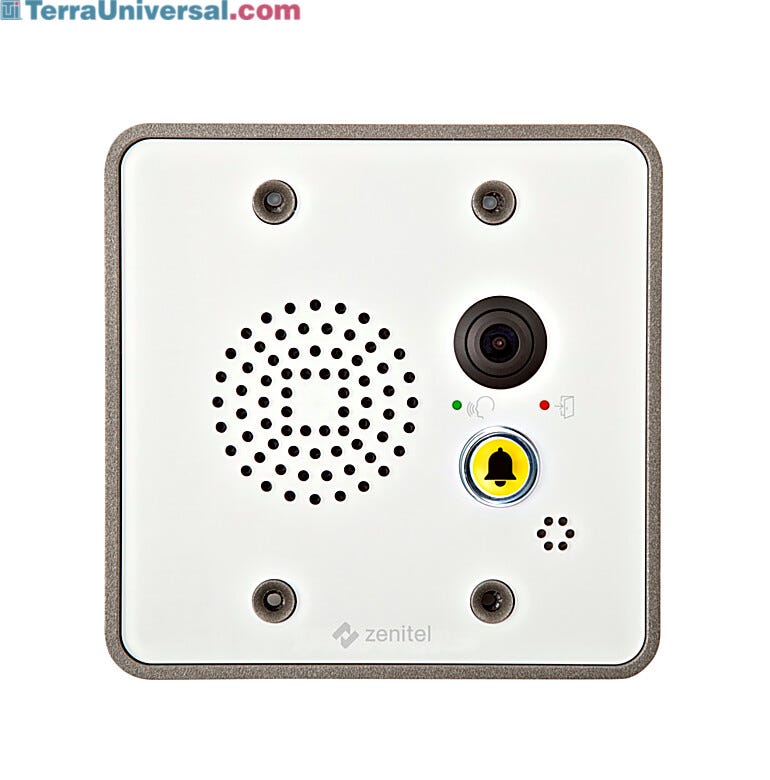

Cleanroom Video Intercom TMIV-1+ Turbine Mini by Zenitel
Warranty: 2 Years Parts
Available Certified ISO Grade Designs: ISO 8
Flush wall mount IP Intercom Station designed for use inside cleanrooms and hospitals
Wide-angle 1080p HD camera performs excellently in low-light and supports RTSP and ONVIF streaming
Superb audio technology provides clearly audible hands-free duplex communication from any location in the room
Integrated managed data switch provides advanced networking and security features, blocking unwanted access
User interface standardized by ONVIF for effective IP-based interoperability and security
• Manufactured by: Zenitel
• Type: Intercom
• Certified ISO Grade Design: ISO 8
• Manufacturer SKU: 1008117010
• Unit of Measure: EA
Read more
Warranty: 2 Years Parts
PASSWORD REQUIRED
for
Summary
Available Certified ISO Grade Designs: ISO 8
Flush wall mount IP Intercom Station designed for use inside cleanrooms and hospitals
Wide-angle 1080p HD camera performs excellently in low-light and supports RTSP and ONVIF streaming
Superb audio technology provides clearly audible hands-free duplex communication from any location in the room
Integrated managed data switch provides advanced networking and security features, blocking unwanted access
• User interface standardized by ONVIF for effective IP-based interoperability and security
Design: Unit sits completely flat and flush with the wall, without any holes or crevices where bacteria can collect.
Installation involves a flush-mount rear housing mounted in wall with the main module quickly snapping in to fit.
Communication standards: VoIP Intercom Station supports open standards and is compatible with ICX-AlphaCom, IC-EDGE, and IPBXs using SIP technology.
ICX-AlphaCom operation provides services such as emergency broadcast with volume override, CCTV integration, call priority, and AlphaNet multisite networking and event scripting.
Superb audio quality enabled via a host of advanced tech including active noise filtering, acoustic echo cancellation, wide-band audio codex, and high power outputs.
Integrated managed data switch provides advanced security with support for Quality of Service data traffic management, protection from unwanted access, and shared network connection for cost-efficient installation
Advanced supervision functions can detect any faults in network or station electronics and feedback loop detection
Contains RJ45 standard connection for Ethernet
Power received over Ethernet (IEEE 802.3 a-f) or external power 24-48 VDC, idle wattage 3.5W, maximum 12W
Audio output rated at 1 Watt, 96 dB @ 0.5 meters from speaker with additional 5W external speaker connection
Network managed by DHCP, HTTPS, and static IP protocols
Remote automatic software upgrades
6 I/O connection options can be used for digital inputs, outputs, or LED driving
Waterproof classification of IP44
UL Certification under UL/EN 62368-1 in file E317047
Specifications
• Manufactured by: Zenitel
• Type: Intercom
• Certified ISO Grade Design: ISO 8
• Manufacturer SKU: 1008117010
• Unit of Measure: EA
• Marks & Listings: CE, UL, ULC, FCC Part 15, RoHS
• Weight, Product: 0.8 lb
• Dimensions, Product: 4.6" W x 1.7" D x 4.6" H
• Weight, Shipping: 10 lb
• Package Type: Box
Features and Benefits
Easy-Mount Installation
Installing the TMIV-1+ mini video intercom requires only the mounting of a backbox into the wall; the unit faceplate is then screwed into place.
Static IP-Ready Intercoms
Clenaroom IP intercom devices support SIP protocol out-of-box, making it easy to integrate into third party IPBX networks
Superior Audio Quality
Cleanroom IP Intercom stations utilize automatic gain control, volume control, active noise reduction, and acoustic echo cancellation
IP Intercom Security Network
Each IP intercom station includes critical security features like protection from unwanted access and quality of service data traffic management
