Summary

  • ULPA filtration maintains ISO Class 5 conditions in work area
  • Requires Supporting Base
  • Provides an enclosed environment for handling hazardous substances and atmosphere-sensitive materials
  • Large viewing area, 36" W x 27.6" H (914 x 701 mm), for maximum viewing capabilities
  • Factory-leak tested with a mass spectrometer while pressurized with Helium at 5 inches of water gauge
  • Particulate containment of less than 20 nanograms per cubic meter
  • Airborne particulate cleanliness (measured under positive and negative pressures per ISO 14644-1 test method) exceeds ISO Class 5 conditions and achieves ISO Class 4 conditions
  • Built in blower with speed control capable of airflow from 15 CFM to 85 CFM (0.007 m≈/s to 0.04 m≈/s)
  • Exceeds Class 1 atmosphere containment conditions for oxygen permeation less than 1.67 ppm/min per ISO 10648-2 test method
  • Automatic control of the main chamber pressure, main chamber evacuation and filling cycles, and transfer chamber evacuation and filling cycles
  • Input/Output port for optional AtmosPure Re-Gen Gas Purifier
  • Factory-installed, rear-mounted, low profile stainless steel pressure relief bubbler at ±6 inches of water gauge

Specifications

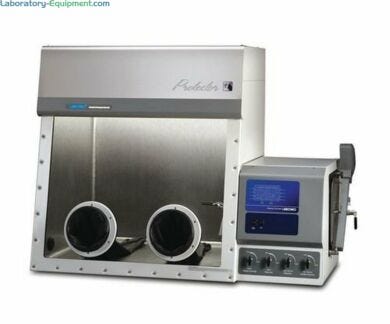

Model: Protector Combination

Material Type: Stainless Steel

Number of Glove Ports: 2

Chamber Material: Powder Coated Steel

Window Material: Laminated Safety Glass

Liner Material: Stainless Steel

Chamber Width: 35.5"

Chamber Depth: 33"

Chamber Height: 44"

Maximum Working Height: 41"

Filter: ULPA

Unit of Measure: EA

Marks & Listings: CE

Electrical Specifications: 120 V, 10 A, 1,200 W, 50/60 Hz

Dimensions, Product: 63.5" W x 34.4" D x 45.7" H

Weight, Shipping: 788 lb

Dimensions, Shipping: 41" W x 71" D x 56" H

Package Type: Palletized

Glove Box Isolators by Labconco

  • Protector Filtered Glove Box by Labconco
  • Labconco Protector Fiberglass Controlled Atmosphere Glove Box Labconco Controlled Atmosphere Glovebox
  • Labconco Precise Controlled Atmosphere Glovebox Labconco Precise Series Controlled Atmosphere Glove Boxes
  • Protector Combination Glove Box with Stainless Steel Lining Labconco Stainless Steel Protector Filtered Glove Boxes
  • Labconco Protector Filtered Glove Box Labconco Protector Filtered Glove Box
  • Labconco Protector Stainless Steel Double Filtered Glove Box Labconco Protector Stainless Steel Double Filtered Glove Box
  • Protector Filtered Barrier Isolator Glove Box with HEPA Filter Protector Filtered Barrier Isolator Glove Box with HEPA Filter
  • Labconco Protector Combination Glove Boxes Labconco Protector Combination Glove Boxes
  • Labconco Precise Basic Glove Box With Stand Labconco Precise Basic Glove Box

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Latex Gloves, Size 9-3/4, one pair, for Labconco Glove Boxes

    Choose latex gloves for optimal dexterity, gloves also available in neoprene, butyl and hypalon, with one or two-piece configurations.
  • Fan, Anti-static Ionizer, 100/115V, 50/60hz, for Labconco Glove boxes

    Labconco Anti-Static Ionizer Fan, compatible with Protector, Precise and XPert Glove Boxes, neutralizes static charge by circulating ionized air inside containment glove boxes; features a dual steady state DC circulator and easily mounts to light support.
  • Vibration Isolator, for Labconco Glove boxes

    Balance Vibration Isolator for Labconco Glove Boxes minimizes vibration within the chamber improve accuracy of sensitive analytical balances; includes a thick marble slab, 4 isolator pads and a 304 stainless steel protective top cover
  • Adjustable Height Mobile Stand for Labconco Glove Boxes

    Stationary and mobile adjustable-height stands provide stable support for 2- or 4-port Protector and Precise Glove Boxes (mobile stand shown with 5" casters)
