Product Details

  • Available ISO Ratings: ISO 7, ISO 8
  • Simplifies connection of ceiling-mount lights and fan/filter units (FFUs) to a central panel
  • Supplies power for up to 5 FFUs and 5 Lights
  • Configured with quick-connect receptacles and cables for Master PDM
  • Primary PDM serves as a main module linking with up to 4 secondary PDMs, each controlling up to 5 FFUs and 5 lights. Systems with more than 4 secondary PDMs require a booster PDM.
  • Primary PDM includes step-down transformer for low-voltage connection to control panel, filter replacement alarm, emergency LED with built-in battery, and operation status indicator LEDs.
  • Industrial control panel is UL listed for compliance with OSHA and local AHJ (Authorities Having Jurisdiction).
  • Includes relays and circuit breakers for overload protection of all connected devices, and quick-connect fittings for lights and FFUs.
  • To estimate power usage, simply total current load of all Fan/Filter Units and Lights connected to each Power Distribution Module.
  • Accommodates Night Service Switches for energy saving mode to save ~25% of FFU operating costs during off-hours. Order NS control panel separately.
  • Quick-Connect with Master PDM:
  • Quick-connect cables link to Master PDM; main panel board that distributes power to up to 10 PDMs.

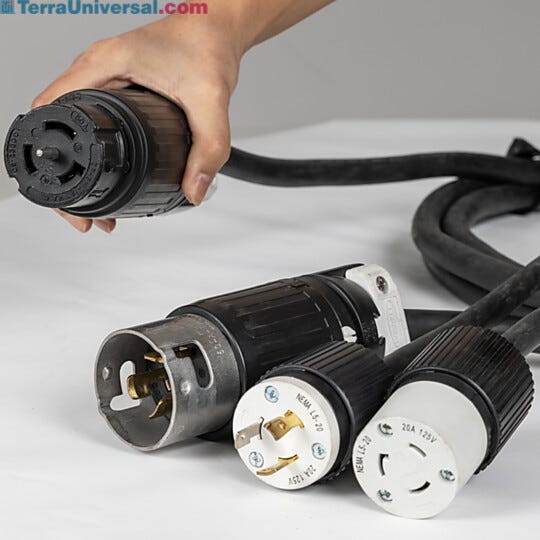

  • Industrial twist-lock plugs and receptacles allow for speedy installation, and prevent accidental disconnects. Provides instant, safe, and secure power connection to all PDMs.
  • Note: quick-connect cable length is assumed at 25ft. Customization required for length over 25ft.
  • Since regulations vary considerably in different locations, Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes. Check with your local planning department to see what regulations apply to your installation.

Specs

PDM Type: Primary

Unit of Measure: EA

Dimensions, Product: 17.5" W x 18.5" D x 6.25" H

Electrical Specifications: 115/120 V, 28 A, 50/60 Hz

Marks & Listings: UL, ULC

Package Type: Crate

Weight, Product: 35 lb

Weight, Shipping: 71 lb
