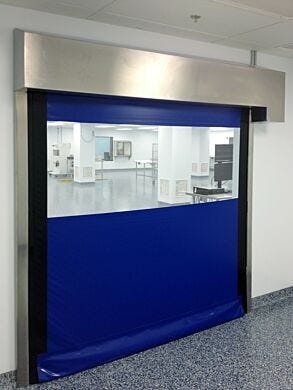

Customizable high-speed roll-up door with vinyl fabric curtain & corrosion-resistant frame | 6710-53A displayed

Roll-Up Doors

Roll-Up Door, High-Speed, Vinyl, 72"W x 96"H, ISO-ROLL® by ASI

Exceed cGMP, FDA and EMEA requirements, with high-speed adjustable open/close speeds of 50"/sec and 25"/sec
Tightest seal - low-profile track continuously retains curtain to stop air leakage from the ground up
Customize up to 12' x 12' (For additional sizes - consult Terra)
High performance, high efficiency 1 HP electric motor
Stainless steel frame and covers withstands frequent wash downs

• Electropolished: Optional

• Mounting Position: Wall

• Wall Thickness: 5.125"

• Window Material: N/A

• Width: 72"

• Height: 96"

• Frame Material: 304 Stainless Steel

• Material: Vinyl Fabric

• Door Frame: 304 Stainless Steel

• Door Panel: Vinyl Fabric

• Opening Height: 96"

• Opening Width: 72"

• Opening Action: Vertical

• Type: Roll-Up Door

• Unit of Measure: EA

Summary

Exceed cGMP, FDA and EMEA requirements, with high-speed adjustable open/close speeds of 50"/sec and 25"/sec
Tightest seal - low-profile track continuously retains curtain to stop air leakage from the ground up
Customize up to 12' x 12' (For additional sizes - consult Terra)
High performance, high efficiency 1 HP electric motor
Stainless steel frame and covers withstands frequent wash downs

Size: Standard door size is 6' x 8' (1829 mm x 2438 mm)

Material: .030 ( 0.762 mm) thick multi-filament PVC coated curtain material, FDA compliant, 28" ( 711 mm) high, full width, clear plastic panel, 304SS side frames

Motor: 1hp electric motor

316 SS optional

Available in white or blue standard, other colors available upon request

Side frames are designed for maximum durability and easy wipe down/ wash down

Low profile - only requires 3.125" (79 mm) of side room clearance and 17.5" (445 mm) of head clearance

Curtain will reset on every upward cycle, even if displaced from its track

Soft bottom edge

Specifications

• Electropolished: Optional

• Mounting Position: Wall

• Wall Thickness: 5.125"

• Window Material: N/A

• Width: 72"

• Height: 96"

• Frame Material: 304 Stainless Steel

• Material: Vinyl Fabric

• Door Frame: 304 Stainless Steel

• Door Panel: Vinyl Fabric

• Opening Height: 96"

• Opening Width: 72"

• Opening Action: Vertical

• Type: Roll-Up Door

• Unit of Measure: EA

• Electrical Specifications: 120 V, 60 Hz

• Weight, Product: 20 lb

• Weight, Shipping: 30 lb

• Package Type: Vendor

Features and Benefits

Optional Manual Release

Adding the manual release allows for a simple push through curtain. No special release mechanisms, counterweights, or springs required.

Breakaway with Auto Reset

Upon impact the door will automatically reset on the next upward cycle.

Wireless, Soft Bottom Edge

The wireless edge makes it easy to clean and provides optimal sealing. The bottom is soft which provides ultimate safety for personnel.

Optional Vertical Vision Panels

Increase visibilty and maximum safety for personnel with vertical vision panels.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
