Terra Part # 6771-00
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6771-00
Pass-Through; High-Speed Roll-Up, 82.25" W x 107.75" D x 107.25" H, 120 V
Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Provides service alerts via email when a certain threshold is reached
  • Touch panel controls include emergency stop and door lock-down functionality
  • Photoelectric sensors detect obstructed door path and retracts door when cross-beam is broken
  • Both doors feature flexible clear PVC viewing windows
  • Ramps built in to accommodate rolling equipment
  • Lock-down and Emergency Stop functions installed for safety
  • Includes: floor ramps, mounting brackets (1/4" clearance), Powder Coated Steel frame (Stainless steel is optional).

Door Material: Coated Fabric

Opening Width: 63"

Opening Height: 83"

Speed: 32" per sec

Max Door Cycles: 6 per hour

Unit of Measure: EA

Electrical Specifications: 120 V, 1 Ph, 60 Hz

Weight, Product: 600 lb

Dimensions, Product: 82.25" W x 107.75" D x 107.25" H

Weight, Shipping: 675 lb

Dimensions, Shipping: 115" W x 115" D x 90" H

Package Type: Crate

Buy Accessories
  1. Warranty; 2 Year, Pass-Throughs, Parts
    Request Quote
    Increase Down Increase Up
  2. Warranty; 3 Year, Pass-Throughs, Parts
    Request Quote
    Increase Down Increase Up
  3. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  4. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  5. Receive an email alert when a threshold is breached for Smart® or Roll-Up Passthroughs  |  6603-79 displayed
    Increase Down Increase Up

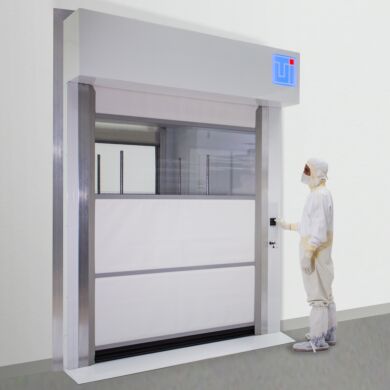

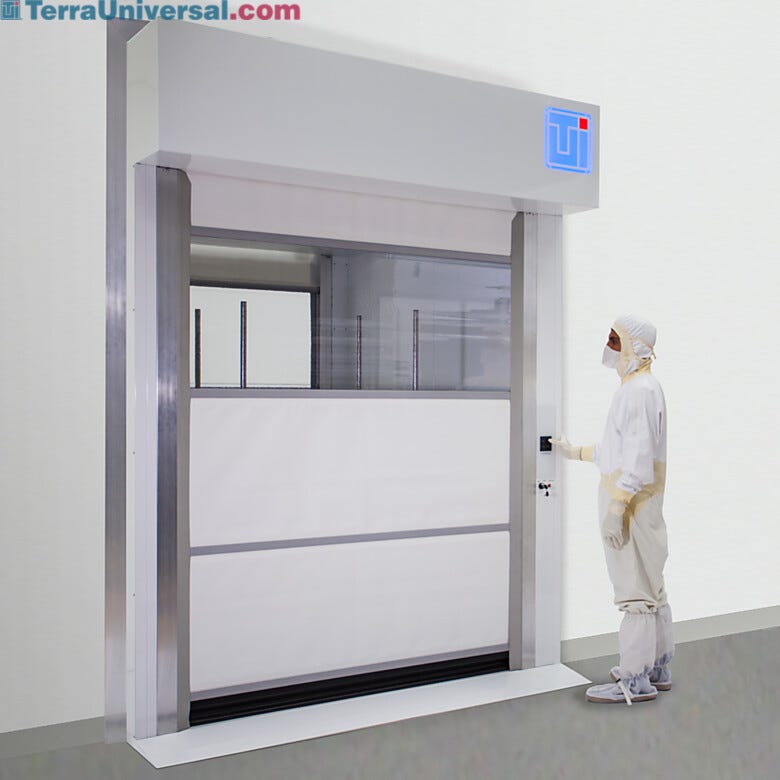

High-Speed Roll-Up Door Pass-Through Chambers
Standard Features
  • A Touch panel
    Touch panel controls feature emergency stop and door lock-down functionality
  • B Doors
    Cleanroom-appropriate vinyl doors feature clear PVC viewing windows
  • C Keyswitch
    Bypass keyswitch disables the automated interlock, allowing both doors to open for maintenance
  • D Ramps
    Ramps accommodate carts

Not Shown: Air curtain - Optional air curtain blasts particles off entering objects

Roll-Up Door Pass Through Chambers

  • Video Demonstration of a High-Speed Roll-Up Door Pass-Through Used to Transfer a Cart into a Cleanroom High-Speed Roll-Up Door Pass-Through
Video Demonstration of a High-Speed Roll-Up Door Pass-Through Used to Transfer a Cart into a Cleanroom

Features and Benefits

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

High-Speed Doors

Interlocked polyvinyl-coated fabric doors open or close in under four seconds, reducing chamber exposure to airborne contaminants and speeding up transfer.

High-Speed Roll-Up Door Obstruction Sensor

If either of two photoelectric sensors mounted along the inside edge of each chamber entrance detects an obstruction, the pass-through door reverses and the TUI logo flashes to prevent system damage.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

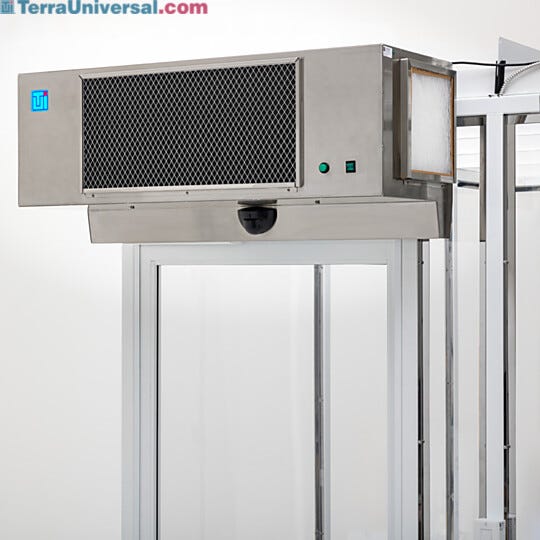

  • Versatile Mounting Locations

    Cleanroom air curtains are useful over any of type and size of opening to control temperature and/or contamination
