Select Product

Door Frame

Door Panel

Operation

Opening Action

Opening Width

Window Size

Terra Part #PriceShips in
304 Stainless SteelTempered GlassAutomaticDouble Swing81"72"Full View 1998-93 75310 $11,22710-15 Days2
304 Stainless SteelTempered GlassAutomaticDouble Swing81"72"Partial View 1999-93A 74589 $10,53510-15 Days3

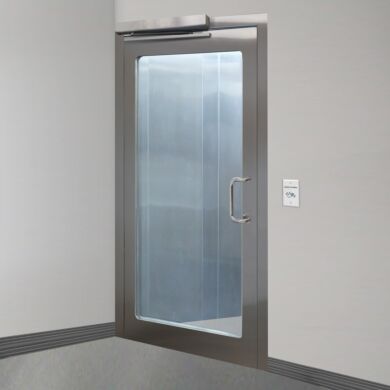

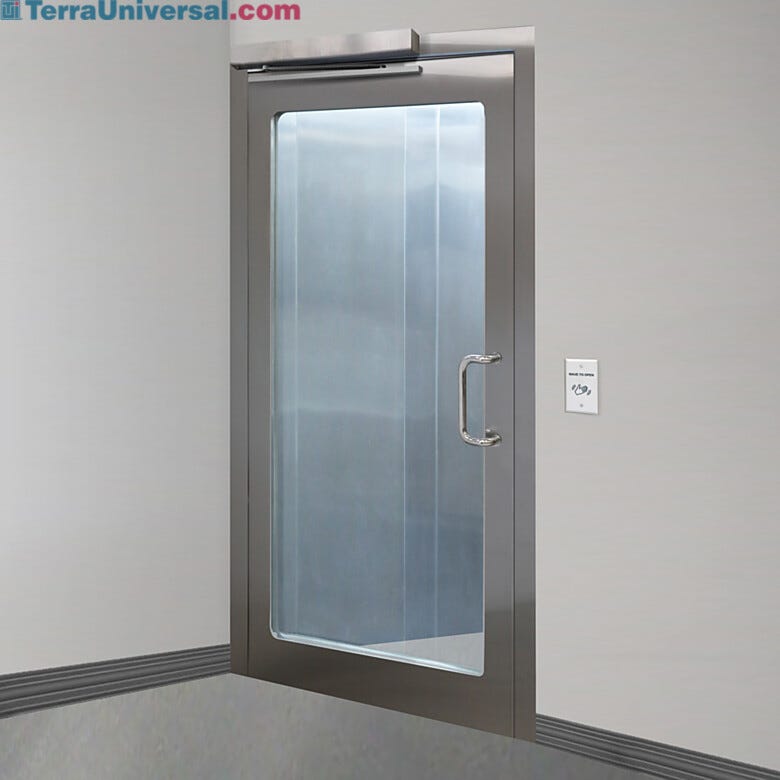

304 Stainless SteelTempered GlassAutomaticSingle Left Swing81"36"Full View 1998-87-L 75311 $6,55710-15 Days4
304 Stainless SteelTempered GlassAutomaticSingle Left Swing81"36"Partial View 1999-87A-L 74585 $5,86410-15 Days5
304 Stainless SteelTempered GlassAutomaticSingle Right Swing81"36"Full View 1998-87-R 75312 $6,5571-3 Days6
Stocked
304 Stainless SteelTempered GlassAutomaticSingle Right Swing81"36"Partial View 1999-87A-R 74586 $5,86410-15 Days7
Door Frame
Door Panel
Operation
Opening Action
Opening Height
Opening Width
Window Size
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

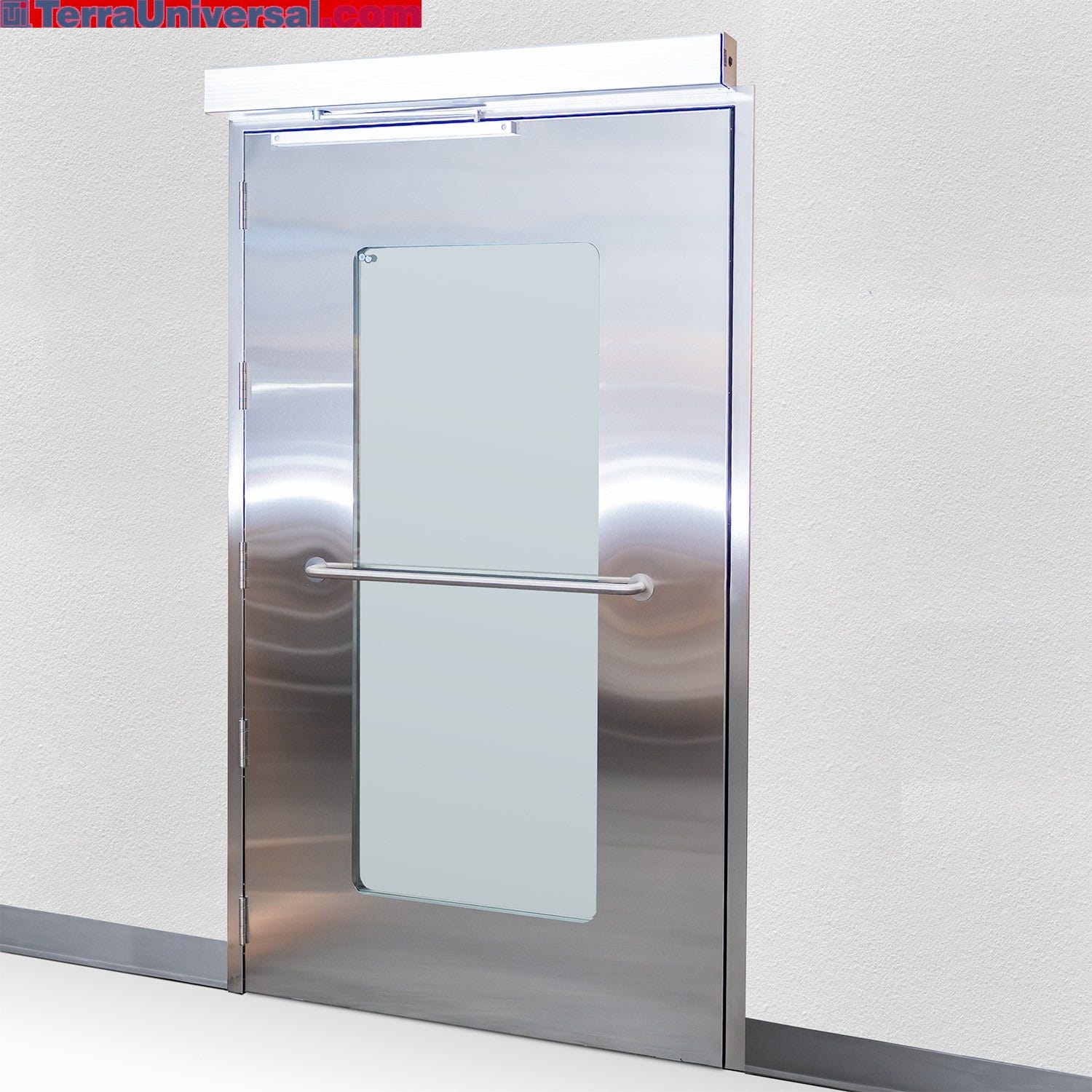

• Pre-hung automatic swing doors for conventional cleanroom construction

• Compact module; 65% smaller than other manufacturer models

• Whisper-quiet operation

• Hands-free operation with motion sensor and sensor pad (included)

• Models designed for single and double swing doors and pass through windows

• Pull side track mount

• Stainless Steel finish (unless specified otherwise)

• Advanced power assist during opening cycle; minimal effort when operated manually

• Precise controlled opening and closing speeds promote safety

• Blow-open feature for smoke ventilation (per NFPA 92B)

• Onboard power supply eliminates need for secondary power supply

• Twelve Programmable Options satisfy simple and complex door installations

• ADA compliant; ideal for persons carrying objects or pushing carts

• Available pre-installed on framed cleanroom doors (stainless steel)

• Automatic doors are shipped pre-hung on specified frame, ready to install, and come with a concealed pneumatic closing mechanism and door stop

• Intended for use in positive or negative pressure cleanrooms where air movement is acceptable. Doors are not hermetically sealed and not intended for spaces mitigating operator exposure to biohazards, chemicals, or nauseating odors.

• Door assembly is leak-rated by UL for tight seal to maintain cleanroom pressure gradients

Marks & Listings: UL, ULC

Doors

  • Terra Universal BioSafe Doors Video Terra Universal BioSafe® Doors
  • Short video of the automatic door Cleanroom Automatic Door
Terra Universal BioSafe Doors Video
Short video of the automatic door

Features & Benefits

Features and Benefits

Door Swing Direction

Door swing direction is easily determined while standing on the SECURE SIDE (key side) or OUTSIDE of the door.

Flush-Mount Dual Pane Windows

Flush mount dual-pane window design simplifies cleaning.

Stainless Steel Cleanroom Door

Stainless steel doors provide resistance to chemicals and minimize surface particle shedding. Choose 316L stainless steel as an optional substitute material.

Easy to Clean Flush-Mount Window

BioSafe windows forego shoddy spot-welding in favor of dual-pane glass installed flush on steel for a continuously smooth surface.

Automatic Door Bottom Gasket for Cleanroom Doors

The automatic door bottom helps maintain differential pressure inside the room. It is equipped with a fully concealed drop-down gasket that seals the bottom gap when the door closes.

Electromagnetic Door Interlock Diagram

Electromagnetic door interlock systems reduce cross-contamination by ensuring specific doors never open simultaneously. The central control module connects to electronic maglocks, allowing up to 6 interlocking doorways. Maglocks engage with 600lb of holding force and can be easily disabled in case of an emergency.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
