Terra Universal’s cleanroom doors are designed for quick and easy installation into operating rooms, surgical suites, stick-built or modular cleanrooms. Designed for health care, pharmaceutical, and CGMP facilities, Terra’s cleanroom doors are easy-to-sterilize, maintain room pressure and resist common biocides and hospital-grade disinfectants.
Cleanroom Door Designs & Styles
Terra’s broad portfolio of cleanroom door designs includes swing-out and sliding doors, automatic and manual doors, bi-parting double doors, high-speed roll-up doors, models pre-hung on rigid frames, fire-rated designs, and styles with full-length or partial windows.
Terra CleanSeam Pharmaceutical Cleanroom Doors
Terra’s BioSafe CleanSeam doors are medical-grade, USP-compliant, and compatible with all areas of the hospital, including operating rooms and surgical suites. The door is fabricated with continuous-seam welds to eliminate cracks and crevices where microbes colonize. The dual-pane window is mounted flush with the door for easy cleanroom wipe downs.
Read More: What You Need to Know About USP Cleanroom Doors
Cleanroom Door Assembly
Terra’s door assembly includes an adjustable, heavy-duty aluminum closer that meets ANSI Grade-1 and ADA standards. The UL leak-rated design is equipped with a fully-concealed drop-down gasket that seals the bottom gap when the door closes, ensuring that room pressure is maintained on each side of the door.
Terra’s BioSafe CleanSeam door design exceeds CGMP, IEST, ASTM, and ISO 14644-1 requirements.
Embed video: Terra Universal BioSafe® Doors
ASTM and ISO Rated Cleanroom Doors

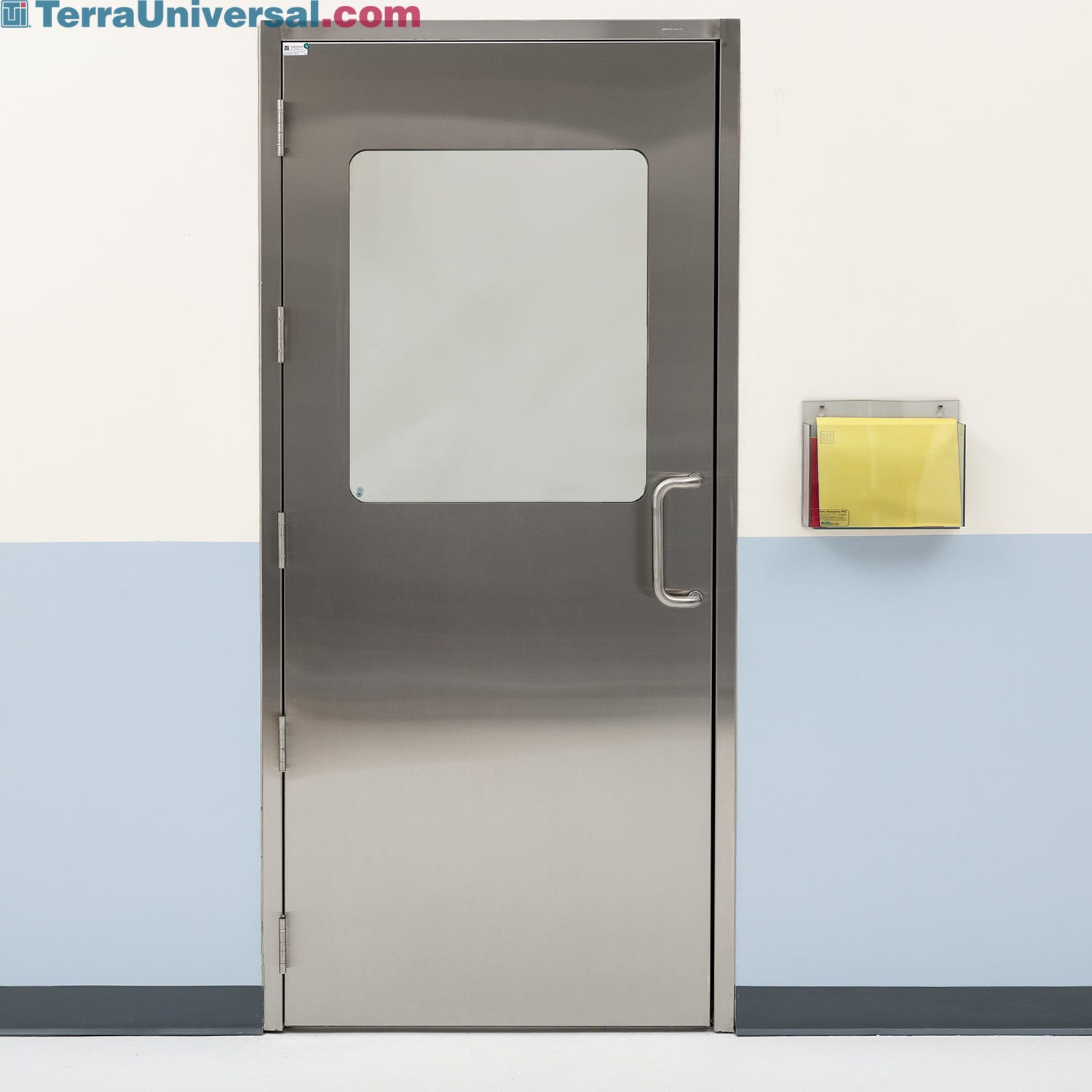

Terra’s pre-hung manual swing doors include a tempered glass or hospital-grade plastic panel mounted to a powder-coated steel or aluminum frame. Terra’s signature white powder-coat formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, and fading. The single- and double-door designs are compatible with an optional double-action spring hinge allowing the self-closing door to open in both directions.
A - Laboratory Rollers, Rockers, Mixers, and Blotters
(back to chart)
A - Cleanroom Door Style

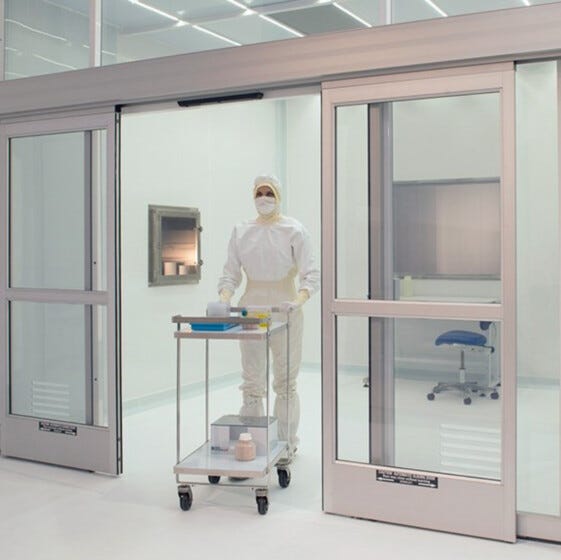

A1 - Bi-Parting Cleanroom Doors
Terra’s external-mounted and recessed double sliding doors open in a bi-parting style to support easy ingress and egress of bulky equipment and transport carts.
Double bi-parting doors, which undergo life testing for a minimum of 1,000 cycles, include load-bearing wheels made of cast urethane for smooth, long-lasting operation. Elastomeric door seals and a fiberglass-reinforced timing belt ensure durability and operational uniformity.
A2 - Roll-Up Cleanroom Doors
Automatic roll-up doors are constructed of rigid stainless steel to accommodate high-traffic operations in cleanrooms and operating rooms. All automated roll-up doors include a PLC touch panel for easy operation and an emergency stop button with a safety switch that engages if the door strikes an object.
Read More: Saving Space with High-Speed Roll Up Cleanroom Doors

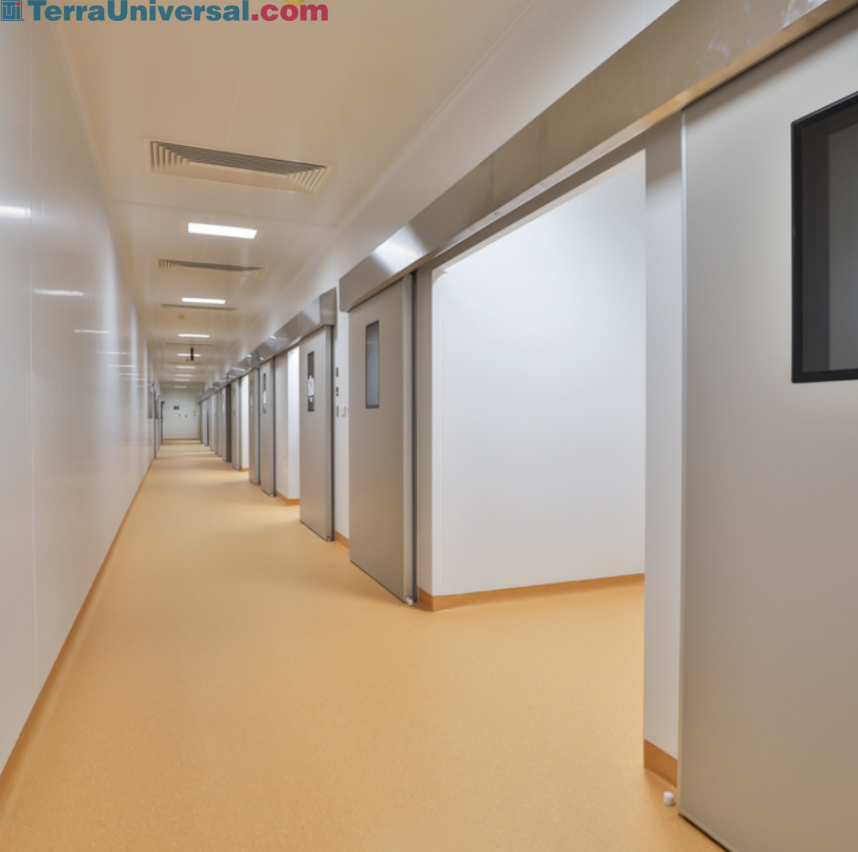

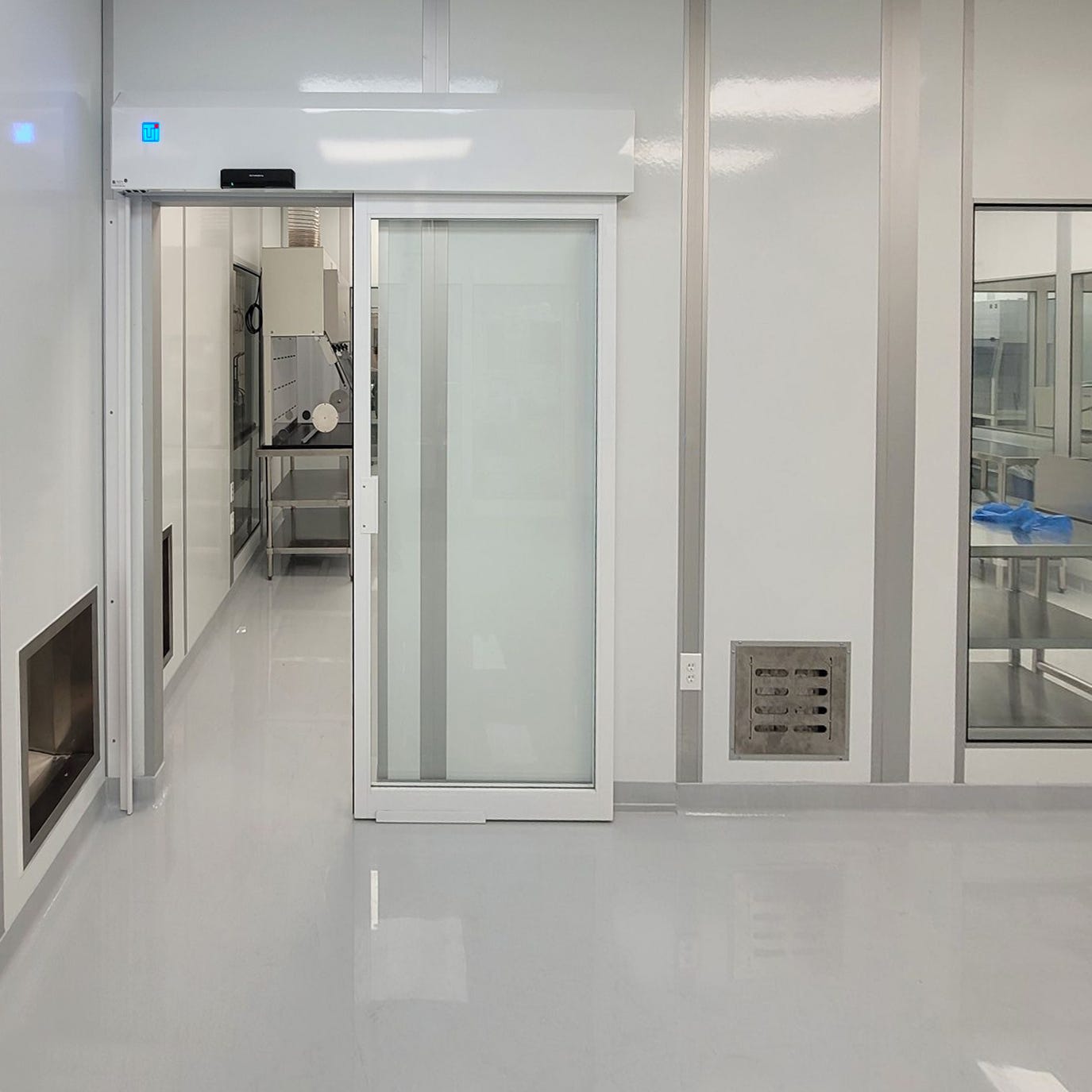

A3 - Sliding Cleanroom Doors
Terra’s cleanroom-compliant sliding doors are manufactured in a broad array of designs for different applications, cleanliness levels, and environments. Terra manufactures manual and automatic sliding doors, in single- and double-door designs, pre-hung in stainless steel or aluminum, external–mounted or recessed frames.

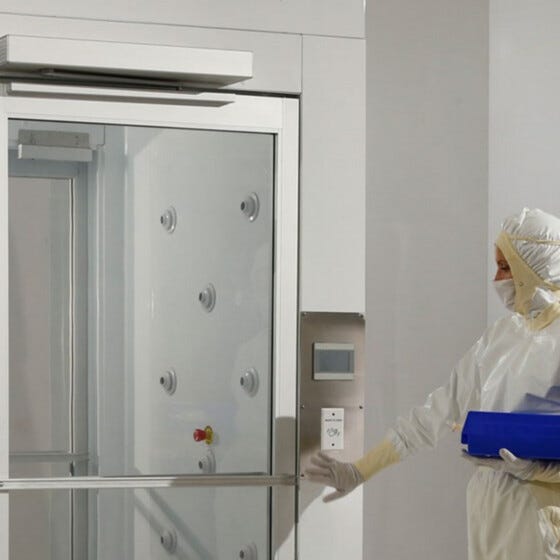

Automatic sliding doors include a touch-motion door pad for hands-free operation and a microprocessor-controller to monitor door position and closing speed. Pre-assembled headers and panels are well-suited for retrofit projects requiring quick and easy installation.
A4 - Swing Cleanroom Doors
Terra’s swing-out and swing-in cleanroom doors are manufactured from hospital-grade materials for use in CGMP labs, operating rooms, surgical suites, and ISO-rated spaces.
Cleanroom Door Gaskets
Terra manufactures swing doors in a number of different styles and configurations: automatic, manual, fire-rated, pre-hung on a rigid door frame, single-wide, double-wide, left-hand opening, and right-hand opening. Terra’s swing doors include a fully concealed drop-down gasket that seals the bottom gap when the door closes, ensuring the door holds room pressure.
B - Door Configuration
(back to chart)
B1 - Single Cleanroom Door
Terra manufactures single-wide sliding and swing-out cleanroom doors in standard 36” widths and customized, project-specific sizes for stick-built cleanrooms, modular cleanrooms, operating rooms, and surgical suites. Terra’s cleanroom swing doors are designed in left-hand opening and right-hand opening configurations. Standard swing and reverse swing orientations support different cleanroom pressure cascades.
B2 - Double Cleanroom Door
Terra produces double doors in sliding and swing-out designs to standard 72” widths and custom, application-specific sizes for modular and brick-and-mortar cleanrooms. Double door designs are offered in a broad array of configurations: automatic, manual, bi-parting, swing-out, and sliding. All double doors are compatible with Terra’s electromagnetic interlocking system that prevents cross-contamination stemming from two doors opening simultaneously.
C - Door Operation
(back to chart)
C1 - Automatic Cleanroom Doors
Terra’s automatic doors are available in sliding, swing-out, single-door, and double-door configurations. Terra’s automatic doors include a motion sensor and control pad for hands-free operation. The controller regulates the opening and closing speeds to promote user safety and a blow-open feature to meet NFPA 92B smoke ventilation requirements. The ADA-compliant controller includes an advanced power assist feature to support minimal operator effort when opened manually.
C2 - Manual Cleanroom Doors
Terra’s manual doors are manufactured in sliding, swing-out, bi-parting, single-door, and double-door configurations. Optimal for retrofit projects and new lab build-outs of stick-built cleanrooms, Terra’s pre-hung cleanrooms doors are pre-installed on a rigid, aseptic door frame for quick installation. For replacements doors installed on Terra modular cleanrooms, Terra offers non-pre-hungnon pre-hung doors that require framing during installation.
D - Door Orientation
(back to chart)
D1 - Left-Hand Opening Cleanroom Doors
Terra’s left-hand cleanroom swing doors are designed to swing into the cleanroom or out from the cleanroom with either the left or right hand. Terra’s left-hand doors mount on the left-hand side of the door frame; the handle affixes to the right-side of the door to allow the operator to use their left hand to open the door.
D2 - Right-Hand Opening Cleanroom Doors
Terra’s right-hand cleanroom swing doors are designed to swing into the cleanroom or out from the cleanroom with either the left or right hand. Terra’s right-hand doors mount on the right-hand side of the door frame; the handle affixes to the left-side of the door to allow the operator to use their right hand to open the door.
E - Cleanroom Door Design
(back to chart)
E1 - Pre-Hung in Door Frame
Pre hung cleanroom door frames are optimal for retrofit projects and new lab build-outs of brick-and-mortar cleanrooms, Terra’s pre-hung cleanrooms doors are pre-installed on a rigid, aseptic door frame for quick installation.
E2 - Requires Framing at Installation
For replacement doors installed on Terra modular cleanrooms, Terra offers non-pre-hung doors that require framing during installation.
F - Cleanroom Door Frame Material
(back to chart)
F1 - 304 Grade Stainless Steel Cleanroom Doors
304-grade stainless steel is rigid, durable, long-lasting, promotes aseptic conditions, and resists biocides and hospital-grade disinfectants.
F2 - 316L Grade Stainless Steel Cleanroom Doors
316L grade stainless steel resists corrosion, harsh chemicals, and rapid changes in ambient temperature and humidity.
F3 - Aluminum Cleanroom Doors
Aluminum is lightweight, non-outgassing, chemical-resistant, and exhibits high tensile strength.
F4 - Powder-Coated Aluminum Cleanroom Doors
Terra’s signature white powder-coat cleanroom door formulation exceeds ASTM and ISO paint standards to resist chipping, scratching and fading.
F5 - Powder-Coated Steel Cleanroom Doors
Terra’s durable white powder-coat formulation resists common alcohol-based cleaners, doesn’t degrade over time, resists corrosion, exceeds ISO 14644-1 cleanroom requirements, and meets ASTM paint standards.
G - Cleanroom Door Panel Material
(back to chart)
G1 - 304 Grade Stainless Steel Cleanroom Doors
304-grade stainless steel cleanroom doors are rigid, durable, long-lasting, promote aseptic conditions, provide privacy, and resist biocides and hospital-grade disinfectants.
G2 - 316L Grade Stainless Steel Cleanroom Doors
316L grade stainless steel cleanroom doors ensure privacy and resist corrosion, harsh chemicals, and rapid changes in ambient temperature and humidity.
G3 - Acrylic Cleanroom Door Panels
Transparent, economical, lightweight acrylic cleanroom doors offer durability and superior clarity. However, acrylic panels offer low chemical resistance and poor protection from electrostatic discharge.
G4 - Polycarbonate Cleanroom Door Panels
Transparent polycarbonate doors offer high impact resistance and thermal resistance (to 200°F) as well as chemical resistance to common disinfectants.
G5 - Polypropylene Cleanroom Door Panels
White polypropylene provides user privacy and resistance to harsh acids, bases, and solvents.
G6 - Polysim Cleanroom Door Panels
Lightweight, non-outgassing polyurethane cleanroom curtains resist static charges, support easy disinfection, and won’t degrade after prolonged exposure to UV light.
G7 - Powder-Coated Steel Cleanroom Door Panels
Terra’s durable white powder-coat formulation resists common alcohol-based cleaners, doesn’t degrade over time, resists corrosion, exceeds ISO 14644-1 cleanroom requirements, and meets ASTM paint standards.
G8 - Static-Dissipative PVC Cleanroom Door Panels
Transparent Static-Dissipative PVC cleanroom doors prevent static build that attracts airborne particulates and fibers, making surfaces easier to wipe down. SD-PVC does not hold a static charge, resists a wide range of chemicals, and cleans easily. Unlike spray coatings that wear off after prolonged use, SD-PVC retains a surface resistivity of 108 ohms/square indefinitely.
G9 - Tempered Glass Cleanroom Door Panels
Tempered safety glass cleanroom doors are impact-resistant, temperature resistant, non-outgassing and exhibit high visual clarity.
G10 - Vinyl Fabric Cleanroom Door Panels
Terra’s high-speed roll-up doors are composed of cleanroom-grade, lightweight vinyl fabric to support rapid opening speeds.
H - Cleanroom Door Window Style
(back to chart)
Terra Universal’s cleanroom doors are designed without windows for full patient or research privacy, partial windows spanning the top half of the door panel, and full windows spanning the entire height of the door (for busy, high-traffic corridors).
I - Cleanroom Door Opening Height
(back to chart)
Terra manufactures cleanroom doors to standard 81” tall designs and application-specific doors from 74” to 120” in height (for transport of bulky equipment). Terra’s in-house engineering team works with customers on a daily basis to design customized products to specific user requirements.
K - Cleanroom Door Opening Width
Terra stocks standard single-wide cleanroom doors, manufactured to 36” wide, and standard double-wide cleanroom doors, manufactured to 72” wide, for immediate shipment. Special-application single doors are available from 32” to 48” in width and special-application double doors are available from 60” to 80” in width.
K - Special Features
(back to chart)
K1 - Fire-Rated Cleanroom Doors
Terra’s BioSafe fire-rated manual swing doors are designed for facilities requiring up to three hours of fire protection. Terra’s fire-rated cleanroom doors are thermally insulated with honeycomb padding for added structural strength.
Browse Fire Rated Cleanroom Doors

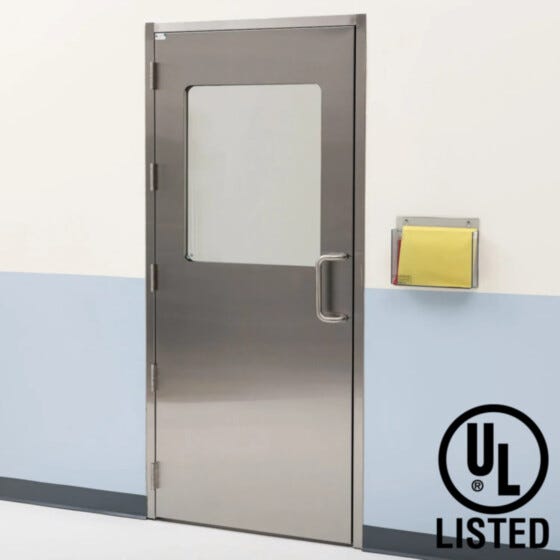

K2 - UL Leak Rated Cleanroom Doors
Terra’s UL leak-rated cleanroom doors are equipped with a fully concealed drop-down gasket that seals the bottom gap when the door closes, ensuring that room pressure is maintained on each side of the door.
K3 - External Mount Cleanroom Doors
Externally mounted cleanroom sliding doors are optimal for remodeling remodel projects or replacement doors installed into existing stick-built or modular cleanrooms.
K4 - Recessed Mount Cleanroom Doors
Recessed mounted sliding doors are ideal for tight hallways or areas lacking overhead space above the door frame.
Pre-Hung Recessed Manual Slide Doors, Stainless Steel
Recessed Automatic Sliding Doors, Aluminum
K5 - Cylindrical Lock Cleanroom Doors
Terra’s single- and double-wide fire-rated doors are equipped with a cylindrical lock prep, rated at government 161, with a 2 x ¾” backset.
K6 - Mortise Lock
Terra’s single-wide fire-rated doors are equipped with a mortise lock prep with a 2 x ¾” backset trim cut-out.
K7 - Exit Push Bar
Terra’s BioSafe CleanSeam cleanroom doors include an optional pre-installed exit push bar with locking lever handle, fabricated of stainless steel, to support hands-free egress from the cleanroom.
K8 - Two-Way Cleanroom Door Swing
Terra’s cleanroom doors feature an optional double-action spring door hinge to support two-way opening and closing of swing doors.
K9 - Crevice-Free Cleanroom Door Design
Terra’s BioSafe CleanSeam doors are medical-grade, USP-compliant and compatible with all areas of the hospital, including operating rooms and surgical suites. The door is fabricated with continuous-seam welds to eliminate cracks and crevices where microbes colonize. The dual-pane window is mounted flush with the door for easy wipe downs.
K10 - Electronic Cleanroom Door Interlock
Terra’s cleanroom doors are compatible with Terra’s electromagnetic interlocking system that prevents cross-contamination stemming from two doors opening simultaneously.
K11 - Breakaway Cleanroom Door Panels
To ensure that cleanroom employees can quickly exit the area in the event of a fire or power outage, Terra offers emergency breakaway panels on cleanroom sliding and swing-out doors.
Shop Cleanroom Doors Online
Terra Universal is the leading expert in the design and fabrication of critical environment applications. Terra offers end-to-end certification and testing services for cleanrooms, cleanroom doors, pass throughs, windows, and roll up doors.
Shop online to view a wide selection of cleanroom doors in various styles, frames, configurations, and various opening-closing mechanisms.
Contact a Terra cleanroom specialist for assistance with product configuration or application compliance via web chat, email, or phone.
