Select Product

Door Frame

Door Panel

Fire-Rating

Operation

Opening Action

Opening Width

Terra Part #PriceShips in
304 Stainless Steel1/2" Tempered GlassNoneManualSingle Right Swing80"36" 6712-01-R 78200 $3,50610-15 Days2
304 Stainless Steel1/2" Tempered GlassNoneManualDouble Swing80"72" 6712-02 78201 $5,88610-15 Days3
304 Stainless Steel1/2" Tempered GlassNoneManualSingle Left Swing80"36" 6712-01-L 78194 $3,50610-15 Days4
Door Frame
Door Panel
Fire-Rating
Operation
Opening Action
Opening Height
Opening Width
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

  • All-glass cleanroom door combines minimalism and durability for a clean, bright, modern entryway
  • Frameless glass cleanroom door minimizes cracks and crevices where particles and germs can collect
  • Innovative top and bottom door rail system eliminates the need for a conventional door frame
  • Concealed door closer automatically shuts door to minimize cross-contamination between rooms
  • Door system is pre-hung to a stainless steel frame for fast and easy mounting
  • All-glass contemporary design is suitable for cleanrooms or labs. Easy to clean and allows maximum light transmission and visibility for a brighter space.
  • Door is pre-hung on 304 stainless steel Jambs and Header. Supports standard wall thickness 4-7/8".
  • Installs easily on any type of wall material: painted drywall, FRP or other laminate, concrete, steel.
  • Rigid 1/2" thick tempered glass panel provides extra durability and security.
  • Advanced stainless steel door rail system allows for rapid installation and steadfast holding power. Designed for quick field installation on the glass without adhesives or cement. No more mixing and pouring messy cement, and waiting for it to dry. Standard design is brushed stainless steel; many architectural finishes available. Optional locking units also available.
  • Door rail system includes concealed overhead door closer with adjustable closing and latching speed.
  • Door closer ensures automatic closure behind a person to minimize cross-contamination between rooms. Door closers also prevent doors from being slammed open or closed too quickly.
  • Optional automatic swing door operator uses a motion sensor for hands-free door operation.
  • Floor-mount bottom pivot screws into floor.
  • 60" brushed stainless steel pull handles provide a modern, showroom finish. Many other stainless steel push/pull handles are available upon request to match application and style.
  • NOTE: Intended for use in positive or negative pressure cleanrooms where air movement is acceptable. Doors are not hermetically sealed and not intended for spaces mitigating operator exposure to biohazards, chemicals, or nauseating odors.

Pre-Hung Manual Swing Doors

  • Terra Universal BioSafe Doors Video Terra Universal BioSafe® Doors
  • Short video of the automatic door Cleanroom Automatic Door
Terra Universal BioSafe Doors Video
Short video of the automatic door

Features & Benefits

Features and Benefits

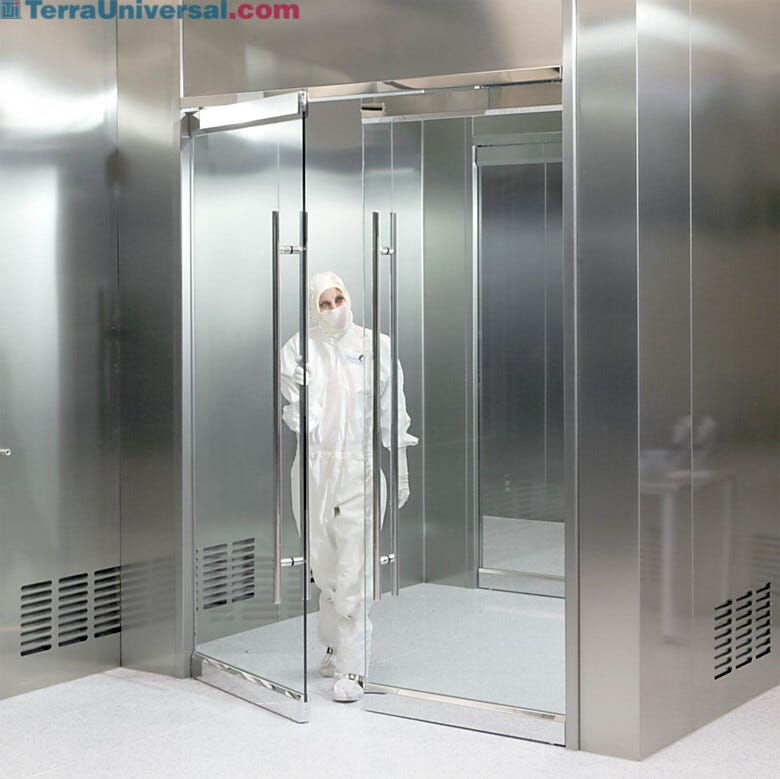

Frameless All-Glass Cleanroom Door System for Bio-Tech Cleanroom

Frameless all-glass cleanroom doors minimize cracks and crevices where particles and germs can collect, making them suitable for labs with strict cleaning protocols, such as bio-tech cleanrooms.

Clean, Bright, and Modern Entryway

All-glass cleanroom doors provide an easy-to-clean and contemporary design for cleanrooms or labs. The minimalist design allows maximum light transmission and visibility for a bright, modern, showroom finish.

Easily Install to Modular Cleanrooms or Traditional Brick-and-Mortar Rooms

Frameless all-glass cleanroom doors are configured to easily install to either Terra’s modular cleanrooms or traditional brick-and-mortar (“stick built”) rooms. The Pre-hung design includes a stainless steel frame to support the door system, plus concealed over-head door closers to minimize cross-contamination. The tempered glass doors include powerful stainless steel door rails and stainless steel ladder pull handles for a sleek finish.

Advanced Frameless Door Rail System Expands Entryway Capabilities

Advanced stainless steel door rail system allows for rapid installation and provides steadfast holding power. Designed for quick field installation on the glass without adhesives or cement. It also allows for configuration with various door closers: automatic hands-free, concealed overhead, or concealed floor-mount.

Electromagnetic Door Interlock Diagram

Electromagnetic door interlock systems reduce cross-contamination by ensuring specific doors never open simultaneously. The central control module connects to electronic maglocks, allowing up to 6 interlocking doorways. Maglocks engage with 600lb of holding force and can be easily disabled in case of an emergency.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
