A - Cleanroom Storage and Laboratory Cabinet Designs
(back to chart)
A1 - Cleanroom and Laboratory Storage Cabinets
Cleanroom Garment Cabinets feature seamless construction that's easy to clean and numerous configurations for various shelves, rods, doors, and hangers. Garment cabinets are further customizable with add-ons including mirrored exteriors, reinforced doors, HEPA filtration, UV sterilization modules, and dissipative materials for electrically sensitive applications.
Cleanroom Cabinet Work Benches are an all-in-one solution that combines cleanroom-grade furniture design with easy cleaning surfaces and cabinets. The base cabinets are suitable for supporting Terra Universal benchtop laminar flow and fume hoods
Plastic Cleanroom Storage Cabinets are available with special features for electronically sensitive components including static dissipative materials and an automatic nitrogen purge system that maintains temperature and humidity.
Stock and Kitting Carts are specially designed to improve organization and maintain ideal conditions for storage of electronic components, reels, wafers, circuit boards, and assembled packages.

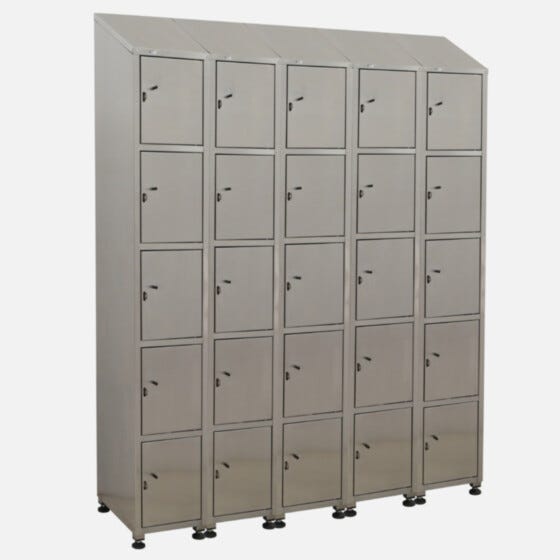

Cleanroom Locking Cabinets ensure safe and secure storage for controlled substances, high-value items, or finished goods. Terra offers cabinets with standard lock and key cabinets and add-ons for fingerprint, retinal, and keypad access.

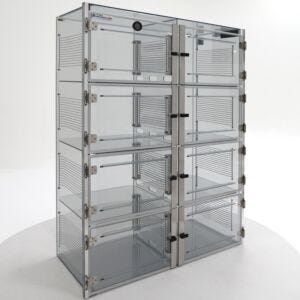

Contamination-Free Plastic Storage Cabinets provide economical, transparent, contamination-free storage cabinets for lab, cleanroom, and stockroom use. Single and dual sided designs to ensure raw stock materials, consumables, and finished products remain organized and easily accessible.
A2 - Cleanroom Storage Racks

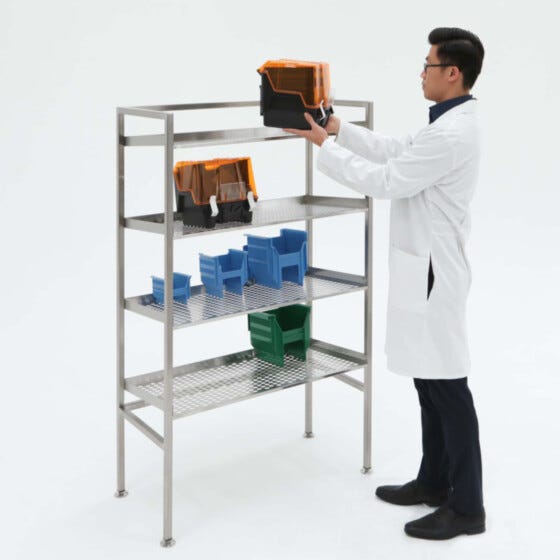

Electropolished 304 Stainless steel racks allow shelves to be easily transferred and organized to optimize storage space and speed up batch processing.
A3 - Cleanroom Shelving Units

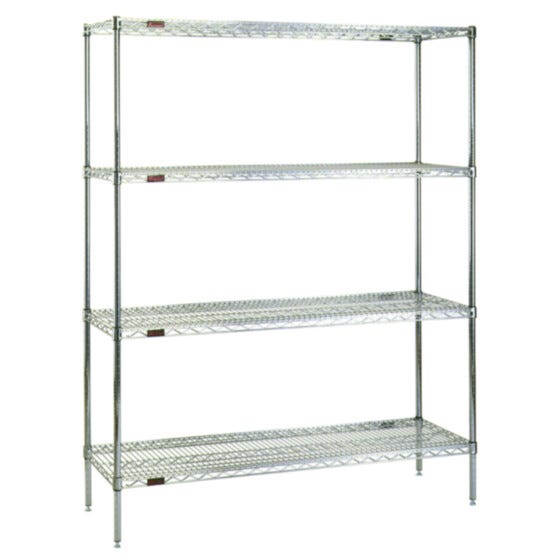

Compare Terra, Metro, and Eagle Storage Systems are available in numerous configurations for general, lab, and cleanroom use. Terra offers shelving systems with a wide selection of materials and shelving layouts. Corrosion-resistant stainless steel and antimicrobial shelving are most popular within labs, healthcare, food processing, and cleanrooms. Chrome shelving is an economical choice for bulk dry storage.
A4 - Carts for Cleanrooms and Laboratories
Terra's BioSafe® Cleanroom Carts simplify sterile applications and surgical cleanups since they are not affected by heat or harsh washdown chemicals.
View Cart Styles: Stainless Steel Cleanroom Carts | BioSafe® Ultra-Clean
Laminar Flow Transport Carts ensure a continuous HEPA air supply when storing raw or finished products throughout the assembly and handling workflow.
HEPA Mobile Carts with UPS Backup Batteries can power a HEPA integrated blower for up to 120 minutes and recharge via standard wall sockets. Mobile HEPA cabinets are ideal for maintaining ultra-clean air when storage carts must traverse uncontrolled areas or multiple building facilities.
B - Free-Standing Shelving, Storage Racks and Mobile Storage Systems
(back to chart)
B1 - Free-Standing Carts and Racks

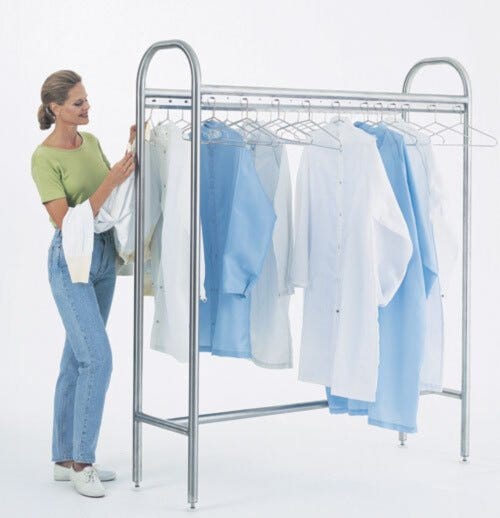

Freestanding Garment and Shelving Racks are available in chrome, stainless steel, and powder-coated packages for storing garments, components, or cleanroom equipment of any shape and size.
Optional stands raise equipment to ergonomic height to ease disinfection and sample monitoring. BioSafe design is suitable for any cleanroom or lab environment.
B2 - Benchtop Storage and Shelving
Cleanroom Tool Cabinets are available in a variety of under cabinet, rolling, and benchtop configurations. Terra's durable cleanroom-compatible cabinetry is configurable for storing wafer processing tools, quartz tubes and vessels, injectors, thermocouples, and other critical components.
B3 - Wall-Mounted Cabinets and Storage

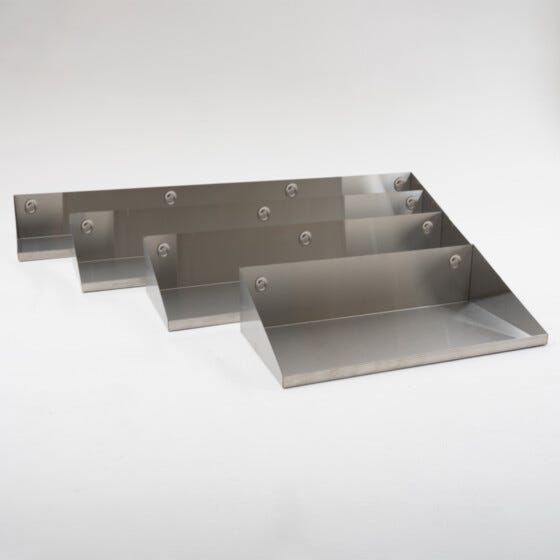

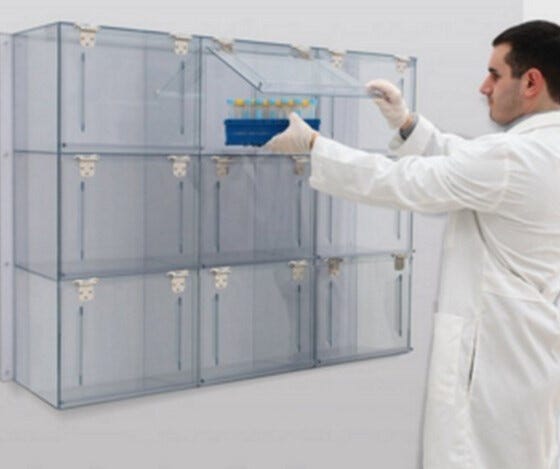

Wall-mounted Cleanroom Cabinets and lab storage systems are designed to free up floor space while still being easy to reach. Multiple cabinets can be placed side-by-side to accommodate high throughput.
Intermetro Wall-Mounted Garment Racks are a flexible option for garment or laundry storage. The open wire design promotes laminar airflow and meets ISO 5 cleanroom cleanliness standards.
B4 - Mobile Storage Carts & Racks
Cleanroom Tool Cabinets offer cleanroom-compatible cabinetry for storing wafer processing tools, quartz tubes and vessels, injectors, thermocouples, and other critical components

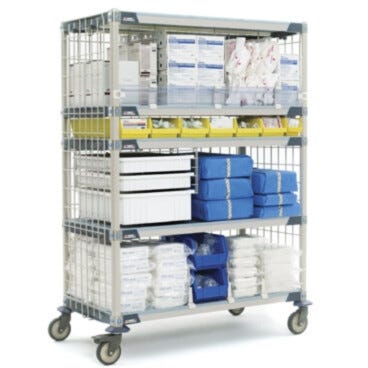

InterMetro MetroMax i Shelving Systems are a robust commercial storage and shelving solution. The heavy-duty design includes high-capacity polymer shelving, type 304 steel corners, and a lifetime warranty against rust and corrosion. Shelves adjust in 1" increments and feature a built-in Microban antimicrobial coating for maintained cleanliness.

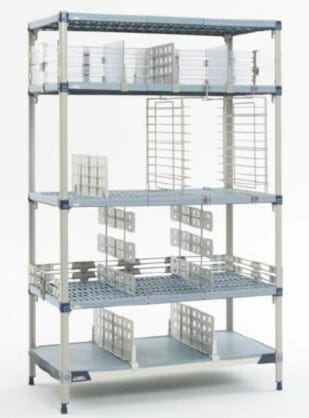

InterMetro MetroMax Q Shelving Systems offer a middle-ground when balancing cost savings with a shelving system that is still durable, clean, and sturdy. MetroMax Q products have all-polymer, epoxy coated shelves and posts with a standard 15-year warranty.
InterMetro Super Erecta Mobile Security Cages feature a double-door front panel that closes and locks to prevent unauthorized access or pilferage. Metro security storage racks offer all of the same flexibility and add-ons synonymous with other wire shelving racks, including modular design, numerous material choices, and many available accessories.
InterMetro Super Erecta Shelving Systems are a highly popular rack and tier wire storage system suitable for both general use in lab or cleanroom environments. The adjustable wire shelves offer industry-leading weight capacity ratings and offer modular compatibility for combining multiple shelving systems. For cleanroom and lab use, stainless steel wire shelves are ideal due to easy cleaning, chemical resistance, and non-corrosive attributes.
C - Storage Cabinet Material Choices
(back to chart)
C1 - Acrylic Cleanroom Materials
Acrylic is an economical, lightweight material. Acrylic is shatterproof and a cost-effective alternative to glass.
C2 - Chrome-Plated Steel Cleanroom Materials
Chrome-plated steel is a highly aesthetic, economical grade material that is well-suited for a wide variety of dry storage and processing areas.
C3 - Polycarbonate Cleanroom Materials
Polycarbonate is transparent with a slight gray tint and offers broad-spectrum chemical resistance, high impact resistance, and excellent thermal resistance (to 200°F / 93.3°C). Polycarbonate is stronger and cracks less easily than both acrylic (15x stronger) and glass (250x stronger).
C4 - Polymer Cleanroom Materials
Polymer storage cabinets offer a strong, lightweight frame design made of chemically-resistant polymer.
C5 - Polypropylene Cleanroom Materials

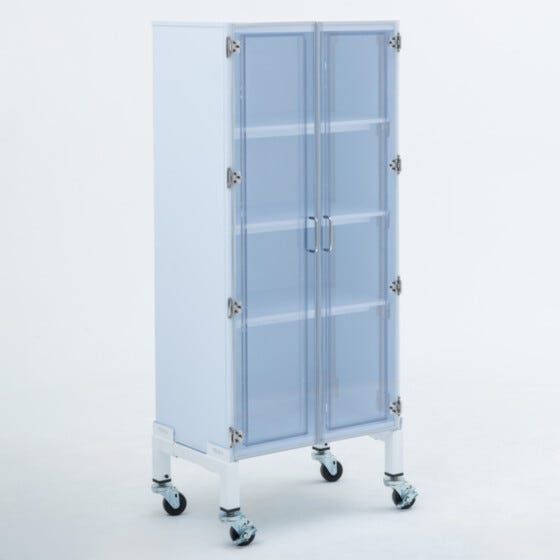

Polypropylene cabinets offer broad chemical resistance, microbial resistance, and a strong industrial-grade surface.
C6 - Powder-Coated Steel Cleanroom Materials
Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

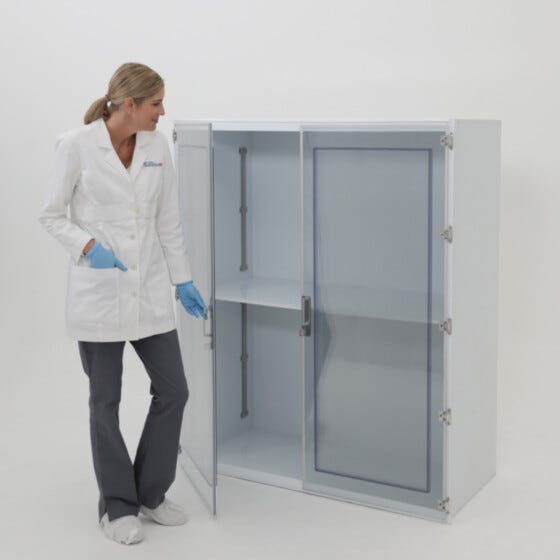

C7 - Static Dissipative PVC Cleanroom Materials
Optional SD-PVC is resistant to common cleaning agents and prevents particle and contaminant aggregation caused by static-cling.
C8 - Stainless Steel, 304 Grade Cleanroom Materials
304 Stainless Steel Cabinets feature components that support easy disinfection, wipedown, and sterilization for pharmaceutical and biotechnology use. 304 steel offers better corrosion resistance than galvanized steel or chrome plating, and has reasonable chemical resistance for most applications.
D - Atmospheric Control Cabinets
(back to chart)
D1 - HEPA Filtration Cabinets
Cabinets with Cleanroom-Grade HEPA Media and Blowers are required to meet or exceed ISO 5 / Class 100 air quality requirements. Terra's HEPA filtration systems are capable of meeting virtually any cleanliness requirements for standards including GMP, IEST, ASTM, and ISO 14644-1.
Optional ULPA filters for ISO 4 (Class 10) cleanroom conditions allow 99.995% particle removal measured at 0.12µm or larger.
HEPA Filter Ovens integrate curing, baking, and drying processes into a passive workflow. Ideal for drying catheters, stents, and other medical devices, ovens with integrated HEPA filters ensure ultra-low
Cabinet Ion Bars reduce the likeness of product damage due to static discharge events or electrostatic particle attraction. Ionizing bars generate a frequency that neutralizes positive and negative ions, therefore subduing polar attraction between ions on objects, in the air, or on surfaces.
ValuLine Mobile Laminar Flow Cabinets are freestanding cabinets with HEPA integrated filtration systems. ValueLine models signal economical material construction while still providing adequate sample protection for most laboratory, cleanroom, and scientific environments. Available with numerous work surfaces and add-ons, Terra's mobile laminar flow cabinets are configurable with integrated ionizers, motorized sashes, particle counters, and ESD-safe materials.
D2 - Humidity Control Storage and Desiccators
The best way to maintain the environment in a desiccator cabinet, glove box, or similar enclosure, is to automatically purge the environment with nitrogen or argon gas.
Terra's IsoDry® Dual Purge System automatically activates a high-flow purge when access doors are opened to ensure fast, effective purging of particles and moisture.
The Smart® Nitro-Watch™ humidity monitoring system includes an improved sensor and controller design that supports built-in data logging, temperature sensing, and USB plug and play.
D3 - Temperature Control Cabinets
Storage Cabinets for Tissue Culture feature adjustable shelves and a spacious interior that accommodates large containers. The polypropylene cleanroom-grade cabinet offers a spacious, secure, and chemically-resistant storage space.
Curing and Drying Cabinets provide a stable climate for a wide variety of microbiology, proteomics, genomics, and agriculture applications.
Terra’s High-Capacity HEPA-Filtered Ovens provide a clean, class 100 environment plus sustained uniform temperature of up to 140° ± 4° F (60° ± 2°C). The easy-to-clean stainless steel design is ideal for sterile applications. Ideal for large items and batch processing operations.
D4 - Static Control Cabinets
Terra's Static Dissipative PVC Cabinets (SDPVC) feature bonded dissipative layers that resist abrasion. SDPVC desiccators retain their surface resistivity of 10^6 - 10^8 ohms/square indefinitely (unlike spray-on coatings that can wear off after a few years), protecting your materials against ESD damage. Further, the control of static charges eliminates particle attractions, helping maintain clean surfaces.
E - Number of Doors
(back to chart)
- E1 - 1
- E2 - 2
- E3 - 3
- E4 - 4
- E5 - 5
- E6 - 6
- E7 - 8
- E8 - 9
- E9 - 10
- E10 - 20
F - Width
(back to chart)
- F1 - <24"
- F2 - 24" - 36"
- F3 - 37" - 48"
- F4 - >48"
G - Depth
(back to chart)
- G1 - <16"
- G2 - 16" - 24"
- G3 - >24"
H - Height
(back to chart)
- H1 - <48"
- H2 - 48" - 60"
- H3 - 61" - 72"
- H4 - >72"
I - Special Storage Cabinet Features
(back to chart)
I1 - UV Sterilization Cabinets
UV Sterilization Cabinets are a popular choice for storing and decontaminating everyday objects or garments; especially porous or electronically sensitive devices that are difficult to clean and easily damaged by water.

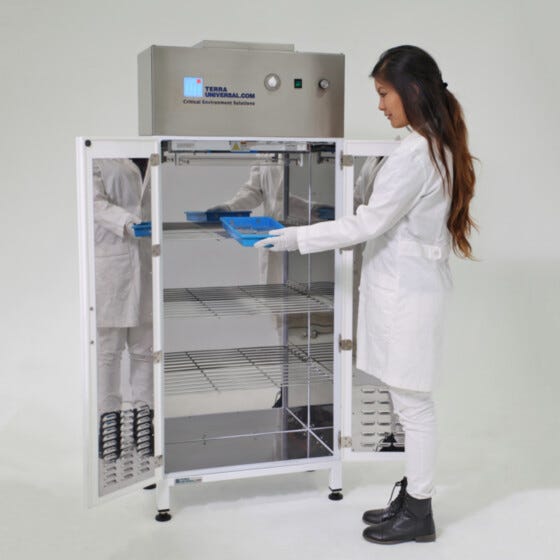

Extra Large UV Sterilization Cabinets feature a mirror-finish interior and wire shelving to allow UV exposure on all sides of stored objects. The spacious interior is configurable with hanging racks for storage and disinfection of various frocks, gowns, coveralls, and smocks.
Standard UV Cabinets are designed for batch decontamination of various PPE such as safety glasses, hard hats, face masks/shields.
I2 - Security Cabinets with Door Locks
Pharmaceutical Safes and Security Cabinets ensure safe and secure storage for controlled substances, high-value items, or finished goods.
I3 - Cabinets with Fingerprint Scanners

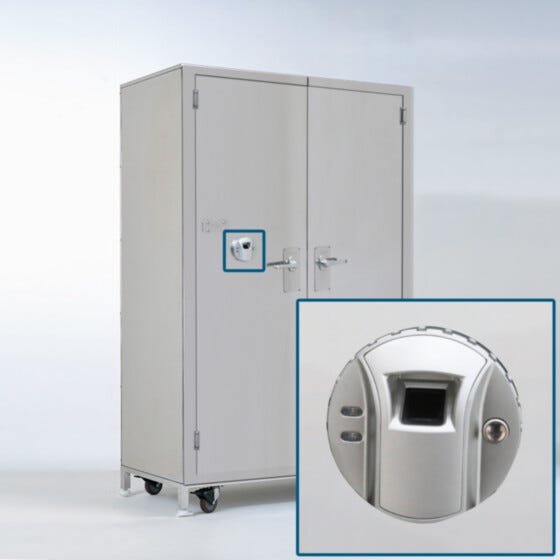

Cabinets with Biometric Fingerprint Scanners allow fast opening and secure access of a security cabinet or passthrough with a heavy-duty lock mechanism.
- All-welded 304 stainless steel construction for durability and corrosion-resistance
- High-security locking mechanism features two solid steel locking bolts
I4 - Fire-Rated Cabinets and Lab Safes
Fire-Rated Lab Safes feature an internal locking drawer and adjustable shelves for secure and flexible storage. The fireproof design withstands temperatures of up to 1700°F and maintains an internal temperature of 350°F for up to two hours. In addition to a 120-minute fire rating, these sturdy safes can withstand a 30ft drop test.

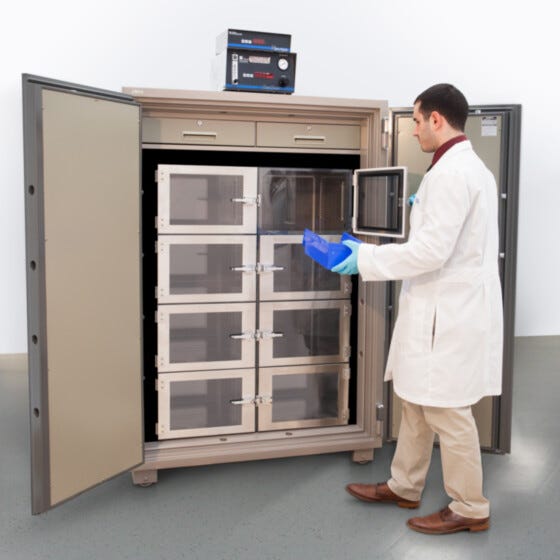

Double Door Fire and Security Desiccator Cabinets provide low-humidity storage for electronic components while also offering additional protection against theft and fire damage. Security vault desiccator cabinets include all the functionality of standard desiccator cabinets with the additional self-locking doors and keypad entry. The UL-list design is rated for two hours of fire protection.
I5 - Cabinet Ovens - Heated Storage up to 60°C
Terra’s High-Capacity Cabinet Ovens provide a clean, class 100 environment plus sustained uniform temperature of up to 140° ± 4° F (60° ± 2°C). The easy-to-clean stainless steel design is ideal for sterile applications, large items, and batch processing operations during the production of catheters, stents, and medical devices.
I6 - Dual-Side Access Cabinets and Storage

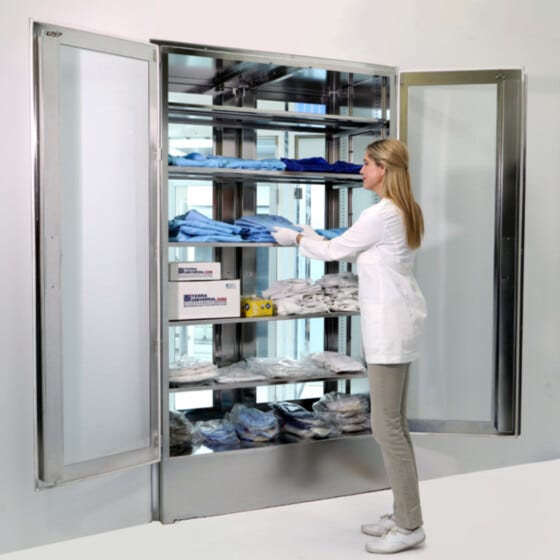

Double Sided Passthrough Cabinets allow multiple users to access a storage cabinet from both sides. The double sided design allows quick access and re-stocking of various gowning, storage, and process materials from either side.

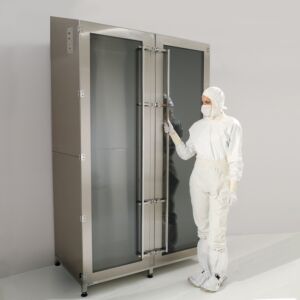

Double Sided Cabinets with Sloped Tops minimize particle accumulation and simplify cleaning. The top is also removable to facilitate transfer through areas with height constraints.
Double Sided Bootie Racks feature BioSafe® design and 60 slots on each side for storing cleanroom boots and other footwear.
J - Accessories for Cleanroom and Lab Storage
(back to chart)
J1 - Shelves for Cleanrooms and Laboratory
Electropolished 304 Stainless steel racks allow shelves to be easily transferred and organized to optimize storage space and speed up batch processing.
Powder Coated Steel Shelves are available in either solid or perforated formats.
Perforated Shelves for Garment Cabinets support laminar airflow and allow particles/debris to fall through.
J2 - Drawers
Optional drawers are available in either plastic or stainless steel with many sizes and drawer configurations.
J3 - Hanger Rods
Stainless Steel Hanger Rods are preferred for cleanroom use; select chrome-plated for general applications. Cleanroom hanger rods provide a clean and easily accessible storage option for cleanroom garments, gowns, frocks, and coveralls.
Closed loop cleanroom hangers prevent hangers from falling off the rack, while also serving as a security measure to prevent pilferage or damage. Single-piece hanger design minimizes the likeliness of snags and lint generation while cleaning.
Garment Hanger Cabinets are available with or without a center divider. Optional configurations include adjustable shelves, mirrored doors, and combination garment rack/shelves for parallel storage of large and small items.
Divided Garment Cabinets feature a center partition and dual-side doors. Both sides are independently configurable with hangers for garment storage, or shelves for various tools, PPE, and dispensed products.
J4 - Trays
Adjustable, non-contaminating shelves and trays slide on stainless steel racks, allowing easy parts access (one perforated shelf included)
J5 - Casters
Lab and cleanroom chair caster choices range between standard rubber and specialty materials for applications including:
- Cleanrooms
- ESD environments
- Hot or Cold Sterilization
- Chemical Compatibility / Transport
Read More: How Do I Choose the Right Cleanroom or Lab Wheel Casters?
J6 - Ionizing Bar
Ionizing bars emit equal quantities of positive and negative ions to neutralize static charges within the work area and require no calibration or adjustments.
Read More: How does an Ionizing Blow-Off Gun improve product quality?
