Select Product
Chamber Width

Chamber Depth

Chamber Height

Number of Drawers

Terra Part # Price Ships in
3 ISO 7 16.625" 16.125" 11.625" 1 6500-21 63280 $4,379 30-36 Days 2
3 ISO 7 16.625" 16.125" 11.625" None 6500-20 63279 $4,171 30-36 Days 3
8 ISO 7 16.625" 16.125" 11.625" 2 6500-22 63281 $10,860 30-36 Days 4
Number of Chambers
Certified ISO Grade™ Design
Chamber Width
Chamber Depth
Chamber Height
Number of Drawers
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Clean, dry storage with maximum security from tampering, theft, smoke and fire
  • Self-locking doors with heavy-duty chrome bolts
  • Electronic keypad locks after three incorrect tries
  • Traceable entry records
  • Select models include locking 4.25"-high internal drawers
  • Fire-rated for 2 hours
  • Maintains safe internal levels of heat (no more than 350°F) with external temperatures as high as 1700°F
  • Anchor bolt attaches the safe to the floor
  • Includes Terra SDPVC desiccator cabinet inside with fittings for nitrogen gas purging
  • Automatic RB® (Relief/Bleed) Valves installed in desiccator cabinet to relieve overpressure
  • Stainless steel racks included for mounting shelves (order shelves separately)
  • Optional Dual Purge/NitroWatch humidity controllers maintain sub-ambient RH set-point (sold separately)

Marks & Listings: CE

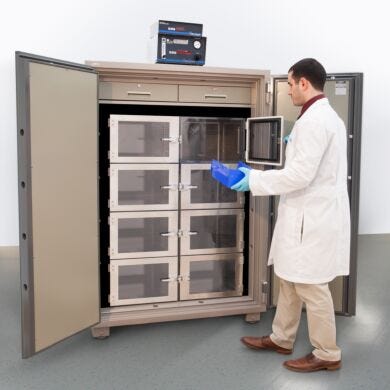

High-Security Double-Agent™ Desiccator Cabinet
Standard Features
  • A SDPVC Desiccator
    Prevents electro-static discharge (ESD) and particle attraction caused by surface charges
  • B High-Security, Fire-Resistant Safe
    High-Security, Fire-Resistant Safe; certified for 120 minutes of 1700°F (927°C) exposure
  • C Pull-out Locking Drawers
    Pull-out locking drawers above desiccator secure paperwork or other materials
Optional Features
  • 1 Dual Purge™ System
    Provides a variable flow of nitrogen purge gas: high to recover set point, low to conserve nitrogen
  • 2 NitroWatch® RH Controller
    Monitors internal humidity; activates a high-flow purge when RH climbs above set point

Not Shown: Shelves - Perforated stainless steel shelves

Not Shown: Nitrogen Generator - Provides an uninterrupted supply of nitrogen up to 99% pure to eliminate reliance on bulky gas canisters

Specialty Desiccator Cabinets

  • universal adjustable base stands Universal Base Stands Offer Excellent Versatility
  • Adjusting universal stand Universal Stand Adjusts to Fit a Wide Range of Equipment
  • Desiccators: Features and Design overview
  • Smart® Humidity Module upgrade tutorial Installing Terra's ValuLine™ Desiccator Smart® Controller
  • Leveling your Desiccator
  • Fire-rated Desiccator Safe Security Desiccator Safe
Smart® Humidity Module upgrade tutorial
Features & Benefits

Features and Benefits

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Stainless Steel Racks for Adjustable Shelf Storage Desiccators

Unlike common chrome-plated hardware, durable electropolished stainless steel racks for adjustable shelf storage desiccators help maintain a contamination-free storage environment. They resist corrosion and chipping/scratching from the sliding removable shelves.

Internal Keyed Steel Drawers

Drawers inside the High-Security Storage Desiccator safe provide secure, fire-safe storage of documents and small valuables. Locking drawers are 4.5” tall.

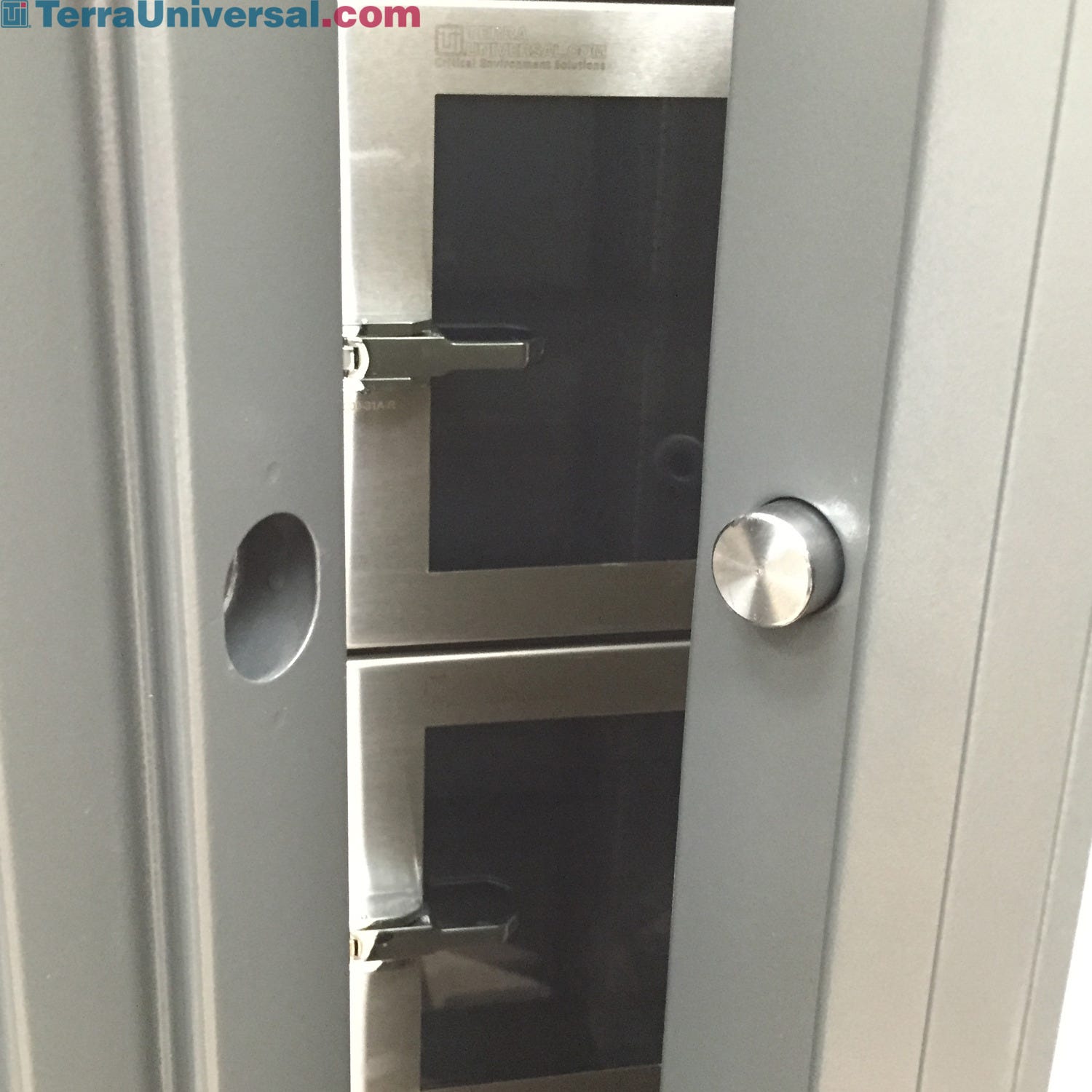

Locking Chrome Bolts on High-Security Desiccator

One-inch-diameter chrome bolts interlock with recesses built into the safe’s perimeter.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Complete Order Transparency

Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements

Rapid Drying of Hygroscopic Material

Terra's gas-purged desiccators utilize a rapid flow of inert nitrogen to quickly dry hygroscopic samples and components
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Universal Adjustable Equipment Base Stands

    Stainless steel or powder-coated steel, cleanroom-compliant stands easily adjust to fit industry-standard cabinets, desiccators, vacuum chambers, refrigerators, incubators and ovens. Raises equipment to ergonomic height to support disinfection and sample monitoring.
  • Perforated Stainless Steel Shelf

    Adjustable electropolished 304 stainless steel shelves support weight loads of up to 45 pounds. Perforated shelf helps with consistent nitrogen distribution. Individually bagged to prevent surface contamination.
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
