Select Product

Flow Rate

Terra Part #PriceShips in
54-105 SCFH 9082-01 21431 $3,5221-3 Days2
Stocked
420-900 SCFH 9082-00 21430 $6,6551-3 Days3
Stocked
Flow Rate
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

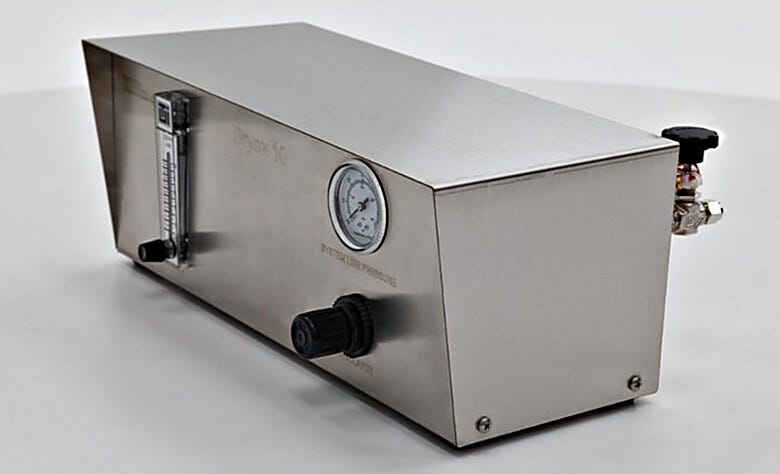

Product Details

• Choose between two models to meet your outlet flow requirements

• Membrane module consists of bundles of hollow fiber, semipermeable membranes, each with a perfectly circular cross-section and uniform core, contributing to strength

• Includes gas pressure regulator, control valve and instruments, a coalescing filter and carbon filter (to remove oil vapors and particles from the feed line, and moisture membrane)

• Feed Air Pressure: 60 – 200 PSIG

• Feed Air Temperature: 40°F (4°C) to 150°F (66°C) (75°F (24°C) recommended)

• Power Requirement: Electricity required only for user-supplier air compressor/conditioner

• Membrane filter is encases in 304 stainless steel case

• Stainless steel compression fittings allow connection of incoming and outgoing air

• Efficient membrane separation design never needs regenerating (unlike desiccant dryers)

• Gives you control over outlet flow and dew point

• Membrane-separation technology removes moisture from air stream with no moving parts or power requirements – just a source of compressed air

• Compressed air enters the center of the fiber bundle at one end of the module under pressure; as it passes through the bundles, water vapor passes through the semipermeable membranes and is discharged

• Low-maintenance, light-weight, compact design

• Requires no electrical service—simply connect to a compressed air feed line and it's ready for operation

• Ideal source for purge gas in moisture-sensitive storage and processing applications

Features & Benefits

Features & Benefits

Dryex Gas Dryers: Flow Rates

Dryex 10 and 80 Gas Dryer performance: dew point vs. outlet flow

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. We accomplish this by harnessing high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our will to continuously improve.
