Worldwide Pricing and Secure Global Shipping Available!
Select Product
Voltage

Phases

Tank Capacity

Power

System F.L.A.

SCFM @ 100 PSIG

Oil-less

Terra Part #Price Ships in
230 V 1 Ph ISO 7 10 gal 3 HP 17.0 Amps 8.6 SCFM Yes 116 PSIG 9505-43 $8,079 5-5 Days2
In stock
230 V 1 Ph ISO 7 10 gal 5 HP 27.0 Amps 14.4 SCFM Yes 116 PSIG 9505-47 $10,805 5-5 Days3
In stock
230 V 3 Ph ISO 7 10 gal 3 HP 8.0 Amps 8.6 SCFM Yes 116 PSIG 9505-41 $7,894 42-48 Days4
230 V 3 Ph ISO 7 10 gal 5 HP 13.8 Amps 14.4 SCFM Yes 116 PSIG 9505-45 $8,899 5-5 Days5
In stock
208 V 3 Ph ISO 7 10 gal 3 HP 8.7 Amps 8.6 SCFM Yes 116 PSIG 9505-40 $9,411 5-5 Days6
In stock
208 V 3 Ph ISO 7 10 gal 5 HP 14.0 Amps 14.4 SCFM Yes 116 PSIG 9505-44 $8,892 5-5 Days7
In stock
460 V 3 Ph ISO 7 10 gal 3 HP 4.0 Amps 8.6 SCFM Yes 116 PSIG 9505-42 $8,951 5-5 Days8
In stock
460 V 3 Ph ISO 7 10 gal 5 HP 6.9 Amps 14.4 SCFM Yes 116 PSIG 9505-46 $8,899 5-5 Days9
In stock
Voltage
Phases
Certified ISO Grade Design
Tank Capacity
Power
System F.L.A.
SCFM @ 100 PSIG
Oil-less
Service Pressure (PSIG)
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • •  Available ISO Ratings: ISO 7, ISO 8
  • These air compressors operate maintenance-free, with only two moving parts
  • Included air-cooled after-cooler, run-hour meter, and power indicator light, run and high-temperature
  • Virtually vibration-free, quiet (49 dB) operation
  • Other features: motor overload protection, hour meter, air pressure gauge and high-temperature switch
  • Dry type inlet filter ensures that air enters the unit 99% particulate-free
  • Cooling fan keeps operating temperature low, extending the life for bearings and seals
  • Self-lubricating, long-life tip seal
  • Continuous air delivery
  • 3 or 5 HP air compressors
  • Available as 1-phase, 230V or 3-phase, 208V/230V/460V
  • Single Phase 3HP units will require installation of an additional 30 gal. external tank and 5HP units will require the installation of an additional 60 gal. external tank
Features & Benefits

Features & Benefits

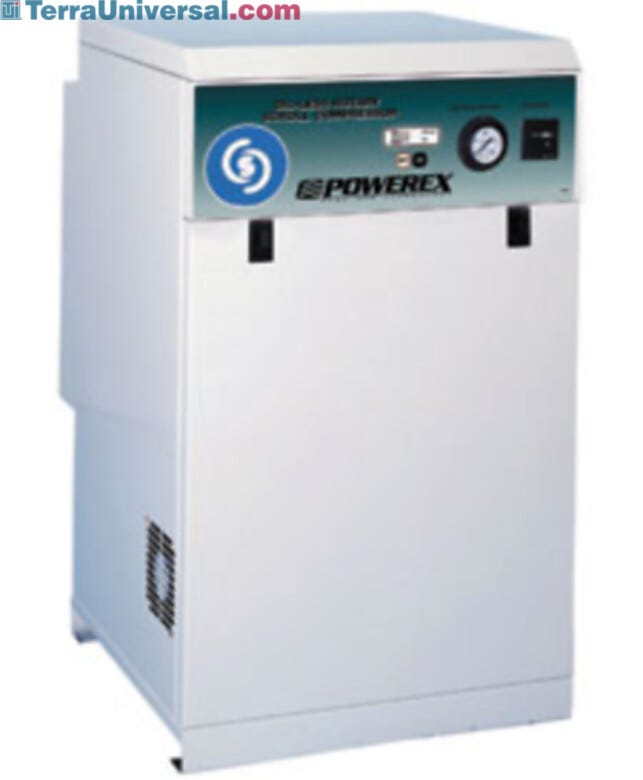

Oilless Scroll Compressors

Comparison Chart for P-Z Series Rotary Vane Pumps

Model 3 HP Models 5 HP Models
Discharge pressure: 93 - 115 PSIG 93 - 115 PSIG
Air delivery 8.6 CFM (243.7 L/min) 14.4 CFM (408.1 L/min)
Compressor speed 2680 RPM 3020 RPM
Air receiver/tank 6.6 gal. (29 L) 10 gal. (44 L)
