Fixed Height 500 lb 304 Stainless Steel Solid 47" 30" 30" ISO 5 3435-01 43781 $8,680 25-35 Days 2
Fixed Height 500 lb 304 Stainless Steel Solid 47" 36" 30" ISO 5 3435-02 43775 $9,021 25-35 Days 3
Fixed Height 500 lb 304 Stainless Steel Solid 35" 30" 30" ISO 5 3435-00 43780 $8,510 25-35 Days 4
Fixed Height 500 lb Electropolished Stainless Steel Solid 47" 30" 30" ISO 6 3435-01-2 43784 $10,686 25-35 Days 5
Fixed Height 500 lb Electropolished Stainless Steel Solid 47" 36" 30" ISO 6 3435-02-2 43774 $11,288 25-35 Days 6
Fixed Height 500 lb Electropolished Stainless Steel Solid 35" 30" 30" ISO 5 3435-00-2 43783 $10,253 25-35 Days 7
Fixed Height 540 lb 304 Stainless Steel Solid 60" 36" 30" ISO 5 3435-03 43782 $9,159 25-35 Days 8
Fixed Height 540 lb Electropolished Stainless Steel Solid 60" 36" 30" ISO 6 3435-03-2 43785 $12,066 25-35 Days 9
Type
Load Capacity
Top Material
Top Design
Width
Depth
Height
ISO Class
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • Designed for the strictest cleanroom classifications (ISO 5 or better)
  • Ducted air exhaust for clean, particle free operation
  • Gimbal Piston Isolators achieve both horizontal and vertical isolation down to very low input levels
  • Ducted air exhaust for clean, particle free operation
  • Exclusive tie-bar gussets increase table frame rigidity; no exposed weld beads
  • Max load capacity up to 500 lbs. (when balanced)
  • Leveling feet with ½ of travel
  • 5mm-thick, rolling diaphragm air seals
  • Maintains height to ±1 mm
  • Requires 80 psi nitrogen or dry air
  • Choose from two tabletops: brushed or electropolished 304 stainless steel
  • Optional casters and sliding shelf available

Vibration Isolation Workstations

  • vibration isolation table Vibration Isolation Table
  • 7 minute video on how to properly install the table for all of its components CleanBench Setup
  • Installation of accessories for the CleanBench table CleanBench Accessories
  • Video showcases the options, accesorries, and functions of the vibration isolation table CleanBench with Gimbal Piston Vibration Isolation
vibration isolation table
7 minute video on how to properly install the table for all of its components
Installation of accessories for the CleanBench table
Video showcases the options, accesorries, and functions of the vibration isolation table
Features & Benefits

Features and Benefits

Learn More: Vibration Isolation Tables

Vibration Isolation Tables for Cleanroom Operations From TMC

ClassOne Workstation for Cleanrooms

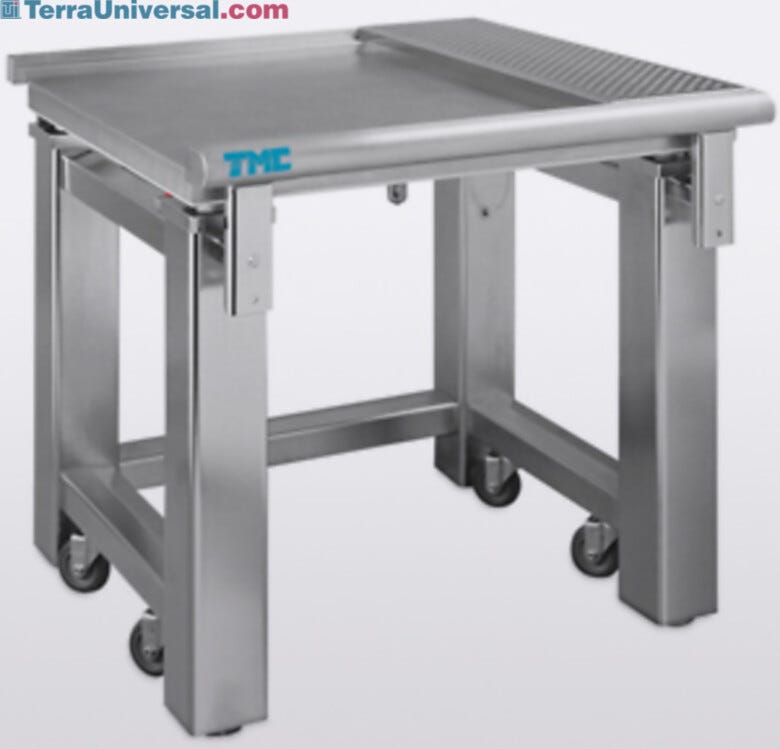

  • Suitable for cleaner than Class-100 cleanrooms; includes stainless steel top and ducted air exhaust for clean, particle free operation
  • Choose from two tabletops: brushed and electropolished 304 stainless steel
  • Patented Gimbal Pistonâ„¢ Isolators achieve both horizontal and vertical isolation down to very low input levels
  • Tiebars are welded on the inside, so no weld bead is exposed
  • High stiffness, stainless steel frame is easy to clean with no horizontal seams or ridges
  • Load-carrying capacity of up to 500 lbs. (227 kg) for balanced loads
  • Front support bar comes standard
Front Support Bar of ClassOneâ„¢ Cleanroom Vibration Isolation Table

The all-stainless steel vibration isolation workstation is a high-performance, pneumatic vibration-dampening table designed from the floor up for maximum cleanroom compatibility. Isolation is provided by the patented Gimbal Piston element that provides unsurpassed performance in isolating optical tables, electron microscopes, precision balances, and scanning-tunneling microscopes. These workstations can be alcohol wiped with a lint-free cloth and are double wrapped in plastic at the factory prior to shipping.

  • Gimbal Piston Isolators: The TMC Patented Gimbal Piston Isolator has been proven by independent tests to consistently outperform the competition. It achieves both horizontal and vertical isolation down to very low input levels.
  • Thin-Wall Rolling Diaphragms: An integral part of the Gimbal Piston, the thin-wall, dacron-reinforced, rolling diaphragm air seals are only 0.020 in. (0.5 mm) thick and extremely flexible. They do not stiffen the spring as thicker rubber diaphragms do.
  • Height Control Valves: All systems are equipped with rugged height control valves. Virtually unbreakable, they are finger adjustable with no need for tools. The standard model maintains height to ± 0.050 in. (±1 mm.)
  • Internal Piston Travel Restraint: Unique in the industry, TMC provides husky, tamperproof, built-in piston travel restraints. The restraints are completely independent of the table valves and have been ram-tested at forces above those produced by the pistons operating at full pressure. They cannot be decoupled accidentally and do not interfere with setting up and using the table, but simply protect against overtravel without the use of external bars that create hazardous pinch points. Heavy loads, including the top plate, can be safely removed from a table in full operation.
  • Tiebar Gussets: Exclusive TMC tiebar gussets increase table frame rigidity. They compensate for the elimination of the front tiebar in order to provide kneewell space.
  • Rugged Built-in Leveling Feet: Table legs include built-in fine-thread 3 in. (75 mm) diameter screw jack levelers with 1/2 in. (13 mm) travel, provision for external adjustment and a handy adjustment wrench. The base is a solid, slightly domed shape to assure solid, wobble-free contact with sloping or irregular floors.
Which Top Is Best for You?:

Stainless steel laminate, the least expensive top, is recommended for applications that require a strong magnetic attachment and will not involve repeated exposure of the top to corrosive liquids. However, stains from such liquids can be removed with an industrial strength stainless steel cleaner. This top does not have the precision flatness of our CleanTop II honeycomb top.

Plastic laminate on stainless steel offers an easy-to clean alternative to stainless steel without sacrificing structural performance. A plastic laminate is added to the top surface, which reduces ferromagnetic attachment strength.

CleanTop II features TMC's patented spill-proof, drilled and tapped mounting hole array. Tops are 4" (100 mm) thick and have 1/2-20 holes on 1" (25 mm) spacing or M6 holes on 25 mm spacing. The small cell-size steel honeycomb design provides even stiffer and better damping than our stainless steel laminate.

Isolator natural frequency Specifications
  • High Input Specifications:
    • 2.1 Hz (vertical)
    • 1.0 Hz (horizontal)
  • Low Input Specifications:
    • 1.5 - 2.0 Hz (vertical)
    • 1.2 - 1.7 Hz (horizontal)
  • Isolation efficiency @ 5 Hz:
    • vertical: 70 - 85%
    • horizontal: 75 - 90%
  • Isolation efficiency @ 10 Hz:
    • vertical: 90 - 97%
    • horizontal: 90 - 97%
  • Gross load Capacity: 1,400 lbs. (640 kg)
  • Net load Capacity: 500 lbs. (227 kg) for balanced loads
  • Finish: Electropolished stainless steel frame, stainless steel top (with or without electropolish)
  • Facilities required: 80 psi nitrogen or air

Vibration Isolation Performance Data

Vibration isolation performance data of TMC's ClassOne tables. Over 99% of low-amplitude vibration is isolated from the work surface, reducing operator nausea and fatigue.

Front Support Bar of Vibration Isolation Table

Front support bar of ClassOneâ„¢ cleanroom vibration-free tables (included) is isolated form work surface.

Gimbal Piston Isolators

TMC-patented Gimbal Piston Isolators provide vibration isolation in horizontal and vertical directions to very low input levels: 1.5 - 2.0 Hz (vertical), 1.2 - 1.7 Hz (horizontal).

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Casters (Set of 4) ; for 63600 Series Vibration-Free Tables

  • Front Support Bar of Vibration Isolation Table

    Front support bar of ClassOneâ„¢ cleanroom vibration-free tables (included) is isolated form work surface.
