Select Product

Voltage

Material

Number of Sinks

Width

Sink Style

Terra Part #PriceShips in
120 V304 Stainless Steel1 Sink24"Integral 9600-60C 72492 $4,2661-3 Days2
120 V304 Stainless Steel1 Sink24"Drop-In 9600-60C-VL 72501 $3,96920-26 Days3
120 V304 Stainless Steel2 Sinks48"Integral 9600-61C 72494 $8,22123-29 Days4
120 V304 Stainless Steel2 Sinks48"Drop-In 9600-61C-VL 72502 $7,62623-29 Days5
120 V304 Stainless Steel4 Sinks96"Integral 9600-62C 72495 $15,36730-36 Days6
120 V304 Stainless Steel4 Sinks96"Drop-In 9600-62C-VL 72503 $14,17730-36 Days7
120 V304 Stainless Steel6 Sinks144"Integral 9600-63C 72496 $23,19135-41 Days8
120 V304 Stainless Steel6 Sinks144"Drop-In 9600-63C-VL 72504 $21,40535-41 Days9
120 VPolypropylene1 Sink24"Integral 9600-42B 72745 $3,1861-3 Days10
120 VPolypropylene2 Sinks48"Integral 9600-43B 72747 $6,22623-29 Days11
120 VPolypropylene4 Sinks96"Integral 9600-44B 72749 $11,32430-36 Days12
120 VPolypropylene6 Sinks144"Integral 9600-45B 72751 $17,49035-41 Days13
240 V304 Stainless Steel1 Sink24"Integral 9600-60C-220 72497 $4,26620-26 Days14
240 V304 Stainless Steel1 Sink24"Drop-In 9600-60C-VL-220 72505 $3,96920-26 Days15
240 V304 Stainless Steel2 Sinks48"Integral 9600-61C-220 72498 $8,22123-29 Days16
240 V304 Stainless Steel2 Sinks48"Drop-In 9600-61C-VL-220 72506 $7,62623-29 Days17
240 V304 Stainless Steel4 Sinks96"Integral 9600-62C-220 72499 $15,36730-36 Days18
240 V304 Stainless Steel4 Sinks96"Drop-In 9600-62C-VL-220 72507 $14,17730-36 Days19
240 V304 Stainless Steel6 Sinks144"Integral 9600-63C-220 72500 $23,19135-41 Days20
240 V304 Stainless Steel6 Sinks144"Drop-In 9600-63C-VL-220 72508 $21,40535-41 Days21
240 VPolypropylene1 Sink24"Integral 9600-42B-220 72746 $3,18620-26 Days22
240 VPolypropylene2 Sinks48"Integral 9600-43B-220 72748 $6,22623-29 Days23
240 VPolypropylene4 Sinks96"Integral 9600-44B-220 72750 $11,32420-30 Days24
240 VPolypropylene6 Sinks144"Integral 9600-45B-220 72752 $17,49035-41 Days25
Voltage
Material
Number of Sinks
Width
Sink Style
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Combines faucet and HEPA-filtered hand dryer in a single station

• Hands-free, IR beam activation

• Two air-blade hand dryers extend out on either side of the main faucet

• Washing and drying all take place over the sink basin; no dripping on the floor

• Choose between ValuLine drop-in style sinks or BioSafe all-welded models

• HEPA filter rated at 99.97% @ 0.3 microns

• 1000W digital brushless motor

• Type 304 stainless steel construction

• Optional liquid soap dispenser available

• Multiple units can be combined into a single bank of sink stations

• Requires water supply, drain connection and power source

Features & Benefits

Features and Benefits

Hands-Free Sink and Hand Dryer

Hands-Free Sink and Hand Dryer

  • Incorporates washing and HEPA-filtered drying modules in one cleanroom-compatible station (sink-only model available)
  • IR beam activation for hands-free, noncontaminating operation
  • Fabricated of 304 stainless steel with chrome-plated faucets (electropolished models also available)
  • Economical polypropylene stations have excellent resistance to most acids and solvents
  • Includes IR-activated liquid soap dispenser
  • Dryer module incorporates HEPA filter to capture sub-micron particles and germs that can spread infection
  • Multiple sink units available
  • Fan/filter units are sold seperately; refer to the tables below for configurations an pricing
  • All models incorporate a sash of the material specified above

This integrated hands-free sink and hand dryer is specifically designed for use in critical cleanroom and gowning room environments.

Stations are fabricated of 304 stainless steel or white polyproylene for optimal cleanliness in controlled rooms; ultra-clean electropolished stainless steel is also available. Infrared sensors are mounted immediately behind the chrome-plated faucets to allow hands-free washer activation, ensuring that personnel do not touch surfaces and potentially contaminate hands or gloves.

Hand Washer and Dryer
Hands-Free Sink and Hand Dryer Polypropylene

The optional soap dispenser is ideal for pharmaceutical or medical applications that require washing with a germicidal agent. Like the faucet, this feature is IR-beam operated—passing hands in front of the dispensing nozzle activates an electrical pump, which delivers an adjustable amount of soap.

Industry-Leading Quiet Operation

The integral drying module incorporates blower, energy-efficient heater with insulated air flow tubing, and an HEPA (high-efficiency particulate air) filter rated 99.99% efficient @ 0.3 µm particles. The dryer operates at a fraction of the noise level associated with automatic dryers. Noise: 72-73 dB (no hands in air stream); 78-79 dB (with hands in air stream)

Hand Washer and Dryer

Ideal for the gowning portion of the cleanroom, Terra’s cleanroom sinks offer touchless operation for compliance with aseptic protocols; shown with integrated HEPA-filtered hand dryer.

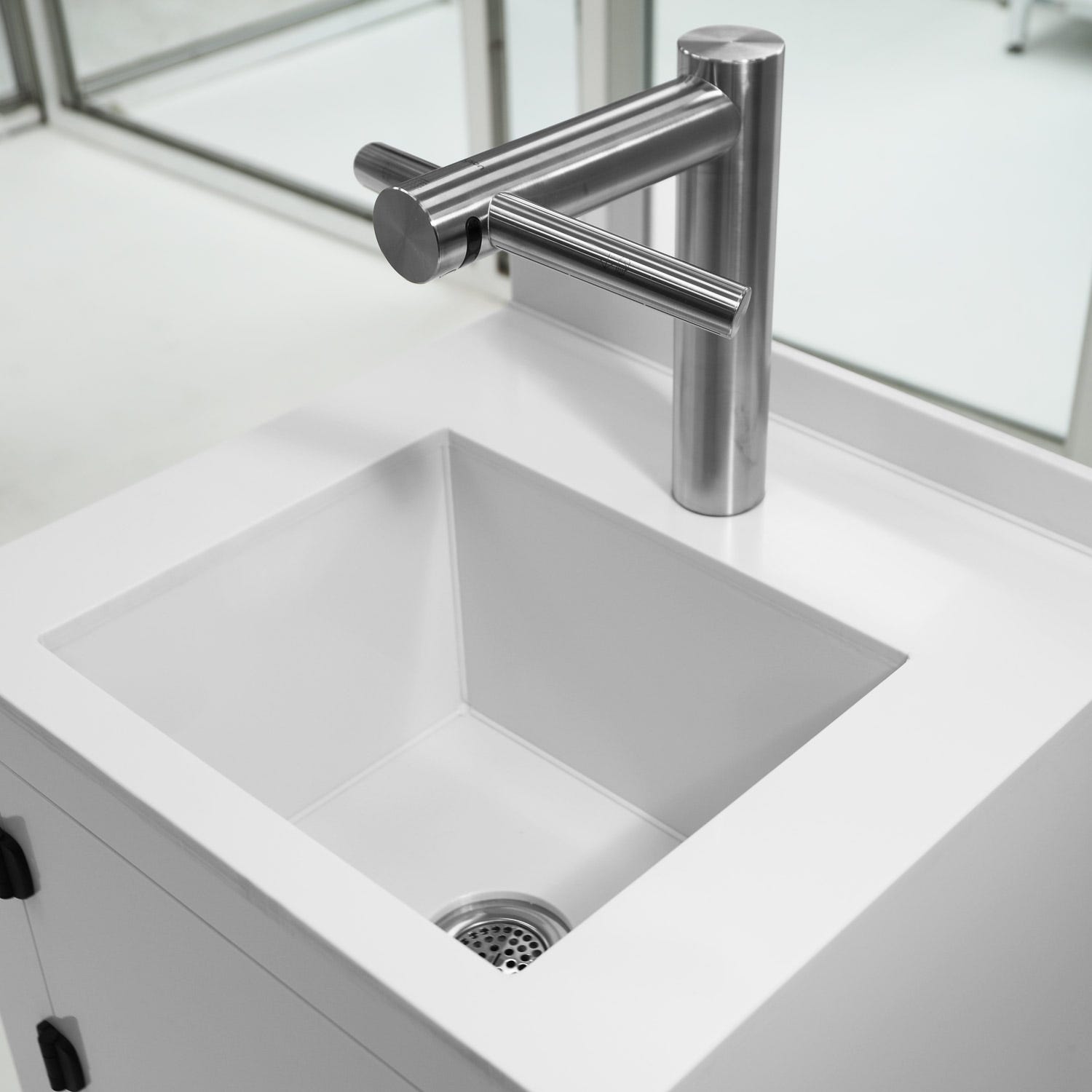

Hands-Free Sink and Hand Dryer Polypropylene

Polypropylene Hands-Free Sink and Hand Dryers feature all-welded construction and excellent chemical resistance.

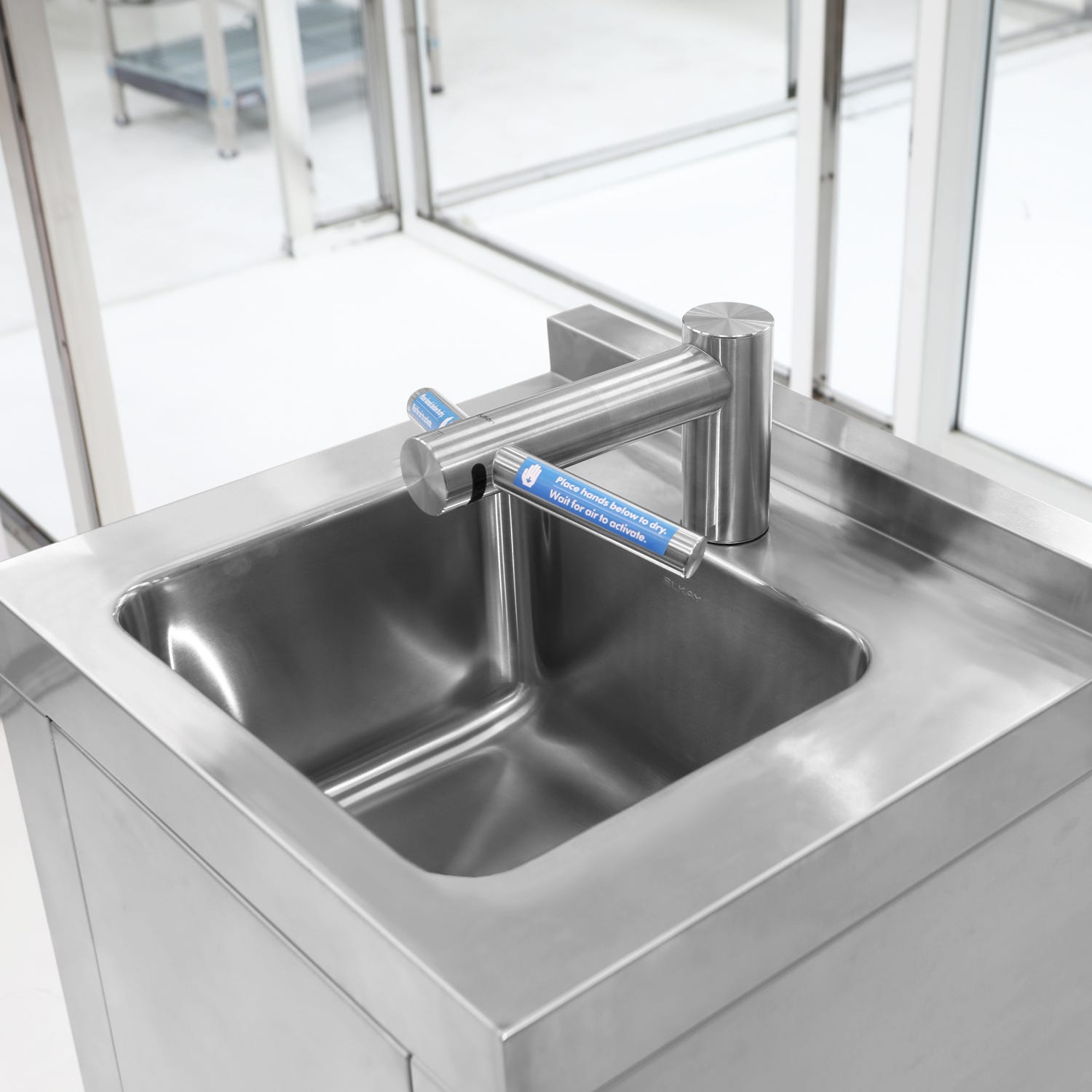

Hands-Free Sink and Hand Dryer Stainless Steel

Stainless Steel Hands-Free Sink and Hand Dryers minimize sources of microbial growth; built-in HEPA-filtered air blades (drop-in model shown).

HEPA-filterd Drying

Captures sub-micron particles and germs that can spread infection.
