• Cleanroom FFU provides avg velocity of 90+ FPM, airflow of 640+ CFM at Medium speed
• Three speed settings (Low/Medium/High) simplify air balancing
• Internal baffling plate and diffuser panel provide quiet and uniform air flow across the filter face
• Quiet, low-vibration FFU design: only 49 dBA, measured 30" from filter face @ 90 FPM
• Minimize cleanroom service downtime with room-side-replaceable (RSR) fan filter units
• Room-side-replaceable filter units feature a Gel-sealed filter and easy-open clips to allow fast filter replacement from below without breaching the cleanroom ceiling
• WhisperFlow baffling technology supports uniform air speed across the filter face, ensuring laminar airflow
• Low-profile design allows cleanroom installation inside rooms with standard 9-foot ceilings
• Meets IEST Recommended Practices
• Models with all-stainless steel housing and filter frame meet strictest cleanroom requirements
• Speak with a Terra sales associate for recommendations on quantities to meet specified requirements
• Choose from cold rolled steel or all stainless steel housing
• Choose from room-side-replaceable or top-side-replaceable filter
• HEPA (High-Efficiency Particulate Air) filters are rated 99.99% efficient at removing particles ≥ 0.3 microns
• ULPA (Ultra-Low Penetration Air) filters are rated 99.999% efficient at removing particles ≥ 0.12 microns
• Provides years of no-maintenance, 24/7 operation (depending on air quality)
• Motor: 1/4 HP Direct drive, thermally protected with automatic overload reset
• Forward-curved centrifugal fans
• 1/4-20 UNC threaded inserts on corners to allow suspension by guy-wires
• MERV 7 pre-filter, 30% ASHRAE rated
• Low-profile design is ideal for cleanrooms with limited ceiling space
• Filters are leak tested in accordance with IEST standards and meet UL 900
• See performance data and submittal sheets for additional information
• Optional Accessories:
Challenge port kit
Power plug adapter
Stainless surface mount frame for installing FFU in ceiling without T-grid
12” ducted inlet connection adapter
Replacement filter
Filter replacement alarm
Eye bolt package
Ionizing bar
Pre-filter safety cover, for CE conformance
Control panel with night mode switch and power distribution modules
• Unit of Measure: of 1
• Marks & Listings: CE, UL, ULC

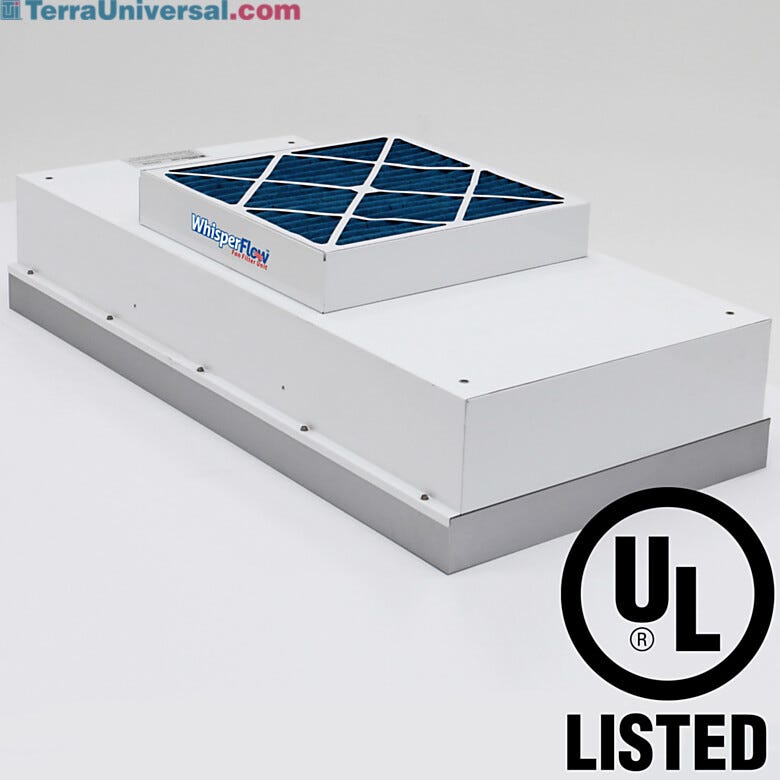

Terra Universal WhisperFlow® Filter Fan Units
Most cleanroom professionals understand that HEPA and ULPA filters capture contaminants that degrade particle-sensitive samples. But they also help remove bacteria, mold spores, and many viruses that contribute to a host of infections.
Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.
These filters also remove aerosol-born pathogens - germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.
Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.
Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:
The ISO 14644-3 Guidelines for Cleanrooms and Associated Controlled Environments details a list of required and optional tests performed during certification of a cleanroom. Included in the list of optional tests is the installed filter system leakage test, including criteria for aerosol challenge testing, HEPA filter leak scanning, and leak penetration testing. These tests, as evidenced below, may not be required for a given application and should be mutually selected and agreed upon by the customer and supplier prior to order placement.
Table 2 lists other tests appropriate for testing of an installation. These tests can be applied in each of the three designated occupancy states. These tests may not be all-inclusive, nor may all of the tests be required for any given certification project. Tests and test methods should be selected in a manner agreed between the customer and supplier. Selected tests can also be repeated on a regular basis as part of a routine facility monitoring program (see ISO 14644-2). Guidelines for the selection of tests and a checklist of tests are given in Annex A. Test methods are outlined in Annex B.
The test methods described in Annex B are in outline form only. Specific methods should be developed to meet the needs of the particular application.
