Product Details

• Smart cleanroom control panel intelligently monitors and controls clean rooms and facilities

• Connects to EC FFUs for fan control plus monitors differential pressure, temperature, and/or RH

• Plug-and-play design is field configurable to match your facility layout and needs

• Four levels of monitoring and control help you meet critical performance requirements in your new cleanroom:

• Tier 1 Control: Monitors up to 50 FFUs in up to five rooms on a 2.4" graphical display; includes six inputs for pressure, RH or temperature sensors, along with FFU performance alarm, calendar-controlled power saver mode, and local data logging via SD card.

• Tier 2 Control: Monitors up to 100 Fan/Filter Units (FFUs) in up to eight rooms on a 3.5" LCD display; includes six inputs for pressure, RH or temperature sensors, along with FFU performance alarm and calendar-controlled power set-back to save power costs. Includes Ethernet for remote data logging and email alarm notification. Ideal for FDA, cGMP or USP-regulated applications!

• Tier 3 Fully Automated Control: Fully dynamic FFU control maintains set-point pressure and air change rates room-by-room; includes data logging and 5.7" color touchscreen configured to your facility floor plan.

• Retrofit Kits can be added to existing Terra cleanrooms to simplify air balancing and allow environmental data logging

• Requires Smart® (EC) fan/filter units

• Use Tier 3 for compliance with cGMP and USP requirements

• Sensors available with NIST-traceable certification

• Each system can be customized to fit individual budgets and requirements

Features & Benefits

Features and Benefits

Tier Systems Comparison Chart

Tier systems comparison Chart

Console Tier 1 Tier 2 Tier 3 Tier 4
# of Rooms 1-5 1-6 1-12 1-16
# of LAN 1 1 1 1
# of FFU 25 100 120 200
Screen Type 2.4" Graphic 3.5" Color 7" Color Touch 12.1" Color Touch
FFU Control Yes w/Dig I/O Only w/Dig I/O
Sensor Monitoring 6 Sensors 6 Rooms (Up to 12 Sensors) 12 Rooms (Up to 24 Sensors) 16 Rooms (Up to 32 Sensors)
Ethernet/Remote Access Remote Set-Back
& Shutdown/Alarm
Yes Yes Yes
Data-Log SD Card SD + Ethernet SD + Ethernet SD + Ethernet
BMS Exchange No Order Exchange Order Exchange Order Exchange
Standard or Custom Standard Standard Standard Standard
Monitoring Package Included Included Included Included

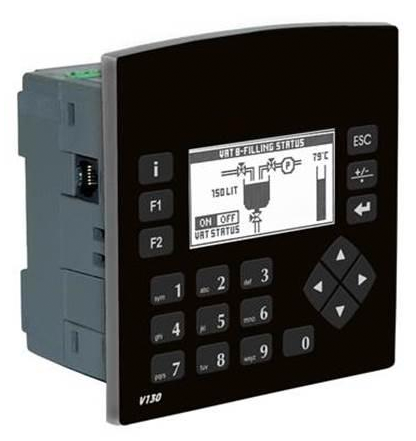

Tier 1 – Field Configure Cleanroom (Graphic Screen) Console intelligently MONITORs clean room and facility environments (up to 50 FFU units organized in up to 5 groups). The Tier 1 provides Environment Monitoring with up to 6 analog sensors that can be monitored and data-logged (option). The console provides communication (MODBUS-RTU platform), unit control, and system monitoring in one easy-to-use package.

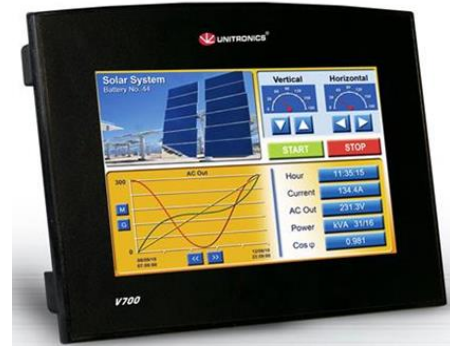

Tier 2 – Field Configure Monitoring Console intelligently MONITORs and CONTROLs clean room and facility environments. The console provides communication (MODBUS-RTU platform), system monitoring (and FFU control) in one easy-to-use package. The Tier 2 console supports cleanroom monitoring up to 6 rooms – with ability to add FFU control for up to a total of 100 FFU addresses. Plug-and Play, the Console is field configurable to match your facility layout needs The Tier 2 Console is supplied in a White Steel enclosure (ACPNL00 with SMPS) to easily wall mount. Ethernet Access provides remote access to the console, e-mail alarm notification and data-log download for the sensor readings.

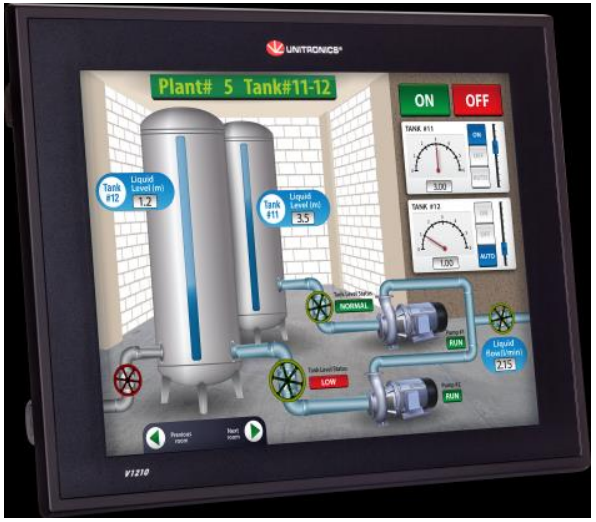

Tier 3 – Field Configure Monitoring Console intelligently MONITORs and CONTROLs clean room and facility environments. The console provides communication (MODBUS-RTU platform), system monitoring (and FFU control) in one easy-to-use package. The Tier 3 console supports cleanroom monitoring up to 12 rooms – with ability to add FFU control for up to a total of 120 FFU addresses. Plug-and Play, the Console is field configurable to match your facility layout needs The Tier 3 Console is supplied in a White Steel enclosure (ACPNL08 with SMPS) to easily wall mount. Ethernet Access provides remote access to the console, e-mail alarm notification and data-log download for the sensor readings. OPTION – BMS

Tier 4 – Field Configure Monitoring Console Intelligently MONITORs and CONTROLs clean room and facility environments. The console provides communication (MODBUS-RTU platform), system monitoring (and FFU control) in one easy-to-use package. The Tier 4 console supports cleanroom monitoring up to 16 rooms – with ability to add FFU control for up to a total of 200 FFU addresses. Plug-and Play, the Console is field configurable to match your facility layout needs The Tier 4 Console is supplied in a White Steel enclosure (ACPNL08 with SMPS) to easily wall mount. Ethernet Access provides remote access to the console, e-mail alarm notification and data-log download for the sensor readings.

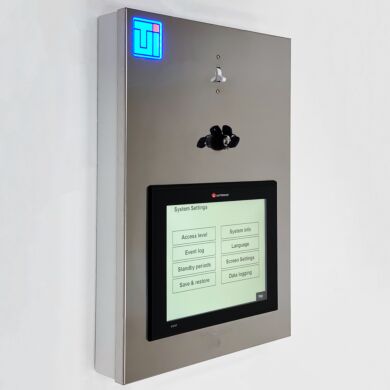

Tier 4 Cleanroom Control Panel with Automated Monitoring and Control

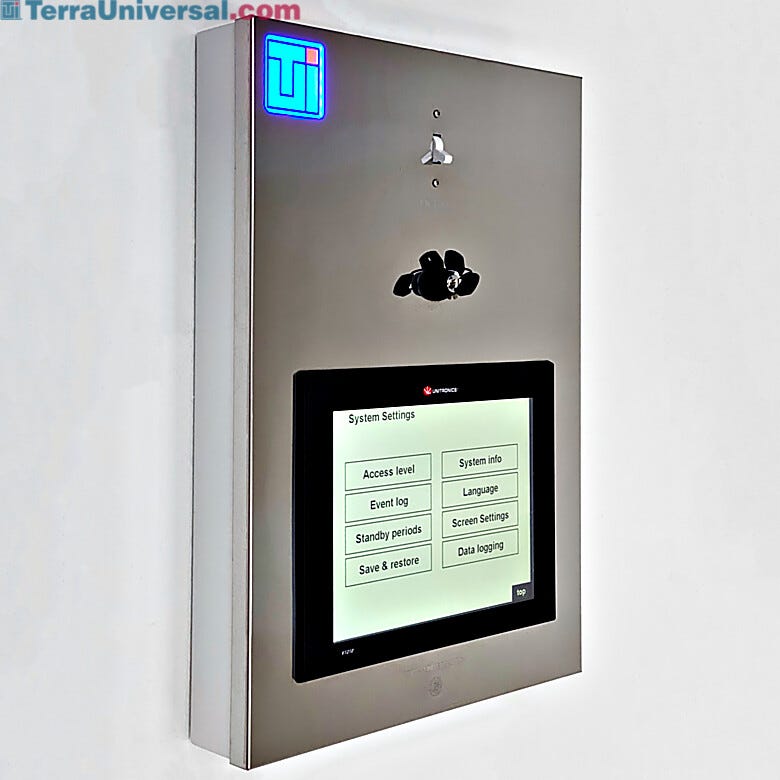

Terra’s Tier 4 cleanroom control panel intelligently monitors and controls clean room and facility environments. Monitor differential pressure, temperature, and/or RH. The Tier 4 console supports cleanroom monitoring for up to 16 rooms and control of up to 200 FFUs. The plug-and-play design is field configurable to match your facility layout and needs.

Power Distribution Module for Modular Cleanroom

Terra’s Power Distribution Modules (PDMs) drastically simplify connection of fan/filter modules (FFUs) and ceiling lights, while providing low-voltage power for one or more Control Panels. The high-voltage power distribution system is UL-listed for the highest safety and quality.
