Select Product

Detection Channels

Detection Range

Counting Efficiency

Terra Part #PriceShips in
6 Channels0.2 - 2.0 μm50% @ 0.2 µm, 100% > 0.3 µm 1510-59 77853 $4,7435-10 Days2
6 Channels0.3 - 10 µm50% @ 0.3 µm, 100% > 0.45 µm 1510-62 77856 $3,9005-10 Days3
6 Channels0.3 - 25 µm50% @ 0.3 µm, 100% > 0.45 µm 1510-60 77854 $3,9005-10 Days4
6 Channels0.5- 25.0 μm50% @ 0.5 µm, 100% > 0.75 µm 1510-61 77855 $3,7955-10 Days5
Detection Channels
Detection Range
Counting Efficiency
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

  • 6-ch models display cumulative and particle count data, and temperature/relative humidity data
  • Minimum sensitivity range: 0.2 to 0.5 μm; mass concentration mode model available (3016 IAQ)
  • Flow Rate: 0.1 CFM (2.83 LPM)
  • Holds 3,000 records of particle data and 50 sampling/report recipes
  • Count modes: Automatic, manual, beep, concentration, cumulative/differential
  • Includes: removable battery, direct mount isokinetic sample probe,  purge filter, temperature/relative humidity probe, power supply; power chord; LMS Express software, international support, Operating manual on CD

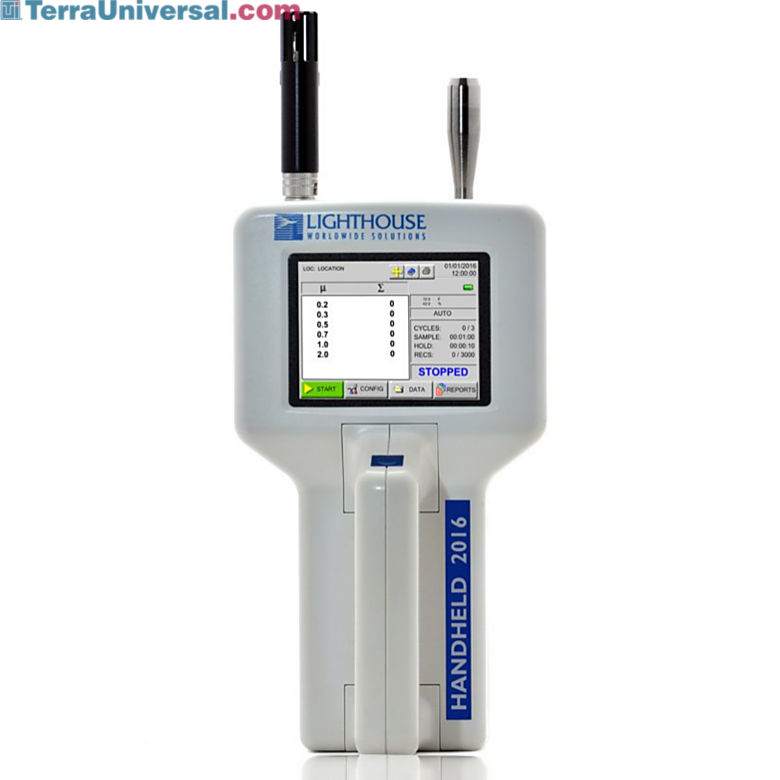

  • Handheld 2016: 0.2 - 2 μm
  • Handheld 3016: 0.3 - 25 μm
  • Handheld 5016: 0.5 - 25 μm
  • Handheld 3016-IAQ: 0.3 - 10.0 μm
  • Bright 3.5” TFT color touchscreen display Lightweight and ergonomic models  feature an easily configurable interface with Zoom capability
  • Air Particle Counter Features: simultaneous viewing of six particle sizes, user-friendly interface, removable / rechargeable Li-Ion battery, removable probes, internal audible alarm, 50-record Configurable Recipe Database, 3,000 record data storage, alphanumeric location labels, Open Architecture Connectivity with OPC Server
  • Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95%non-condensing
  • Storage:14°F to 122°F (-10°C to 50°C) / Up to 98%non-condensing
  • Meets ISO 21501-4 calibration using NIST traceable PSL spheres
  • Compliance: ISO 21501-4
  • Concentration limits: 8,000,000 particles /ft3 @ 10% coincidence loss
  • Laser Source: Extreme Life Laser Diode with > 20 years MTTF
  • Unit-to-Unit Accuracy and Repeatability
  • Test Wizard for Cleanroom Pass/Fail Reports: FS-209E, ISO-14644-1 or EU GMP Annex 1
  • Supporting software (sold separately): LMS Express, LMS Express RT, LMS Pharma, LMS Pro
  • Options: Carry Case, isokinetic sample probe with 6ft tubing, Li-Ion batteries, external battery charger with AC and car adapter, thermal printer and printer cable, printed operating manual

Particle Counters

  • Lighthouse Handheld Airborne Particle Counters by LWS Lighthouse Handheld Airborne Particle Counters by LWS
  • Video of Lighthouse Handheld Particle Counters by LWS Video of Lighthouse Handheld Particle Counters by LWS
  • Operating Instruction Video of Handheld Particle Counters by LWS Video Tutorial of Handheld Particle Counters by LWS
Video of Lighthouse Handheld Particle Counters by LWS
Operating Instruction Video of Handheld Particle Counters by LWS

Features & Benefits

Features and Benefits

Intuitive User Interface

Easy-to-use TFT color touchscreen interface enables convenient setting of parameters

Rechargeable Battery

Enables easy removal of rechargeable battery; additional battery and charger for maximum uptime sold separately

Removable Probes

Temp / RH and isokinetic probes can be removed for easy cleaning
