Product 1510-31A
$2,189
Usually ships in 15-21 business days

Want it faster ? Read about FasTrak

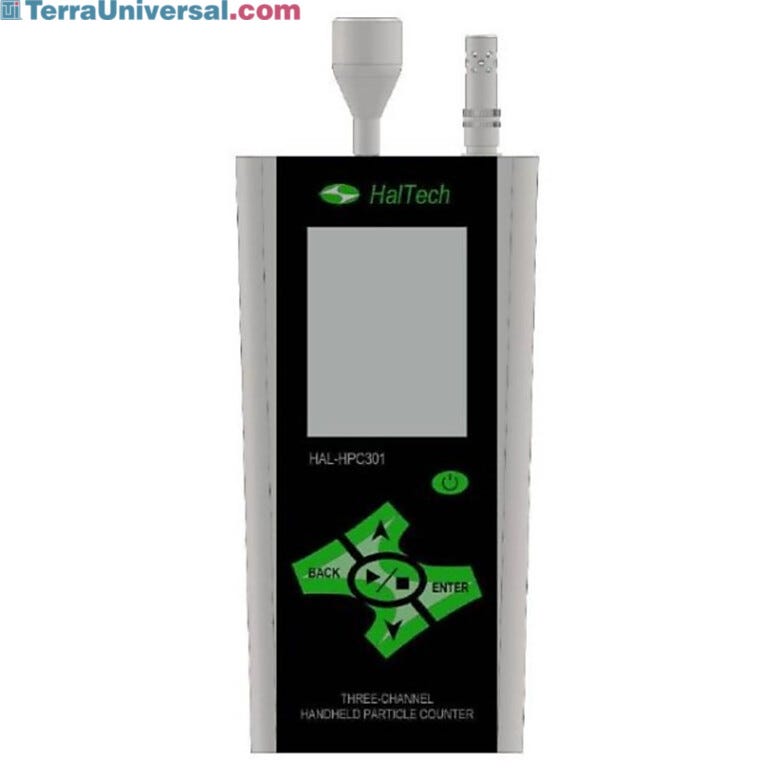

• HAL-HPC301 3-Channel Particle Counter compatible with Windows XP/7/8/10

Counting modes: cumulative, differential and concentration

Internal Memory: 7500 measurement data (7500 sets)

• Size range: 0.3 µm - 15 µm

One-Year Manufacturer Warranty

• Light Source: Laser diode (>100,000 hours)

• Sensitivity: 0.3 µm

• Material: Stainless steel enclosure

• Channels: user-configurable from select options (0.3, 0.5, 0.7, 1.0 2.0, 2.5, 5.0, 10.0 and 15.0 µm)

• Counting Efficiency: 50±20% @0.3μm; 100±10% @0.45μm

• Zero Count: <1 count per 5 minutes

• Flow Rate: 2.83 L /min (0.1cfm)

• Sampling Time: User defined (up to 59m59s) and auto repeat (up to 99 times)

• Count Limit Warning: FED STD 209E (Class 1 ~ 100,000) or ISO 14644-1 (Class 2 ~ 9)

Sampling Mode: Cumulative, differential, concentration (counts/liter), mass concentration µg/m3, TSP and PM values) (optional)

Error Indications: Excess count limit, optics contamination, loss of laser power, insufficient battery power

• Interface: USB, Bluetooth 4.0 (Window XP/7/8/10 compatible)

Power: Li-ion polymer rechargeable battery (7.4V/5200mAH) or 9VDC1.5A

• AC Adapter (100~240V input)

• Max. Operating Time: Continuous operation > 8 hours with Li-ion battery

Environmental Conditions

• Operating: 0 ~ 50°C, < 90%RH

• Storage: -20 ~ 65°C, < 90%RH

Applications: Clean environment monitoring, trace contamination source, indoor/outdoor air quality, test/check filter seal and efficiency, analysis of particle size distribution

• Internal microprocessor controls and displays parameter measurement and results (total counts, number of concentration or/and mass concentration and PM values), material (particle type) and correction

• Side-access ports, three-position stand and tripod mountable

• Compliance: JIS B 9925:1997 and ISO21501 and ISO14644-1

• Certification: CE

Standard Accessories: AC charger, isokinetic probe, USB data cable, data download software (CD), NIST-traceable calibration certificate

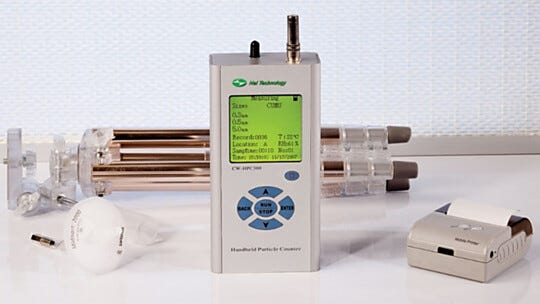

• Optional Accessories: Zero-count filter, digital pressure, temperature and humidity sensor probe, mini Bluetooth printer, mini tripod

Mass Concentration Option: Displays particle concentration in μg/m3 and PM value

Detection Channels: 3 Channels

Dimensions, Product: 3.6" W x 1.81" D x 7.5" H

Electrical Specifications: 120/240 V, 1 Ph, 50/60 Hz

Weight, Product: 2 lb

Weight, Shipping: 4 lb

Dimensions, Shipping: 10" W x 8" D x 6" H

Package Type: Box

Unit of Measure: EA
