Select Product

Fire Rating


Terra Part #PriceShips in
Class A 4' x 10' 3052-06 75170 $1405-7 Days2
Class A 4' x 12' 3052-07 75171 $1645-7 Days3
Class A 4' x 8' 3052-04 75168 $1095-7 Days4
Class A 4' x 9' 3052-05 75169 $1235-7 Days5
Class C 4' x 10' 3052-14 75178 $905-7 Days6
Class C 4' x 12' 3052-15 75179 $1075-7 Days7
Class C 4' x 8' 3052-12 75176 $725-7 Days8
Class C 4' x 9' 3052-13 75177 $815-7 Days9
Class A 4' x 8' 3052-20 75184 $1585-7 Days10
Class A 4' x 9' 3052-21 75185 $1795-7 Days11
Class A 4' x 10' 3052-22 75186 $1985-7 Days12
Class A 4' x 12' 3052-23 75187 $2385-7 Days13
Fire Rating
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Patented surfacing technology seals panels uniformly to enhance durability, prevent particle emission and microbial growth

• Resists a broad range of chemicals, including cleaning and sterilizing agents (Compositions that corrode the surface may cause discoloration)

• Particle emission ISO Class 5 – 8 per ISO 14644-1

• Panels meet USDA/FSIS (US Dept of Agriculture/Food Safety Inspection Service) requirements

• Does not support mold or mildew (per ASTM D3273 and ASTM D3274)

• Panels also offered that have been Approved under FM (Manufactured by Crane Composite) Standard 4880 (Plastic Interior Finish Materials)

• Meets minimum requirements of major model building codes for Class A interior wall and ceiling finishes of flame spread ≤ 25, smoke developed 450 or less (per ASTM E-84) as well as Class C interior wall and ceiling finishes of Flame spread less than or equal to 200, smoke development of 450 or less per (ASTM E-84)

• Meets requirements of ASTM D 5319 for Classification Class A or C / Grade 5 (refers to standard specifications for materials, workmanship and physical requirements)

• Biological Resistance rating of 0 – Excellence per ISO 846

• 0.075” Thickness

• The only Class A cleanroom Fiber-Reinforced Plastic (FRP) wall panels tested and certified to meet ISO 5 cleanliness standards as well as FM (Manufactured by Crane Composite) flame and smoke approval standards

• Optional PVC coving of floor, corners, and ceiling simplifies cleaning and sterilization, making this system ideal for sterile environments

Hardware & Materials

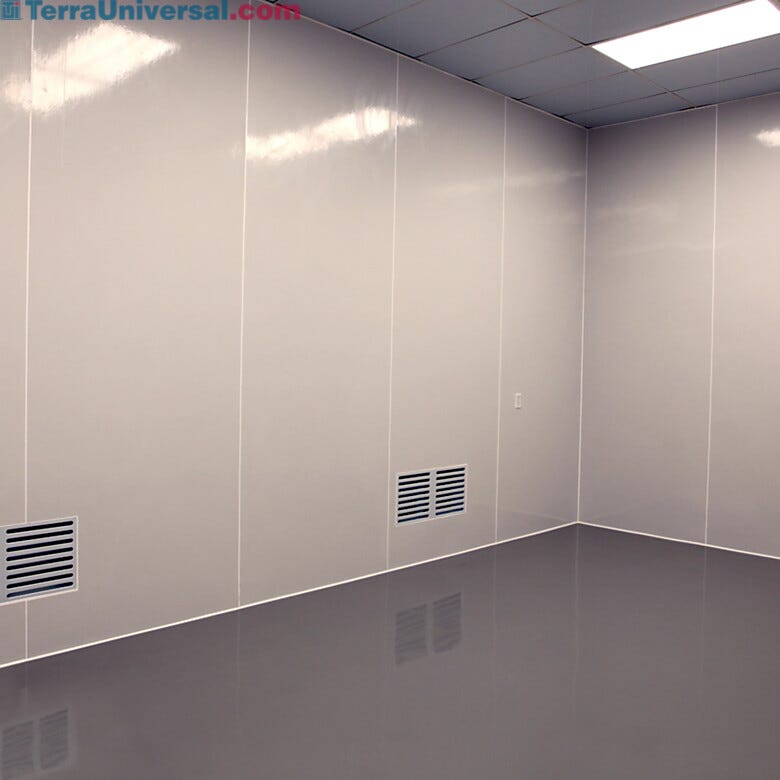

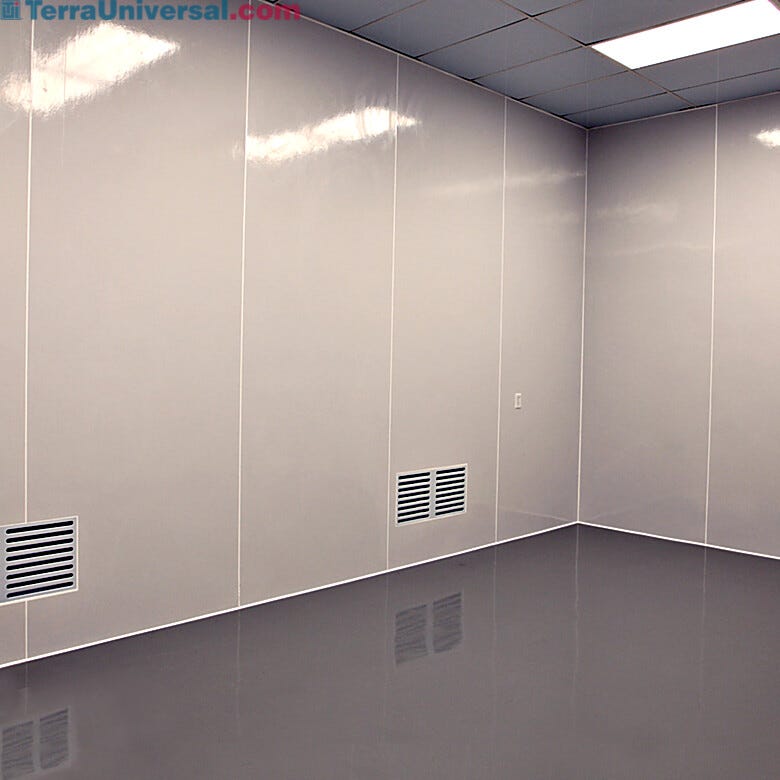

  • Cleanroom FRP Conversion of Office Space FRP Cleanroom Conversions
  • FRP Cleanroom Wall Panels Quick Installation Guide
  • BioSafe® Cleanroom Conversion System
Cleanroom FRP Conversion of Office Space
