BioSafe Modular Cleanroom Features and Benefits
4,000 Worldwide Cleanrooms
Since 1976, Terra has designed and manufactured over 4,000 cleanrooms for companies at the leading edge of high technology
High-Throughput Cleanroom Manufacturing
Over the past 5 years, Terra has manufactured nearly 1,500 UL-approved cleanrooms at industry-leading build times. Terra’s versatile modular cleanroom frame and panel designs adapt to any floor plan requirement. The UL-rated and scalable plug-and-play power distribution system further simplifies installment of FFU's and lights to cleanrooms of any size.
BioSafe: Pre-Fabricated Cleanroom Parts
How can Terra offer industry-leading lead times and pricing? Our advanced cleanroom design doesn’t require factory pre-assembly; each components fits together perfectly, ensuring seamless on-site installation
Double-pane, frameless windows mount flush with no external hardware, for smooth easy to clean surface.
Explosion-Proof HEPA Fan and Filter Unit
Explosion-proof ULPA fan/filter unit features sealed or non-sparking components, including motor, all-potted conduit and grounded filter screens that meet NEC requirements for Class I, Division 1 hazardous locations.

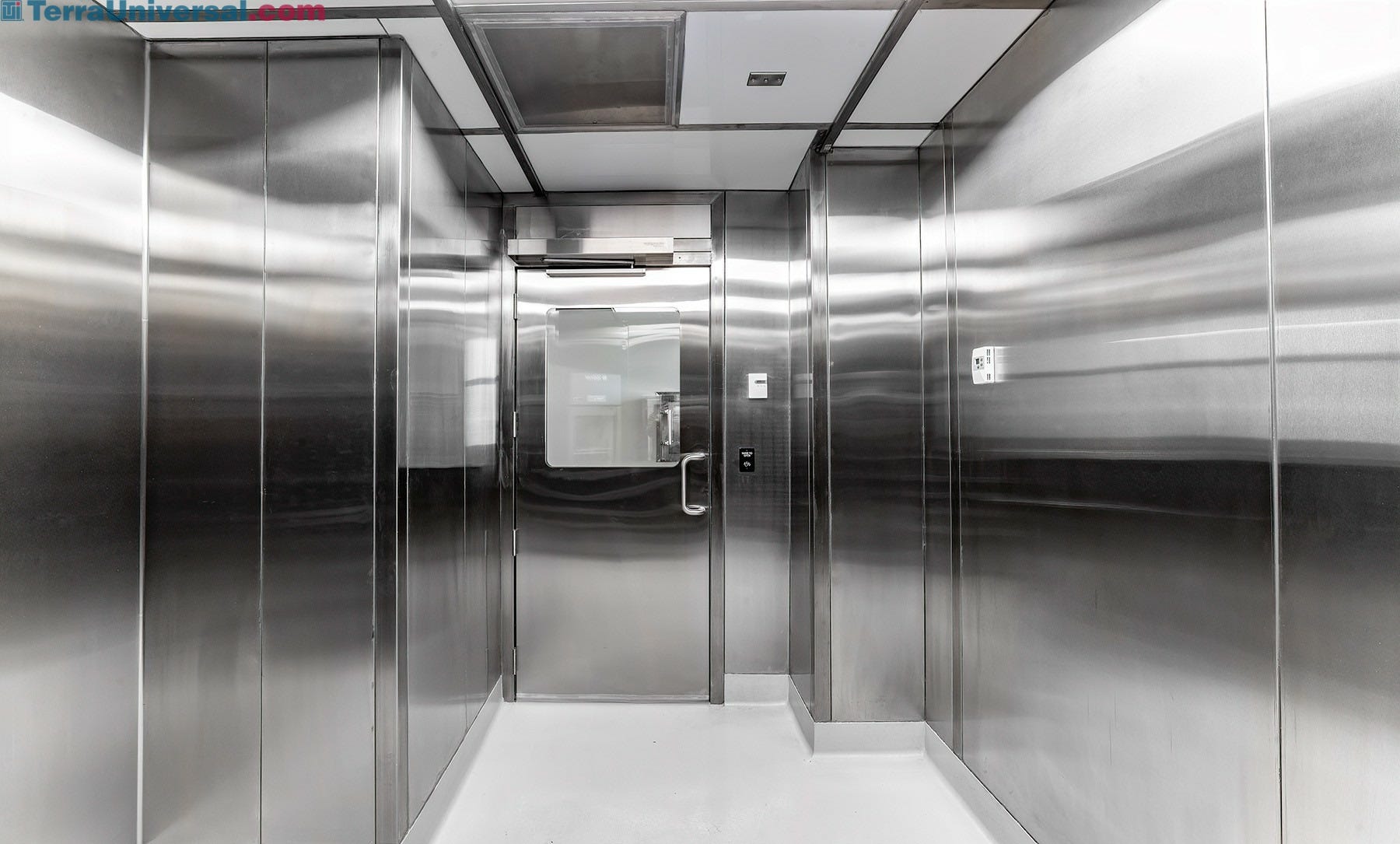

Smooth Interior Walls
Smooth steel BioSafe cleanroom panels with radius corners simplify cleaning and stand up to biocides and disinfectants. Cleanrooms constructed with medical-grade and USP-compliant material.
Biosafe Cleanroom Exhaust Vents
Adjustable exhaust vents help balance internal room pressure inside BioSafe cleanrooms.
Containment Exhaust Plenum
Negative-pressure containment cleanrooms include exhaust plenums that route air to floor- or ceiling-mount fans, protecting the external environment from hazardous materials inside the cleanroom.
Available Environmental Control System
Standard cleanroom comes with analog pressure gauge and on/off controls; optional touchscreen FFU controller monitors, controls and logs internal pressure, as well as displaying temperature and RH.
Biosafe Cleanroom Hands-Free Sink
Hands-free sink and hand dryer, seen in cleanroom anteroom, boost compliance with hand-washing protocol.
BioSafe Cleanroom Sterilization
Ceiling panel covers allow wash-down and sterilization of cleanroom walls and ceilings without damage to filter medium; requires BioSafe glass or stainless steel wall panels, which stand up to biocides.

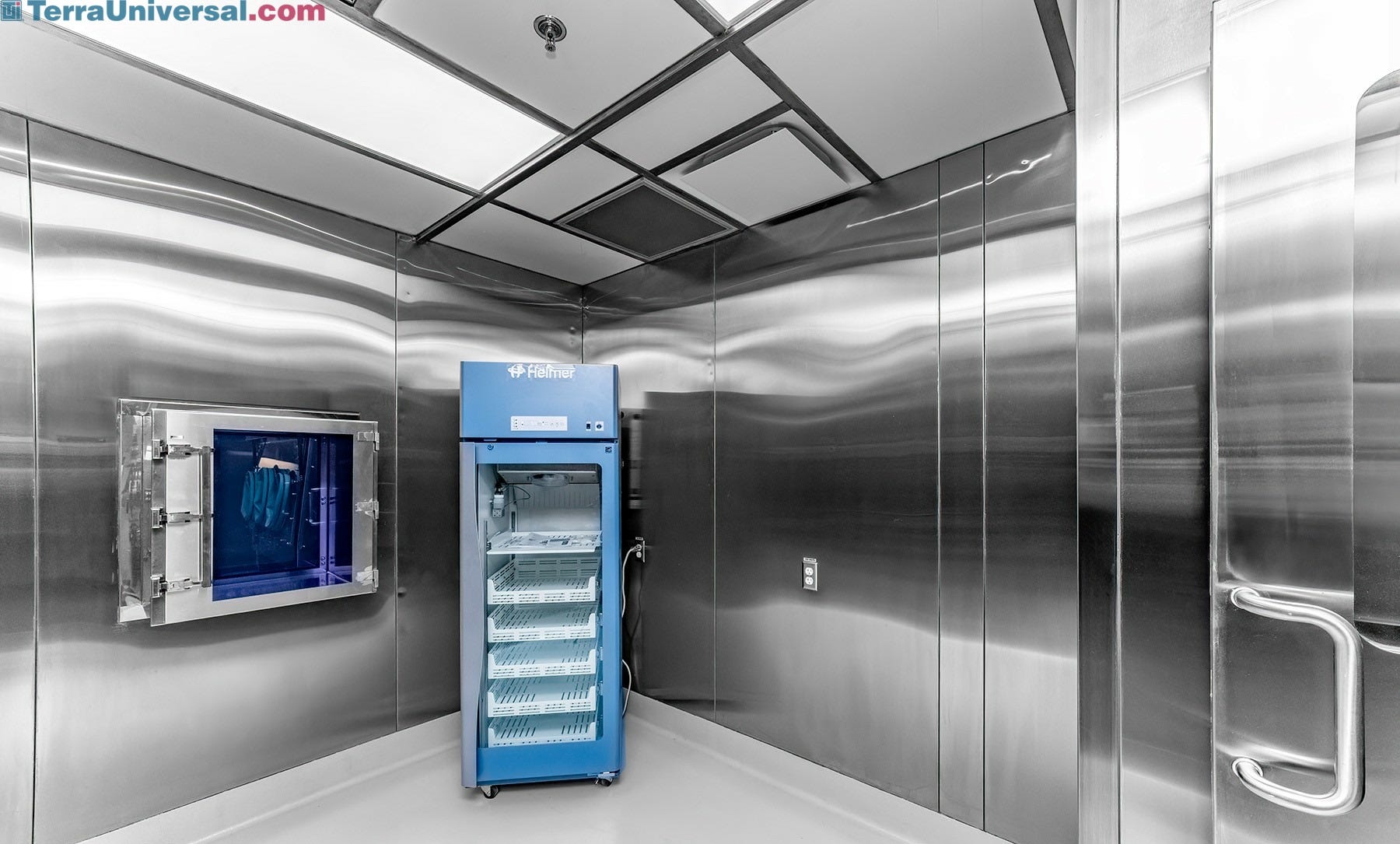

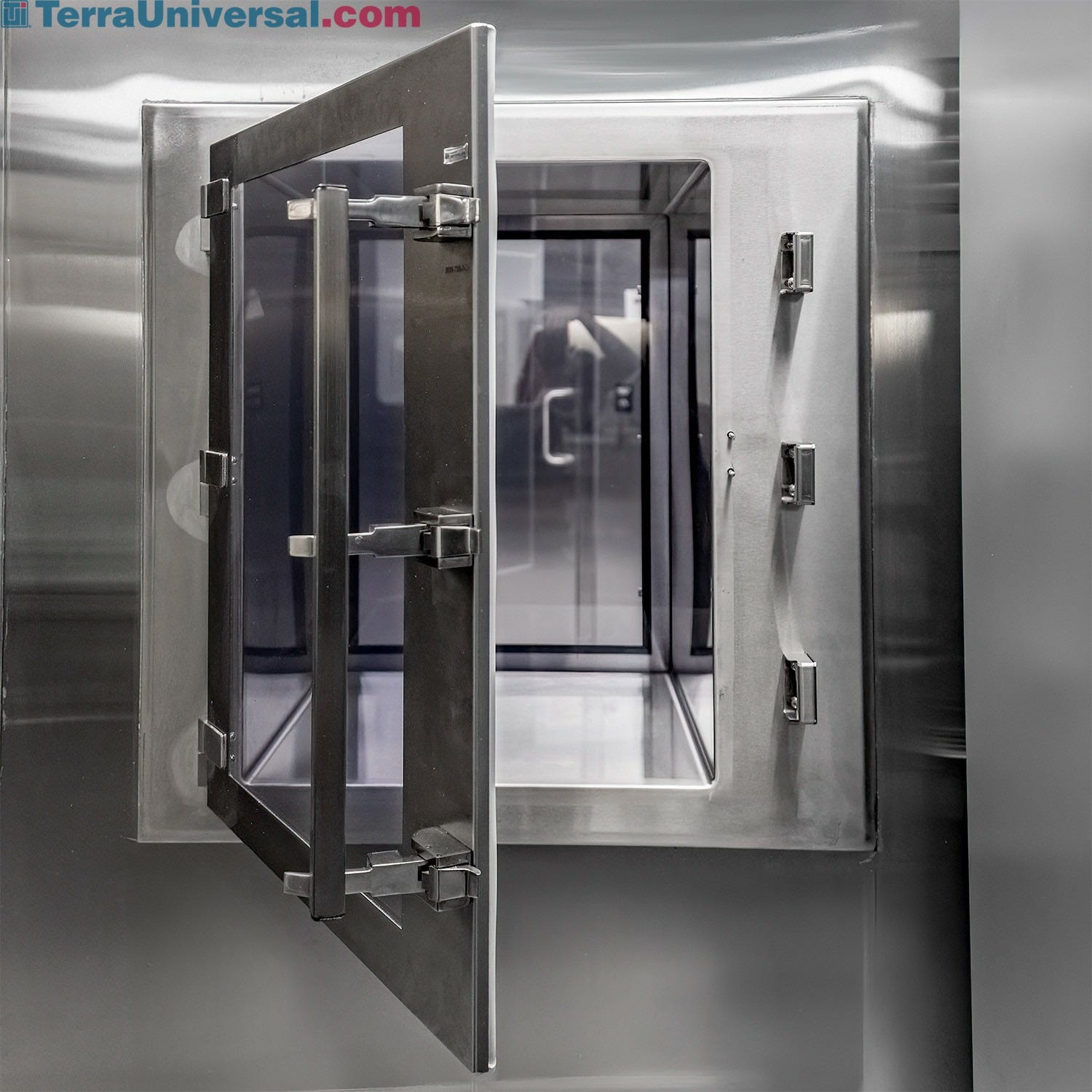

Compatible with Terra’s Pass-throughs

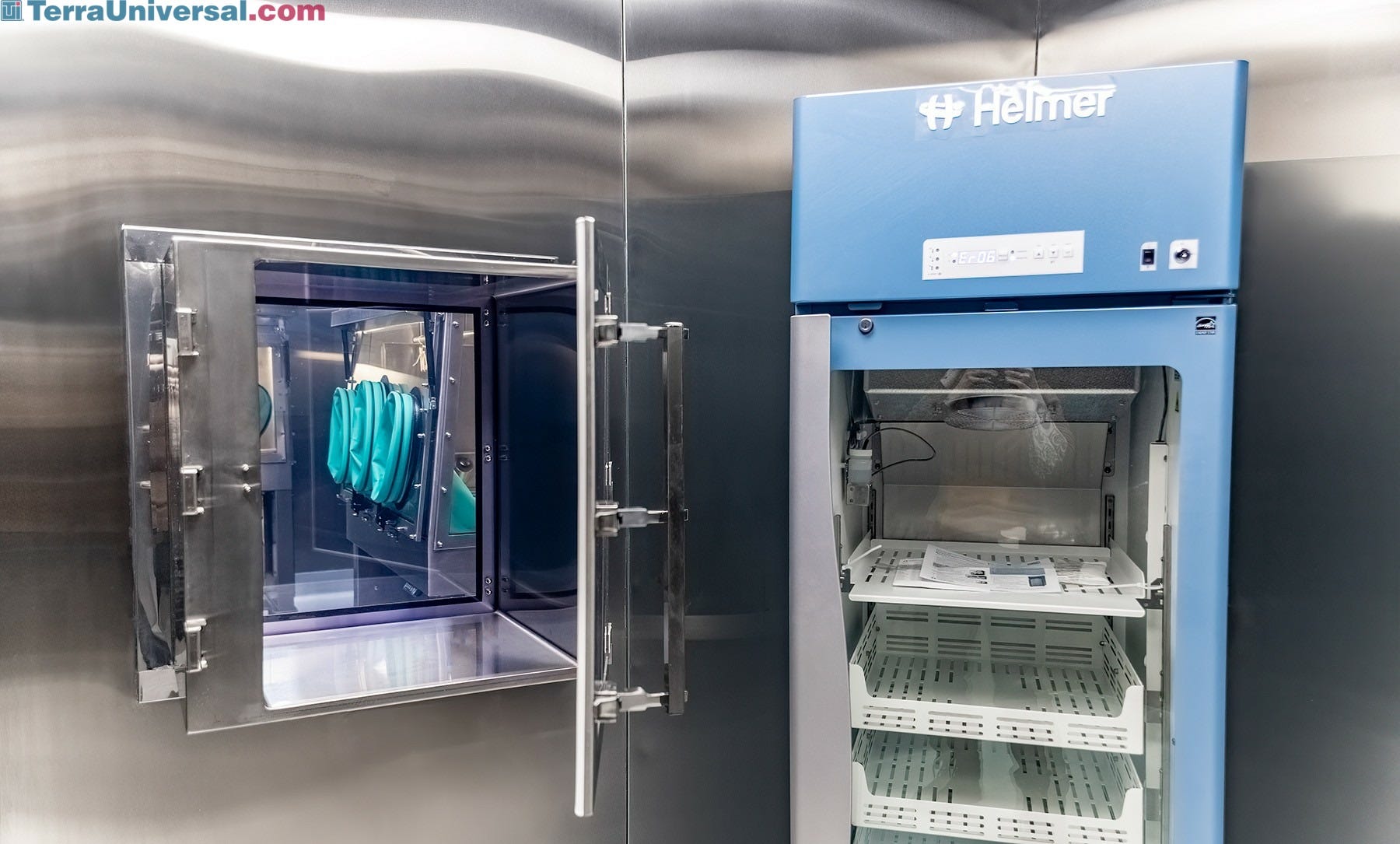

BioSafe cleanrooms can be specified with pre-cut openings for Terra pass-through chambers. The tempered glass version of the BioSafe cleanroom uses a special mounting kit to achieve a “floating” effect on smaller pass-throughs (shown).
BioSafe Cleanroom eliminates internal cracks
FRP or C-PVC cleanroom panels with seam seals eliminate cracks for easy disinfection. Construciton material won't produce contaminants that affect cleanliness rating.

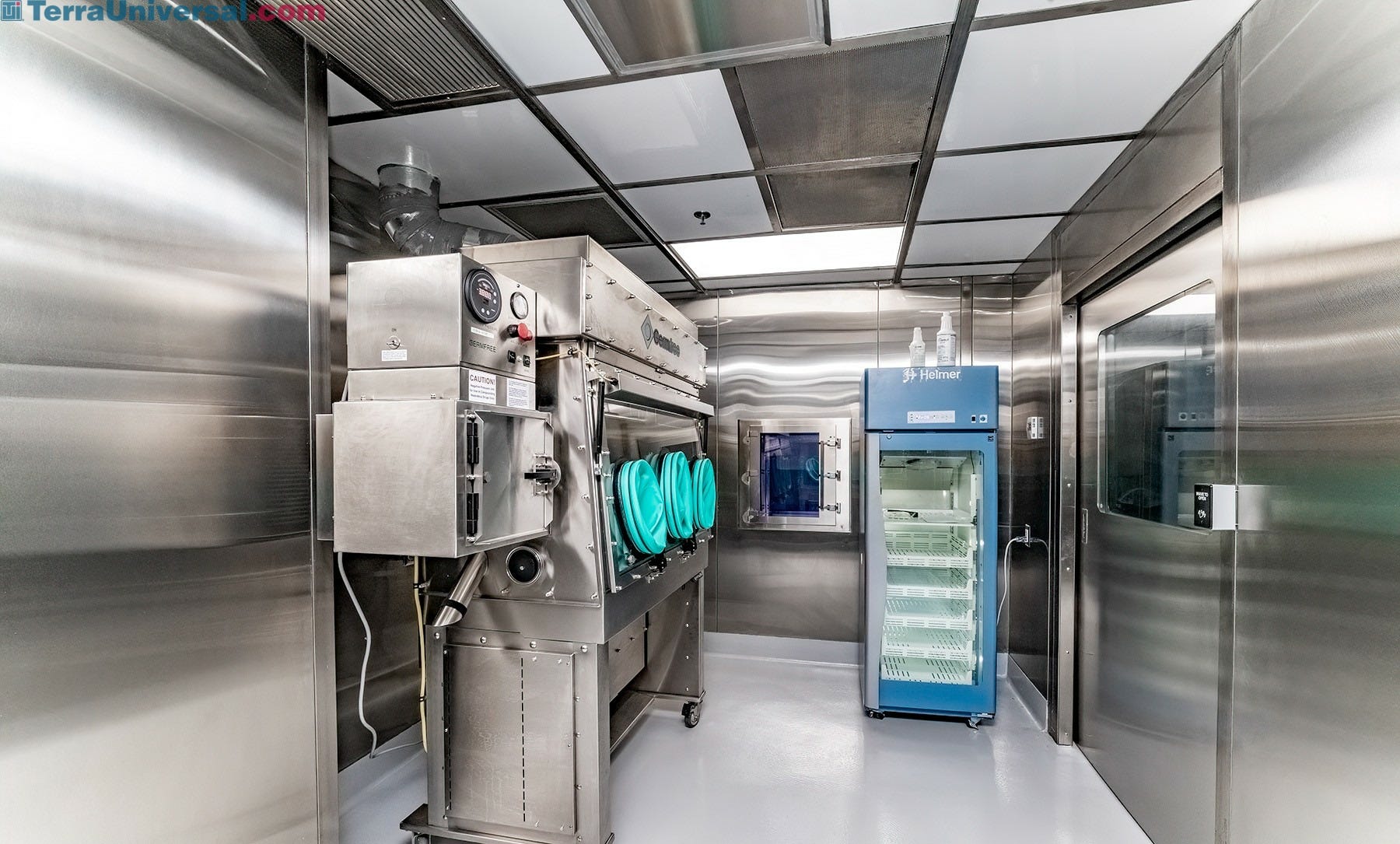

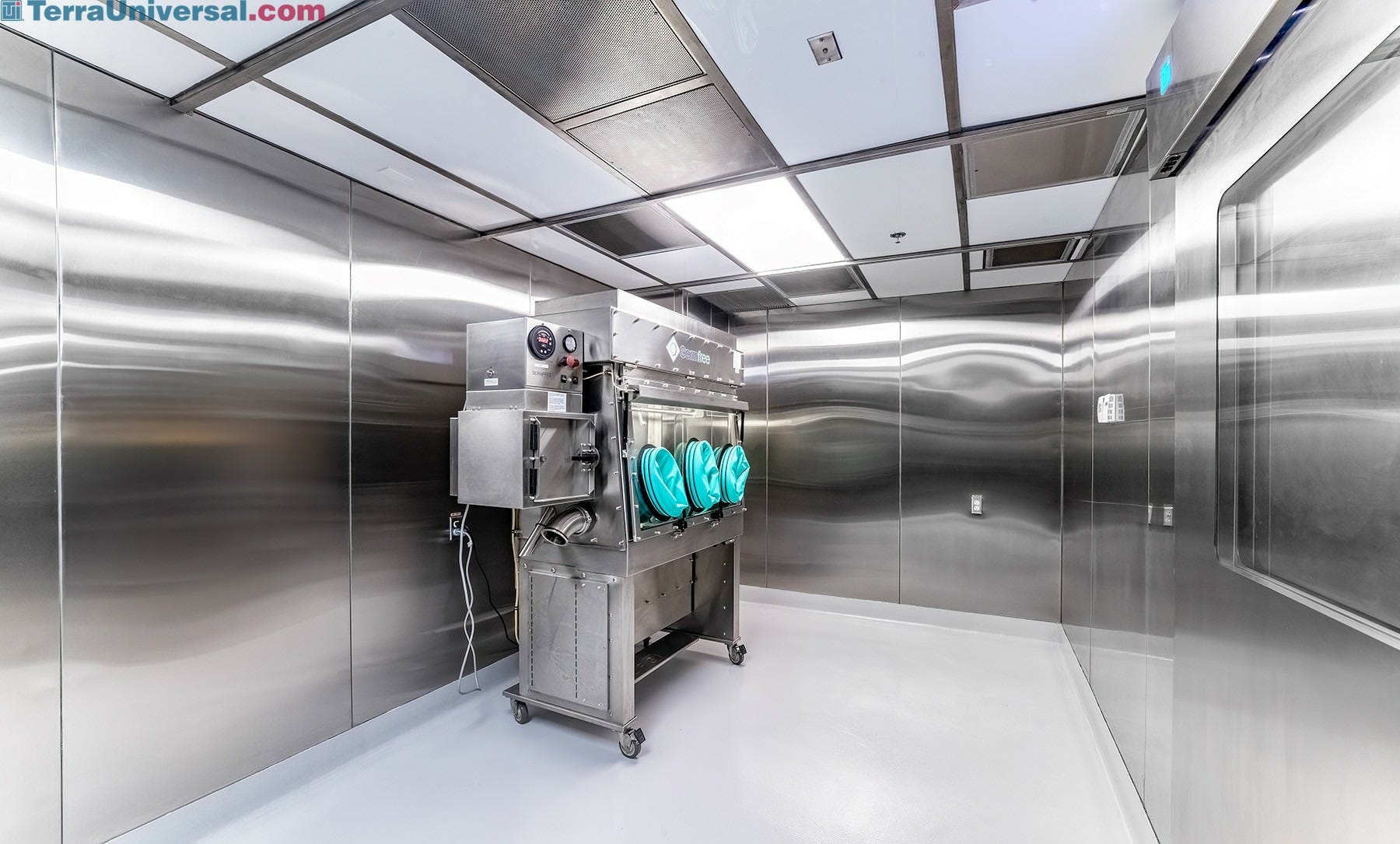

BioSafe Cleanroom Configured for Powder Containment
Terra's Powder Containment Room features smooth interior steel BioSafe panels with radius corners for easy cleaning; optional CleanZone filtration system removes particles from work area.
Custom Work is Standard!
Modular designs allow versatile configurations tailored to your requirements. Terra's design and fabrication capabilities accommodate unique facility challenges.
COVID-19 Isolation Room
Terra’s modular negative pressure isolation rooms, built to your specs, support patient infection control, home isolation and package quarantine
Seismic Safe Cleanroom Design
Terra’s modular cleanrooms are designed with seismic safety in mind. Rigid steel frames and ceiling grids are designed with sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers. Both hardwall and softwall designs can be installed to adhere to local seismic codes. Optional seismic and structural calculations can be drafted and stamped by a licensed PE to help meet municipal permitting requirements.
BioSafe Modular Cleanrooms
Cleanroom ISO Class Chart Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom Modular BioSafe® Cleanroom Installation Modular BioSafe® Hardwall Cleanroom BioSafe Stainless Steel Cleanroom – Integrated Air Shower ISO 5 BioSafe Cleanroom; Powder-Coated Steel BioSafe Stainless Steel Cleanroom Oversize Glass Panels BioSafe Powder-Coated Steel Cleanroom Multi-Room Configuration BioSafe Containment Cleanrooms All-Steel BioSafe Cleanrooms Air Return BioSafe Stainless Steel Cleanroom Gowning Area BioSafe Stainless Steel Cleanroom Corridor with Custom Intercom Stainless Steel BioSafe Cleanroom with Cart Pass-through Terra Universal IQ-OQ Process

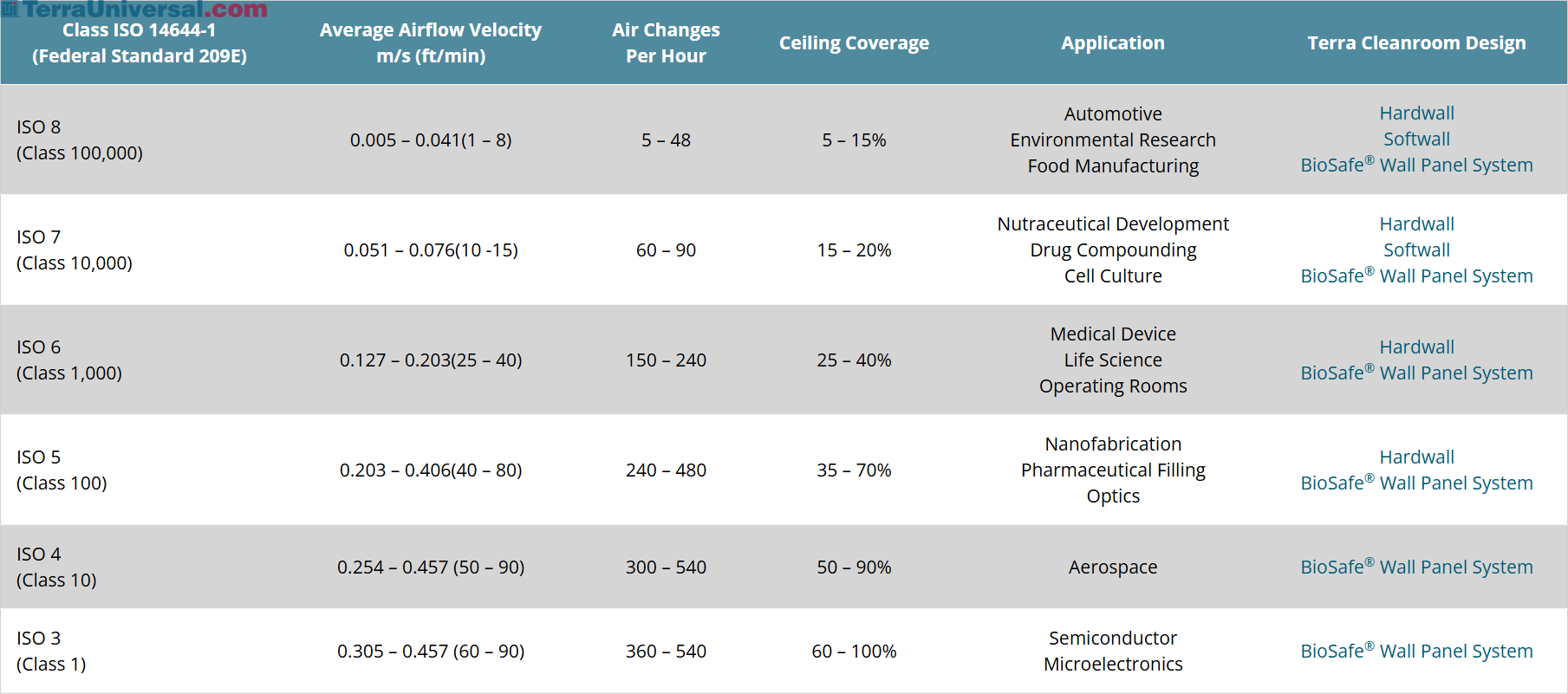

Terra's cleanroom designs meet the entire range of ISO 14644-1 standards Cleanroom ISO Class Chart Terra's cleanroom designs meet the entire range of ISO 14644-1 standards
Attractive frameless windows clean easily and add visibility to BioSafe® cleanrooms. | 6603-15 displayed Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom BioSafe® modular steel cleanrooms are available with dual-sided, flush-mount tempered glass viewing windows.
Video demonstration of BioSafe® Cleanroom factory pre-installation Modular BioSafe® Cleanroom Installation Time-lapse installation of a modular BioSafe® steel cleanroom with windows, an exit swing door, entryway airshower and 50% ceiling coverage of fan/filter units.
Video overview of Terra's BioSafe® Biopharmaceutical Modular Cleanroom Modular BioSafe® Hardwall Cleanroom Video demonstrates why BioSafe® Modular Cleanrooms are ideal for bio/pharmaceutical applications requiring frequent cleaning and sterilization. Includes overview of accessory equipment.
This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow | 6600-31 displayed BioSafe Stainless Steel Cleanroom – Integrated Air Shower This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow of contaminants.
ISO 5 BioSafe modular cleanroom include double-wall panels that create smooth, easy-clean surfaces | 6600-30 displayed ISO 5 BioSafe Cleanroom; Powder-Coated Steel BioSafe modular cleanroom include double-wall panels that create smooth, easy-clean surfaces; add Fan/Filter Units to meet ISO 5 - 8 particle requirements (shown with optional stainless steel pass-throughs).
Double-wall ISO-rated GMP BioSafe® modular bio/pharmaceutical cleanroom BioSafe Stainless Steel Cleanroom Oversize Glass Panels Double-wall ISO-rated GMP BioSafe® modular bio/pharmaceutical cleanroom with multiple internal rooms and custom glass panels.
ISO-rated double-wall powder-coated BioSafe® cleanroom with multiple suites BioSafe Powder-Coated Steel Cleanroom Multi-Room Configuration Double-wall powder-coated BioSafe® cleanroom with multiple internal ISO 5 and ISO 6 processing suites.
BioSafe® cleanroom with exhaust plenum and ventilation system BioSafe Containment Cleanrooms BioSafe® cleanroom with exhaust plenum and ventilation system creates negative internal pressure for biohazard containment (shown with A/C units).

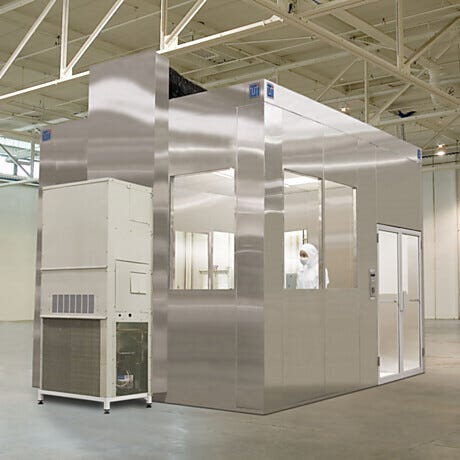

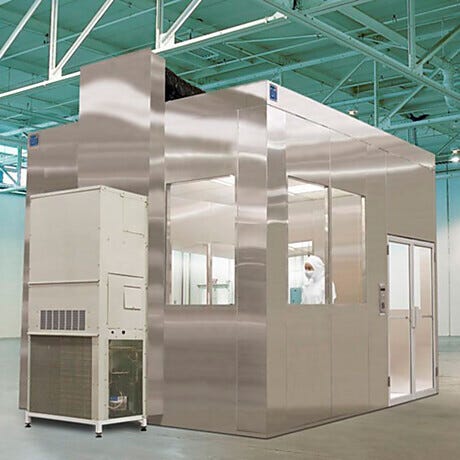

Air plenums can be added to all-steel BioSafe cleanrooms and ducted directly back into the fan/filter units (shown with integrated air conditioning unit) All-Steel BioSafe Cleanrooms Air Return External air plenums can be added to all-steel BioSafe cleanrooms and ducted directly back into the fan/filter units (shown with integrated air conditioning unit).

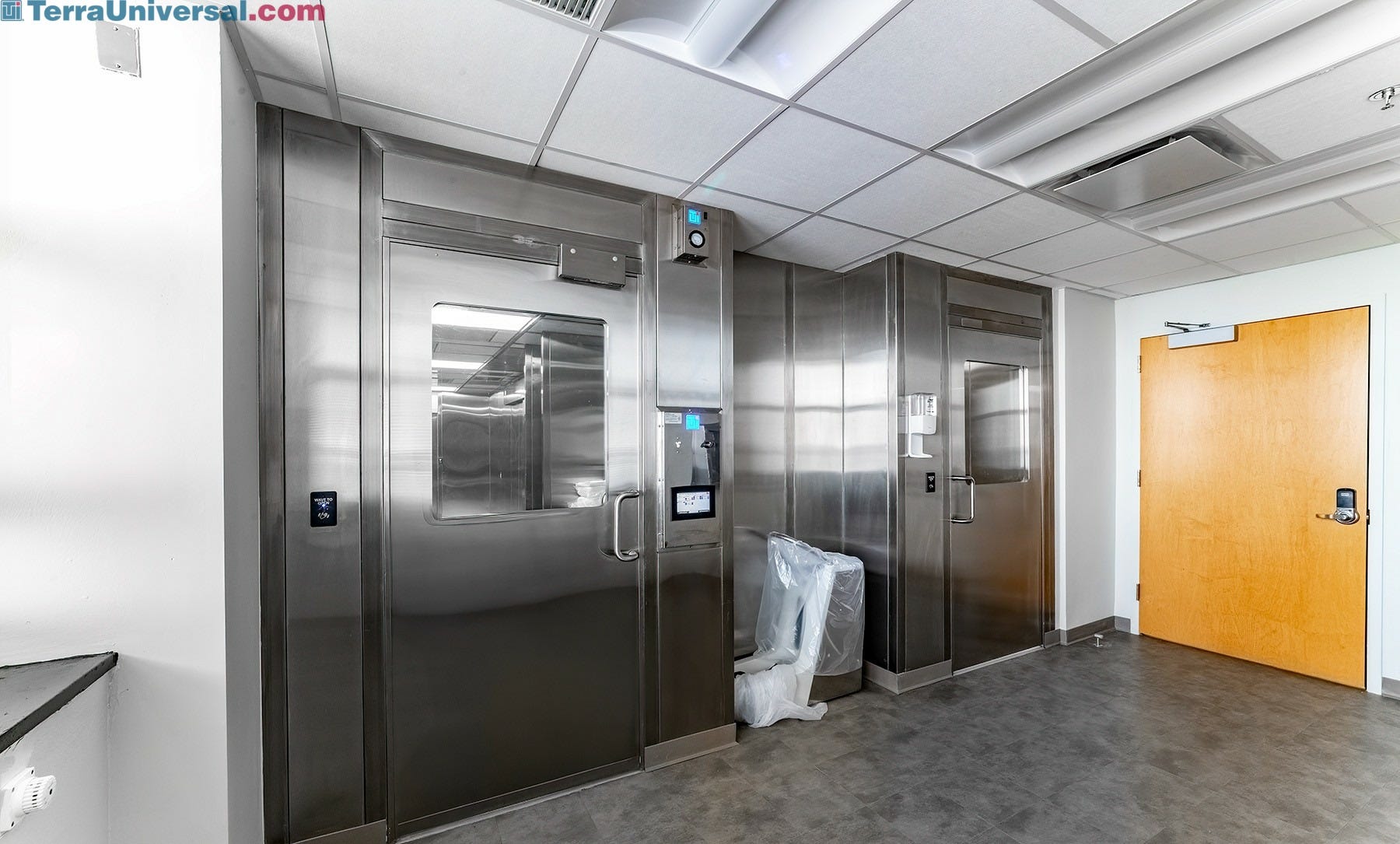

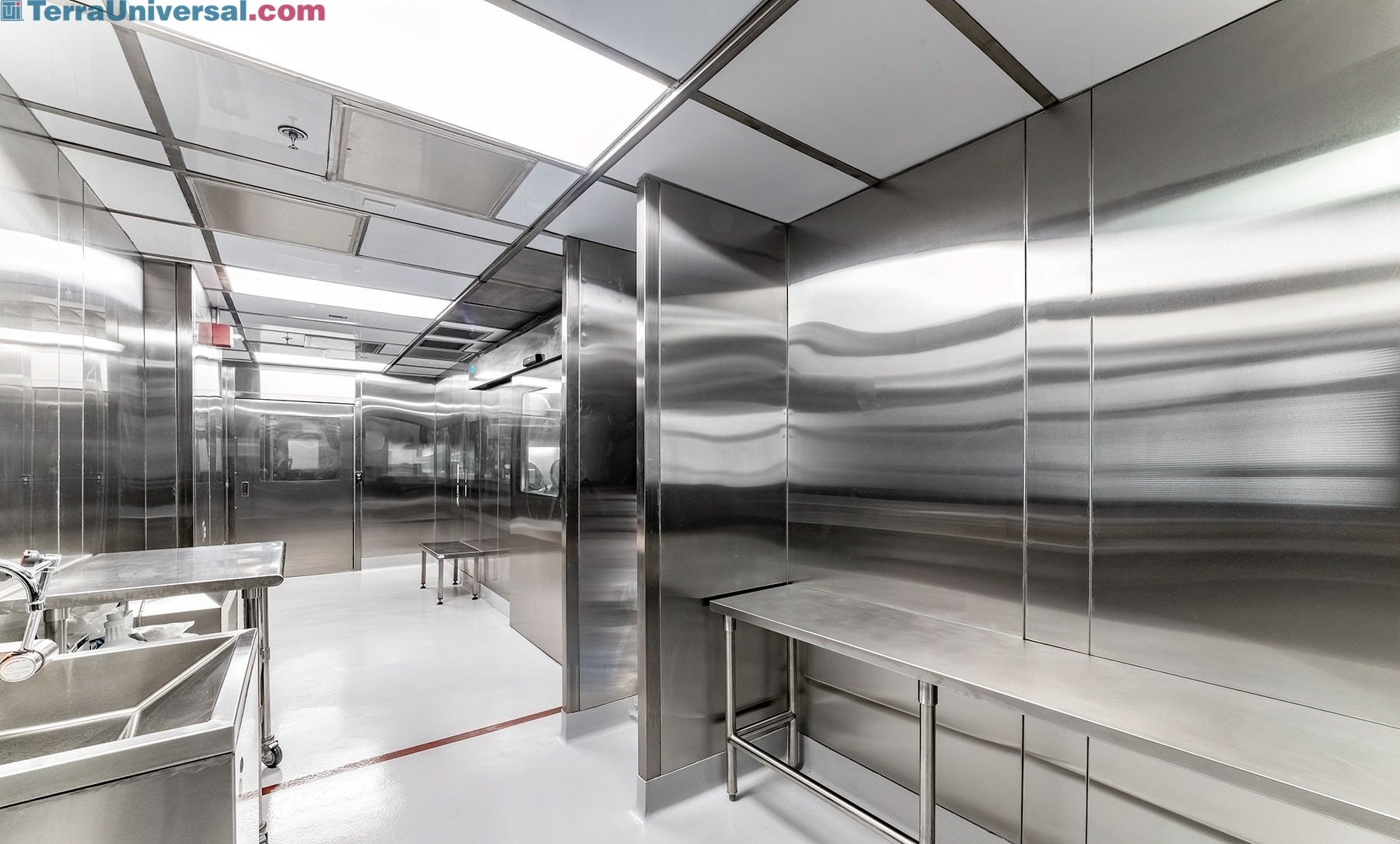

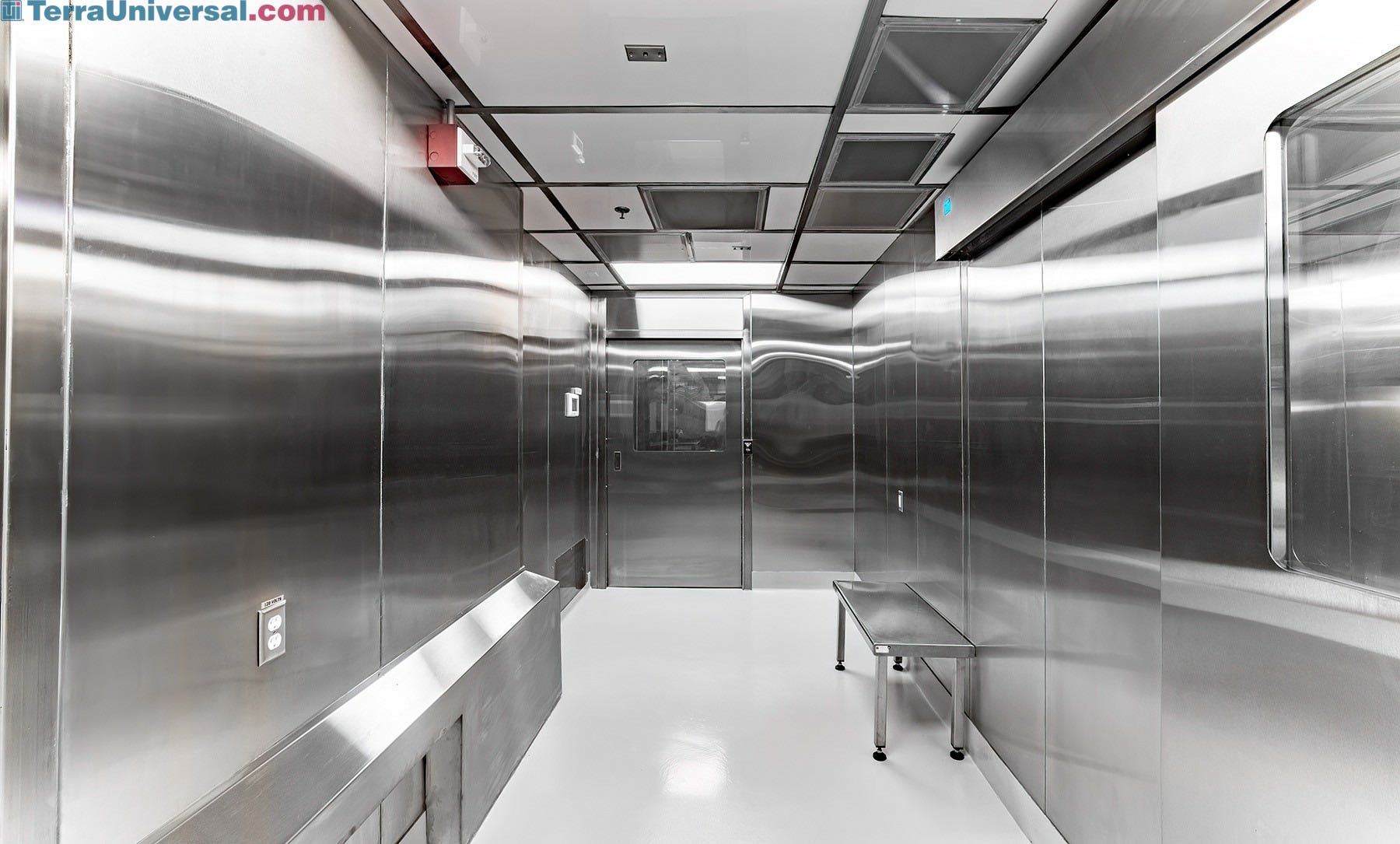

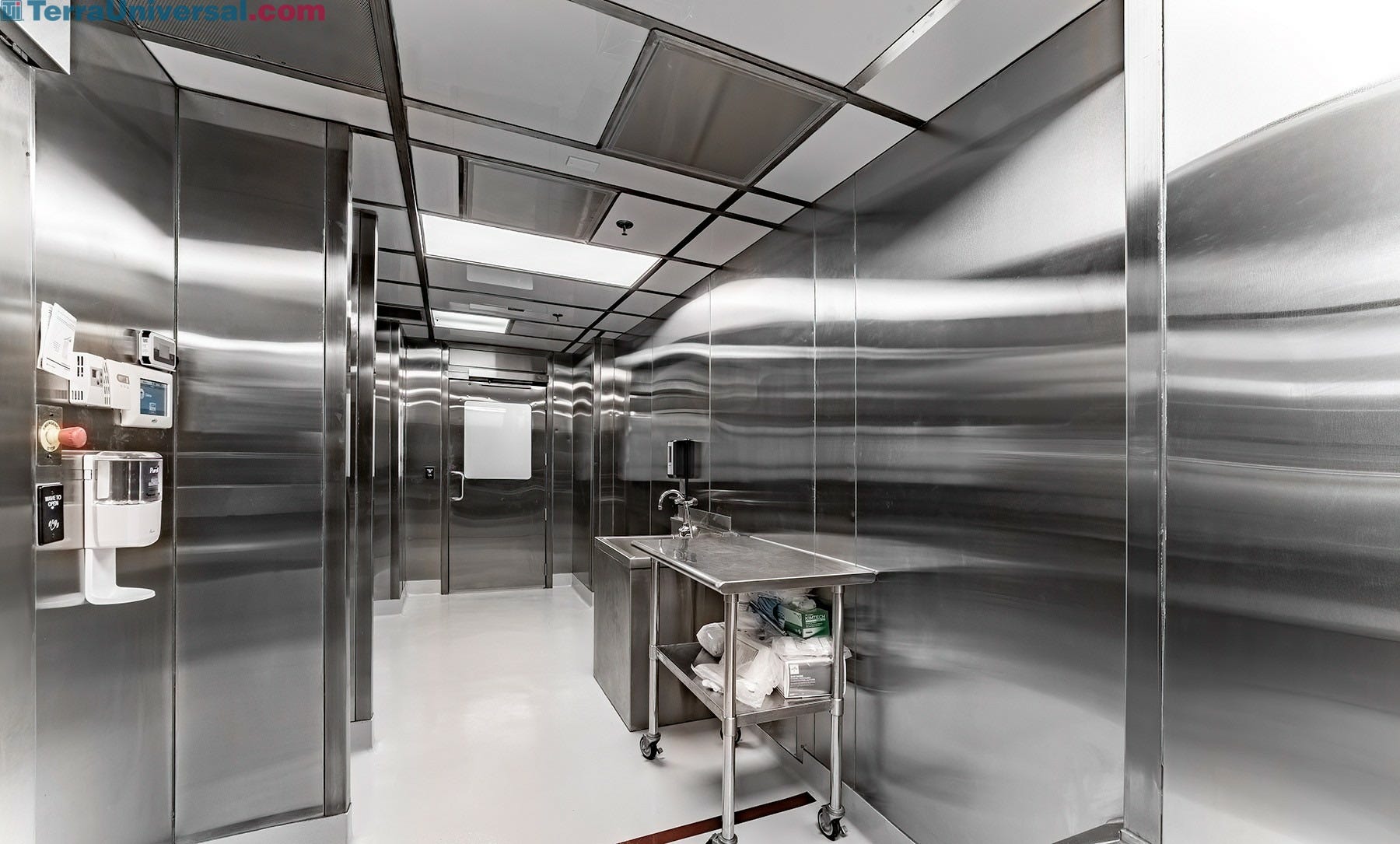

All-steel BioSafe cleanrooms withstand heavy use in high-volume facilities, combining durability with resistance to cleaning agents BioSafe Stainless Steel Cleanroom Gowning Area All-steel BioSafe cleanrooms withstand heavy use in high-volume facilities, combining durability with resistance to cleaning agents. Stainless steel construction resists disinfectants, won't produce contaminants during sterilization.

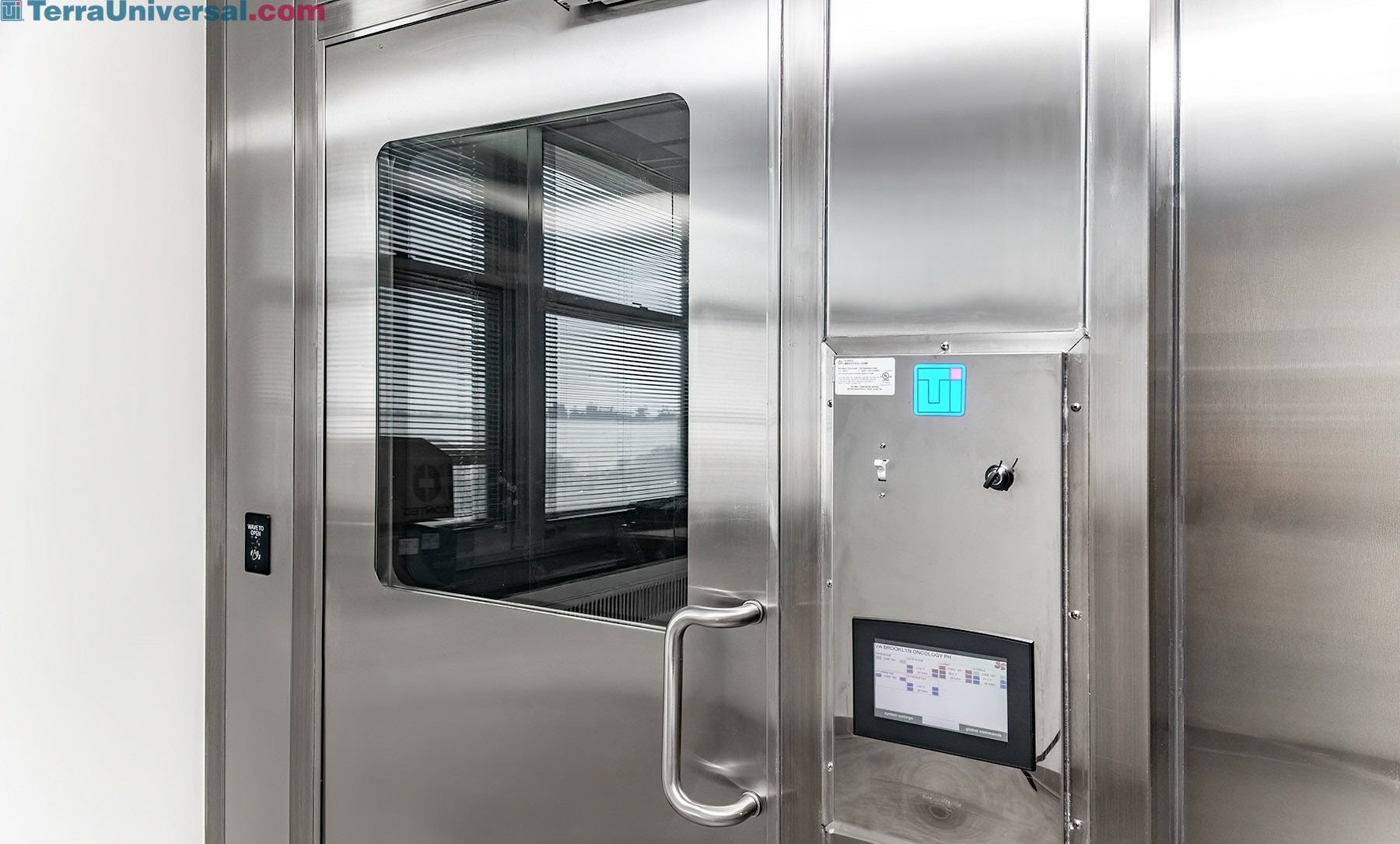

The double-wall design of the all-steel BioSafe cleanroom allows flush-mounting of optional components (such as control panels) for easy cleaning BioSafe Stainless Steel Cleanroom Corridor with Custom Intercom The double-wall design of the all-steel BioSafe cleanroom allows flush-mounting of optional components (such as control panels) for easy cleaning. Stainless steel wall panels resist corrosion and degradation.
BioSafe Cleanrooms are available with pass-through chambers for transferring parts and supplies, even carts and large equipment Stainless Steel BioSafe Cleanroom with Cart Pass-through BioSafe Cleanrooms are available with pass-through chambers for transferring parts and supplies, even carts and large equipment.
This video describes the IQ/OQ process for Equipment and Cleanrooms Terra Universal IQ-OQ Process This video describes the IQ/OQ process for Equipment and Cleanrooms
Modular BioSafe® Cleanroom Installation Test
Time-lapse installation of a modular BioSafe steel cleanroom with windows, an exit swing door, entryway airshower and 50% ceiling coverage of fan/filter units.
Modular BioSafe® Cleanroom
Installation of a double-wall modular steel cleanrooms, that are ideal for bio/pharmaceutical applications requiring an aseptic environment that stands up to harsh chemicals used for cleaning. This video steps you through the cleanroom's features.
Modular Cleanrooms for Nutraceutical Outsource Manufacturing
This video shows how Terra's modular cleanrooms can be used to create an economical nutraceutical manufacturing environment inside of your typical industrial facility. The layout features 16 ISO-classified cleanroom spaces that are connected to the building's HVAC system for humidity control and personnel comfort.
