Select Product

Frame Material

Panel Material

Terra Part #PriceShips in
Stainless Steel 304 Stainless Steel 6600-31 39707 Request Quote25-31 Days2
Stainless Steel 316L Stainless Steel 6600-32 39708 Request Quote25-31 Days3
Stainless Steel Powder-Coated Steel 6600-30 39706 Request Quote25-31 Days4
Frame Material
Panel Material
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• BioSafe® design minimizes cracks and crevices where germs can collect and colonize

• Double-wall, all-steel modular cleanrooms with ultra-smooth internal panels and rounded corners

• Maintains aseptic conditions, will not produce contaminants during sterilization cycle

• Exceeds cGMP, GLP, ASTM, IEST requirements

• Configurable to ISO 4/Federal Standard 209E Class 10 rating

• Ideal for aseptic conditions in life sciences, biotechnology and pharmaceutical research

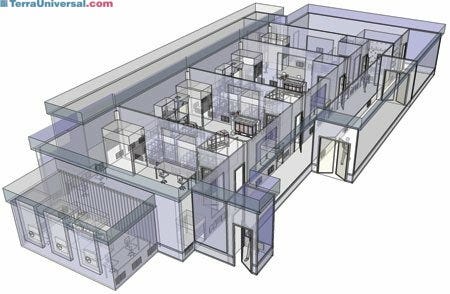

• Modular construction allows for floorplans of any size or shape

• Highly customizable and cost-effective

• Completely free-standing structure; no external support needed unless required by local building codes (structural seismic analysis available)

• HEPA-filtered fan units provide vertical laminar airflow

• Positive-pressure differential keeps airborne contaminants out

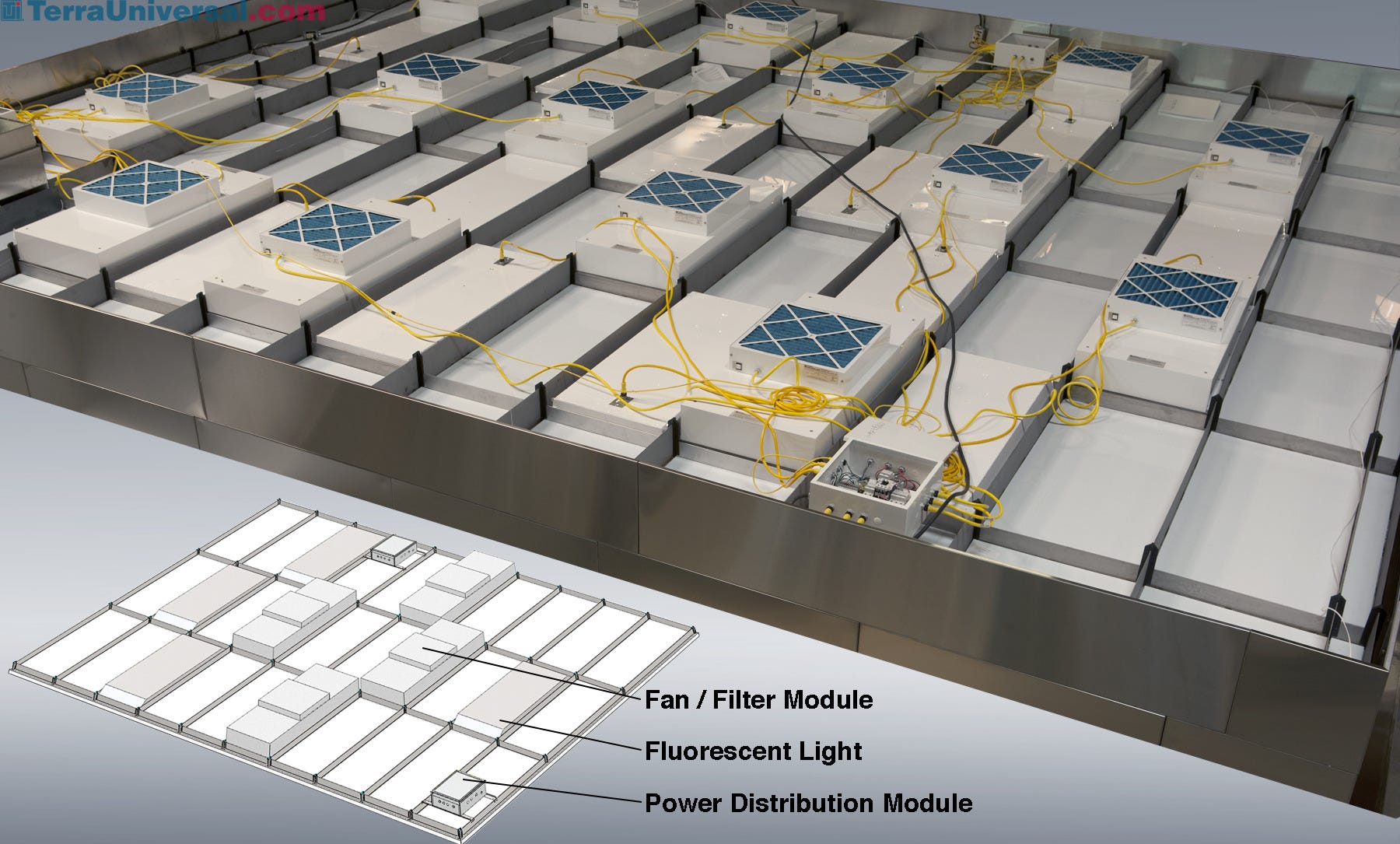

• Power Distribution Modules (PDMs) with quick-connect wiring provides power for up to 5 FFUs and 5 lights (as well as the control panel)

• Easy to add more fans or lighting as requirements change

• Larger cleanrooms may require multiple PDMs

• Wall panels bolt together for fast assembly

• Select quantity of fan/filter units (FFUs) to meet desired cleanliness and pressure requirements

• Control panels include on/off switches for blowers and lights (with Night Service switch for energy-saving mode)

• Magnehelic gauge monitors room pressure

• Optional automated controls available for balancing cleanroom pressure levels

• Data logging available for recording environmental conditions: pressure, temperature, humidity

• Removable exterior panels for access to wiring or utilities

• Panel seams can be caulked for completely smooth interiors

• Exterior panels available in stainless steel or powder-coated finish

• 2' x 4' LED light panels provide 4500 lumens each

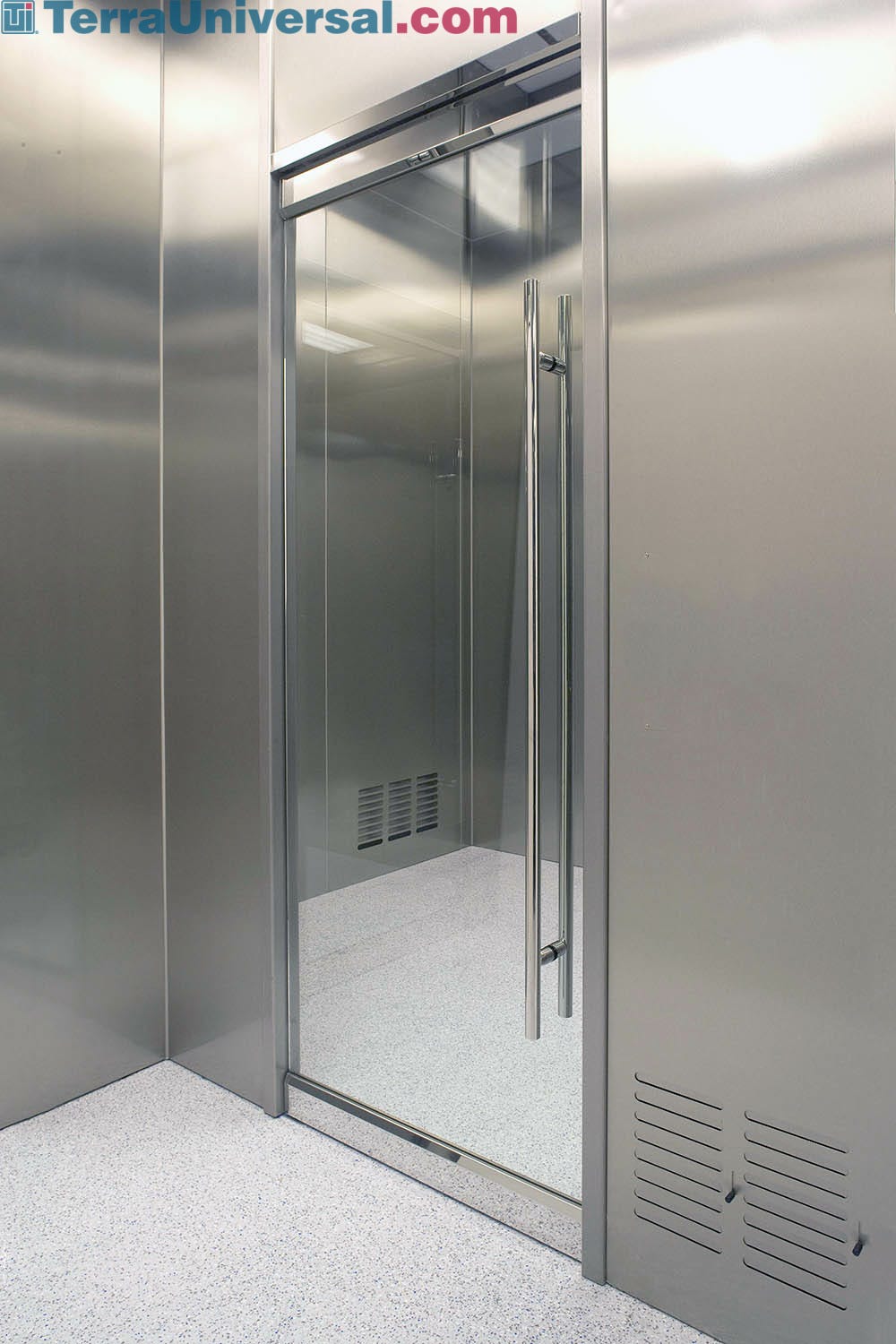

• Door options include aluminum or stainless steel frames (frameless versions also available)

Marks & Listings: UL, ULC

BioSafe Modular Cleanrooms

  • BioSafe Stainless Steel Cleanroom – Integrated Air Shower BioSafe Stainless Steel Cleanroom – Integrated Air Shower
  • Video of BioSafe Modular Cleanroom Installation Modular BioSafe® Cleanroom Installation
  • Video Overview of BioSafe® Modular Cleanroom Modular BioSafe® Hardwall Cleanroom
  • BioSafe Stainless Steel Cleanroom BioSafe Stainless Steel Cleanroom
  • Stainless Steel and Tempered Glass BioSafe Cleanroom Stainless Steel BioSafe Cleanroom
  • Stainless Steel Cleanroom Gowning Area Stainless Steel BioSafe Gowning Room
  • Tempered Glass Window For Clean Room Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom
  • Class 100,000 Clean Room Internal Wall, Powder-Coated HR Steel; for BioSafe Cleanroom
  • ISO 7 Powder-Coated Steel  Clean Room BioSafe Cleanroom; Powder-Coated Steel
  • BioSafe Stainless Steel Cleanroom Oversize Glass Panels BioSafe Stainless Steel Cleanroom Oversize Glass Panels
  • BioSafe Powder-Coated Steel Cleanroom BioSafe Powder-Coated Steel Cleanroom
  • BioSafe Powder-Coated Steel Cleanroom Multi-Room Configuration BioSafe Powder-Coated Steel Cleanroom Multi-Room Configuration
  • Stainless Steel BioSafe Cleanroom with Cart Pass-through Stainless Steel BioSafe Cleanroom with Cart Pass-through
  • Cleanroom Ceiling Grid Stainless Steel Cleanroom Ceiling Grid Stainless Steel
BioSafe Stainless Steel Cleanroom – Integrated Air Shower
Video of BioSafe Modular Cleanroom Installation
Video Overview of BioSafe® Modular Cleanroom

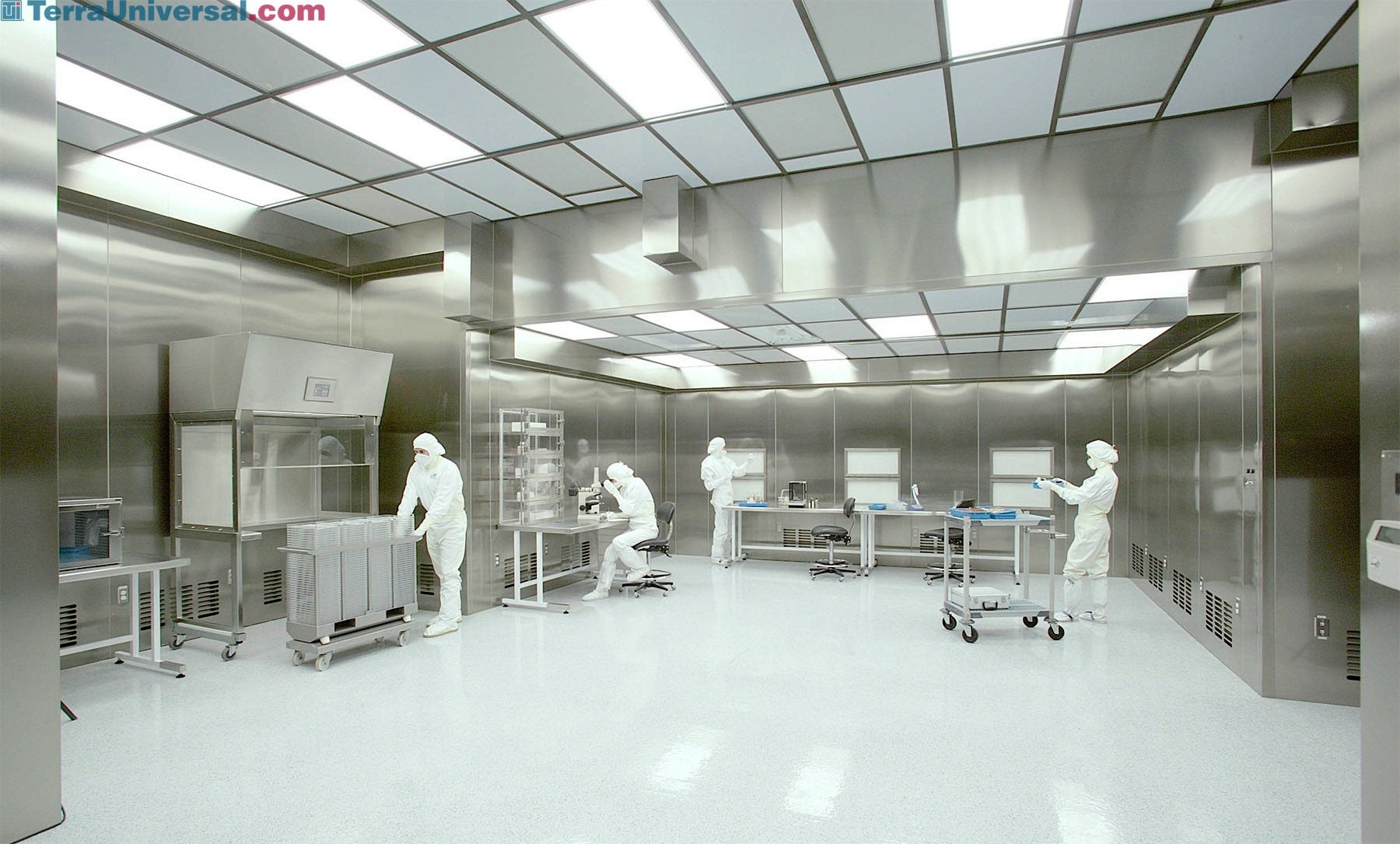

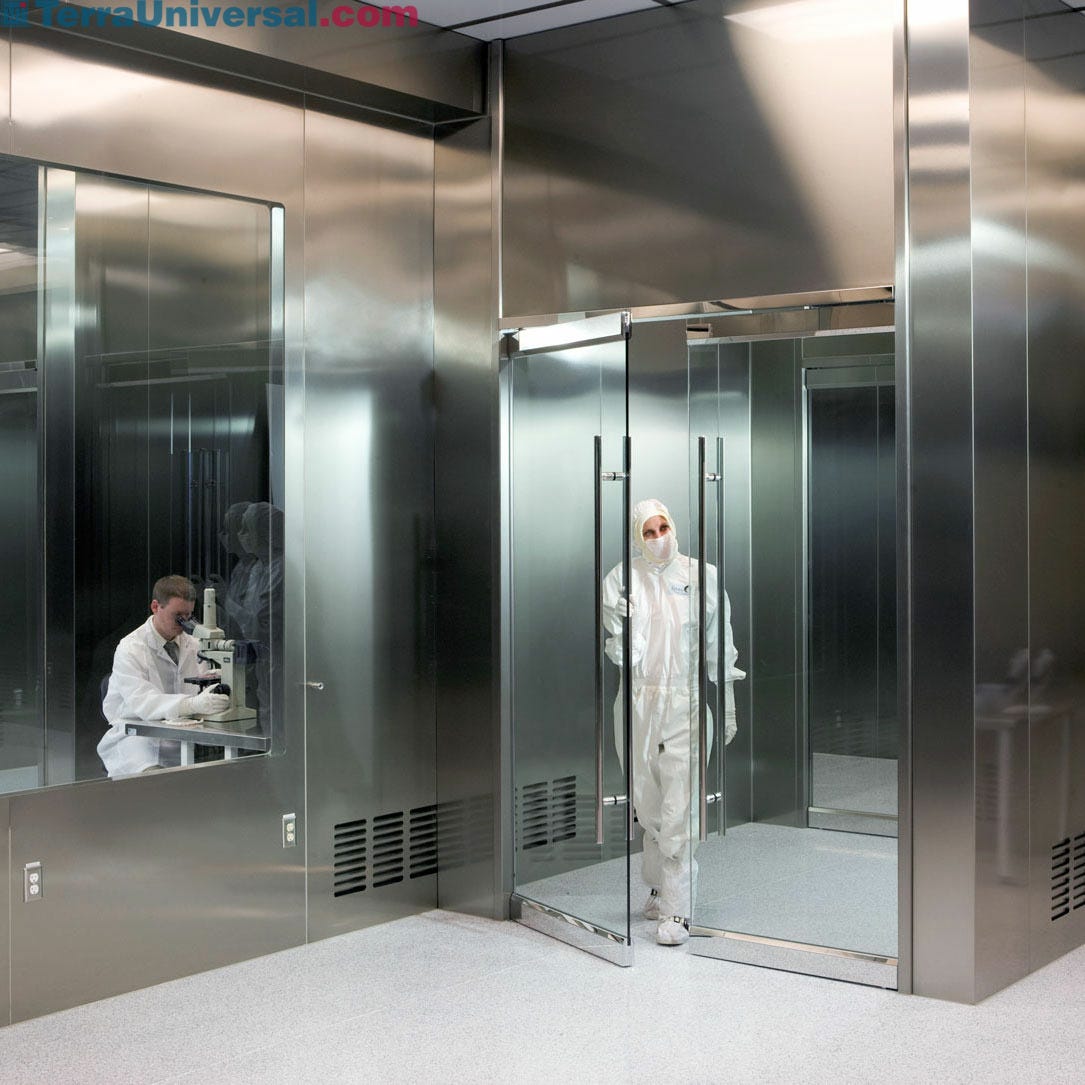

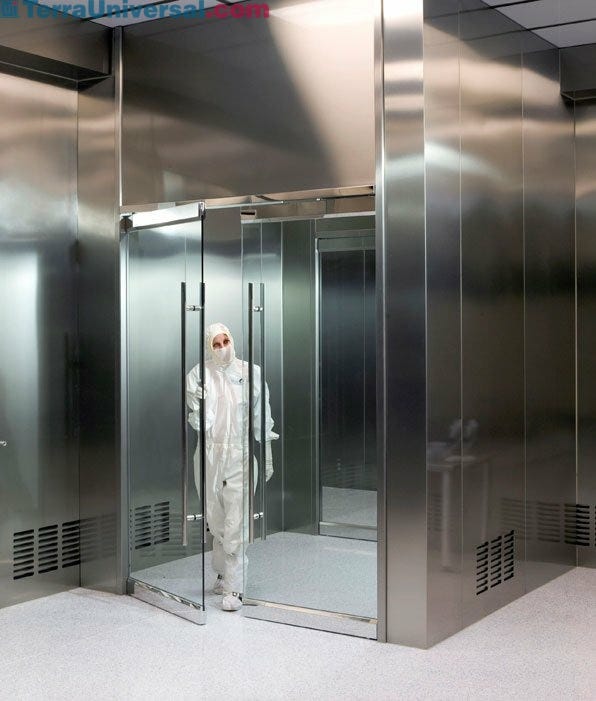

BioSafe Stainless Steel Cleanroom

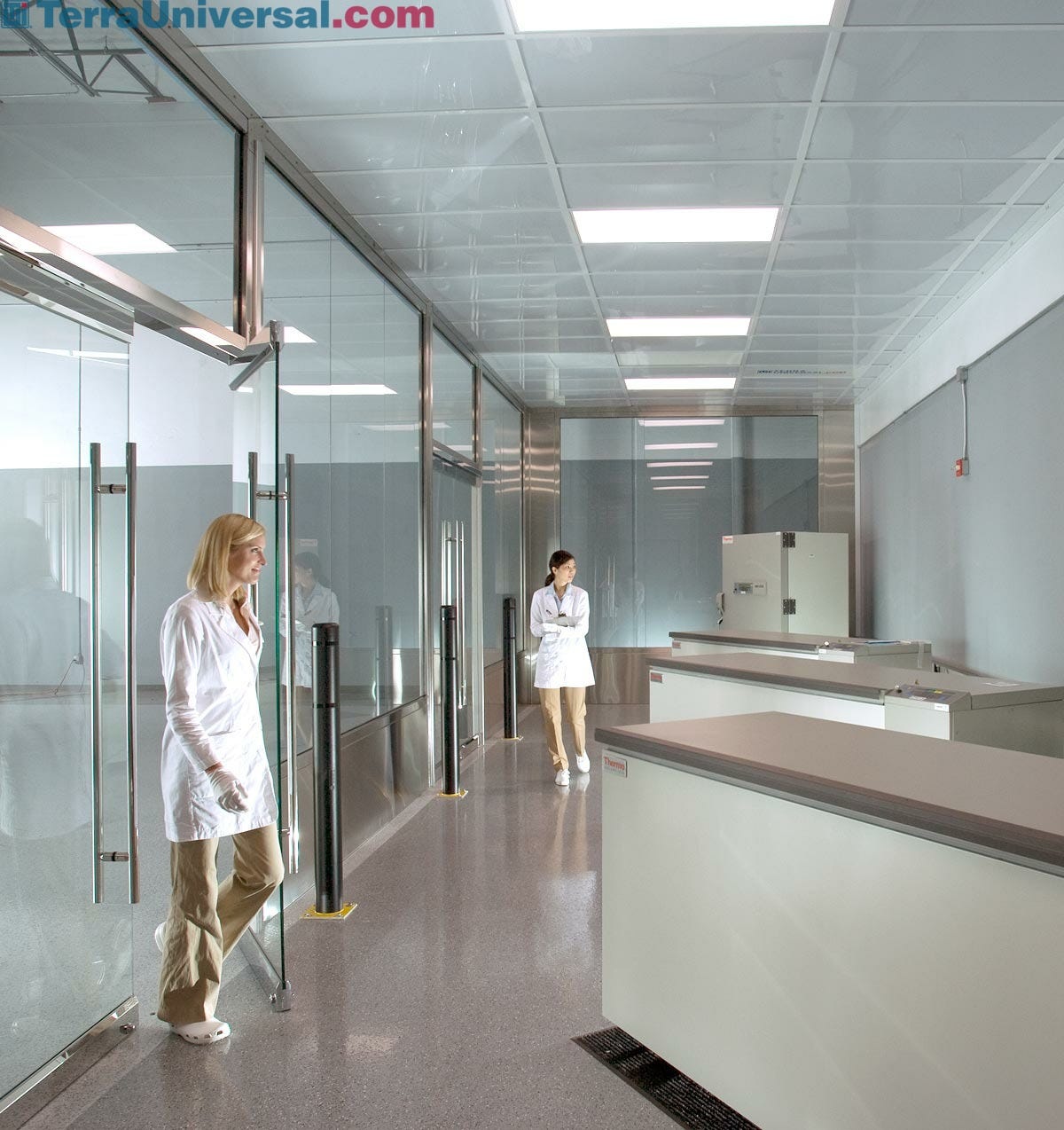

Stainless Steel and Tempered Glass BioSafe Cleanroom

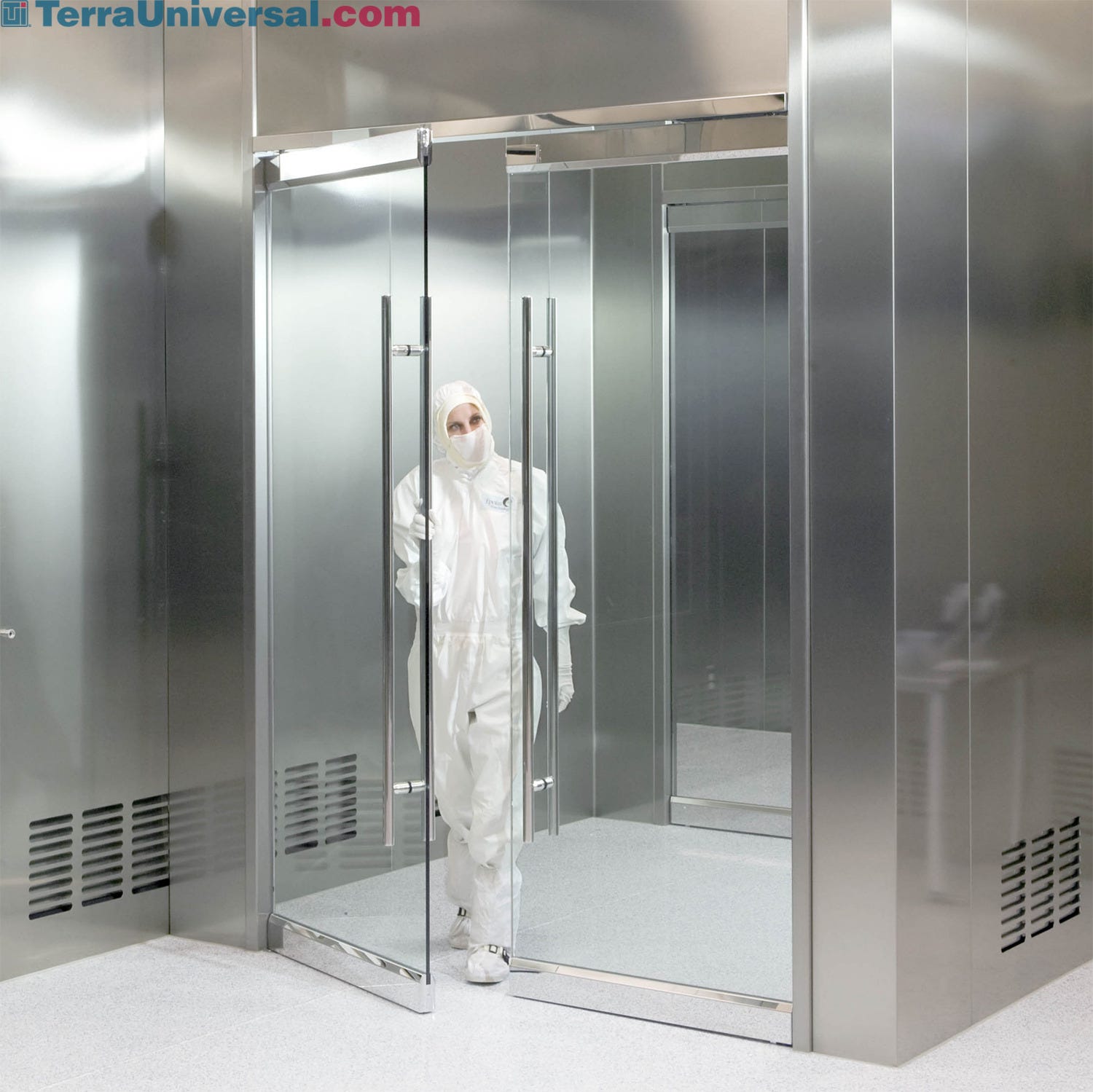

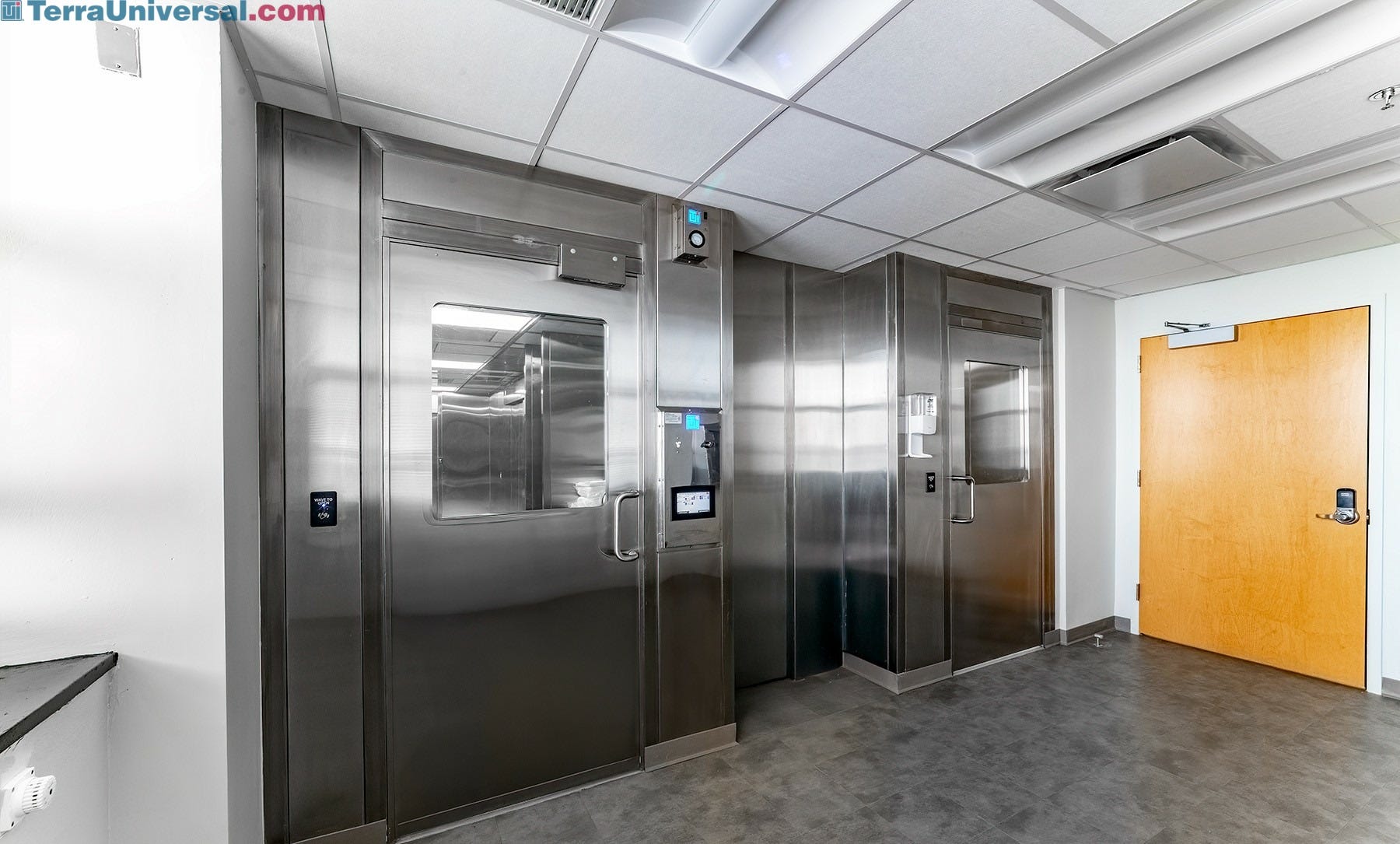

Stainless Steel Cleanroom Gowning Area
Tempered Glass Window For Clean Room
Class 100,000 Clean Room
ISO 7 Powder-Coated Steel  Clean Room
BioSafe Stainless Steel Cleanroom Oversize Glass Panels
BioSafe Powder-Coated Steel Cleanroom
BioSafe Powder-Coated Steel Cleanroom Multi-Room Configuration
Stainless Steel BioSafe Cleanroom with Cart Pass-through
Cleanroom Ceiling Grid Stainless Steel

Features & Benefits

Features and Benefits

BioSafe Selection Guidelines

Negative-Pressure HD Storage Rooms

Ordering Information

A complete BioSafe Modular Cleanroom includes fan/filter units, lights, and Terra's Power Distribution Modules (ordered separately), in addition to the standard cleanroom components (wall panels and ceiling grid) specified by the selected part number. Other options include pass-throughs, air conditioning modules and windows. Call to discuss your application with a Terra Product Specialist, or submit a QuickQuote request.

Declaration of UL Listing

For applications requiring UL-listed products, you may request a declaration of system listing under UL File E472687 at the time of order, which covers all high-voltage Modular Cleanroom electrical components integrated into Power Distribution System. This Declaration of UL listing helps meet municipal and other permitting requirements that may apply, while ensuring the safety and integrity of electrical components.

  • Energy-saving mode saves 25% of fan operating costs by reducing power consumption during off-hours
  • Maintains round-the-clock cleanroom integrity at lower cost
  • Easy to activate via panel-mounted switch (Wireless Cleanroom Control System also available)

Terra cleanrooms are designed to meet a specified ISO cleanliness rating while in use: with operations in progress, process machinery humming, and personnel in motion. So why maintain that level of performance when a production shift ends and personnel leave for the day?

A cleanroom at rest maintains its target ISO cleanliness standard with much less airflow, fewer air changes—and decreased power consumption. Terra’s Night Service Switch activates a separate operation circuit that drops all Fan/Filter Units (FFUs) into low-energy operation mode, shaving 25% of energy costs from your power bill while maintaining uninterrupted cleanroom performance at your specified cleanliness level (see chart below). With Terra's Night Service Switch, operators can save up to 7,000 kilowatt-hours per year based on a cleanroom system utilizing 10 FFUs.

Operation Setting Airflow: cfm (m^3/hr) Air Speed: ft/m (m/s) Run Amps (Watts)
High Speed 808 (1373) 115 (.58) 4.3 (512)
Medium Speed 717 (1218) 102 (0.51) 3.5 (416)
Night Service 654 CFM (1111) 93 ft/min (0.47) 3.3A (393W)

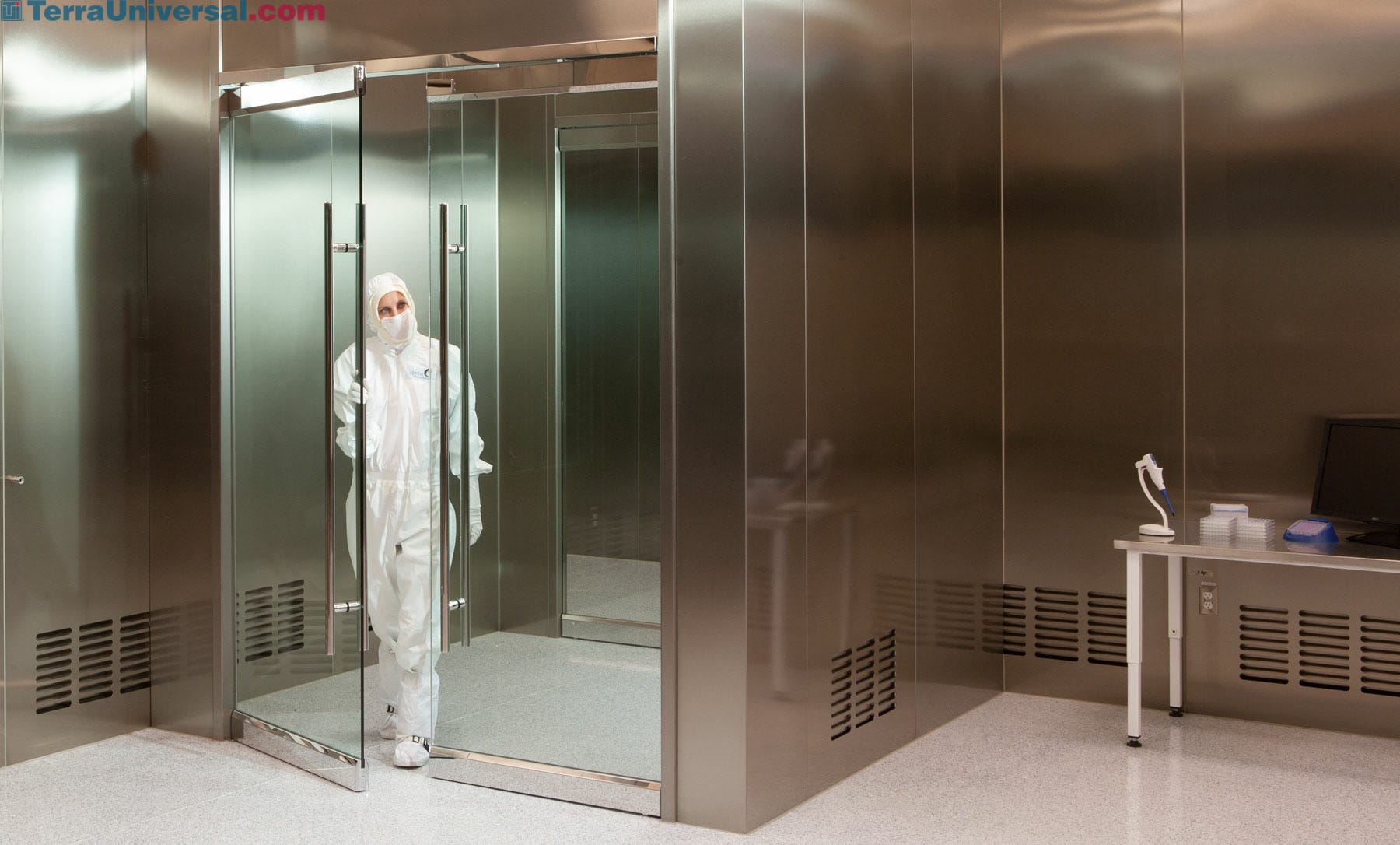

Non-Sterile HD Compounding

Larger cleanrooms can be partitioned into multiple cleanroom space of different ISO classifications. The double-wall panel design allows BioSafe cleanroom walls to function as either interior or exterior walls, offering an equally clean surface on either side. Modular construction allows our engineers to more easily develop a custom solution at a reasonable price. Installation procedures also remain the same, resulting in fewer errors and delays.

For a higher degree of protection against contamination, personnel should enter a critical processing cleanroom through another controlled environment whenever possible. HEPA-filtered “buffer” rooms or hallways reduce particle counts immediately outside the cleanroom, lessening the impact of airflow turbulence caused by doors opening into the cleanroom. These clean corridors can also protect carts filled with work-in-progress as they move between processing rooms, such as when moving from quality assurance to the packaging phase. Gowning rooms often act as an anteroom, providing a space to transition from unclassified to controlled. For more functional transition options, see Terra’s air showers and tunnels, which use high-velocity air streams to remove loose particles from cleanroom garments prior to entry.

BioSafe Cleanrooms: No Pre-Assembly

How can Terra offer industry-leading lead times and pricing? Our advanced cleanroom design doesn’t require factory pre-assembly; each components fits together perfectly, ensuring seamless on-site installation

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

Available Environmental Control System

Standard cleanroom comes with analog pressure gauge and on/off controls; optional touchscreen FFU controller monitors, controls and logs internal pressure, as well as displaying temperature and RH.

Smooth Interior Walls

Smooth steel BioSafe cleanroom panels with radius corners simplify cleaning and stand up to biocides and disinfectants. Cleanrooms constructed with medical-grade and USP-compliant material.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for life science applications: no gaps and crevices where microbes can colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceed cGMP, IEST, ASTM and ISO 14644-1 requirements.

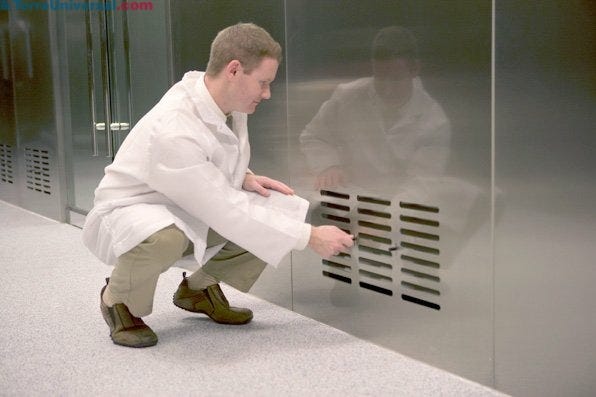

Biosafe Cleanroom Exhaust Vents

Adjustable exhaust vents help balance internal room pressure inside BioSafe cleanrooms.

BioSafe Cleanroom Sterilization

Ceiling panel covers allow wash-down and sterilization of cleanroom walls and ceilings without damage to filter medium; requires BioSafe glass or stainless steel wall panels, which stand up to biocides.

Containment Exhaust Plenum

Negative-pressure containment cleanrooms include exhaust plenums that route air to floor- or ceiling-mount fans, protecting the external environment from hazardous materials inside the cleanroom.

Cleanroom LED Light Panel with Emergency Power Supply, 2' x 2'

Cleanroom LED lights are equipped with emergency back-up batteries to ensure continued operation in the event of a power failure.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

WhisperFlow Quiet Operation Reduces Distracting Background Noise

Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).

Seismic Safe Cleanroom Design

Terra’s modular cleanrooms are designed with seismic safety in mind. Rigid steel frames and ceiling grids are designed with sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers. Both hardwall and softwall designs can be installed to adhere to local seismic codes. Optional seismic and structural calculations can be drafted and stamped by a licensed PE to help meet municipal permitting requirements.

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

High-Throughput Cleanroom Manufacturing

Over the past 5 years, Terra has manufactured nearly 1,500 UL-approved cleanrooms at industry-leading build times. Terra’s versatile modular cleanroom frame and panel designs adapt to any floor plan requirement. The UL-rated and scalable plug-and-play power distribution system further simplifies installment of FFU's and lights to cleanrooms of any size.

4,000 Worldwide Cleanrooms

Since 1976, Terra has designed and manufactured over 4,000 cleanrooms for companies at the leading edge of high technology

Complete Order Transparency

Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Lighthouse Handheld Airborne Particle Counters
    Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environments
  • Germicidal UV Lamp Sanitizes Labs, Cleanrooms
    UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure.
  • BioSafe Windows
    Double-pane, frameless windows mount flush with no external hardware, for smooth easy to clean surface.
  • Hand Washer and Dryer
    Ideal for the gowning portion of the cleanroom, Terra’s cleanroom sinks offer touchless operation for compliance with aseptic protocols; shown with integrated HEPA-filtered hand dryer.
  • Cleanroom UV Sterilization
    UV-C sterilization modules can be installed in the ducting of a recirculating air flow configuration to reduce the bio-burden in an aseptic BioSafe cleanroom.
  • In-Wall Utilities Plumbing
    Plumbing for utilities can be easily installed within the BioSafe wall panels
  • Roll-Up Door Pas-Through Chamber
    Roll-Up Door Pass-Throughs with interlocked doors
  • BioSafe Pass-through Chambers
    Pass-through chambers, available for BioSafe Cleanrooms, include interlocked doors that allow contamination-free sample transfer.
  • In-Wall Utilities Plumbing
    BioSafe cleanroom panels allow flush-mount quick-connect fittings for vacuum, nitrogen, compressed air or other utilities.
