Terra Part #PriceShips in
120 VPowder-Coated Steel2'x2'ULPATop Side 6601-22-UT 68551 $1,50510-14 Days2
120 VPowder-Coated Steel2'x2'ULPARoom-Side 6601-22-URT 68563 $1,81510-14 Days3
120 VPowder-Coated Steel2'x3'ULPATop Side 6601-23-UT 68555 $1,50510-14 Days4
120 VPowder-Coated Steel2'x3'ULPARoom-Side 6601-23-URT 68565 $1,81510-14 Days5
120 VPowder-Coated Steel2'x4'ULPATop Side 6601-24-UT 68559 $1,50510-14 Days6
120 VPowder-Coated Steel2'x4'ULPARoom-Side 6601-24-URT 68566 $1,81510-14 Days7
240 VPowder-Coated Steel2'x2'ULPATop Side 6601-22-UT-220 68552 $1,63410-14 Days8
240 VPowder-Coated Steel2'x2'ULPARoom-Side 6601-22-URT-220 68569 $1,94410-14 Days9
240 VPowder-Coated Steel2'x3'ULPATop Side 6601-23-UT-220 68556 $1,63410-14 Days10
240 VPowder-Coated Steel2'x3'ULPARoom-Side 6601-23-URT-220 68571 $1,94410-14 Days11
240 VPowder-Coated Steel2'x4'ULPATop Side 6601-24-UT-220 68560 $1,63410-14 Days12
240 VPowder-Coated Steel2'x4'ULPARoom-Side 6601-24-URT-220 68567 $1,94410-14 Days13
Voltage
Material
Size
Filter
Filter Replacement Access
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

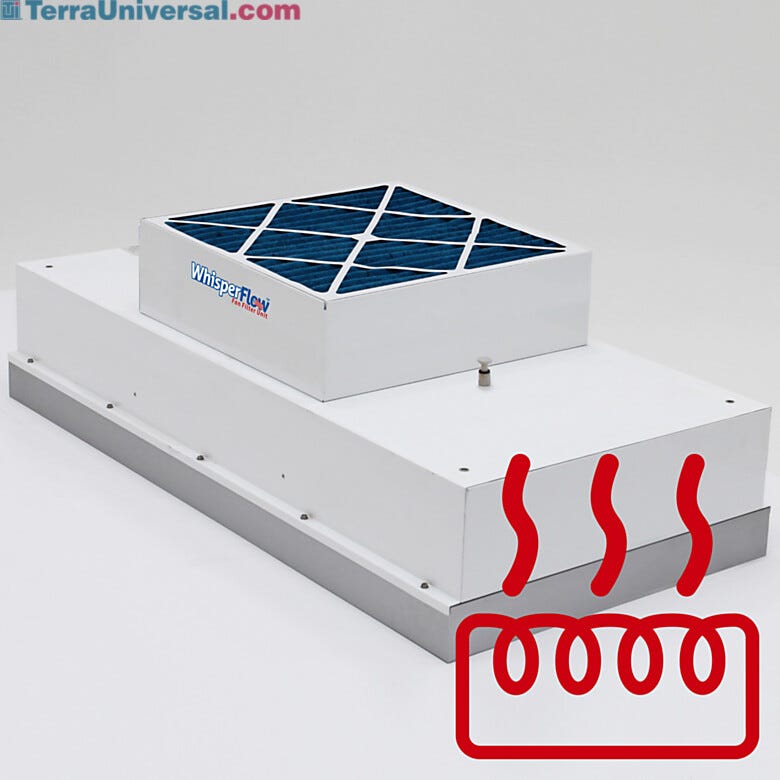

• Accelerates parts drying following cleaning and sterilization

• Unique baffling and sound-deadening, ensure uniform face velocity and ultra-quiet operation

• 304 stainless steel diffuser grille provides an easily sterilized surface

• Heated fan filter units provide micro-filtered air meeting standards to ISO 4 (Class 10)

• Room-Side Replaceable models allow fast filter replacement without the need for special tools

• Ideal for biocompatibility testing or other processes at elevated temperatures

• 304 stainless steel diffuser grille provides an easily sterilized surface

• ULPA filter 99.999% efficient

• Heating element mounted inside the FFU housing that heats air up to 150 degrees Fahrenheit.

• All FFU data is based on a standalone unit using 1” prefilter and clean filters.

• Data will vary depending on filter media and configurations with other products/systems, such as ductwork or hoods.

Unit of Measure: of 1

Fan Filter Units

  • Heated Room Side Replaceable Fan Filter Units (FFUs) Heated Room Side Replaceable WhisperFlow® Fan Filter Units (FFUs)
Heated Room Side Replaceable Fan Filter Units (FFUs)

Features & Benefits

Features and Benefits

Filter Fan Units Prevent Infection

Did You Know?
Fan/Filter Units Do More Than Meet ISO Requirements—they also prevent infection.

Most cleanroom professionals understand that FFUs capture contaminants that degrade particle-sensitive samples. But they also remove bacteria and many viruses and mold spores that contribute to a host of infections.

Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.

These filters also remove aerosol-born pathogens—germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.

Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.

Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:

Pathogens: Bacteria and Diseases
  • Escherichia coli: Gastrointestinal infection
  • Bacillus anthracis : Anthrax
  • Aspergillus brasiliensis: Sinus infections
  • Francisella tularensis: Tularemia
  • Bordetella pertusis : Whooping cough
  • Mycoplasma pneumaoniae: Pneumonia
  • Chlamydia pneumoniae: Bronchitis
  • Clamydia psittaci : Psittacosis
  • Klebsiella pneumoniae: Opportunistic infections
  • Haemophilus influenzae : Meningitis
  • Coxiella burnetii : Q fever
  • Pseudomonas aeruginosa: Opportunistic infections
  • Actinomyces israelii: Actinomycosis
  • Legionella pneumophila: Legionaire's disease
  • Thermoactinomyces sacchari: Farmer's lung
  • Alkaligenes: Opportunistic infections
  • Streptococcus pyogenes : Scarlet fever
  • Mycobacterium Tuberculosis : Tuberculosis

Quick-Connect Fittings

FFUs and lights can be easily added as cleanrooms requirements change, or disconnected for maintenance, without the need to run additional power lines or involve an electrician.

Full Range of Designs, Configurations!

WhisperFlow® FFFUs come in all styles: room-side replaceble, all-stainless steel, HEPA or ULPA filtration, EC energy-saving fans, reverse flow and more (shown: vapor filtration module with UV sanitation lamp).

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

Durable Powder Coating Finish

Terra’s durable powder coating formulation exceeds the ASTM and ISO paint standards for hardness, thickness, humidity resistance, gloss and impact testing.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Cord Adapter, MIN4 PL to 16AWG Power Cord for Terra Fan/Filter Unit
    Four-pin power cord adapter for fan/filter unit allows connection to standard 120VAC/60Hz power receptacle.
  • Ionizing Bar; 22"L, with Installation Kit, for 24 x 24 Fan/Filter Unit
    Ionizing bar, mounted to Fan/Filter Unit, provides a balanced stream of ions to the work area below to neutralize static charge and prevent electro-static discharge; 22" bar shown installed on 2' x 2' FFU.
  • FFU Mounting Frame; Stainless Steel
    Stainless steel Fan Filter Unit (FFU) mounting frame supports FFU on drywall or other rigid ceiling material, viewed from above ceiling panel (FFU not included).
  • Night Service Saves Energy, Extends Filter Life!
    Night service switch, shown mounted on Modular Hardwall Cleanroom panel, puts FFUs in low-energy mode during off-hours; saves 25% of fan operating costs and extends filter life.
  • Filter Replacement Alarm
    The filter replacement alarm monitors filter backpressure and issues an alarm when filter needs replaced (requires selection of fan filter unit with challenge port, order separately).
  • Fan Filter Unit Control System
    Provides room-by-room monitoring and control of Smart WhisperFlow FFUs to maintain target pressure differentials for ISO classification; temperature, humidity and particle monitoring and data logging, as well as dynamic fan set-point control, also available.
  • Power Distribution Modules for Cleanroom FFUs and Lights
    UL-listed power distribution modules include all breakers, transformers and other electrical components for FFU/light connections; allows fast addition or relocation of FFUs or lights without the need for rewiring.
  • Challenge Port for Fan Filter Unit
    Challenge port for Fan/Filter Units simplifies filter leak testing and connection of Filter Backpressure Alarm (shown with optional pressure gauge; must be ordered with FFU).
