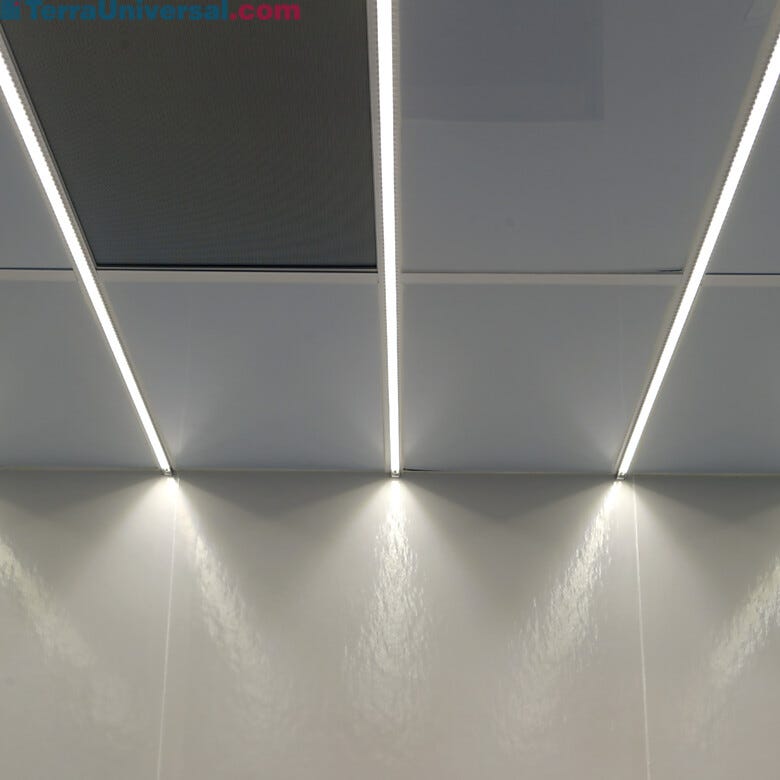

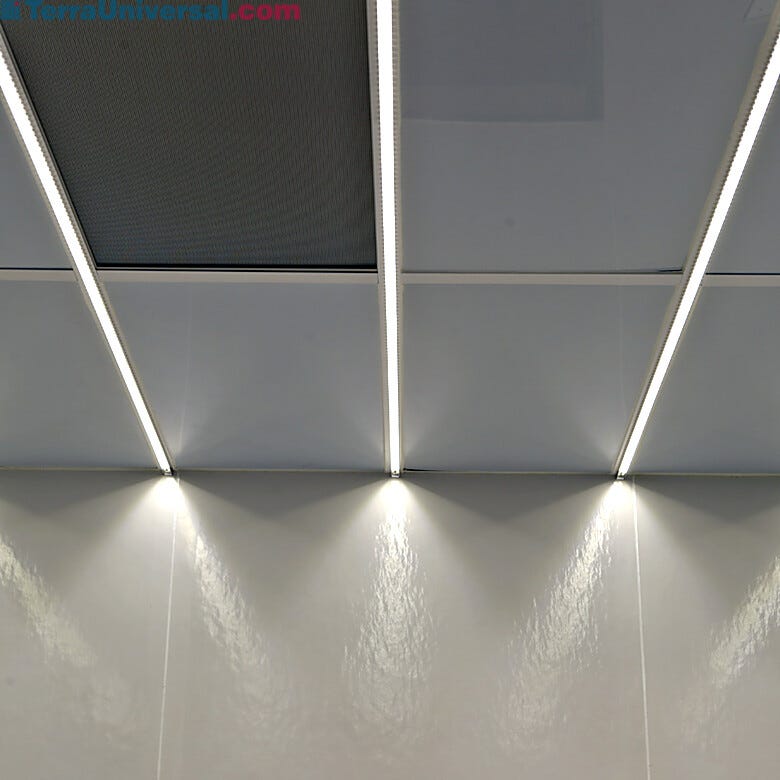

LED Light; Double Stacked Strips

• Strips use aluminum housing, covered with a clear, cleanable polycarbonate shield

• Strips are mounted to ceiling grid with screws; no obstruction of laminar air flow

• LED lighting produces about 15% of the heat that fluorescent does

• Cooler bulbs are more energy-efficient

• Bulb life: 50,000 hours of constant use

• Lumens produced from 16': 9800

• Working relative humidity range: 30-85%

• Each LED Power Distribution Module (PDM) (Ordered separately) provides power for up to 25 feet of LED strip lights

• RoHS certified

• Requires Terra sign-off of customer-furnished drawing specifying configuration:

• 1. LED strip length(s) and power connection(s) and power source (120V, 60Hz or 220V, 60Hz)

• 2. How LED sections connect (Daisy chained to each other by cable, connected directly to form a larger section or directly to PDM by cable),

• 3. Cable lengths

• 4. Connection type (stand-alone use, or for connection to Terra Cleanroom)

• 5. Required power Supply (120V/60Hz or 220V/60Hz)
