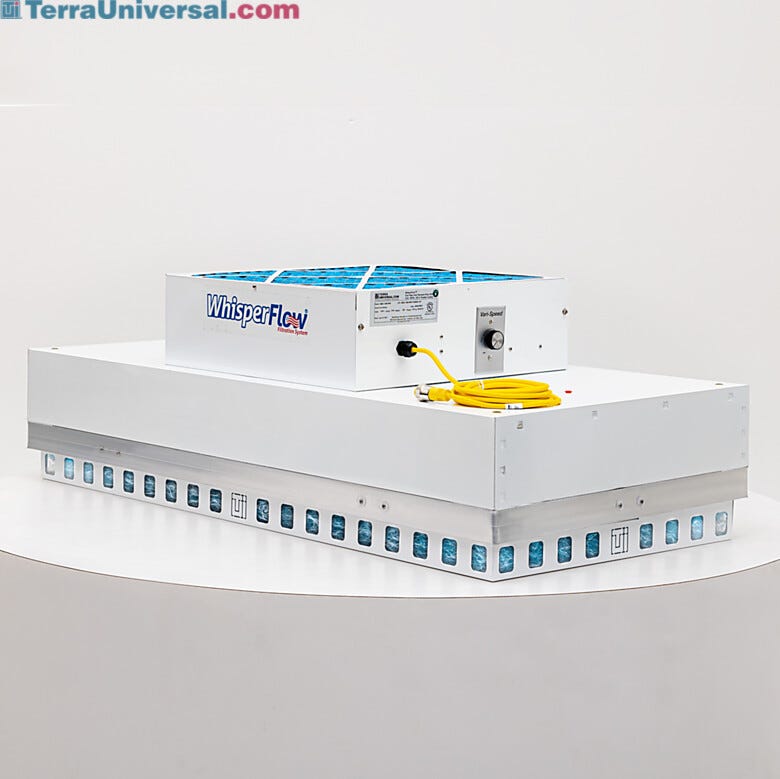

Reverse flow FFU with removable filter converts any room into a negative pressure isolation/containment room. | 6601-22B-HVR displayed
Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units
Product Group:
6601-PP-09
6601-PP-09

Reverse-Flow Fan Filter Units

  • Available Certified ISO Grade Designs: ISO 4, ISO 5, ISO 6, ISO 7, ISO 8
  • Exhaust flow fan filter units convert any room into a negative pressure isolation/containment room
  • Filtered exhaust system also ideal for containing dust generated during maintenance or construction
  • Mounts into ceiling bay to remove sub-micron particles and provide safe exhaust
  • Medical grade filters are leak tested in accordance with IEST standards and meet UL 900
  • PSC variable speed motor provides precise, fully adjustable airflow control

• Certified ISO Grade Design: ISO 4

Read more
Latest Model - New Features
  • Converts any room into a negative pressure space
  • Dust collector prevents contaminate influx
  • Whisper quiet system
Stocked CE Mark Logo ULus Listed WhisperFlow ISO 4 Icon
Manufactured By: Terra Universal
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Learn More: Terra's Quick Ship Information
Select Product
Voltage

Sort Order:
Material

Sort Order:
ISO Rated Air Cleanliness

Sort Order:
Size

Sort Order:
Filter

Sort Order:
Filter Replacement Access

Sort Order:
FFU Type

Sort Order:

 Terra Part #Price Ships in
120 V Powder-Coated Steel ISO 5 2'x3' HEPA Top Side Ductless 6601-23A-HV $1,254 1-3 Days2
Only 2 left in stock
120 V Powder-Coated Steel ISO 4 2'x3' ULPA Top Side 6601-23-UV $1,169 1-3 Days3
Clearance Only 1 left in stock
240 V Powder-Coated Steel ISO 5 2'x2' HEPA Top Side 6601-22-HV-220 $1,533 1-3 Days4
Only 4 left in stock
240 V Powder-Coated Steel ISO 4 2'x2' ULPA Top Side 6601-22-UV-220 $1,286 1-3 Days5
Clearance Only 9 left in stock
240 V Powder-Coated Steel ISO 5 2'x3' HEPA Top Side 6601-23-HV-220 $1,533 1-3 Days6
Only 1 left in stock
240 V Powder-Coated Steel ISO 4 2'x4' ULPA Top Side 6601-24-UV-220 $1,169 1-3 Days7
Clearance Only 1 left in stock
240 V Powder-Coated Steel ISO 5 2'x2' HEPA Top Side 6601-22-HV-220-CE $861 1-3 Days8
Clearance Only 3 left in stock
240 V Powder-Coated Steel ISO 4 2'x2' ULPA Top Side 6601-22-UV-220-CE $1,286 1-3 Days9
Clearance Only 3 left in stock
240 V Powder-Coated Steel ISO 4 2'x4' ULPA Top Side 6601-24-UV-220-CE $1,169 1-3 Days10
Clearance Only 2 left in stock
120 V Powder-Coated Steel ISO 5 2'x2' HEPA Room-Side w/ Dust Collector Pan 6601-22B-HVR $1,669 1-3 Days11
45 in stock
230 V Powder-Coated Steel ISO 5 2'x2' HEPA Room-Side w/ Dust Collector Pan 6601-22B-HVR-220 $1,836 1-3 Days12
Only 10 left in stock
120 V Powder-Coated Steel ISO 5 2'x3' HEPA Room-Side w/ Dust Collector Pan 6601-23B-HVR $1,669 1-3 Days13
Quick Ship+ Available 12 in stock
230 V Powder-Coated Steel ISO 5 2'x3' HEPA Room-Side w/ Dust Collector Pan 6601-23B-HVR-220 $1,836 1-3 Days14
Quick Ship+ Available Only 5 left in stock
120 V Powder-Coated Steel ISO 5 2'x4' HEPA Room-Side w/ Dust Collector Pan 6601-24B-HVR $1,517 1-3 Days15
Quick Ship+ Available 58 in stock
240 V Powder-Coated Steel ISO 5 2'x4' HEPA Room-Side w/ Dust Collector Pan 6601-24B-HVR-220 $1,669 1-3 Days16
Quick Ship+ Available Only 8 left in stock
120 V Stainless Steel ISO 5 1'x1' ULPA Top Side 6601-11A-UVSS-LP $1,465 1-3 Days17
Only 2 left in stock
120 V Powder-Coated Steel ISO 5 16" x 48" HEPA Room-Side w/ Dust Collector Pan 6601-1648-HVR $1,657 1-3 Days18
Only 3 left in stock
120 V Powder-Coated Steel ISO 5 16" x 36" HEPA Room-Side w/ Dust Collector Pan 6601-1636-HVR $1,657 1-3 Days19
120 V Powder-Coated Steel ISO 5 16" x 24" HEPA Room-Side w/ Dust Collector Pan 6601-1624-HVR $1,657 1-3 Days20
240 V Powder-Coated Steel ISO 5 16" x 24" HEPA Room-Side w/ Dust Collector Pan 6601-1624-HVR-220 $1,657 1-3 Days21
240 V Powder-Coated Steel ISO 5 16" x 36" HEPA Room-Side w/ Dust Collector Pan 6601-1636-HVR-220 $1,657 1-3 Days22
240 V Powder-Coated Steel ISO 5 16" x 48" HEPA Room-Side w/ Dust Collector Pan 6601-1648-HVR-220 $1,657 1-3 Days23
Voltage
Material
ISO Rated Air Cleanliness
Size
Filter
Filter Replacement Access
FFU Type
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Related Posts
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Related Posts
Related Articles
  1. ISO 5 Cleanroom Standards for 14644-1 Certification (FS209E Class 100)
  2. Commercial Indoor HEPA Filter Solutions for Wildfire Smoke and Soot
  3. Cleanroom FAQ: What Should I Know Before I Own a Cleanroom?
  4. Medical-Grade HEPA Filter Solutions for Hospitals & Cleanrooms
  5. How Do I Calculate Cleanroom Fan Filter Ceiling Coverage?
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 4, ISO 5, ISO 6, ISO 7, ISO 8
  • Exhaust flow fan filter units convert any room into a negative pressure isolation/containment room
  • Filtered exhaust system also ideal for containing dust generated during maintenance or construction
  • Mounts into ceiling bay to remove sub-micron particles and provide safe exhaust
  • Medical grade filters are leak tested in accordance with IEST standards and meet UL 900
  • PSC variable speed motor provides precise, fully adjustable airflow control
  • Performance Data and Submittals
  • Low-profile design is ideal for rooms with limited ceiling space.
  • 1/4-20 UNC threaded inserts on corners allow suspension by guy-wires.
  • Optional all-304 stainless steel BioSafe® housing, filter face grille, filter frame and impeller ensure optimal cleanliness and stand up to alcohol and other cleaning agents.
  • High Efficiency Particulate Air (HEPA) Filter: 99.99% efficient at 0.3µm particle diameter.
  • Ultra-Low Particulate Air (ULPA) Filter: </span>99.999% efficient at 0.12µm particle diameter.
  • Backward-curved fan optimizes airflow efficiency.
  • Removable yellow power cord with 4-pin connector provides easy installation to Terra cleanrooms (connector may be used with an optional wall plug adapter; or may be removed entirely to hard-wire the FFU).
  • Optional duct collar attachment allows connection to ducting for safe exhaust outside of room.
  • FDA-approved silicone sealant without harmful chemicals seals inside housing to prevent air leakage.
  • RSR designs allow quick and safe Bag-in/Bag-out (BIBO) filter replacement from the inside of the room for contact-free removal of filters with potentially hazardous airborne contaminants. Because it eliminates the need for roof access or breaching the cleanroom, an RSR model also greatly reduces maintenance time and related costs.
  • Includes:
  • (1) MERV 7 pre-filter (30% ASHRAE rated)
  • See performance data and submittal sheets for additional information.
  • Optional Accessories:
  •           Power plug adapter
  •           Stainless steel surface mount frame for installing FFU in ceiling without T-grid
  •           12" ducted inlet connection adapter
  •           Replacement filters
  •           Filter replacement alarm
  •           Eye bolt package for cable suspension
  •           Control panel with night mode switch and power distribution modules
  • All filter sales are final; returns for this item cannot be accepted

• Certified ISO Grade Design: ISO 4

• Marks & Listings: CE, UL, ULC

Show more

Fan Filter Units

  • Video of a smoke test for Terra's low profile mini fan filter unit Mini Reverse Flow Fan Filter Unit Smoke Study
  • Terra Universal WhisperFlow® Filter Fan Units Terra Universal WhisperFlow® Filter Fan Units
  • COVID-19 Contamination Control Products by Terra Universal
Video of a smoke test for Terra's low profile mini fan filter unit
Smoke study of Terra's low profile mini fan filter unit | 6601-11A-UVSS-LP displayed Mini Reverse Flow Fan Filter Unit Smoke Study Terra’s low profile mini fan filter units offer a compact solution for localized containment of ultrafine particulates. This smoke study provides a visualization of negative pressure exhaust inside a containment hood.
Terra Universal WhisperFlow® Filter Fan Units
Overview video of Terra Universal's comprehensive portfolio of filter fan units Terra Universal WhisperFlow® Filter Fan Units Overview video of Terra Universal's comprehensive portfolio of filter fan units
Terra Universal offers an extensive portfolio of COVID-19 contamination control products for employee protection, surface disinfection and product sterilization COVID-19 Contamination Control Products by Terra Universal As personal and professional lives shift dramatically in response to the COVID-19 pandemic, businesses are searching for methods to reduce the transmission risk of COVID-19 in the workplace. Terra Universal offers an extensive product portfolio to support employee protection, surface disinfection and product sterilization. Let’s take a closer look at two products designed to control the spread of COVID-19.
Features & Benefits

Features & Benefits

Learn More: Filter Fan Units Prevent Infection
Print Copy Copied

Did You Know?
HEPA/ULPA Filters Do More Than Meet ISO Requirements - they also prevent infection.

Most cleanroom professionals understand that HEPA and ULPA filters capture contaminants that degrade particle-sensitive samples. But they also help remove bacteria, mold spores, and many viruses that contribute to a host of infections.

Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.

These filters also remove aerosol-born pathogens - germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.

Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.

Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:

Pathogens: Bacteria and Diseases
  • SARS-CoV-2: Coronavirus (COVID-19)
  • Escherichia coli: Gastrointestinal infection
  • Bacillus anthracis : Anthrax
  • Aspergillus brasiliensis: Sinus infections
  • Francisella tularensis: Tularemia
  • Bordetella pertusis : Whooping cough
  • Mycoplasma pneumoniae: Pneumonia
  • Chlamydia pneumoniae: Bronchitis
  • Clamydia psittaci : Psittacosis
  • Klebsiella pneumoniae: Opportunistic infections
  • Haemophilus influenzae : Meningitis
  • Coxiella burnetii: Q fever
  • Pseudomonas aeruginosa: Opportunistic infections
  • Actinomyces israelii: Actinomycosis
  • Legionella pneumophila: Legionaire's disease
  • Thermoactinomyces sacchari: Farmer's lung
  • Alkaligenes: Opportunistic infections
  • Streptococcus pyogenes: Scarlet fever
  • Mycobacterium Tuberculosis: Tuberculosis

Protect Against Contaminants and Pathogens

HEPA and ULPA filters help capture many bacteria, viruses (COVID-19), and mold spores that contribute to a host of infections for both humans and plant/animal tissue cultures

COVID-19 Infection Control

Terra’s in-stock ceiling-mounted reverse-flow ducted filter fan units convert any space into a negative pressure isolation room

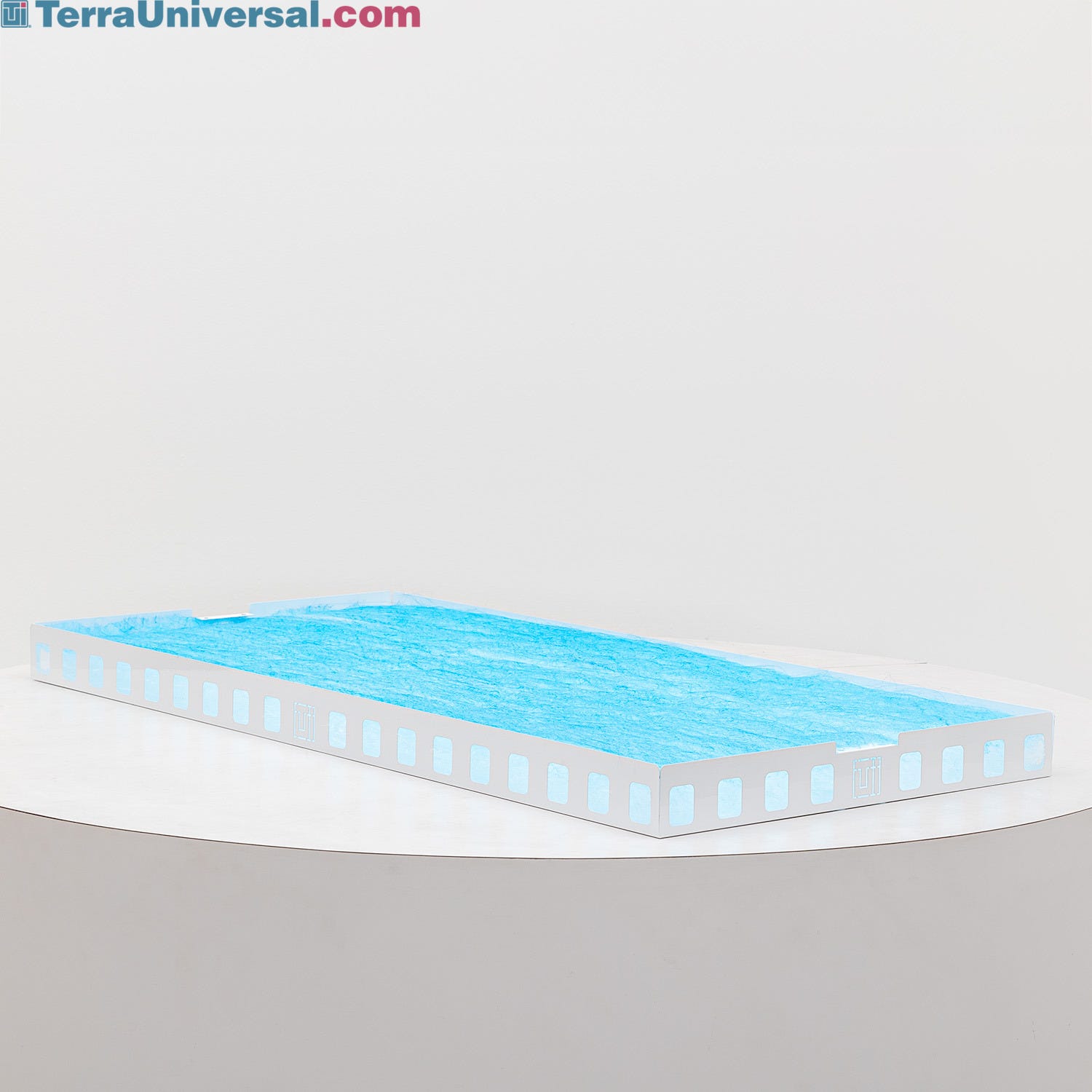

Dust Collector Pan Helps Prevent Contaminants from Re-Entering Cleanroom

Collector pan accumulates dust particles that dislodge from the HEPA filter, preventing contaminants from re-entering the cleanroom. Collector pan integrates with bag-in/bag-out (BIBO) systems and is easily removed for cleaning or maintenance.

Complete Project Transparency

Terra is dedicated to complete transparency on project status, shipment tracking, and installation scheduling

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.

Network of International Reps

Terra employs an international network of more than 20 local sales reps trained to provide comprehensive service on Terra's complete catalog of products

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Energy-Efficient LED Lighting Panels

    Energy-Efficient Lighting

    Energy-efficient LED lighting panels and strips help to lower electrical costs and minimize heat build-up in temperature-controlled environments.
  • Filter Replacement Alarm for Fan Filter Unit

    Filter Replacement Alarm

    The filter replacement alarm monitors filter backpressure and issues an alarm when filter needs replaced (requires selection of fan filter unit with challenge port, order separately).

  • Challenge Port for Fan Filter Unit

    Challenge port for Fan/Filter Units simplifies filter leak testing and connection of Filter Backpressure Alarm (shown with optional pressure gauge; must be ordered with FFU).
  • Fan Filter Unit Power Cord Adapter

    Cord Adapter, MIN4 PL to 16AWG Power Cord for Terra Fan/Filter Unit

    Four-pin power cord adapter for fan/filter unit allows connection to standard 120VAC/60Hz power receptacle.
  • Fan Filter Unit Stand

    Stand for Cleanroom Fan Filter Unit

    Powder coated steel Fan Filter Unit stand supports up to two Fan/Filter Units for horizontal-flow applications (order FFU separately)
  • 2’x2’ replacement filter for roomside replaceable (RSR) Fan Filter Unit (FFU), inside view
    Learn More

    Replacement Filters

    Purchase replacement filters ahead of time to prevent costly operational interruptions and avoid damage to fan blowers caused by excessive backpressure from long overdue filter replacements.
Products similar to this one
Other products you may find relevant
  1. 2'W x 4'D LED panel mounted in Terra Universal Cleanroom | 3800-41 displayed
    Group of 8 products
    LED Light Panels From
    As low as $132
    Some ship in 0 - 2 days
  2. Cleanroom control panel provides centralized control and monitoring of cleanroom functions; status indicator LED blinks when FFU filters need replacement | 6600-23A-NS displayed
    Group of 4 products
    Standard Control Panels for Fan Filter Unit (FFU) Systems From
    As low as $4,136
    Some ship in 5 - 7 days
  3. Cleanroom control panel with built-in Tier 4 touchscreen console; datalogging (pressure/temp/RH) and FFU control for up to 16 rooms, 200 FFUs | 6607-04 displayed
    Group of 8 products
    Smart® Control Panels for Fan Filter Unit (FFU) Systems From
    As low as $5,323
    Some ship in 1 - 3 days
  4. Holds fan filter units secure in rigid ceilings without a T-bar grid. | 6604-00 displayed
    Group of 3 products
    Fan Filter Unit Mounting Frames From
    As low as $319
    Some ship in 0 - 2 days
  5. Lightweight 6-channel airborne particle counter with a sensitivity range from 0.2- 2.0 μm; ideal for spot-checking critical environments and cleanrooms
    Group of 4 products
    Lighthouse Handheld Airborne Particle Counters by LWS From
    As low as $3,642
    Some ship in 5 - 10 days
  6. Filter replacement alarm system with integrated minihelic pressure gauge, light and buzzer | 2625-54B-SS displayed
    Group of 2 products
    Filter Replacement Alarm System for Fan Filter Units From
    As low as $748
    Some ship in 1 - 3 days
  7. Provides efficient disinfection of cleanrooms and laboratories | 3800-26 displayed
    Germicidal UV Illuminator; for Modular Cleanrooms, Universal, 120 V
    $2,816
    Usually Ships in 1 - 3 days
  8. fixture contains four UV light tubes for fluorescence detection | 3800-27 displayed
    Fluorescent Detection UV Illuminator; for Modular Cleanrooms, Universal
    $573
    Usually Ships in 5 - 7 days
  9. Internally mounted Power Distribution Module (PDM) for Tier System allows Smart monitoring and control of cleanrooms; UL-listed system is scalable | 6600-29C-P-R displayed
    Room-Side Accessible Power Distribution Modules (PDMs)
    Request Quote
    Usually Ships in 0 - 2 days
  10. 2' x 4' Cleanroom LED Panel Light with emergency backup battery and battery test switch | 3800-47 displayed
    Group of 2 products
    Cleanroom LED Light Panel with Built-In Emergency Battery From
    As low as $1,047
    Some ship in 2 - 4 days
  11. Wall-mount canopy fume hood provides 1200 CFM exhust fume ventilation with 4 blower speeds | 5015-14 displayed
    Group of 12 products
    Wall-Mount Canopy Fume Hoods From
    As low as $1,763
    Some ship in 1 - 1 days
  12. Ion bar kit safely neutralizes charges to protect against electro-static charges. Attaches to inside ceiling of glovebox. Ion bar sold separately. | 2005-92 displayed
    Group of 4 products
    Ionizing Bars From
    As low as $548
    Some ship in 1 - 3 days
  13. ISO Rated FFU Testing and Certification; Flow Rate and Filter integrity
    ISO Rated FFU Testing and Certification; Flow Rate and Filter integrity
    Request Quote
  14. Filter replacement alarm system with integrated minihelic pressure gauge, light and buzzer | 2625-54B-SS displayed
    Filter Replacement Alarm System; for Fan Filter Unit, Audible & Visible Alert, Manual Override, Stainless Steel, 120 V
    $748
    Usually Ships in 1 - 3 days
  15. | 6703-81 displayed
    Group of 8 products
    Cleanroom Ceiling Panels and Tiles From
    As low as $37
    Some ship in 0 - 2 days
  16. 2' x 2' Cleanroom LED light panel with emergency battery back-up in case of power failure | 3800-48 displayed
    LED Light Panel with Built-In Emergency Battery, 2' x 2', Cleanroom-Grade
    $1,047
    Usually Ships in 2 - 4 days
Buy Accessories
Manuals & Resources


On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
