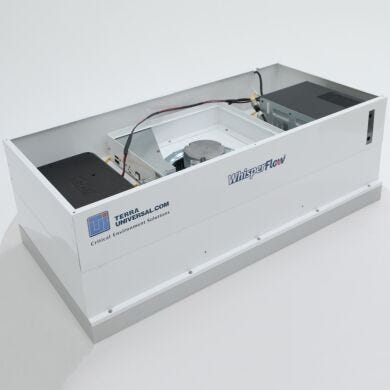

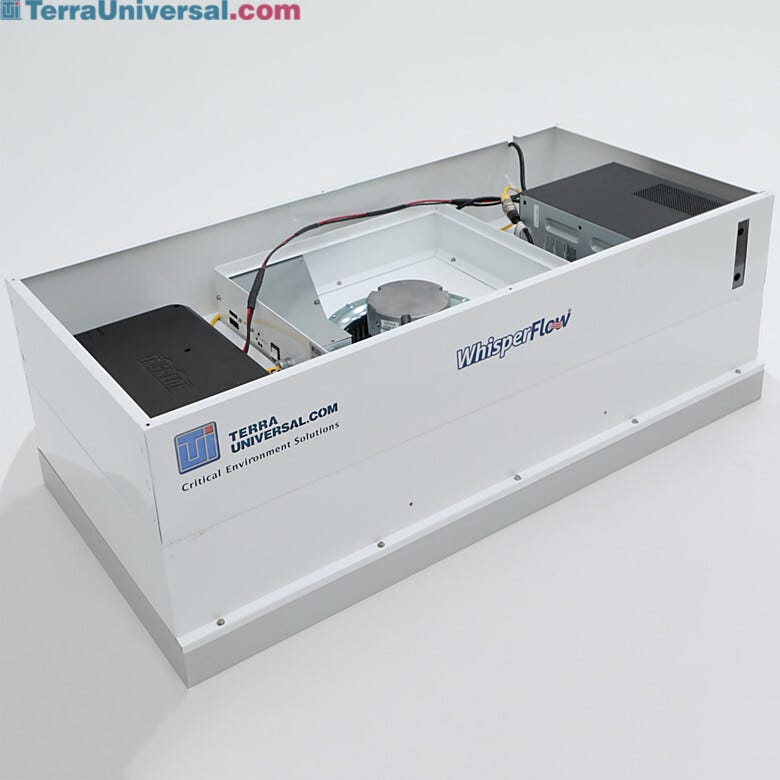

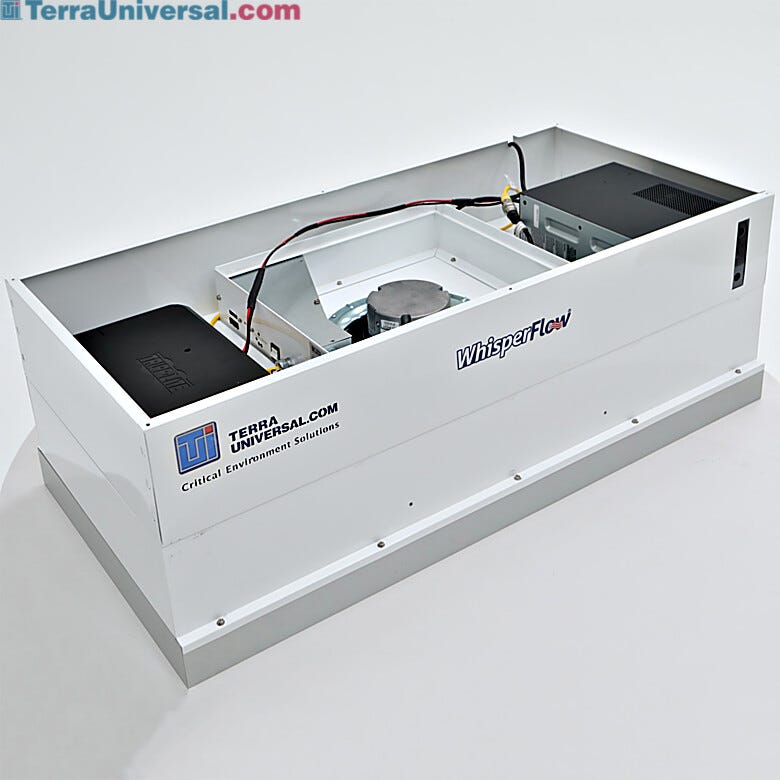

Uninterruptible Power Supply (UPS) mounted on top of FFU; main UPS unit plus add-on battery for extended runtime; status indicator lights provide visual alerts | 6601-24A-H-EC-BP displayed
Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units

External UPS Battery System for FFU, 120 V, Powder-Coated Steel

  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Portable battery system mounts on top of 2'x4' FFU or retrofits to existing FFU
  • Handy and convenient Uninterruptible Power Supply (UPS) provides power when and where you need it
  • Suitable for mobile transport or applications that require protection from unexpected power outages
  • Protects against all types of power problems including blackouts, brownouts, surges and line noise
  • Compatible with cleanroom FFUs, laminar flow hoods, mobile cleanroom cabinets, and more

• Manufactured by: Terra Universal

• Material: Powder-Coated Steel

• Unit of Measure: EA

Read more
ISO 6 Icon
Terra Part #: 1529-98
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1529-98
Terra Part # 1529-98
$1,109
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1529-98
78173
External UPS Battery System for FFU, 120 V, Powder-Coated Steel
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Portable battery system mounts on top of 2'x4' FFU or retrofits to existing FFU
  • Handy and convenient Uninterruptible Power Supply (UPS) provides power when and where you need it
  • Suitable for mobile transport or applications that require protection from unexpected power outages
  • Protects against all types of power problems including blackouts, brownouts, surges and line noise
  • Compatible with cleanroom FFUs,  laminar flow hoods, mobile cleanroom cabinets, and more
  • UPS systems provide a backup battery-power supply that keeps critical equipment running without interruption when utility power supply is unavailable.
  • UPS System includes main UPS plus add-on external rechargeable battery pack for longer runtimes.
  • Fully assembled plug-and-play design speeds up installation. No time-consuming connection of internal batteries by user required.
  • Intelligent battery management system extends battery life.
  • Compatibility: Battery power system is compatible with one 2x4 FFU with Electronically Commutated (EC) or Permanent Split Capacitor (PSC) motor.
  • NOTE: UPS system is intended for use with only 1 FFU. Contact a product specialist for custom solutions.
  • Estimated Runtimes:
  • 180W Load: 105 minutes.
  • 350W Load: 52 minutes.
  • 420W Load: 43 minutes.
  • NOTE: All estimates based on new, fully charged batteries under typical office environmental conditions.
  • Front panel LEDs alert you to a variety of performance conditions, including AC line present, automatic voltage regulation, UPS load level and replace battery.
  • External battery can be "hot-swapped" (safely removed or swapped without shutting down the UPS).
  • For Power Outages: Between the aging power grid and natural disasters, there are a multitude of reasons why utility power may not always be dependable. In the event of a power outage, the UPS immediately activates without interruption. The UPS keeps your FFUs running long enough to either: (1) safely store away contamination-sensitive materials and works-in-progress before shutting down operations, or (2) switch to a back-up power generator.
  • For Transportation and Logistics: Use the UPS to create a mini battery-powered cleanroom on wheels to safely transport sterile materials through a dirty space. The UPS provides adequate time to transfer out of one cleanroom and relocate to another cleanroom in a different part of the facility. With the FFU mounted on top of the cabinet, the battery-powered system supplies uniform HEPA-filtered air flow to prevent airborne contamination while moving the cabinet through a dirty environment. Once the cart arrives at its destination, simply plug the system back into a wall outlet to recharge the batteries.
  • Terra’s signature white powder coat finish feature a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.
Show more

• Manufactured by: Terra Universal

• Material: Powder-Coated Steel

• Unit of Measure: EA

• Electrical Specifications: 120 V

Show more
Manuals & Resources
Other products you may find relevant
  1. These Laminar Flow Cabinets are ideal for curing, drying , transporting and storing sensitive components such as optical assemblies and tools | 9700-PP-01 displayed
    Group of 9 products
    Laminar Flow Cabinets From
    As low as $2,343
    Some ship in 1 - 3 days
  2. PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area | 1529-68 displayed
    Group of 3 products
    PureFlow™ Laminar Flow Transport Carts From
    As low as $16,270
    Some ship in 1 - 3 days
  3. BioSafe® WhisperFlow Vertical Laminar Flow Hood, one-piece design is free of cracks or crevices where germs colonize | 1688-92B-48-SD displayed
    Group of 1 product
    BioSafe® WhisperFlow® Benchtop Vertical Laminar Flow Hoods From
    As low as $3,820
    Some ship in 1 - 3 days
  4. HEPA-filtered FFU coverage provides ISO rated mini-cleanroom environment | 1870-03B displayed
    Group of 16 products
    Softwall CleanBooth™ Vertical Laminar Flow Stations From
    As low as $3,162
    Some ship in 1 - 3 days
  5. Automatic height adjusting tables fit perfectly inside free-standing laminar flow clean benches; helps isolate vibration from the fans mounted above the hood | 3504-02A displayed
    Group of 36 products
    Vertical Laminar Flow Hoods From
    As low as $6,682
    Some ship in 1 - 3 days
  6. Large UV cabinet with mirrored stainless steel interior and hanger rod; HEPA filtration system is mounted on top, a perforated bottom allows for laminar airflow | 4101-15C-UV displayed
    Group of 3 products
    Extra-Large UV Sterilizing Cabinets with HEPA Filtration From
    As low as $4,259
    Some ship in 1 - 3 days
  7. UV Sterilization cabinet with HEPA filtration and mirrored stainless steel interior | 6081-05B displayed
    Group of 2 products
    UV Sanitizing Cabinets with HEPA Filtration From
    As low as $3,032
    Some ship in 1 - 3 days
  8. Curing/Drying Cabinets provide dual HEPA/carbon filtration | 6082-43A displayed
    Group of 5 products
    HEPA/ULPA Filtered Curing/Drying Cabinets From
    As low as $4,434
    Some ship in 1 - 3 days
Buy Accessories
  1. White Glove Freight Service
    White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  2. FasTrak 24-7 Expediting Service
    FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  3. Warranty; 2 Year, Terra-Manufactured Product, Parts
    Warranty; 2 Year, Terra-Manufactured Product, Parts
    Request Quote
    Increase Down Increase Up
  4. Warranty; 3 Year, Terra-Manufactured Product, Parts
    Warranty; 3 Year, Terra-Manufactured Product, Parts
    Request Quote
    Increase Down Increase Up

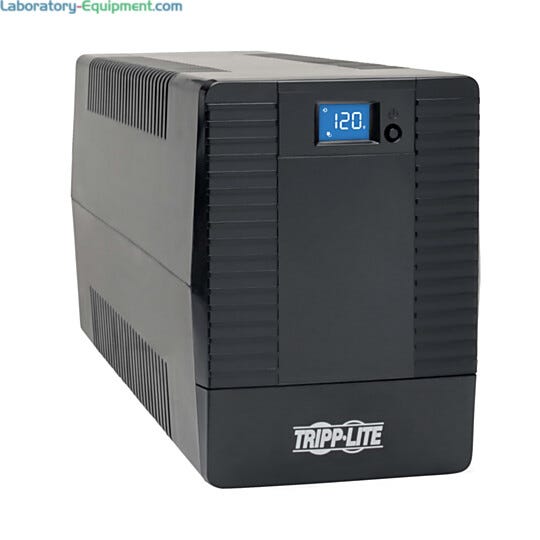

  5. Delivers power to the PureFlow filter/fan unit when AC power is disconnected | 1529-76 displayed
    Main UPS Battery Unit for FFU, 120VAC Quick Ship+ 14 in stock
    $966
    Increase Down Increase Up
  6. External 24V battery pack offers extended battery runtime when used with main tower UPS system | 1529-99 displayed
    Add-On Battery Pack for UPS Battery System, 24V Only 2 left in stock
    $365
    Increase Down Increase Up

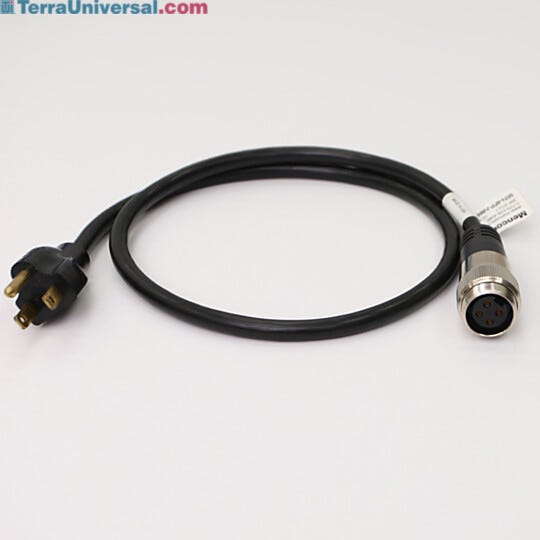

  7. Four-pin power cord adapter for fan/filter unit allows connection to standard 120VAC/60Hz power receptacle | 6601-13 displayed
    Cord Adapter, MIN4 PL to 16AWG Power Cord for Terra Fan/Filter Unit, 300V, 10A Quick Ship+ 7391 in stock
    $64
    Increase Down Increase Up

Fan Filter Units

  • Terra Universal WhisperFlow® Filter Fan Units Terra Universal WhisperFlow® Filter Fan Units
Terra Universal WhisperFlow® Filter Fan Units
Overview video of Terra Universal's comprehensive portfolio of filter fan units Terra Universal WhisperFlow® Filter Fan Units Overview video of Terra Universal's comprehensive portfolio of filter fan units

Features and Benefits

Learn More

Fan Filter Unit with External UPS Battery

Uninterruptible Power Supply (UPS) system provides backup battery power to keep critical equipment running without interruption when utility power is unavailable. The separate system can be retrofitted to an existing 2’x4’ FFU. Stainless steel model available.

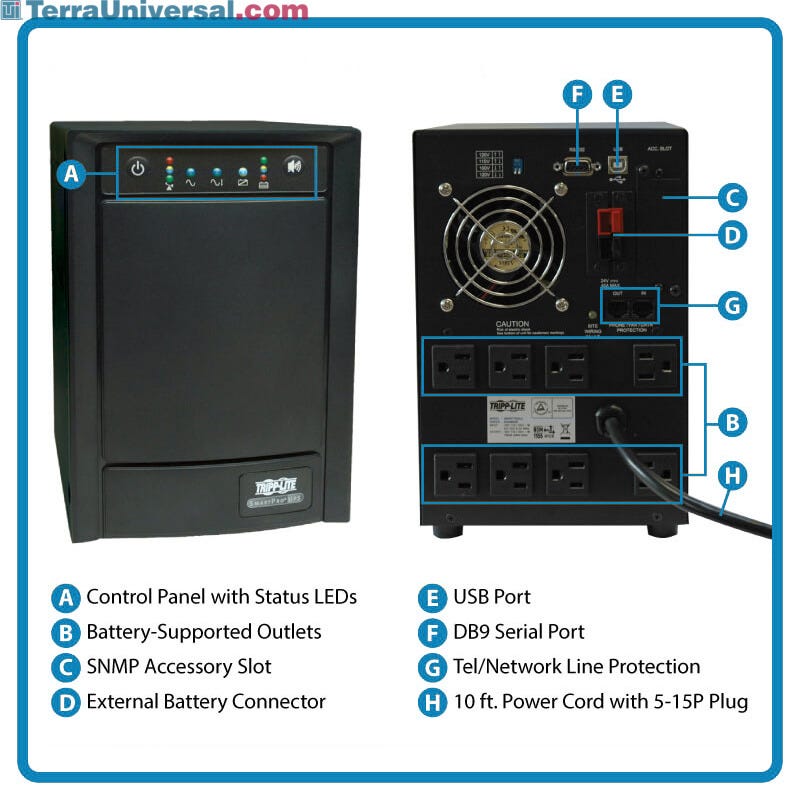

Main UPS Battery Tower for FFU, 120V

Main UPS tower provides power to the Fan Filter Unit and switches to battery power when AC power is disconnected.

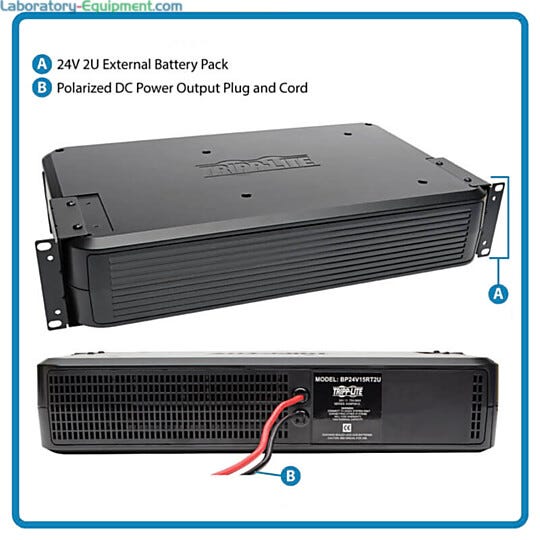

Add-On 24V Battery Pack for UPS Battery System

External 24V battery pack offers extended battery runtime when used with main tower UPS system.

Products Compliant With Your ISO Rating

High-capacity, durable, ISO-compliant system rated for thousands of operating hours.
Products similar to this one
  1. PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area | 1529-68 displayed
    Group of 3 products
    PureFlow™ Laminar Flow Transport Carts From
    As low as $16,270
    Some ship in 1 - 3 days
  2. Explosion-proof RSR FFU allows filter access from inside the cleanroom enclosure. (6601-24A-URE model shown) | 6601-22A-URE displayed
    Group of 6 products
    Explosion-Proof Fan Filter Units From
    As low as $5,938
    Some ship in 0 - 2 days
  3. Explosion-Proof Reverse-Flow FFUs isolate and contain electrical components to safely exhaust combustible powders | 6601-22-UVFSS displayed
    Group of 6 products
    Explosion-Proof Fan Filter Units, Reverse Flow From
    As low as $6,167
    Some ship in 0 - 2 days
  4. HEPA FFU with integrated LED light and static neutralizing ionizer, powder-coated steel construction | 6601-PP-25 displayed
    Group of 12 products
    Fan Filter Units with Integrated LED Light and Ionizers From
    As low as $2,241
    Some ship in 1 - 3 days
  5. ULPA filtered fan unit with heater up to 100F, for cleanroom applications | 6601-24-UT displayed
    Group of 12 products
    Heated Fan Filter Units From
    As low as $2,375
    Some ship in 0 - 2 days
  6. Ducted terminal diffuser provides uniform flow of HEPA-filtered air to an enclosure (requires remote air handler) | 6601-24-HD displayed
    Group of 12 products
    Laminar Flow Diffusers with HEPA/ULPA Filters From
    As low as $509
    Some ship in 1 - 3 days

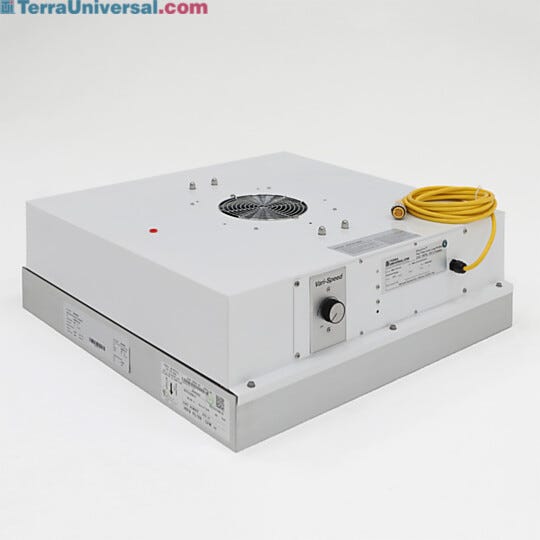

  7. Low profile FFU, 2’x2’, 8” high, backward-curved fan, HEPA filter, variable speed control dial, quick-connect plug | 6601-22-H-LP displayed
    Group of 13 products
    Low Profile Fan Filter Units From
    As low as $1,333
    Some ship in 0 - 2 days
  8. WhisperFlow® HEPA Fan Filter Unit designed for narrow hoods and other enclosure, 16" x 24" | 6601-1624-H displayed
    Group of 8 products
    Narrow WhisperFlow® Fan Filter Units From
    As low as $1,278
    Some ship in 0 - 2 days
  9. Front side of horizontal HEPA filtration system; 1 FFUs mounted on a base stand
    Group of 4 products
    Portable Horizontal Flow Fan Filter Module From
    As low as $1,999
    Some ship in 1 - 3 days
  10. Smart Fan Filter Unit with EC motor meets low-energy requirements (2' x 2' model shown) | 6601-22-H-EC displayed
    Group of 30 products
    Smart® WhisperFlow® Fan Filter Units (EC Motor) From
    As low as $1,460
    Some ship in 0 - 2 days
  11. WhisperFlow® Fan Filter Units (FFUs) provide a uniform flow of microfiltered air to meet cleanliness standards down to Class 10/ISO 4 | 6601-24-H displayed
    Group of 37 products
    WhisperFlow® Fan Filter Units From
    As low as $948
    Some ship in 0 - 2 days

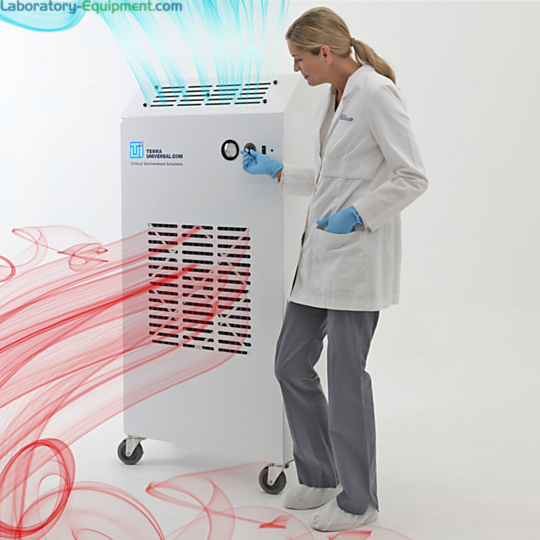

  12. Mobile Medical Grade Air Filter System | 6601-66 displayed
    Group of 2 products
    High-Capacity WhisperFlow® Portable HEPA Filtration System From
    As low as $2,640
    Some ship in 1 - 3 days

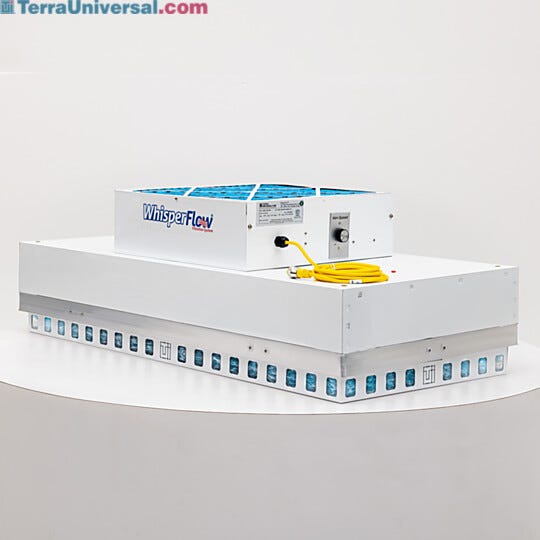

  13. Reverse flow FFU with removable filter converts any room into a negative pressure isolation/containment room. | 6601-22B-HVR displayed
