Product Details
Product Details
- Available ISO Ratings: ISO 6, ISO 7, ISO 8
- Locking double doors with stainless steel door reinforcement frames include transparent viewing windows made of static-dissipative PVC
- Adjustable perforated shelves facilitate laminar airflow through the storage area for optimal particle control
- HEPA Fan/Filter Units (FFUs) create a Class 10/ISO 4 particle-free environment for storing sensitive materials, such as semiconductor devices
- Static-dissipative PVC is a durable, chemical-resistant material that protects parts against static charges and the particles they attract
- Lowest noise level of any low-profile fan unit: 50 dBA, measured 30" (762 mm) from filter face
- The standard cabinet comes with three reinforced shelves, which feature 0.75" (19 mm)-diameter perforations to optimize the vertical laminar airflow (order HEPA FFU separately)
- The bottom shelf is fixed 17" (432 mm) above the floor; the other two shelves are easy to adjust at 1" (25 mm) increments to suit your part sizes
• Marks & Listings: CE, UL, ULC
HEPA-Filtered Storage Cabinets
-
Universal Base Stands Offer Excellent Versatility
-
Universal Stand Adjusts to Fit a Wide Range of Equipment
-
HEPA Filtered Laminar Flow Cabinet
-
Cleanroom Gowning Protocol
-
Smart Module with LED Display
-
Desiccators: Features and Design overview
-
ValuLine™ Desiccators from Terra Universal
-
ValuLine™ ES Desiccators in Water Treatment Plant
-
Portable Cleanroom Storage Cabinet with Laminar Air flow
-
PureFlow™ Laminar Flow Transport Cart, Double Door
-
COVID-19 Contamination Control Products by Terra Universal
-
UV Sanitizing Cabinet for Nursing Home
-
UV Sanitizer Cabinet with HEPA Filter for Sanitizing PPE
-
Reticle/Photomask Storage Cabinets
-
Plastic Cleanroom Storage Cabinets
-
Cleanroom Storage Cabinet, SDPVC Model
-
Humidity Storage Cabinet
-
Stocking, Kitting and Dispensing Cabinet
Universal adjustable base stands support and stabilize various equipment sizes
Universal Base Stands Offer Excellent Versatility
Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
Terra's Universal stands easily adjust to fit a wide range of equipment
Universal Stand Adjusts to Fit a Wide Range of Equipment
Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
This smoke test demonstrates the airflow properties of Terra Universal's HEPA Filtered Laminar Flow Cabinet
HEPA Filtered Laminar Flow Cabinet
This smoke test demonstrates the airflow properties of Terra Universal's HEPA Filtered Laminar Flow Cabinet
Recommended cleanroom gowning protocol
Cleanroom Gowning Protocol
Video demonstration of recommended gowning procedures to avoid violation of clean surfaces in the gowning area or cleanroom and reinforce clean handling protocol.
Smart Module with LED Display displays current relative humidity
Smart Module with LED Display
In minutes, upgrade your ValuLine desiccator to an automatic nitrogen control system with Terra's economical Smart module.
Desiccators: Features and Design overview
Terra's nitrogen-purged desiccator cabinets meet dry storage requirements as low as 1% relative humidity. Standardization simplifies component upgrade, retrofit and replacement. Terra's Smart controllers allow setpoint control and even multiplexed purging for the most critical humidity requirements.
Designed for purging with nitrogen to achieve low-humidity conditions, each model includes a perforated rear plenum wall that strengthens the cabinet and allows
ValuLine™ Desiccators from Terra Universal
Designed for purging with nitrogen to achieve low-humidity conditions, each model includes a perforated rear plenum wall that strengthens the cabinet and allows gas to enter all chambers uniformly. Doors feature reinforcement ribs to ensure a better seal against closed-cell gasketing. The expansion latches eliminate internal scraping caused by rotary-style latches; the closing mechanism is positioned outside the chamber to keep stored materials clean.
ValuLine™ extended storage desiccators used to store items in a municipal water treatment plant | 3949-33C displayed
ValuLine™ ES Desiccators in Water Treatment Plant
The treatment of water for civic consumption demands frequent testing using hydro-sensitive materials. Dry-box desiccators such as these keep samples stable and fresh. The ValuLine™ ES desiccators in acrylic can be configured for nitrogen gas purge, or hold desiccant to keep internal moisture low.
ISO-rated portable cleanroom storage cabinet with laminar air flow, 3 chambers, stainless steel | 1529-68 displayed
Portable Cleanroom Storage Cabinet with Laminar Air flow
Terra’s portable cleanroom storage cabinets are equipped with UL-rated air filtration systems for safe operation. The built-in fan filter unit (FFU) supplies clean ISO 5 or ISO 4 (class 100 or class 10) storage conditions for critical components. An optional power cell allows for mobile operation of the built-in FFU during transportation.
PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area | 1529-68 displayed
PureFlow™ Laminar Flow Transport Cart, Double Door
PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area during parts transfer.
Terra Universal offers an extensive portfolio of COVID-19 contamination control products for employee protection, surface disinfection and product sterilization
COVID-19 Contamination Control Products by Terra Universal
As personal and professional lives shift dramatically in response to the COVID-19 pandemic, businesses are searching for methods to reduce the transmission risk of COVID-19 in the workplace. Terra Universal offers an extensive product portfolio to support employee protection, surface disinfection and product sterilization. Let’s take a closer look at two products designed to control the spread of COVID-19.
UV Sanitizing Cabinet for nursing home to help sterilize everyday high-contact items such has phones, keys, and clothing | 6081-05C displayed
UV Sanitizing Cabinet for Nursing Home
UV Sanitizing Cabinet for nursing home to help sterilize everyday high-contact items such has phones, keys, and clothing.
UV cabinet in polypropylene with mirrored stainless steel interior, wire shelving and top-mounted HEPA filtration system for batch sterilizing face shields | 6081-05B displayed
UV Sanitizer Cabinet with HEPA Filter for Sanitizing PPE
UV Sterilizing cabinet includes built-in features for safe, efficient PPE batch sanitizing. A door kill switch pauses operations when open to prevent harmful UV exposure. An LED indicator activates when unit is on, and a timer simplifies sanitizing cycles.
Reticle and photomask storage cabinets are available with HEPA filtration | 9130-02A displayed
Reticle/Photomask Storage Cabinets
Securely stores and organizes reticles or photomasks in a particle-free, easy-access environment.
Elastic cleanroom storage cabinets are available with HEPA filtration | 4102-23 displayed
Plastic Cleanroom Storage Cabinets
Economical plastic cleanroom storage cabinets in acrylic or polypropylene; available HEPA filtration dislodges and removes surface particles.
Static-dissipative PVC cabinet stores supplies, works-in-progress (WIPs) or personal property | 4105-02 displayed
Cleanroom Storage Cabinet, SDPVC Model
Versatile static-dissipative PVC wall-mount cabinet stores supplies, works-in-progress (WIPs) or personal property – ideal for cleanroom or gowning room.
Nitrogen-purged storage with heavy-duty LiftLatches. Shown: 2x30-gallon capacity
Humidity Storage Cabinet
Nitrogen-purged storage with heavy-duty LiftLatches. Shown: 2x30-gallon capacity.
304 Stainless Steel Stocking, Kitting and Dispensing Cabinet | 4105-21 displayed
Stocking, Kitting and Dispensing Cabinet
Stocking, Kitting and Dispensing Cabinet, made of 304 stainless steel with swing-up static-dissipative PVC lids, has 20 compartments; ideal for stocking, kitting or dispensing critical parts.
Features & Benefits
Features & Benefits
Learn More: Filter Fan Units Prevent Infection
Did You Know?
Print
Copy Copied
Did You Know?
HEPA/ULPA Filters Do More Than Meet ISO Requirements - they also prevent infection.
Most cleanroom professionals understand that HEPA and ULPA filters capture contaminants that degrade particle-sensitive samples. But they also help remove bacteria, mold spores, and many viruses that contribute to a host of infections.
Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.
These filters also remove aerosol-born pathogens - germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.
Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.
Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:
Pathogens: Bacteria and Diseases
- SARS-CoV-2: Coronavirus (COVID-19)
- Escherichia coli: Gastrointestinal infection
- Bacillus anthracis : Anthrax
- Aspergillus brasiliensis: Sinus infections
- Francisella tularensis: Tularemia
- Bordetella pertusis : Whooping cough
- Mycoplasma pneumoniae: Pneumonia
- Chlamydia pneumoniae: Bronchitis
- Clamydia psittaci : Psittacosis
- Klebsiella pneumoniae: Opportunistic infections
- Haemophilus influenzae : Meningitis
- Coxiella burnetii: Q fever
- Pseudomonas aeruginosa: Opportunistic infections
- Actinomyces israelii: Actinomycosis
- Legionella pneumophila: Legionaire's disease
- Thermoactinomyces sacchari: Farmer's lung
- Alkaligenes: Opportunistic infections
- Streptococcus pyogenes: Scarlet fever
- Mycobacterium Tuberculosis: Tuberculosis

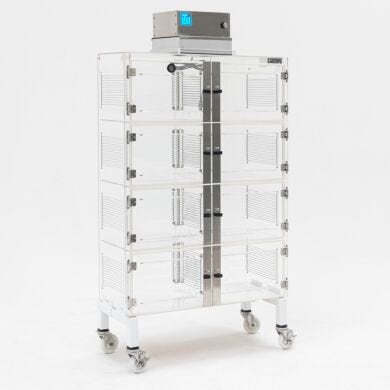

Locking Cleanroom Storage Cabinet with Laminar Air Flow
This HEPA-filtered cleanroom storage cabinet features heavy-duty vertical locking rods to prevent unauthorized access. SDPVC windows provide visibility and perforated stainless steel shelves are adjustable in 0.5” increments for greater space efficiency.
Vertical Laminar Airflow Storage Cabinet for Curing Optical Assemblies
HEPA-filtered vertical laminar airflow storage cabinet provides a Class 100 (ULPA for Class 10) particle-free environment for curing or storing sensitive components like optical assemblies. Perforated shelves allow vertical laminar flow through the cabinet.
Highest Standards For Electronic Components
Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.
Airflow Uniformity Improves Laminar Flow
Non-uniform air speeds produce turbulence that can recirculate particles into the air stream. Unique WhisperFlow® FFU baffling system and anodized diffuser plate promotes uniform laminar airflow to minimize turbulence and effectively carry away contaminating particles.
Protect Against Contaminants and Pathogens
HEPA and ULPA filters help capture many bacteria, viruses (COVID-19), and mold spores that contribute to a host of infections for both humans and plant/animal tissue cultures
WhisperFlow Quiet Operation Reduces Distracting Background Noise
Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).
Long Running FFU Motors
Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.
Multi-Chamber Laminar Flow Storage Cabinet
Economical ValuLine™ laminar flow storage cabinets provide a ISO 5 (Class 100) positive-pressure, particle-free environment for drying or storage of contamination-sensitive materials. The transparent plastic design provides full visibility to easily find or monitor stored items.
Single-Pass HEPA Filtration with Vertical Laminar Flow
The fan-filter unit mounted on top supplies single pass HEPA-filtration, pressurizing the cabinet’s interior to protect against particle contamination. Doors for each chamber reduce in-flow of outside air and contaminants during material transfer.
Bottom Exhaust Vents for Vertical Laminar Airflow
Slotted chambers help quickly circulate and mix clean air throughout the cabinet to minimize “blind spots” and further dilute particulates inside the cabinet. The bottom doors of the cabinet have air exhaust vents to promote vertical laminar airflow.
Stainless Steel-Reinforced Doors
Stainless steel reinforcing bar provides added rigidity and durability to plastic doors.
Closed-Cell Door Gasket on Reinforced Door
Closed-cell door gasket maintains internal positive pressure when purged with dry gas, and stainless steel reinforcements extend door life
Durable Embedded Static-Dissipative Layers
Terra's SDPVC features bonded dissipative layers that resist abrasion. SDPVC desiccators retain their surface resistivity of 106 - 108 ohms/square indefinitely (unlike spray-on coatings that can wear off after a few years), protecting your materials against ESD damage. Further, the control of static charges eliminates particle attractions, helping maintain clean surfaces.
Self-Closing 316L Stainless Steel Hinges
Self-closing 316L stainless steel hinges use springs to both hold open and help tightly close doors. Stainless steel drastically extends service life and minimizes corrosion, flaking, and contamination that commonly occur with ordinary chrome-plated hinges.
Cleanroom Compliant Swell Latches
Swell latches open/close with the flick of a finger to save wrist strain. An expanding rubber bushing firmly seals doors to prevent dust and moisture from leaking in, plus eliminates corrosion, flaking, and particle contamination from chrome-plated latches.
Thermohygrometer
Displays internal temperature and relative humidity (one included on each cabinet).
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Long-Term Customers
Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers
Complete Project Transparency
Terra is dedicated to complete transparency on project status, shipment tracking, and installation scheduling
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
Products Compliant With Your ISO Rating
Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and certify it with the serial numbers appended to your invoice, to be included in your compliance package.
