120 V Motorized Brush Built-In Vacuum ISO 7 1784-14B $3,465 1-3 Days2
Quick Ship+ Available 33 in stock
240 V Motorized Brush Built-In Vacuum ISO 7 1784-14A-220 $3,795 1-3 Days3
Quick Ship+ Available Only 1 left in stock
Voltage
Type
Configuration
Certified ISO Grade Design
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Related Posts
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Terra's motorized shoe cleaner minimizes cross-contamination in cleanroom and laboratory environments
  • Automatic shoe cleaner provides fast, effective cleaning with a time-proven design
  • Built-in vacuum system with HEPA filtration capture particles and contaminants
  • Simply pull the handle and multiple nylon brushes automatically scrub footwear
  • Redesign features a quiet longer lasting cleaning system, with all the same replaceable parts (filters, dust bags, brushes)
  • Powerful Cleaning:
  • (5) non-abrasive nylon brushes thoroughly clean the top, bottom, and sides of shoes: (2) rotary side brushes (2) rotary bottom brushes (1) stationary top brush.
  • Two-Stage HEPA Filtration Vacuum System:
  • Powerful vacuum motor draws particles and contaminants from brushes into a HEPA vacuum dust bag. Airflow then exhausts through a HEPA filter rated 99.97% efficient @ 0.3 micron particles.
  • Adjustable Motor Speed:
  • Variable speed control allows adjustment of spinning brushes for various types of footwear.
  • The motor and other particle-generating components are sealed inside the unit to ensure optimal cleanliness.

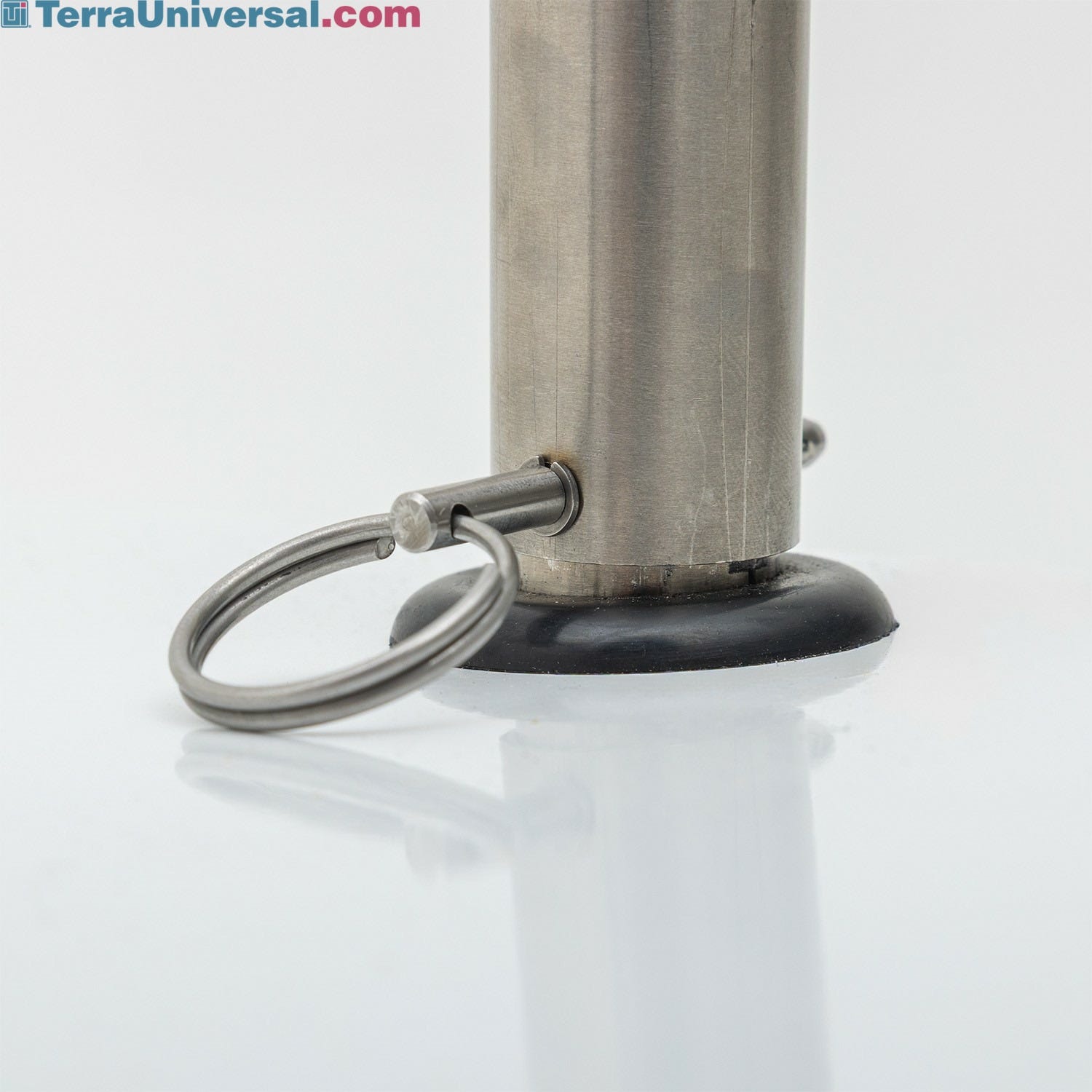

  • Ergonomic Handrail:
  • Waist high stainless steel handrail provides safe and convenient ON/OFF operation. Ergonomic handrail is height adjustable to prevent uncomfortable reach or back bending.
  • Clean and Durable Powder Coat Finish:
  • Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic.
  • LED Status Indicator provides a visual confirmation shoecleaner is powered on and operational.
  • Easy Maintenance:
  • All replacement parts (brushes, filters, dust bags, belts) are cross-compatible with cat# 1784-14.
  • Clear polyurethane belts offer better abrasion resistance, for longer life span and cleaner operation with fewer particulates shed.
  • NOTE:
  • Shoe cleaner is intended for indoor applications. It is not designed for outdoor or heavy industrial use in the presence of mud or water.

Certified ISO Grade Design: ISO 7

Unit of Measure: of 1

Shoe Cleaners & Sticky Mats

  • Automatic Shoe Cleaner, Smoke Test Watch Terra's Video of an Automatic Shoe Cleaner Smoke Test
  • motorized shoe cleaner operating diagram Motorized Shoe Cleaner Diagram
Automatic Shoe Cleaner, Smoke Test
motorized shoe cleaner operating diagram
Features & Benefits

Features and Benefits

Learn More: Motorized Shoe Cleaner

Motorized Shoe Cleaner

  • Internal vacuum system removes contaminating particles
  • Five internal brushes clean deep into seams, welts
  • 90 CFM (152.9 m³/hr), 1.5" I.D. x 1.75" O.D. (38 mm x 44 mm)
  • 0-1000 RPM
  • Waist-high handle allows convenient on/off operation
  • Controls allow adjustable rotational speeds
  • Model without internal vacuum system available for connection to in-house vacuum facility

This rugged, easy-to-operate automated shoe cleaner employs a time-proven design that ensures fast, effective shoe cleaning in cleanrooms, changing rooms, and other environmentally controlled areas.

Internal Vacuum System, Multiple Brushes Ensure Fast, Effective Cleaning

It is available with its own internal vacuum system and disposable paper bags for collection and removal of contaminants; no cumbersome vacuum cleaner or other external accessories are required. Simply plug it into any standard 110V outlet and installation is complete. An internal control allows an industrial engineer or supervisor to easily adjust the rotational speed of the brushes to suit any type of footwear. Operation is controlled by a simple press of the handle.

The Motorized Shoe Cleaner has five internal brushes for thorough cleaning of all shoe surfaces. The flexible nylon upper brush and two pairs of tough fiber rotational side brushes are arranged to reach deep into the seams, welts, and cracks, and to clean every part of the shoe—the sole, upper, behind the heel, and the sole/heel junction.

Clean, Rugged Construction

The housing of the shoe cleaner is made of thermo-formed plastic that resists dents and will not shed particles. The on/off handle is chrome plated. The motor and other particle-generating components are sealed inside the unit to ensure optimal cleanliness. HEPA filter included, providing advanced filtration and a much quiter operation

Motorized Shoe Cleaner

Comes with one dust bag installed and two spares: one-year warranty. Shoe cleaner is not designed for outdoor or heavy industrial use in the presence of mud or water. Such exposure invalidates the one-year warranty.

HEPA-Filtered Shoe Cleaner

Shoe cleaner HEPA-filtered vacuum system removes contaminating particles. Waste-high handle allows for convenient on-off settings.

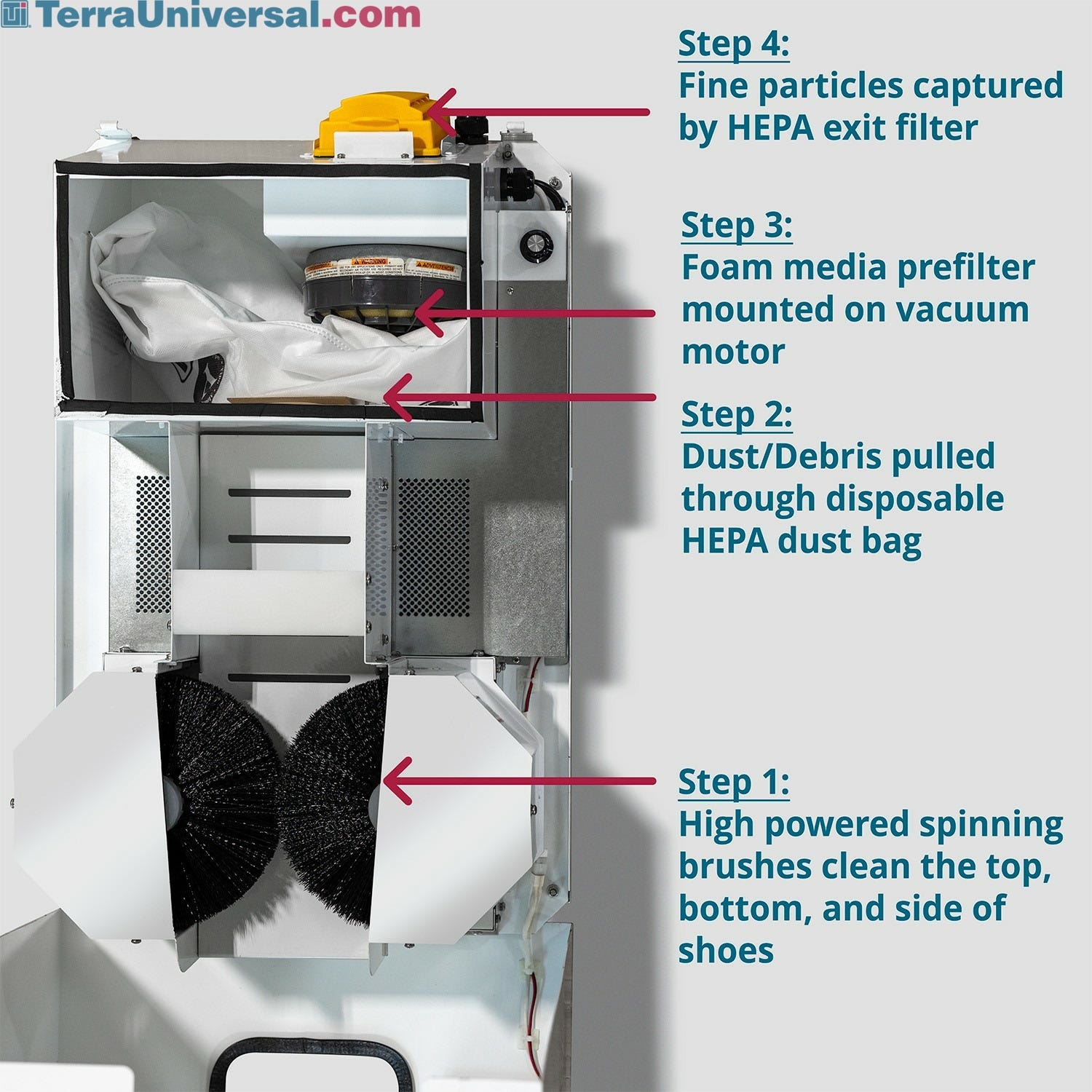

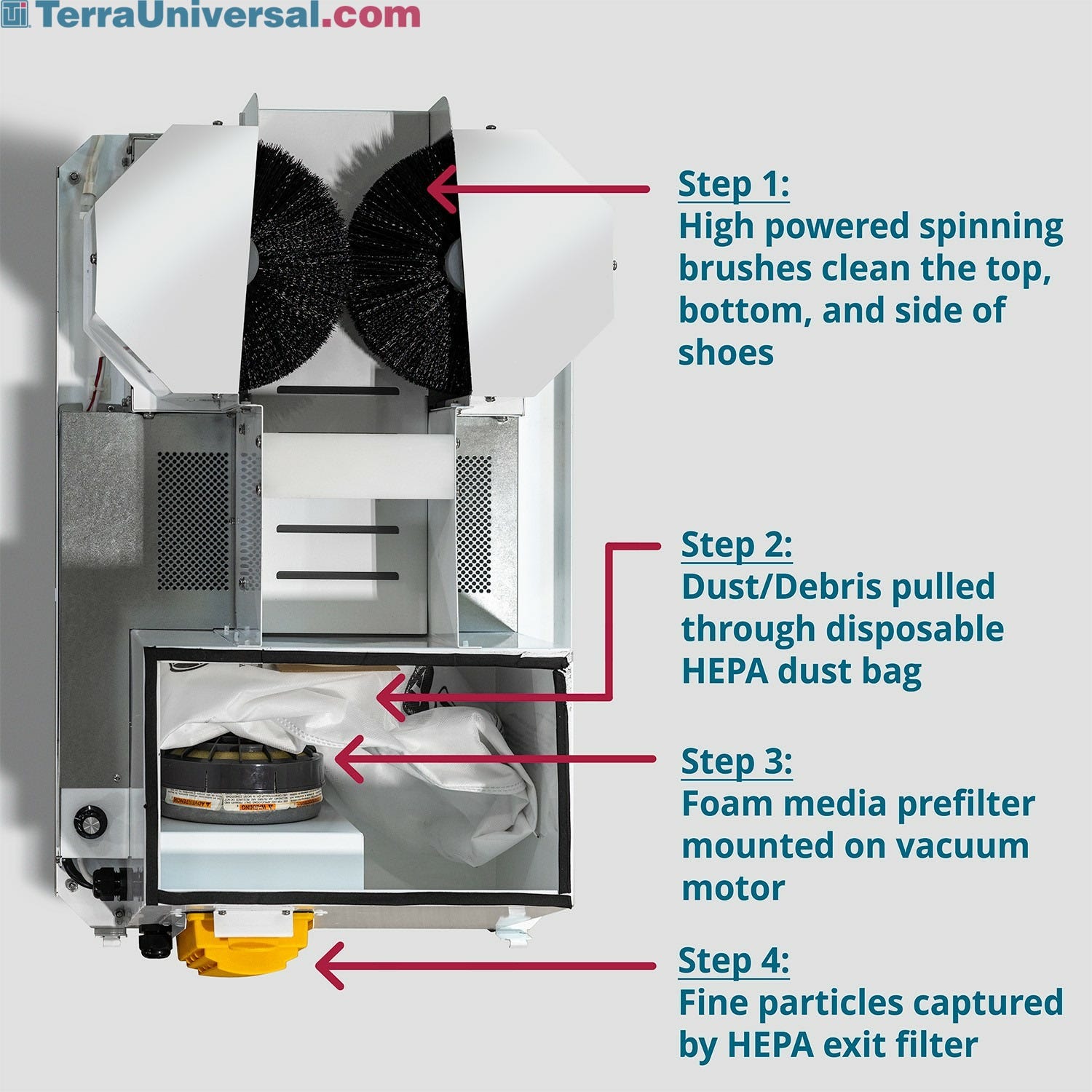

Motorized Shoe Cleaner Diagram

Terra's motorized shoe cleaner features two-stage HEPA filtration. The vacuum motor pulls dust and debris through a HEPA dust bag, and then pushes air through a final HEPA exit filter.

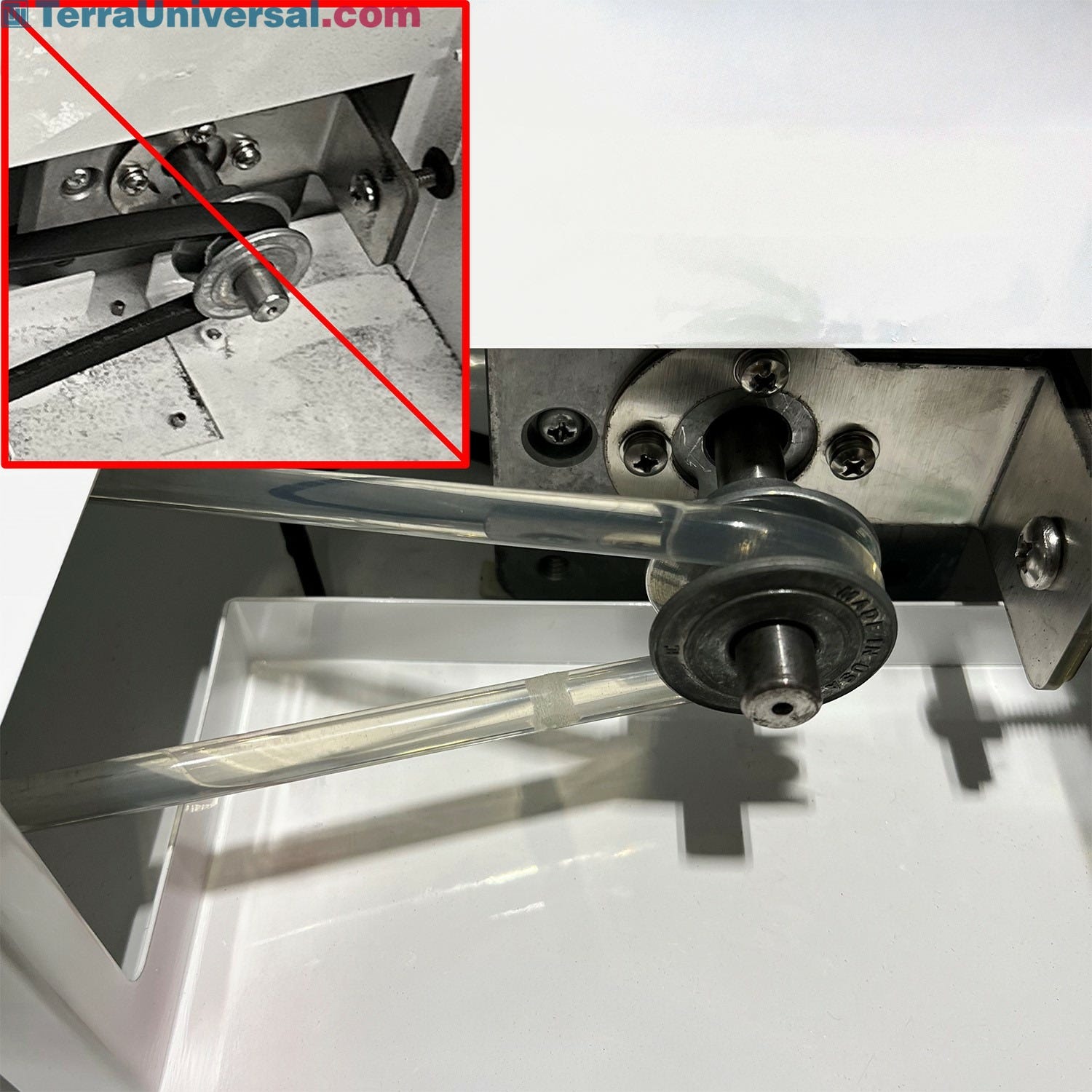

Shoe Cleaner Polyurethane Belt Comparison

Clear abrasion resistant polyurethane belt offers longer life span and cleaner operation with far less particulates shed than ordinary rubber belts.

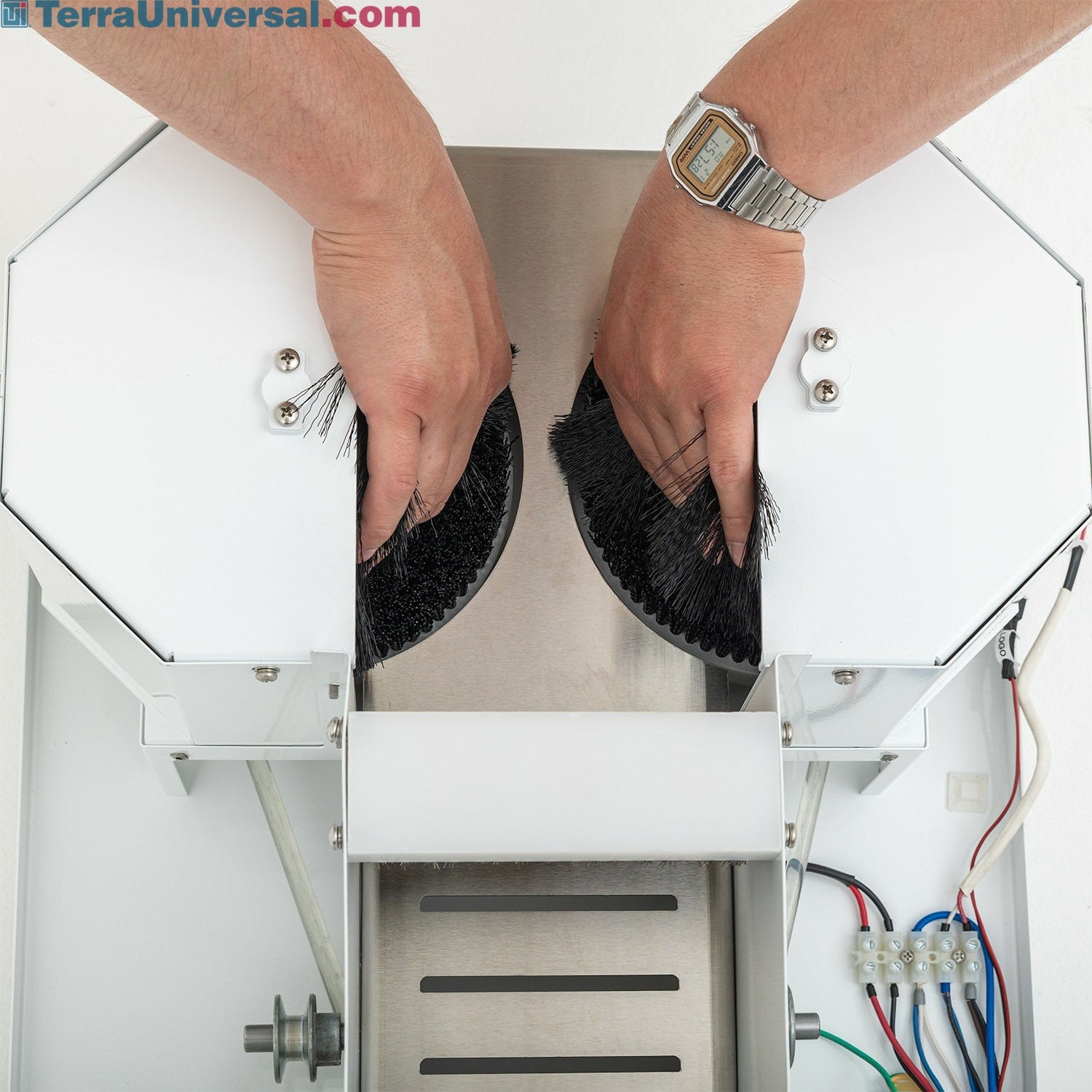

Shoe Cleaner Motorized Brushes

Motorized brush is double-layered to ensure thorough footwear cleaning.

Shoe Cleaner Motorized Brush

Motorized brush is double-layered to ensure thorough footwear cleaning. Brush speed is adjustable to fit your application.

Replaceable HEPA Filter for Motorized Shoe Cleaner

Shoe cleaner features external HEPA filter for easy replacement.
