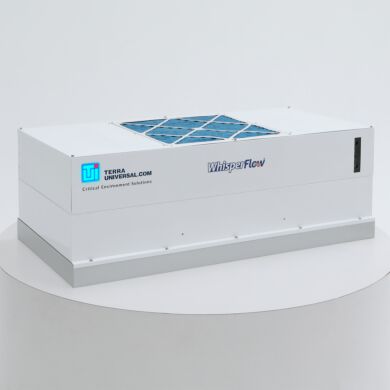

Smart® EC Fan Filter Unit With Integrated UPS Battery System
Manufactured By: Terra Universal
Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
Energy efficient Smart FFU with integrated UPS battery system arrives fully assembled, ready for use
High-capacity, durable, ISO-compliant system rated for thousands of operating hours
Handy and convenient Uninterruptible Power Supply (UPS) provides power when and where you need it, battery system provides approximately 1-2 hr runtime depending on FFU speed setting
EC motor offers high performance, low energy consumption, and low noise levels (40 dB)
Suitable for mobile transport or applications that require protection from unexpected power outages
Here at Terra Universal, we’ve made it our mission to offer the best possible lead times in the industry. In addition to aggressive stocking programs and streamlined fulfillment, Terra Universal also offers several services that ensure you receive your products as quickly as possible.
Terra FasTrak Guaranteed Delivery Services
FasTrak 24/7 guarantees to meet the shipping date YOU specify, regardless of quoted lead times.
Terra Universal can provide FasTrak 24/7 service for both in-stock products and custom orders.
Examples of FasTrak 24/7 services include:
Assigning a dedicated senior expediter
Assigning a dedicated production team and up to three shifts per day
Eliminating internal purchase approvals to speed the receipt of parts and materials
Terra FasTrak service fees are only meant to cover the cost of additional Terra services, they are not designed to generate profit. If Terra fails to ship on or before the specified date, Terra will refund up to 100% of the FasTrak charges at the client's request. This guarantee does NOT cover direct, special, consequential, or other damages. It is strictly limited to 100% of the amount paid for the FasTrak service.
The FasTrak 24/7 refund policy does not apply when a specified ship date is missed due to factors outside Terra's control, such as vendor performance or shipping company delays. The FasTrak 24/7 guarantee DOES apply in instances where the shipping date is missed due to Terra's own negligence.
Terra Quick Ship Plus Service
Terra's QuickShip Program includes thousands of in-stock, ready-to-ship, ready-for-delivery products.
Examples of Quick Ship Plus-eligible products include:
The Quick Ship Plus service is available for orders of in-stock, turnkey products that do not require any additional assembly before shipment. This service guarantees that the order will be delivered on or before the date indicated, or the charges for the Quick Ship Plus service will be refunded in full upon the client's approved request.
This guarantee does not cover any direct, special, consequential, or other damages, and is strictly limited to 100% of the amount paid for the Quick Ship Plus service. In alignment with FasTrak programs, In the case that shipment delays arise due to factors that are within Terra's control, Terra will refund up to 100% of the Quick Ship Plus fees. This guarantee does NOT cover direct, special, consequential or other damages and is strictly limited to 100% of the amount paid for Quick Ship Plus service.
Terra Quick Build Program
Terra's QuickBuild Program includes dozens of products with stocked components ready for quick assembly and shipment in 5 days.
Quick Build services are available for Terra products assembled with in-stock, on-hand components. Therefore, Terra can provide these items assembled and ready for shipment within 4 - 6 business days.
Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
Energy efficient Smart FFU with integrated UPS battery system arrives fully assembled, ready for use
High-capacity, durable, ISO-compliant system rated for thousands of operating hours
Handy and convenient Uninterruptible Power Supply (UPS) provides power when and where you need it, battery system provides approximately 1-2 hr runtime depending on FFU speed setting
EC motor offers high performance, low energy consumption, and low noise levels (40 dB)
Suitable for mobile transport or applications that require protection from unexpected power outages
Ships in 120V configuration. Can easily be reconfigured to 230V

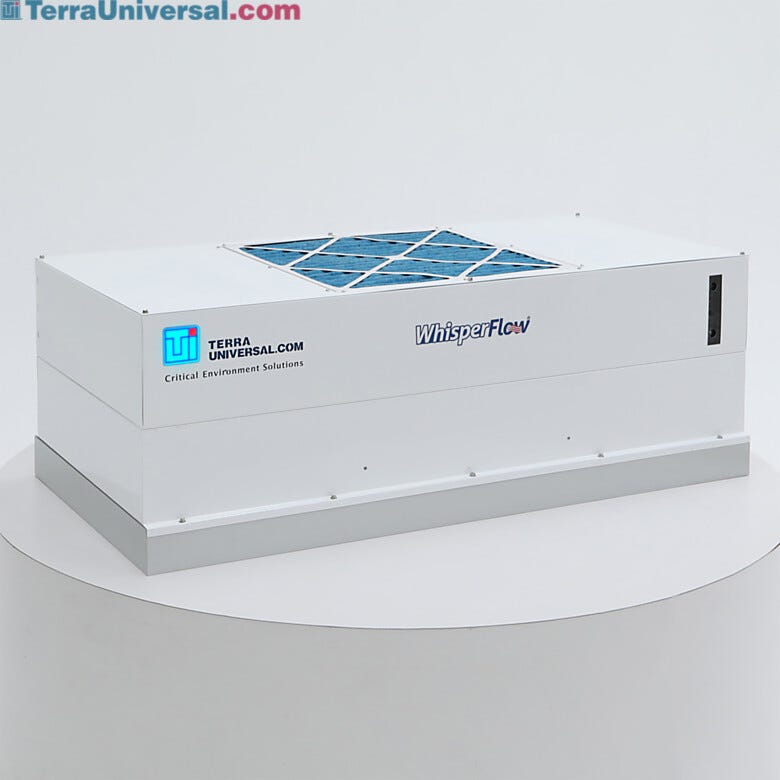

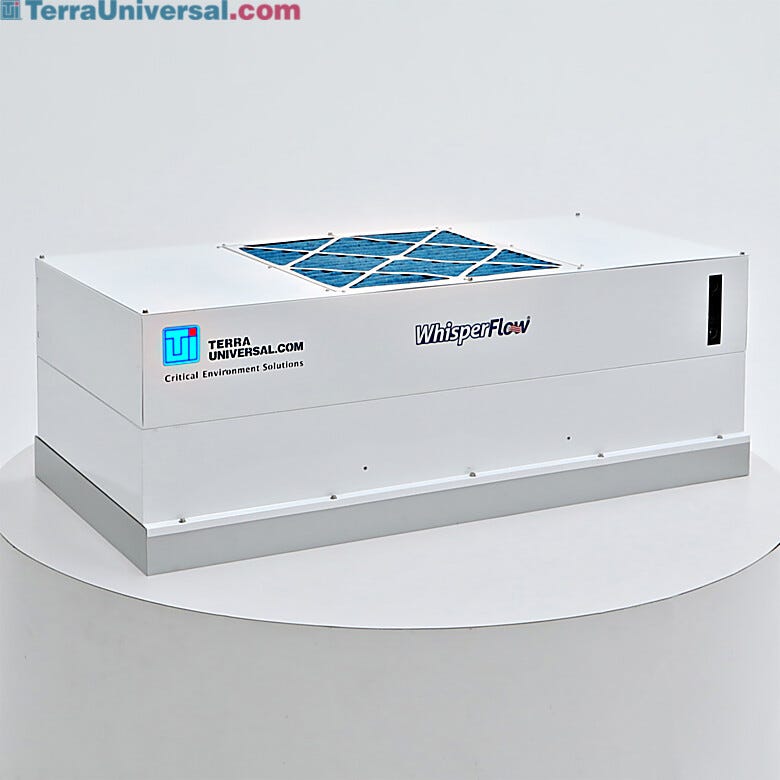

Uninterruptible Power Supply (UPS) battery system:
UPS systems provide a backup battery-power supply that keeps critical equipment running without interruption when utility power supply is unavailable.
UPS System includes main UPS plus an add-on external rechargeable battery pack for longer runtimes.
Fully assembled plug-and-play design speeds up installation. No time-consuming connection of internal batteries by user required.
Intelligent battery management system extends battery life.
Estimated Runtimes:
180W Load: 123 minutes.
350W Load (max speed): 55 minutes.
NOTE: All estimates based on new, fully charged batteries under typical office environmental conditions.
Front panel LEDs alert you to a variety of performance conditions, including AC line present, automatic voltage regulation, UPS load level and replace battery.
External battery can be "hot-swapped" (safely removed or swapped without shutting down the UPS).
For Power Outages: UPS Protects against all types of power problems including blackouts, brownouts, surges and line noise. In the event of a power outage, the UPS immediately activates without interruption. The UPS keeps your FFU running long enough to either: (1) safely store away contamination-sensitive materials and works-in-progress before shutting down operations, or (2) switch to a back-up power generator.
For Mobile Applications: Use the UPS to create a mobile battery-powered cleanroom on wheels to safely transport sterile materials through a dirty space. The UPS provides adequate time to transfer out of one cleanroom and relocate to another cleanroom in a different part of the facility. With the FFU mounted on top of the cabinet, the battery-powered system supplies uniform HEPA-filtered air flow to prevent airborne contamination while moving the cabinet through a dirty environment. Once the cart arrives at its destination, simply plug the system back into a wall outlet to recharge the batteries.
Smart® EC FFU:
High Efficiency Particulate Air (HEPA) Filter: 99.99% efficient at 0.3µm particle diameter.
Electronically commutated (EC) brushless motor with internal microprocessor. EC motor offers high performance, low energy consumption and low noise levels (40 dB).
MODBUS® networking control card with closed-loop control capability supports air pressure, air flow, and particle count sensors.
Motor control panel includes diagnostic indicator lights, manual speed adjustment, test probe jacks, CAT5e ports, control mode switch, and MODBUS® address DIP switch bank.
FDA-approved silicone sealant minimizes leaks for improved efficiency. It is also food-grade and resistant to a wide variety of chemicals and environments for a long service life.
Internal baffling plate and diffuser panel provide quiet uniform air flow across the filter face.
Filters are leak tested in accordance with IEST standards and meet UL 900.
Includes MERV 7 pre-filter to extend service life of HEPA filter.
See performance data and submittal sheets for additional information.
Optional Accessories: challenge port kit, power plug adapter, replacement filter, filter replacement alarm, ionizing bar, pre-filter safety cover for CE conformance.
All filter sales are final; returns for this item cannot be accepted.
Overview video of Terra Universal's comprehensive portfolio of filter fan unitsTerra Universal WhisperFlow® Filter Fan UnitsOverview video of Terra Universal's comprehensive portfolio of filter fan units
Did You Know? HEPA/ULPA Filters Do More Than Meet ISO Requirements - they also prevent infection.
Most cleanroom professionals understand that HEPA and ULPA filters capture contaminants that degrade particle-sensitive samples. But they also help remove bacteria, mold spores, and many viruses that contribute to a host of infections.
Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.
These filters also remove aerosol-born pathogens - germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.
Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.
Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:
Pathogens: Bacteria and Diseases
SARS-CoV-2: Coronavirus (COVID-19)
Escherichia coli: Gastrointestinal infection
Bacillus anthracis : Anthrax
Aspergillus brasiliensis: Sinus infections
Francisella tularensis: Tularemia
Bordetella pertussis : Whooping cough
Mycoplasma pneumoniae: Pneumonia
Chlamydia pneumoniae: Bronchitis
Chlamydia psittaci : Psittacosis
Klebsiella pneumoniae: Opportunistic infections
Haemophilus influenzae : Meningitis
Coxiella burnetii: Q fever
Pseudomonas aeruginosa: Opportunistic infections
Actinomyces israelii: Actinomycosis
Legionella pneumophila: Legionaire's disease
Thermoactinomyces sacchari: Farmer's lung
Alcaligenes: Opportunistic infections
Streptococcus pyogenes: Scarlet fever
Mycobacterium Tuberculosis: Tuberculosis
Full Range of Designs, Configurations!
WhisperFlow FFUs come in all styles: room-side replaceable, all-stainless steel, HEPA or ULPA filtration, EC energy-saving fans, reverse flow and more (shown: vapor filtration module with UV sanitation lamp).
Products Compliant With Your ISO Rating
High-capacity, durable, ISO-compliant system rated for thousands of operating hours.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Energy-Efficient Lighting
Energy-efficient LED lighting panels and strips help to lower electrical costs and minimize heat build-up in temperature-controlled environments.
Fan Filter Unit Control System
Provides room-by-room monitoring and control of Smart WhisperFlow FFUs to maintain target pressure differentials for ISO classification; temperature, humidity and particle monitoring and data logging, as well as dynamic fan set-point control, also available.
Filter Replacement Alarm
The filter replacement alarm monitors filter backpressure and issues an alarm when filter needs replaced (requires selection of fan filter unit with challenge port, order separately).
Ionizing Bar; 22"L, with Installation Kit, for 24 x 24 Fan/Filter Unit
Ionizing bar, mounted to Fan/Filter Unit, provides a balanced stream of ions to the work area below to neutralize static charge and prevent electro-static discharge; 22" bar shown installed on 2' x 2' FFU.
Challenge Port; for Fan/Filter Unit
Challenge port for Fan/Filter Units simplifies filter leak testing and connection of Filter Backpressure Alarm (shown mounted on SS FFU, order separately).
Power Distribution Modules for Cleanroom FFUs and Lights
UL-listed power distribution modules include all breakers, transformers and other electrical components for FFU/light connections; allows fast addition or relocation of FFUs or lights without the need for rewiring.
Safely Mount FFU’s Above Floor for Horizontal Laminar Airflow
The portable FFU base stand can be easily positioned to supply Class 100 horizontal laminar flow into a room or enclosure. It can also be positioned next to sensitive equipment/materials that are mounted close to the floor.
Purchase replacement filters ahead of time to prevent costly operational interruptions and avoid damage to fan blowers caused by excessive backpressure from long overdue filter replacements.
