Select Product

Voltage

Airflow Direction

ISO Class

Max # of FFUs

Inside Width

Inside Depth

FFU Position

Terra Part #PriceShips in
120 VHorizontalISO 5148.25"29.5"71"Horizontal 1870-20 75091 $4,0981-3 Days2
In stock soon
120 VHorizontalISO 52100.5"29.5"71"Horizontal 1870-21 75093 $6,2591-3 Days3
Only 4 left in stock
120 VHorizontalISO 5248.25"29.5"71"Vertical 1870-22 80055 $5,37715-21 Days4
120 VHorizontalISO 5372.5"29.5"71"Vertical 1870-23 80062 $7,53815-21 Days5
120 VHorizontalISO 54102"29.5"71"Vertical 1870-25 80783 $8,81715-21 Days6
220 VHorizontalISO 5248.25"29.5"71"Vertical 1870-22-220 80057 $5,56115-21 Days7
220 VHorizontalISO 5372.5"29.5"71"Vertical 1870-23-220 80063 $7,89415-21 Days8
220 VHorizontalISO 54102"29.5"71"Vertical 1870-25-220 80784 $9,17315-21 Days9
Voltage
Airflow Direction
ISO Class
Max # of FFUs
Inside Width
Inside Depth
Inside Height
FFU Position
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

  • All horizontal laminar flow stations feature ISO 5 rated conditions
  • CleanBooth FFUs can be configured horizontally or vertically
  • Quick Build Product: Components in-stock and ready for shipment in 4 - 6 business days
  • Packaged knocked down to streamline transportation and delivery
  • Hardware-free installation in under 15 minutes
  • Continuous PVC curtain panel dissipates static charges and encloses work zone from ambient environment
  • Includes HEPA-filtered fan unit(s), LED light, rigid anti-static curtain panel, steel frame and casters
  • Mobile and versatile mini-cleanroom
  • HEPA fan/filter units provide laminar airflow that protects sensitive materials or equipment from airborne particulates
  • Positions the FFU  behind a work surface or machine to create a particle-free mini-environment
  • Ideal for probe stations, screen printers, benchtop kitting or assembly areas
  • Internal baffling plates and anodized aluminum diffuser panel ensure uniform air speed across the work area
  • Quiet operation: 50 dBA measured 30" from the filter face
  • Optional flexible dissipative PVC panels create a 3-sided enclosure that optimizes laminar airflow
  • Use with existing work surfaces or a Terra cleanroom workbenches

Portable Particle or Fume Containment Room

Standard Features

  • A Vinyl Panels
    40 mil vinyl panels isolate dirty operations to protectd external environment
  • B LED Light Fixtures
    LEDs enhance visibility without disrupting airflow
  • C Door Options
    Entry: parting panels or optional swing door
  • D Fan Filter Units
    HEPA Fan/Filter Units (FFUs) or charcoal filters mounted on support frame for exhaust/filtration (depending on configuration)
  • E Casters
    Casters for easy positioning

Portable CleanBooth™ Laminar Flow Stations

  • CleanBooth Portable Cleanroom Enclosure, 100”W x 52”D x 84”H Portable CleanBooth™, 8’W x 4’D x 8’H
  • 4'W x 4'D Portable CleanBooth ISO 5 Enclosure Portable ISO-Rated Flow Hood
  • Mobile Protection for Workstations Mobile Protection for Workstations
  • Terra Universal WhisperFlow Laminar Flow Hoods Terra Universal WhisperFlow Laminar Flow Hoods
  • Laminar Flow Hood Airflow Fog Test
  • Horizontal Laminar Flow Hood Smoke Test
Terra Universal WhisperFlow Laminar Flow Hoods

Features & Benefits

Features and Benefits

Softwall Panel Use

Flexible Side Panels Restrict Air Flow to Optimize Cleanliness

Flexible panels attach to the frame by means of a smooth, non-contaminating Grip-Track™ mounting system that minimizes cracks and seams where particles can collect. The optional side panels are available in three materials:

  • Cleanroom-Grade Vinyl is fire retardant and low outgassing.
  • Static-Dissipative Vinyl is manufactured with permanent built-in static inhibitors that, unlike topical treatments, will not wear off.
  • Non-outgassing Polyurethane is made from inherently static-dissipative polyurethane that provides permanent, humidity-independent ESD protection for sensitive manufacturing conditions. Polysim contains no plasticizer, making it virtually non-outgassing.

HEPA Fan Filter Units (FFUs)

The 2' x 4' FFU houses a HEPA filter, rated 99.99% efficient with 0.3 micron particles, that provides an ISO-compliant air flow in the enclosure. Advanced baffle technology and air diffuser grille ensures uniform face velocity.

LED Light Fixture

The low-energy LED light enhances visibility without disrupting airflow from the FFU.

Casters for Easy Positioning

Heavy-duty non-marring casters, two with locks, provide smooth rolling and easy positioning of the CleanBooth™

Softwall Side Panels

The CleanBooth includes transparent, 40-mil anti-static vinyl panels that mount in an external track to create a three-sided enclosure; select optional strip shields to enclose the remaining side.

CleanBooth™ Steel Frame

CleanBooth™ frame is fabricated of 1" x 2" powder-coated steel members for strength and includes heavy-duty casters for easy positioning above a table or process equipment.

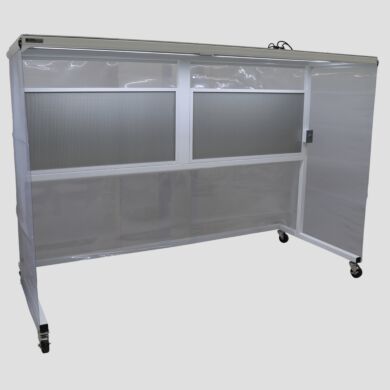

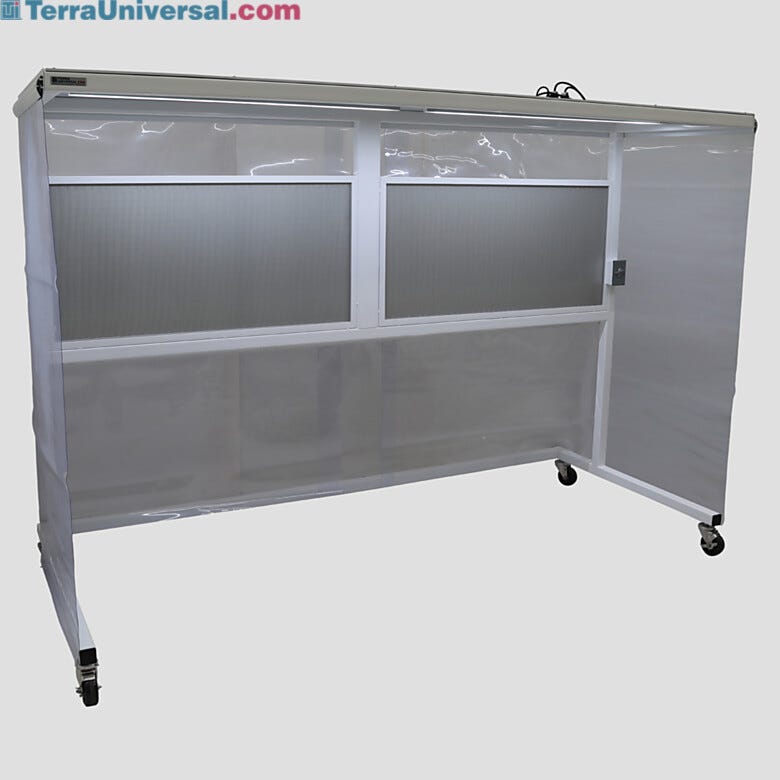

Portable Horizontal Flow CleanBooth

The Portable CleanBooth wheels into position above a workbench or instrument to provide an ISO-compliant flow of HEPA-filtered air.

Portable Horizontal Flow CleanBooth Fan Filter Unit

HEPA Fan Filter Unit is securely mounted to the CleanBooth frame to provide horizontal laminar air flow.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Ionizing Bar Mounts to Cleanroom Ceiling
    Intrinsically safe low-voltage ionizing bar mounts to a fan/filter unit on a cleanroom ceiling or inside a laminar flow hood to neutralize static charges on the work station below.
  • Isolated Work Surfaces in Many Materials
    Tables in many styles and materials, including dissipative laminate, chemical-resistant polypropyene and epoxy resin, are isolated from hood to reduce vibration (shown: solid stainless steel top with adjustable powder-coated legs).
  • Lighthouse Handheld Airborne Particle Counters
    Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environments
  • Replacement Filters
    Purchase replacement filters ahead of time to prevent costly operational interruptions and avoid damage to fan blowers caused by excessive backpressure from long overdue filter replacements.
  • Fan Filter Unit with External UPS Battery System
    Uninterruptible Power Supply (UPS) system provides backup battery power supply to keep critical equipment running without interruption when utility power supply is unavailable. The separate system can be retrofitted to an existing 2’x4’ FFU. Stainless steel model available.
