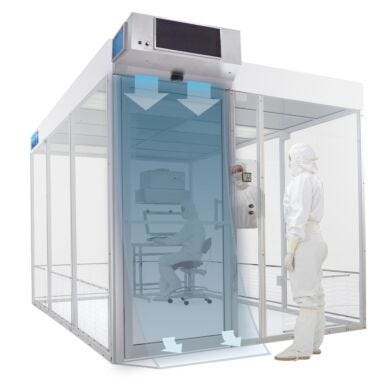

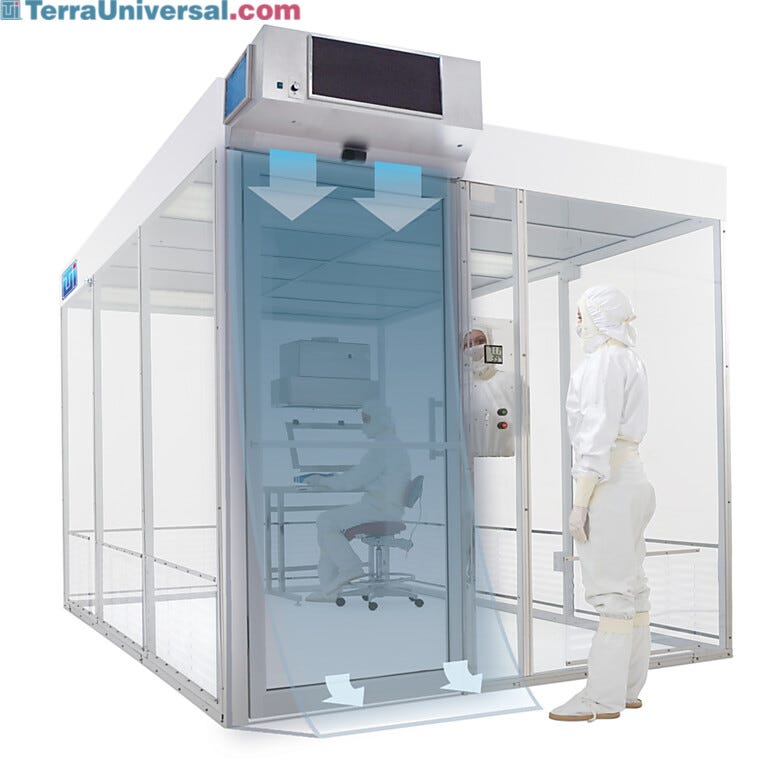

High-velocity cleanroom air curtain installed above the entryway of a hardwall Terra Universal Cleanroom |
Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Cleanroom Accessories & Components,Air Showers & Tunnels,Air Showers,Air Showers,Air Showers,Air Showers
Product Group:
6601-PP-01
6601-PP-01 72246

High-Velocity Cleanroom Air Curtains

  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Similar to a door, an air curtain acts as a barrier to prevent outside air from entering a cleanroom
  • Mounts above an entryway to produce a barrier of ULPA Class 10 micro-filtered air
  • Protects against particles and ambient air entering a controlled environment
  • Low cost alternative to air shower, removes particles from personnel and parts entering cleanroom
  • Ideal for frequently opened doors or doorless entryways
Read more
Stocked ISO 6 Icon
Manufactured By: Terra Universal
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Type

Sort Order:
Material

Sort Order:
Width

Sort Order:
Depth

Sort Order:
Height

Sort Order:
ISO Class

Sort Order:

 Terra Part # Price Ships in
120 V Air Curtain 304 Stainless Steel 48" 17" 19" ISO 6 6601-50A 65353 $4,913 1-3 Days 2
In stock
120 V Air Curtain 304 Stainless Steel 69" 17" 19" ISO 6 6601-48 66523 $5,230 1-3 Days 3
Only 7 left in stock
120 V Air Curtain 304 Stainless Steel 69" 17" 19" ISO 6 6601-48B 82591 $5,230 1-3 Days 4
In stock soon
120 V Air Curtain 304 Stainless Steel 48" 17" 19" ISO 6 6601-50B 82593 $4,913 1-3 Days 5
Only 1 left in stock
Voltage
Type
Material
Width
Depth
Height
ISO Class
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • •  Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • Similar to a door, an air curtain acts as a barrier to prevent outside air from entering a cleanroom
  • Mounts above an entryway to produce a barrier of ULPA Class 10 micro-filtered air
  • Protects against particles and ambient air entering a controlled environment
  • Low cost alternative to air shower, removes particles from personnel and parts entering cleanroom
  • Ideal for frequently opened doors or doorless entryways
  • Two operating modes: motion sensor activation (with adjustable delay) or continuous operation
  • Air speed control and adjustable baffles to change angle of discharge port (±30°)
  • Continuous flow of air can be positioned over conveyor belts or automated processes that move between rooms
  • Customizable to fit any entryway or wall opening
Show more

Show more
Features & Benefits

Features and Benefits

Learn More

ULPA Filtered Air Curtain Provides Protective Barrier of Micro-Filtered Air

Cleanroom air curtains provide a blade-shaped shower of ULPA-filtered air (99.999% effective at catching particles down to 0.12 microns), acting as a barrier to protect against particles and ambient air from entering a controlled environment.

Versatile Mounting Locations

Cleanroom air curtains are useful over any of type and size of opening to control temperature and/or contamination

Control Temperature and Contamination

Ideal for pharma, medical device, or food/beverage operations to control temperature and contamination between an controlled and uncontrolled space.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
