Terra Part # 1510-30A
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Accessories related to Terra Part # 1510-30A

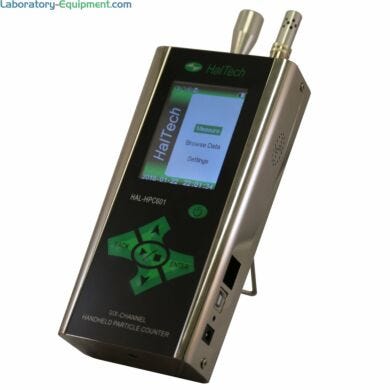

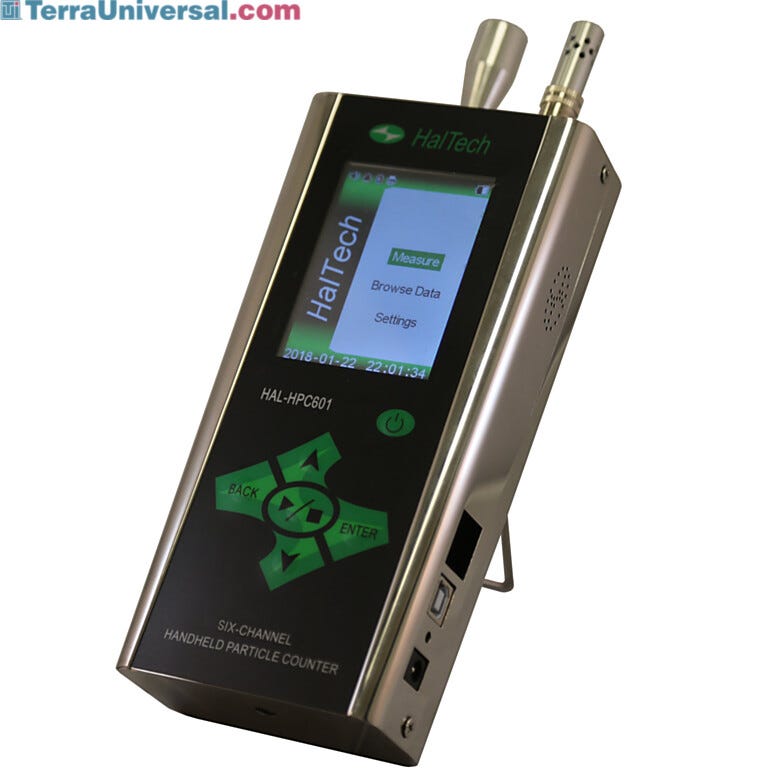

HAL-HPC601 Handheld Air Particle Counter, 6-Channel

HAL-HPC601 6-Channel Particle Counter compatible with Windows XP/7/8/10

Counting modes: cumulative, differential and concentration

Internal Memory: 7500 measurement data (7500 sets)

• Size range: 0.3 µm - 25 µm

• One-Year Manufacturer Warranty

• Light Source: Laser diode (>100,000 hours)

• Sensitivity: 0.3 µm

• Material: Stainless steel enclosure

• Channels: user-configurable from select options (0.3, 0.5, 0.7, 1.0 2.0, 2.5, 5.0, 10.0 and 15.0 µm)

• Counting Efficiency: 50±20% @0.3μm; 100±10% @0.45μm

Zero Count: <1 count per 5 minutes

• Flow Rate: 2.83 L /min (0.1cfm)

• Sampling Time: User defined (up to 59m59s) and auto repeat (up to 99 times)

• Count Limit Warning: FED STD 209E (Class 1 ~ 100,000) or ISO 14644-1 (Class 2 ~ 9)

Sampling Mode: Cumulative, differential, concentration (counts/liter), mass concentration µg/m3, TSP and PM values) (optional)

Error Indications: Excess count limit, optics contamination, loss of laser power, insufficient battery power

• Interface: USB, Bluetooth 4.0 (Window XP/7/8/10 compatible)

Power: Li-ion polymer rechargeable battery (7.4V/5200mAH) or 9VDC1.5A

• AC Adapter (100~240V input)

• Max. Operating Time: Continuous operation > 8 hours with Li-ion battery

Environmental Conditions

Operating: 0 ~ 50°C, < 90%RH

Storage: -20 ~ 65°C, < 90%RH

Applications: Clean environment monitoring, trace contamination source, indoor/outdoor air quality, test/check filter seal and efficiency, analysis of particle size distribution

• Internal microprocessor controls and displays parameter measurement and results (total counts, number of concentration or/and mass concentration and PM values), material (particle type) and correction

• Side-access ports, three-position stand and tripod mountable

• Compliance: JIS B 9925:1997 and ISO21501 and ISO14644-1

• Certification: CE

Standard Accessories: AC charger, isokinetic probe, USB data cable, data download software (CD), NIST-traceable calibration certificate

Optional Accessories: Zero-count filter, digital pressure, temperature and humidity sensor probe, mini Bluetooth printer, mini tripod

Mass Concentration Option: Displays particle concentration in μg/m3 and PM value

Detection Channels: 6 Channels

Detection Range: 0.3 - 25 µm

Unit of Measure: EA

Marks & Listings: CE

Electrical Specifications: 120/240 V, 1 Ph, 50/60 Hz

Weight, Product: 2.1 lb

Dimensions, Product: 3.6" W x 1.81" D x 7.5" H

Weight, Shipping: 9 lb

Dimensions, Shipping: 16" W x 16" D x 8" H

Package Type: Box

Buy Accessories
  1. Printer shown with other optional accessories  |  1510-33 displayed
    Increase Down Increase Up
  2. Paper: Print, 2 Rolls, for HPC Particle Counters
    Increase Down Increase Up
  3. Filter: Adapter, for HPC Particle Counters
    Increase Down Increase Up
  4. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
