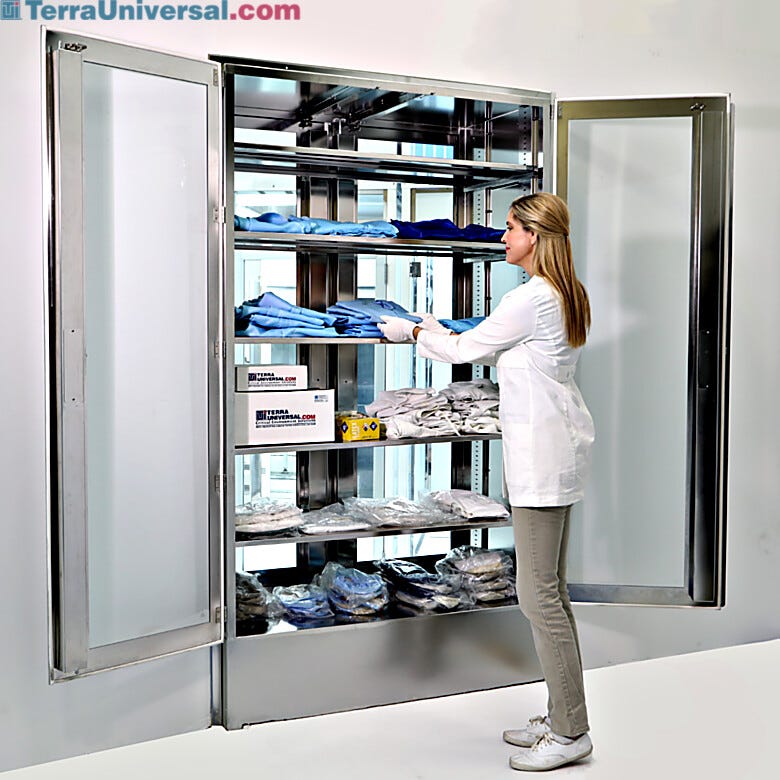

Double-door pass-through cabinet with interlocking doors, and adjustable shelving | 2633-01 displayed

Specialty Pass-Through Chambers,Double-Door High Capacity Cabinets,Passthroughs for Architects

Double-Door Pass-Through Cabinets

Available ISO Ratings: ISO 7, ISO 8
Double-door pass-through cabinet is ideal for hospital/medical lab environments
Quickly pass-through or re-stock supplies from “dirty” side without the need to enter “clean” side
Storage area includes stainless steel vertical supports for adjustable shelving
Versatile adjustable shelves offer improved storage capacity and space efficiency
Automatic door interlocks allow only one side to open at a time to prevent cross-contamination

Manufactured By: Terra Universal

Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Material All 304 Stainless Steel Sort Order: Descending Ascending	Blower/Filter All HEPA Blower No HEPA Blower Sort Order: Descending Ascending	ISO Class All ISO 5 ISO 6 Sort Order: Descending Ascending	Inside Width All 36" 38" 42" 48" 50" Sort Order: Descending Ascending	Inside Depth All 18" 22.5" 24" 29" 36.75" 44.75" Sort Order: Descending Ascending	Inside Height All 60" 64.5" 69.5" 22" 72" 78" Sort Order: Descending Ascending	Terra Part #	Price	Ships in
304	HEPA Blower	ISO 5	48	29	60	2633-13-H 80118	$10,788	14-16 Days	2
304	HEPA Blower	ISO 5	48	29	72	2633-23-H 80151	$11,459	14-16 Days	3
304	HEPA Blower	ISO 5	48	36.75	78	2633-24-H 80153	$12,288	14-16 Days	4
304	HEPA Blower	ISO 5	48	44.75	78	2633-25-H 80155	$12,790	14-16 Days	5
304	HEPA Blower	ISO 5	48	24	60	2633-11-H 80113	$10,515	14-16 Days	6
304	HEPA Blower	ISO 5	48	24	72	2633-21-H 80134	$11,155	14-16 Days	7
304	HEPA Blower	ISO 5	48	18	60	2633-07-H 80105	$10,186	14-16 Days	8
304	HEPA Blower	ISO 5	48	18	72	2633-17-H 80126	$10,791	14-16 Days	9
304	HEPA Blower	ISO 5	38	22.5	64.5	2633-01-H 79485	$10,222	14-16 Days	10
304	HEPA Blower	ISO 5	42	24	22	2633-10-H 80111	$10,131	14-16 Days	11
304	HEPA Blower	ISO 5	42	24	72	2633-20-H 80132	$10,711	14-16 Days	12
304	HEPA Blower	ISO 5	42	18	60	2633-06-H 80103	$9,823	14-16 Days	13
304	HEPA Blower	ISO 5	42	18	72	2633-16-H 80124	$10,365	14-16 Days	14
304	HEPA Blower	ISO 5	50	22.5	64.5	2633-03-H 79487	$11,075	14-16 Days	15
304	HEPA Blower	ISO 5	36	29	60	2633-12-H 80115	$9,992	14-16 Days	16
304	HEPA Blower	ISO 5	36	29	72	2633-22-H 80149	$10,540	14-16 Days	17
304	HEPA Blower	ISO 5	36	24	60	2633-09-H 80109	$9,444	14-16 Days	18
304	HEPA Blower	ISO 5	36	24	72	2633-19-H 80130	$10,267	14-16 Days	19
304	HEPA Blower	ISO 5	36	18	60	2633-05-H 80101	$9,450	14-16 Days	20
304	HEPA Blower	ISO 5	36	18	72	2633-15-H 80122	$9,867	14-16 Days	21
304	No HEPA Blower	ISO 6	38	22.5	69.5	2633-01 75824	$8,939	1-3 Days	22	Only 4 left in stock
304	No HEPA Blower	ISO 6	50	22.5	69.5	2633-03 79486	$8,979	14-16 Days	23
304	No HEPA Blower	ISO 6	36	18	60	2633-05 80100	$7,350	14-16 Days	24
304	No HEPA Blower	ISO 6	42	18	60	2633-06 80102	$7,723	14-16 Days	25
304	No HEPA Blower	ISO 6	48	18	60	2633-07 80104	$8,086	14-16 Days	26
304	No HEPA Blower	ISO 6	36	24	60	2633-09 80108	$7,649	14-16 Days	27
304	No HEPA Blower	ISO 6	42	24	60	2633-10 80110	$8,031	14-16 Days	28
304	No HEPA Blower	ISO 6	48	24	60	2633-11 80112	$8,415	14-16 Days	29
304	No HEPA Blower	ISO 6	36	29	60	2633-12 80114	$7,892	14-16 Days	30
304	No HEPA Blower	ISO 6	48	29	60	2633-13 80117	$8,688	14-16 Days	31
304	No HEPA Blower	ISO 6	36	18	72	2633-15 80121	$7,839	14-16 Days	32
304	No HEPA Blower	ISO 6	42	18	72	2633-16 80123	$8,265	14-16 Days	33
304	No HEPA Blower	ISO 6	48	18	72	2633-17 80125	$8,691	14-16 Days	34
304	No HEPA Blower	ISO 6	36	24	72	2633-19 80129	$8,167	14-16 Days	35
304	No HEPA Blower	ISO 6	42	24	72	2633-20 80131	$8,611	14-16 Days	36
304	No HEPA Blower	ISO 6	48	24	72	2633-21 80133	$9,055	14-16 Days	37
304	No HEPA Blower	ISO 6	36	29	72	2633-22 80145	$8,440	14-16 Days	38
304	No HEPA Blower	ISO 6	48	29	72	2633-23 80150	$9,359	1-3 Days	39	Only 1 left in stock
304	No HEPA Blower	ISO 6	48	36.75	78	2633-24 80152	$10,188	1-3 Days	40	Only 1 left in stock
304	No HEPA Blower	ISO 6	48	44.75	78	2633-25 80154	$10,690	14-16 Days	41

Material

Blower/Filter

ISO Class

Inside Width

Inside Depth

Inside Height

Some ship in:

Usually Ships in:

Add to Compare

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

Product Details

Features & Benefits

Available Accessories

Products similar to this one

Buy Accessories

Manuals & Resources

Product Details

• Available ISO Ratings: ISO 7, ISO 8
Double-door pass-through cabinet is ideal for hospital/medical lab environments
Quickly pass-through or re-stock supplies from “dirty” side without the need to enter “clean” side
Storage area includes stainless steel vertical supports for adjustable shelving
Versatile adjustable shelves offer improved storage capacity and space efficiency
Automatic door interlocks allow only one side to open at a time to prevent cross-contamination

Multi-functional double-sided storage cabinet reduces foot traffic, improves cleanliness, safety, productivity, and much more.

Suitable for hospital or cleanroom garments, tools, wipes, process equipment, and other contamination-sensitive materials.

Laminar Flow HEPA Filtration:

WhisperFlow® Cleanroom FFU mounted above cabinet provides avg. velocity of 90+ FPM, airflow of 640+ CFM at Medium speed. Three speed settings (Low/Medium/High) simplify air balancing.

See FFU performance data and submittal sheets for additional information.

Single pass HEPA-filtration adds another layer of protection against contamination for materials being transferred. Slightly pressurized cabinet prevents outside air from leaking in. The bottom floor of the cabinet is perforated to optimize vertical laminar airflow.

High-Efficiency Particulate Air (HEPA) filter removes contaminating particles of 0.3 um or larger at 99.99% efficiency. Leak tested IEST Type J HEPA filter (exceeds EN1822 H13 classification) and meets UL 900.

Cabinet Design:

Corrosion resistant all-304 stainless steel surfaces resists most harsh chemicals and alcohol-based cleaning agents, won’t produce contaminants during sterilization.

Uses partial seam welds – not suitable for biological applications.

Door Design:

Door Interlock automatically engages when one side is open, to prevent other side.

304 stainless steel reinforced access doors extend cabinet's service life and improve rigidity for a tight seal.

Santoprene® “e”-shape non-outgassing rubber gasket firmly compresses to eliminate leaks. The one-piece resilient rubber gasket maintains its shape after compression and won't flatten, warp, crack, or degrade like ordinary foam gasket. Gasket is also mechanically attached to the door frame to avoid adhesive failure common with gasket tapes.

Locking handles feature heavy-duty steel bolts that extend vertically through the door to firmly shut the cabinet and ensure the doors do not accidentally creep open.

Chemical-resistant, static-dissipative PVC windows prevent static-clinging of particulates.

Optional Accessories:

Adjustable shelving, solid or perforated.

Sloped top minimizes particle accumulation and simplifies cleaning.

• Marks & Listings: CE

Specialty Pass-Through Chambers

Spacious Pass Through Cabinet for Efficient Re-Stocking
Stainless Steel Specimen Passthrough
Ruggedized Passthrough
Built-In 1-Way Mirror
Air Shower Cart Pass Through, Powder-Coated Steel

Double-door pass-through cabinet with interlocking doors, and adjustable shelving | 2633-01 displayed Spacious Pass Through Cabinet for Efficient Re-Stocking A double door pass-through cabinet allows quick transfer of materials or re-stock supplies from the “dirty” side without the need to enter the cleanroom. Versatile adjustable shelving offers improved storage capacity and space efficiency.

The recessed Specimen pass through cabinet is a convenient way to transfer samples in a lab or physician office. | 2640-97 displayed Stainless Steel Specimen Passthrough Stainless steel pass-through cabinet with self-closing door used to transfer biological samples for lab analysis. Removable spill tray simplifies cleaning.

Terra's Ruggedized pass-through chamber withstands heavy use and abuse; ideal for correctional facilities | 2640-67 displayed Ruggedized Passthrough Ruggedized Pass-Through Chambers feature heavy-duty, self-closing doors and wired safety glass on both sides of the pass-through for greater durability.

Shown is the pass-through chamber from the outside, looking in. Includes built-in 1-way mirror for privacy and security. | 2640-84 displayed Built-In 1-Way Mirror Built-in double pane viewing window with a 1-way mirror provides privacy and security.

Air Shower Pass-Through dislodges particles from carts and other equipment transferred into a cleanroom | 6705-71 displayed Air Shower Cart Pass Through, Powder-Coated Steel Air Shower Pass Throughs have an electronically activated, high-velocity HEPA blower system that removes surface-deposited particles from large materials, preventing cross-contamination of the cleanroom (model shown: powder-coated steel).

Features & Benefits

Features and Benefits

Pass Through Cabinet for Batch Prepped IV Bags

This pass-through cabinet allows transfer of batch prepped IV bags in a compounding cleanroom. An automatic mechanical interlock minimizes cross contamination by allowing only one side to open at a time.

double door pass through cabinet with adjustable shelving 304 stainless steel

Spacious Pass Through Cabinet for Efficient Re-Stocking

A double door pass-through cabinet allows quick transfer of materials or re-stock supplies from the “dirty” side without the need to enter the cleanroom. Versatile adjustable shelving offers improved storage capacity and space efficiency.

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and certify it with the serial numbers appended to your invoice, to be included in your compliance package.

Products Compliant With Your ISO Rating

High-capacity, durable, ISO-compliant system rated for thousands of operating hours.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Protect Against Contaminants and Pathogens

HEPA and ULPA filters help capture many bacteria, viruses (COVID-19), and mold spores that contribute to a host of infections for both humans and plant/animal tissue cultures
CleanTop™

The CleanTop™ is designed for installations that require the chamber to be centered in the wall. The 30° sloping top on the cleanroom-side minimizes particle accumulation and accommodates laminar downward airflow.
