9500-02B
Terra Part # 9500-02B
$942
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available In stock
Accessories related to Terra Part # 9500-02B
77310

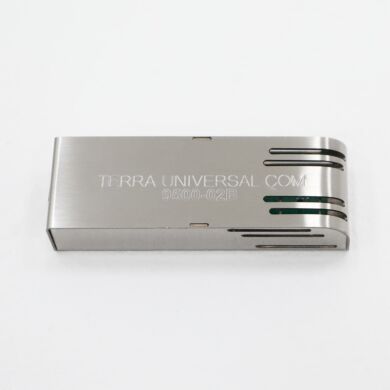

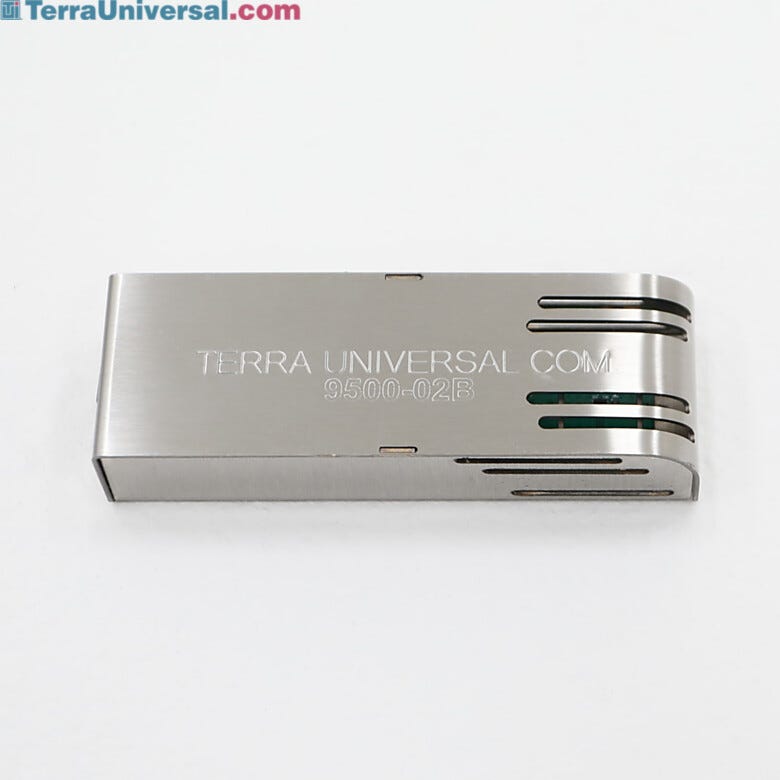

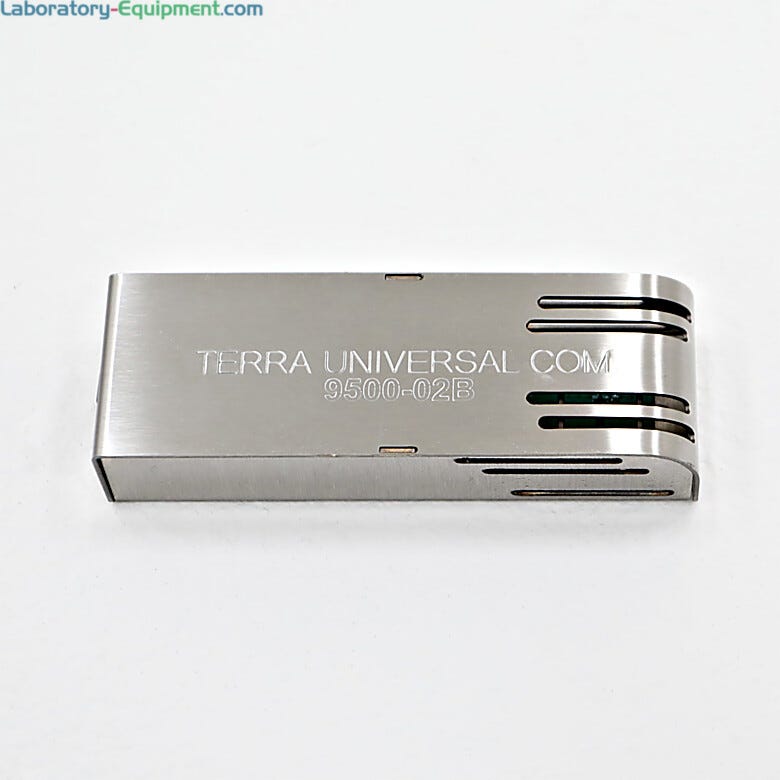

Sensor for Smart® IsoDry® NitroWatch™/Humex™ (Installed)
Product Details
  • Available Certified ISO Grade™ Designs: ISO 7, ISO 8
  • Installed inside desiccator or glovebox to measure temperature and humidity
  • Only compatible with Smart® IsoDry® NitroWatch™

Control Type: Smart NitroWatch Humidity Sensor

Case Material: 304 Stainless Steel

Data Logging: N/A

Temperature Reading: Yes

RH Accuracy: +/- 1.5% RH

Available Certified ISO Grade™ Designs: ISO 7, ISO 8

Certified ISO Grade™ Design: ISO 7

Unit of Measure: EA

Marks & Listings: CE, UL, ULC

Electrical Specifications: 12 V, 0.25 A, 1 Ph, 50/60 Hz

Weight, Product: 0.1875 lb

Dimensions, Product: 1.375" W x 4.125" D x 0.8125" H

Weight, Shipping: 1 lb

Dimensions, Shipping: 10" W x 6" D x 3" H

Package Type: Box

Buy Accessories
  1. Warranty; 2 Year, Desiccator, Parts
    Request Quote
    Increase Down Increase Up
  2. Warranty; 3 Year, Desiccator, Parts
    Request Quote
    Increase Down Increase Up

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.

Data Logging with 113,000 Readings at User Defined Intervals

Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.

Dual Purge™ System Diagram

The Dual Purge™ is a variable gas-purge system that switches between "high-flow" and "low-flow" to efficiently and effectively remove and block out moisture and contaminants. Without NitroWatch™, Dual Purge™ does not sense or display RH%. It uses magnetic door sensors to initiate high-flow. When a door is opened or when pressure drops, high-flow activates for a user-specified interval before switching back to an adjustable low-flow setting to conserve nitrogen. With all doors closed, the system maintains an economical "low-flow" to maintain constant positive pressure.

Dual Purge™ and Nitrowatch™ System Diagram

The NitroWatch module connects to a humidity sensor inside the desiccator cabinet and activates the Dual Purge to automatically maintain sub-ambient RH down to 0% RH. When the RH set-point is reached, the system reverts from high-flow to low-flow nitrogen gas to maintain the set-point and conserve nitrogen. When a door is opened, or when the RH climbs above set-point, the system re-activates high-flow to accelerate moisture removal.

Plug & Play Data Logging

Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.

Highest Standards For Desiccators and Electronic Components

Terra’s desiccator cabinets and RH control systems are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
