Terra Part # 2148-15
$25,313
Usually ships in 25-35 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2148-15
42554
Extra-Large HEPA-Filtered Cleanroom Oven; 67.5 cu. ft., Stainless Steel, 208 V

• Temperature: 60ºC +/- 2ºC (140ºF +/- 3.6ºF)

• Continuous recirculation ensures temperature uniformity

• Dual HEPA filters located in the ceiling of the process chamber

• Downward, laminar airflow to the floor-level vents for recirculation

• Heavy-duty, stainless steel door latch with high-temp gasket for a firm seal

• All filter sales are final; returns of this item cannot be accepted

Type: Cleanroom Compliant

Maximum Temperature: 60°C

Material: Stainless Steel

Capacity: 67.5 cu. ft.

Convection Type: Forced Air

Controls: Digital

Model: Cleanroom

Capacity Range: >15 cubic feet

Unit of Measure: EA

Electrical Specifications: 208 V, 20 A, 3,200 W, 1 Ph, 50/60 Hz

Weight, Product: 1,700 lb

Dimensions, Product: 43.5" W x 42" D x 107.75" H

Weight, Shipping: 1,830 lb

Dimensions, Shipping: 112" W x 49" D x 47" H

Package Type: Crate

Buy Accessories
  1. Equipment Testing
    Request Quote
    Increase Down Increase Up

Ovens

  • Extra-large cleanroom oven for medical device manufacturing Extra-Large Cleanroom Oven for Medical Device Manufacturing
  • Large Capacity Forced Air Multi-Purpose Oven Forced Air Multi-Purpose Oven
  • Forced Air Multi-Purpose Oven; 14 Cu. Ft., Digital Temperature Control Large Capacity Forced-Air-Multi-Purpose Oven
  • Forced Air Oven; 28 Cu. Ft., Digital Temperature Control Forced Air Oven; 28 Cu. Ft., Digital Temperature Control
Extra-large cleanroom oven for medical device manufacturing
Large Capacity Forced Air Multi-Purpose Oven
Forced Air Multi-Purpose Oven; 14 Cu. Ft., Digital Temperature Control
Forced Air Oven; 28 Cu. Ft., Digital Temperature Control

Features and Benefits

Cleanroom Oven Specifications

Specifications for High Capacity HEPA Filtered Cleanroom Oven

Construction Double-walled 304 stainless steel with polyurethane insulation
Overall dimensions 43.5"W x 42"D x 107.3"H
1105 mm x 1067 mm x 2725 mm
Internal dimensions 36"W x 36"D x 90"H
914 mm x 914 mm x 2286 mm
Heater 4000W
Temperature Range Ambient to 60°C (140°F)
Temperature Stability ±°C (3°F)
Filter 99.99% efficient HEPA (rated @ 0.3µm particles)
Power 208VAC, 20 Amps

Stability Chamber, High-Capacity HEPA-Filtered Oven

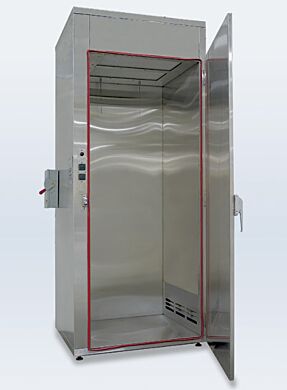

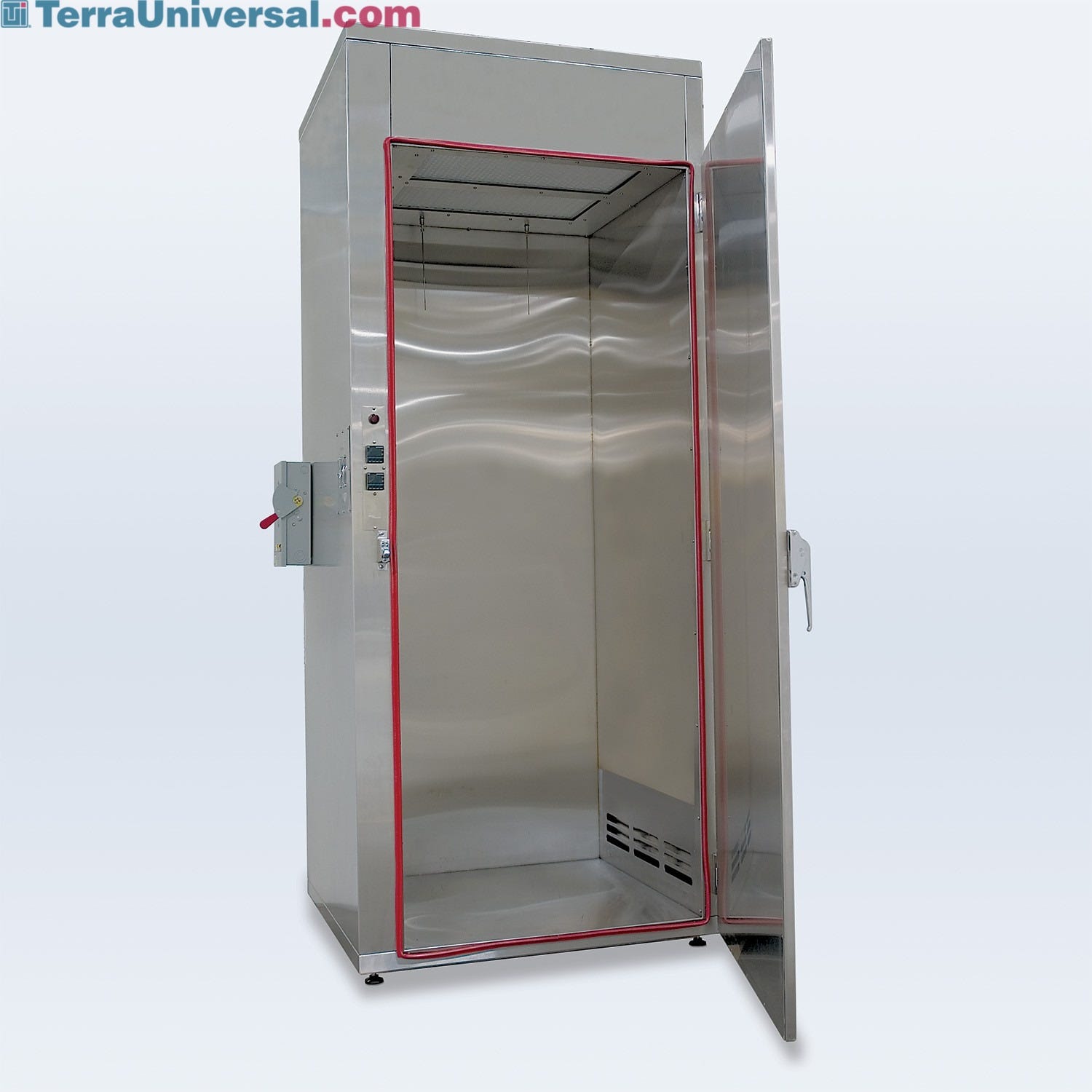

Terra’s high-capacity HEPA-filtered oven provides a clean, class 100 environment plus sustained uniform temperature up to 140° ± 4° F (60° ± 2°C). The easy-to-clean stainless steel design is ideal for sterile applications. Ideal for large items and batch processing operations.

Safety Switch Automatically Activates Ventilation

A safety switch attached to the door of the high-capacity cleanroom oven triggers when the door is opened, to activate the electric damper and help exhaust heat and fumes inside the oven. The operation status indicator (OSI) light glows continuously when oven is plugged in and turned on to confirm unit is operational. The OSI blinks when the unit is plugged in but switched off.

Electric Damper for Safe Exhaust of Heat and Fumes

An electric damper is included for connection to an exhaust system for safe removal of heat and fumes. It can be positioned on the top or side of the unit. An activated charcoal filter beneath the damper adsorbs a broad range of organic compounds and solvent fumes leaving the oven.

High-Capacity HEPA-Filtered Oven for Tall Materials

Dual HEPA filters and forced air convection provide ISO 5 (Class 100) micro-filtered air making it suitable for particle-sensitive baking, curing, drying, sterilization, and adhesive-based applications. The interior can be customized to include special racks that require hanging tall items, such as curing adhesives on catheters.

Bottom Air Return Slots for Recirculating HEPA Filtration

High-capacity HEPA-filtered stability chamber provides recirculating vertical laminar air flow for optimal cleanliness, temperature uniformity, and energy efficiency. Air is pushed down through the ceiling HEPA filters, passing through the process chamber, into the bottom air return slots, and back through the heating elements.
