Select Product



Maximum Temperature


Convection Type


Manufacturer SKU

Terra Part #PriceShips in
Stainless SteelAnalog306°C1.4 cu. ft.Gravity120 VSLG122 3616-00A $1,81315-19 Days2
Stainless SteelAnalog306°C1.4 cu. ft.Gravity240 VSLG122-EA 3616-00A-220 $1,99615-19 Days3
Powder-Coated Steel225°C3.4 cu. ft.Gravity120 VSGO3 3616-04 $2,16710-14 Days4
Powder-Coated Steel225°C3.4 cu. ft.Gravity240 VSGO3-2 3616-04-220 $2,38610-14 Days5
Powder-Coated Steel225°C5.4 cu. ft.Gravity120 VSGO5 3616-05 $2,67010-14 Days6
Powder-Coated Steel225°C5.4 cu. ft.Gravity240 VSGO5-2 3616-05-220 $2,93710-14 Days7
Maximum Temperature
Convection Type
Manufacturer SKU
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

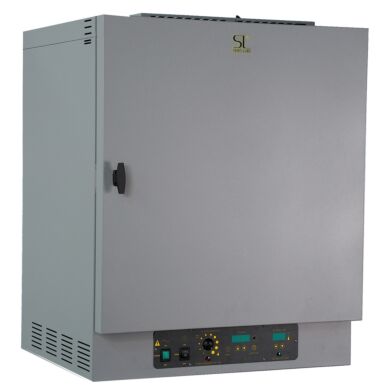

Product Details

• Sturdy with triple wall construction

• Shel Lab Gravity Convection Ovens deliver precise temperature uniformity and air distribution

• Temperature and microprocessor controls and an adjustable air exhaust

• Units are well suited for a variety of drying, baking and curing applications

• Available in 3.4 and 5.4 cu. ft. capacities

• Features: Triple wall construction, Microprocessor Controls, Superb Temperature Control and Cool Touch Damper

• Adjustable air exhaust away from heat source

• Digital timer (99hr and 59 min); power retains heating elements when times expires

• Optional reversible door

• Outer skin meets CE requirements even at 225°C; keeps applications hot without heating up workspace

• CE Approved on select models


  • Shel Lab Gravity Convection Laboratory Oven Shel Lab Gravity Convection Laboratory Oven
Shel Lab Gravity Convection Laboratory Oven

Features & Benefits

Features and Benefits

Applications and Specifications

RapidVap Vacuum Dry Evaporation Systems by Labconco

Applications: drying, baking, curing; drying glassware, paper and pulp, textiles, non-flammable crystalline chemicals solid materials and tissue; biochemical research, drug metabolism research, moisture content analysis, pre-heating containers, moisture elimination, chemical precipitation, proteins starch digestion
Specifications for Gravity Convection Laboratory Ovens
Electrical110-120V / 220-230V
MaterialCold rolled mild steel; powder coated (external); 430 stainless steel (internal)
ShelvesIncludes 2/Holds maximum of 8
Temperature RangeAmbient + 15°C to 225°C
Temperature Recovery11 minutes at 150°C
Heat-up Time36 minutes at 150°C
Temperature Uniformity± 3°C at 150°C (3.4 cu. ft. models) and ± 4.0°C at 150°C (5.4 cu. f.t models)
Note: All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within ±10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodologies. Manufacturer reserves the right to change specifications at any time.

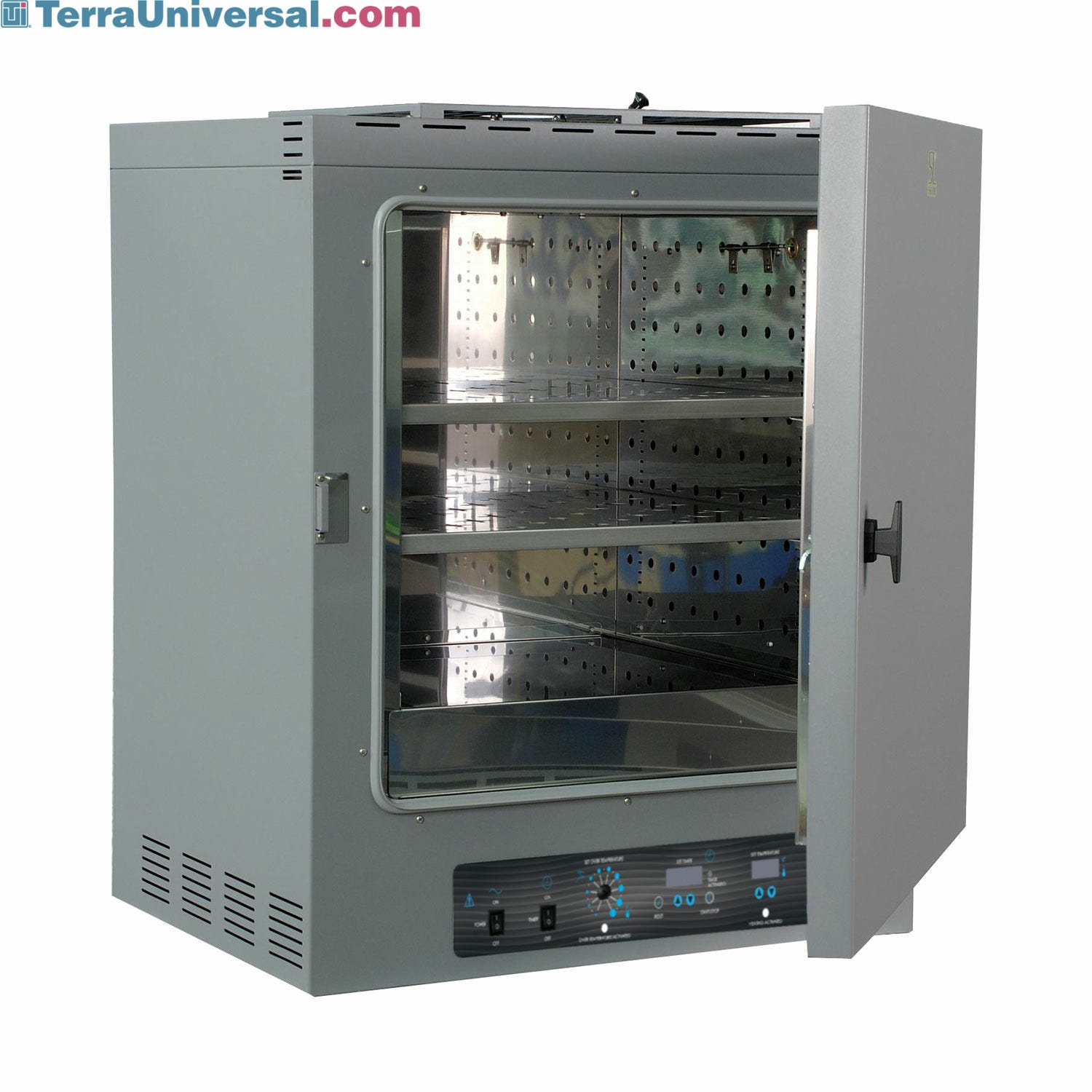

Gravity Convection Oven with adjustable shelves

Shel Lab Gravity Convection Ovens in double wall or triple wall construction models deliver gentle heating/drying and precise temperature uniformity

Economy Oven Airflow Chart

The Gravity Convection Economy Ovens saves energy while the double wall construction maintains uniform temperatures. Units deliver gentle heating and drying of lightweight samples such as powders, lightweight films and granular material.
