Select Product





Convection Type


Manufacturer SKU

Terra Part #PriceShips in
120VacuumStainless SteelAnalog2200.6VacuumSVACSVAC1E 3900-11 57215 $1,97918-24 Days2
120VacuumStainless SteelAnalog2201.7VacuumSVACSVAC2E 3900-12 57217 $2,37418-24 Days3
120VacuumStainless SteelDigital2200.6Forced AirSVACSVAC1 3900-32 57241 $4,43818-24 Days4
120VacuumStainless SteelDigital2201.7Forced AirSVACSVAC2 3900-33 57242 $5,69518-24 Days5
120VacuumStainless SteelDigital2204.5Forced AirSVACSVAC4 3900-34 57243 $11,01418-24 Days6
240Large CapacityStainless SteelDigital2209.3Forced AirSVACSVAC9-2 3900-80 65372 $16,38518-24 Days7
Maximum Temperature
Convection Type
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary
Product Details
  • Shel Lab Vacuum Ovens have a rugged construction and a cross ventilation airflow feature on select models that distribute inert gas throughout the chamber
  • Spring-loaded glass door with a positive latch handle ensures a tight vacuum seal to ensure gasket longevity
  • Models are ideal for samples that require gentle drying at lower temperatures.
  • Economy Analog Vacuum Oven models are compact with a capacity of 0.6 or 1.67 cu. ft.
  • Standard Digital Vacuum Ovens range from compact to mid-size available in three capacity sizes of 0.6, 1.67 and 4.5 cu. ft.

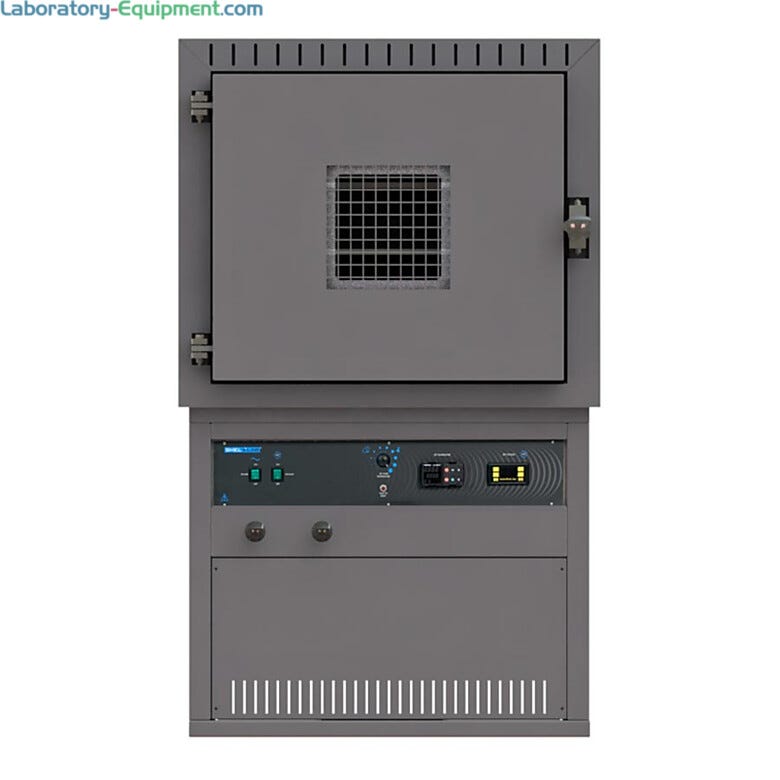

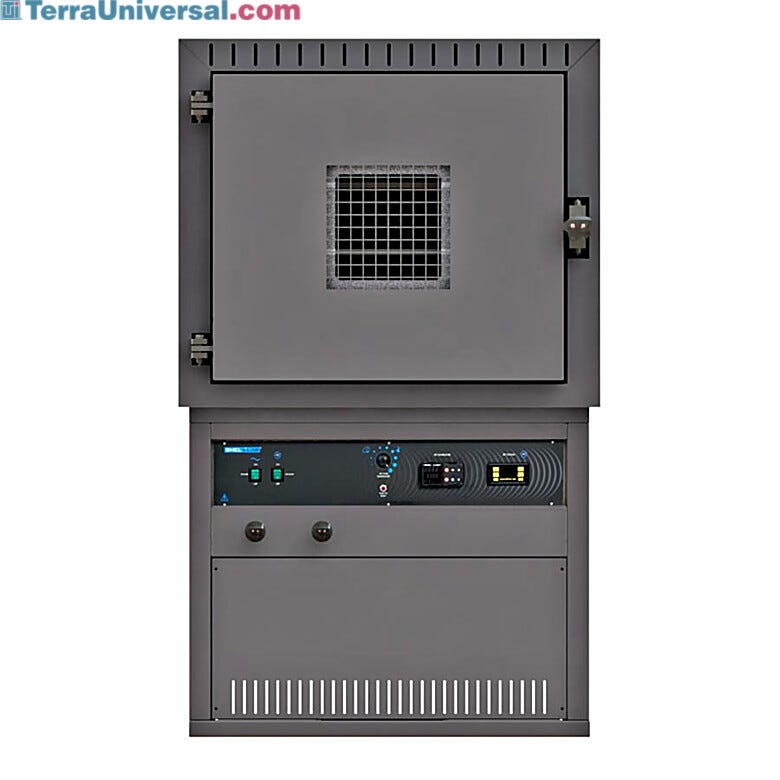

  • Digital Large Capacity models have the same feature of digital models, plus the addition of a mobile stand and an optional stainless steel exterior for Cleanroom applications.
  • Gentle drying capabilities leaves no residue accumulation on products
  • Provides fast, gentle drying of heat sensitive samples and materials
  • All models feature doors with positive latch handles, spring-loaded glass, cross ventilation airflow design, stainless steel interior
  • Rugged construction with stainless steel interiors
  • Temperature range from 10°C above ambient to 220°C
  • Vacuum Ranges from -101 to -1010 mbar

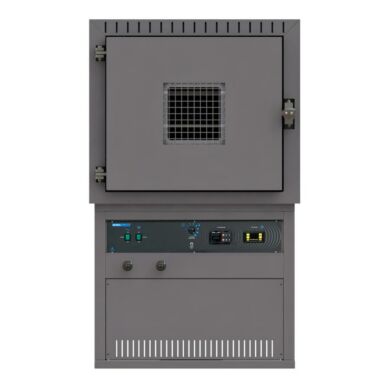

  • Shel Lab Large Capacity Vacuum Oven Shel Lab Large Capacity Vacuum Oven
  • Shel Lab Analog Economy Model Oven Shel Lab Analog Economy Model Oven
  • Shel Lab Digital Standard Model Vacuum Oven Shel Lab Digital Standard Model Vacuum Oven
Features & Benefits

Features & Benefits

Compare Vacuum Ovens by Shel Lab

Additional Features of Shel Lab Vacuum Ovens

Complete list of Applications
  • Aging Tests
  • Chemical Resistance Studies
  • Desiccating
  • Drying of Paper
  • Dry Sterilization
  • Electronic Process Control
  • Moisture Determination
  • Out Gassing Liquids
  • Out Gassing Solids
  • Plating
  • Rubber and Textiles
  • Vacuum Storage
External Dimensions (WxDxH)17.5 x 22.8 x 23.5 in. (445 x 578 x 597mm)15.5 x 19 x 22.5 in. (39.4 x 48.3 x 57.2 mm)20.5 x 29.5 x 26.3 in. (521 x 750 x 667mm)18.5 x 27.8 x 25.3 in. (470 x 705 x 642 mm)26.5 x 34.5 x 32.3 in. (674 x 877 x 820 mm)36 x 46.5 x 62 in. (915 x 1182 x 1575 mm)
Internal Dimensions (WxDxH)9 x 12 x 9 in. (228 x 304 x 228 mm)9 x 12 x 9 in. (228 x 304 x 228 mm)12 x 20 x 12 (304 x 508 x 304 mm)12 x 20 x 12 (304 x 508 x 304 mm)18 x 24 x 18 in. (457 x 609 x 457 mm )28 x 24 x 24 in. (711 x 609 x 609 mm)
Electrical115V, 60 Hz115V, 60 Hz115V, 60 Hz115V, 60 Hz115V, 60 Hz220 - 230 volts
Capacity0.6 Cu. Ft.(16L)0.6 Cu. Ft. (16L)1.7. (47 L)1.7. (47 L)4.5. (127 L)9.3. (264 L)
Temperature RangeAmbient +10°C to 220°CAmbient +15°C to 210°CAmbient +10°C to 220°CAmbient +15°C to 210°CAmbient +10°C to 220°CAmbient +5°C to 220°C
Temperature Uniformity+/-6% of set point+/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C+/-6% of set point+/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C+/-6% of set point+/- 7.0ºC at 150ºC
Temperature Increments0.1°CAnalog Control0.1°CAnalog Control0.1°C0.1°C
Number of Shelves323233
MaterialSS InteriorSS InteriorSS InteriorSS InteriorSS InteriorSS interior with option for SS exterior
Max. Energy Consumption840/1080 W600/575 W1200/1320 W1200/1150 W1560/1680 WNot Available
Airflow DesignCross VentilationCross Ventilation--Cross VentilationCross Ventilation--
Agency ApprovalTUV - CUE--TUV - CUE--TUV- CUE--
Heat-up Time90 minutes to 150°C
Vacuum Range-101 to -1010 mbar
WarrantyTwo-Year Manufacturer Warranty
